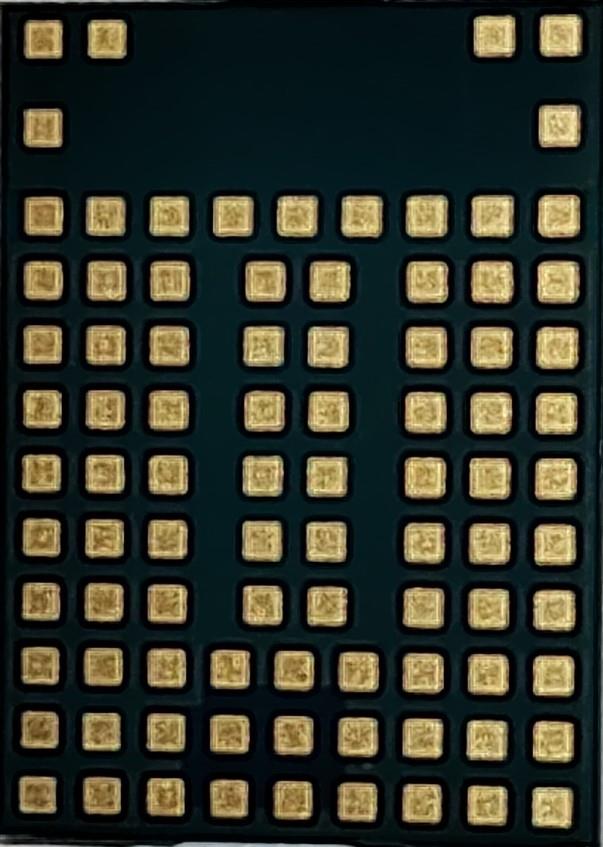

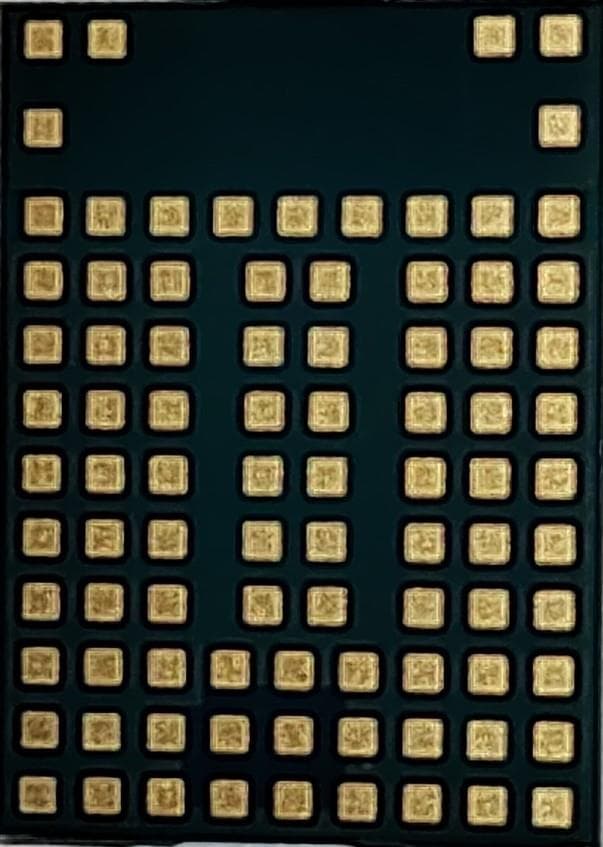

XPYMAYAW3AWLAN and Bluetooth module

UBXDOC-465451970-2522 - R01 C2-Restricted www.u-blox.com MAYA-W3 series Host-based multiradio modules with Wi-Fi 6/6E and Bluetooth 5.4 System integration manual Abstract Targeted towards hardware and software application engineers, this document describes how to integrate MAYA-W3 modules in application products and explains the hardware design-in, software, component handling, regulatory compliance, and testing of the modules. It also lists the external antennas approved for use with the module. Designed for a wide range of industrial applications, this range of ultra-compact, cost-efficient, host-based, multiradio modules includes product variants that are supplied with or without internal antenna. Integrated with a MAC/Baseband processor and RF front end components, MAYA-W3 modules connect to a host processor through various interfaces, including SDIO / GSPI for Wi-Fi, High-Speed UART for Bluetooth.  MAYA-W3 series - System integration manual UBXDOC-465451970-2522 - R01 Document information Page 2 of 60 C2-Restricted Document information Title MAYA-W3 series Subtitle Host-based multiradio modules with Wi-Fi 6/6E and Bluetooth 5.4 Document type System integration manual Document number UBXDOC-465451970-2522 Revision and date R01 Disclosure restriction C2-Restricted Document status description Draft For functional testing. Revised and supplementary data will be published later. Objective Specification Target values. Revised and supplementary data will be published later. Advance Information Data based on early testing. Revised and supplementary data will be published later. Early Production Information Data from product verification. Revised and supplementary data may be published later. Production Information Document contains the final product specification. This document applies to the following products: Product name Type number Chipset PCN reference Product status MAYA-W380 MAYA-W380-00B-00 CYW55513 N/A Functional sample MAYA-W381 MAYA-W381-00B-00 CYW55513 N/A Initial production MAYA-W382 MAYA-W382-00B-00 CYW55513 N/A Initial production MAYA-W383 MAYA-W383-00B-00 CYW55513 N/A Initial production MAYA-W386 MAYA-W386-00B-00 CYW55513 N/A Initial production MAYA-W361 MAYA-W361-00B-00 CYW55512 N/A Initial production MAYA-W362 MAYA-W362-00B-00 CYW55512 N/A Initial production MAYA-W363 MAYA-W363-00B-00 CYW55512 N/A Initial production MAYA-W366 MAYA-W366-00B-00 CYW55512 N/A Initial production MAYA-W331 MAYA-W331-00B-00 CYW55511 N/A Initial production MAYA-W330 MAYA-W330-00B-00 CYW55511 N/A Functional sample MAYA-W332 MAYA-W332-00B-00 CYW55511 N/A Initial production MAYA-W333 MAYA-W333-00B-00 CYW55511 N/A Initial production MAYA-W336 MAYA-W336-00B-00 CYW55511 N/A Initial production ☞ For information about the related hardware, software, and status of listed product types, see also the respective data sheets [1]. MAYA-W3 series - System integration manual UBXDOC-465451970-2522 - R01 Document information Page 3 of 60 C2-Restricted u-blox or third parties may hold intellectual property rights in the products, names, logos, and designs included in this document. Copying, reproduction, or modification of this document or any part thereof is only permitted with the express written permission of u-blox. Disclosure to third parties is permitted for clearly public documents only. The information contained herein is provided “as is” and u-blox assumes no liability for its use. No warranty, either express or implied, is given, including but not limited to, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information. This document may be revised by u-blox at any time without notice. For the most recent documents, visit www.u-blox.com. Copyright © u-blox AG. MAYA-W3 series - System integration manual UBXDOC-465451970-2522 - R01 Contents Page 4 of 60 C2-Restricted Contents Document information ................................................................................................................................ 2 Contents .......................................................................................................................................................... 4 1 System description ............................................................................................................................... 7 1.1 Overview ........................................................................................................................................................ 7 1.2 Module architecture ................................................................................................................................... 7 2 Module integration ................................................................................................................................ 8 2.1 Power supply interface............................................................................................................................... 9 2.2 Antenna interfaces ..................................................................................................................................... 9 2.2.1 Antenna solutions .............................................................................................................................. 9 2.2.2 RF pins and connectors .................................................................................................................... 11 2.2.3 Approved antenna designs .............................................................................................................. 11 2.2.4 Integrated antennas .........................................................................................................................12 2.2.5 External antennas .............................................................................................................................12 2.2.6 Internal antennas .......................................................................................…

Text truncated - open the document above for the full version.

MAYA-W3 photos UBXDOC-885269510-116290 Page 1 of 2 MAYA-W386-00B Internal photo Topic : MAYA-W386-00B Internal photo Doc.No: UBXDOC-885269510-116290 Revision R01 Date: Name Signature Created 17-Nov-2025 Lucian Farmathy-Pop lfar Checked Released 17-Nov-2025 Lucian Farmathy-Pop lfar We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. © 20168 u-blox AG 1 Scope This document provides internal photo of the MAYA-W386-00B module. It is part of the equipment certification application issued to FCC and ISED. The photos have been taken with the RF shield removed. 2 FCC/IC ID reference Ordering Code(s) FCC ID ISED ID MAYA-W386-00B XPYMAYAW3A 8595A-MAYAW3A Table 1: FCC and IC IDs for MAYA-W386-00B module variant MAYA-W3 photos UBXDOC-885269510-116290 Page 2 of 2 3 Top view 3.1 Internal photo Figure 1: MAYA-W386-00B internal photo

MAYA-W3 photos UBXDOC-885269510-116279 Page 1 of 2 MAYA-W331-00B Internal photo Topic : MAYA-W331-00B Internal photo Doc.No: UBXDOC-885269510-116279 Revision R01 Date: Name Signature Created 17-Nov-2025 Lucian Farmathy-Pop lfar Checked Released 17-Nov-2025 Lucian Farmathy-Pop lfar We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. © 20168 u-blox AG 1 Scope This document provides internal photos of the MAYA-W331-00B module variant. It is part of the equipment certification application issued to FCC and ISED. The photos have been taken with the RF shield removed. 2 FCC/IC ID reference Ordering Code(s) FCC ID ISED ID MAYA-W331-00B XPYMAYAW3A 8595A-MAYAW3A Table 1: FCC and IC IDs for MAYA-W331-00B module variant MAYA-W3 photos UBXDOC-885269510-116279 Page 2 of 2 3 Top view 3.1 Internal photo Figure 1: MAYA-W331-00B internal photo

MAYA-W3 photos UBXDOC-885269510-116280 Page 1 of 2 MAYA-W332-00B Internal photo Topic : MAYA-W332-00B Internal photo Doc.No: UBXDOC-885269510-116280 Revision R01 Date: Name Signature Created 17-Nov-2025 Lucian Farmathy-Pop lfar Checked Released 17-Nov-2025 Lucian Farmathy-Pop lfar We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. © 20168 u-blox AG 1 Scope This document provides internal photo of the MAYA-W332-00B module. It is part of the equipment certification application issued to FCC and ISED. The photos have been taken with the RF shield removed. 2 FCC/IC ID reference Ordering Code(s) FCC ID ISED ID MAYA-W332-00B XPYMAYAW3A 8595A-MAYAW3A Table 1: FCC and IC IDs for MAYA-W332-00B module variant MAYA-W3 photos UBXDOC-885269510-116280 Page 2 of 2 3 Top view 3.1 Internal photo Figure 1: MAYA-W332-00B internal photo

MAYA-W3 photos UBXDOC-885269510-116281 Page 1 of 2 MAYA-W333-00B Internal photo Topic : MAYA-W333-00B Internal photo Doc.No: UBXDOC-885269510-116281 Revision R01 Date: Name Signature Created 17-Nov-2025 Lucian Farmathy-Pop lfar Checked Released 17-Nov-2025 Lucian Farmathy-Pop lfar We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. © 20168 u-blox AG 1 Scope This document provides internal photo of the MAYA-W333-00B module. It is part of the equipment certification application issued to FCC and ISED. The photos have been taken with the RF shield removed. 2 FCC/IC ID reference Ordering Code(s) FCC ID ISED ID MAYA-W333-00B XPYMAYAW3A 8595A-MAYAW3A Table 1: FCC and IC IDs for MAYA-W333-00B module variant MAYA-W3 photos UBXDOC-885269510-116281 Page 2 of 2 3 Top view 3.1 Internal photo Figure 1: MAYA-W333-00B internal photo

MAYA-W3 photos UBXDOC-885269510-116282 Page 1 of 2 MAYA-W336-00B Internal photo Topic : MAYA-W336-00B Internal photo Doc.No: UBXDOC-885269510-116282 Revision R01 Date: Name Signature Created 17-Nov-2025 Lucian Farmathy-Pop lfar Checked Released 17-Nov-2025 Lucian Farmathy-Pop lfar We reserve all rights in this document and in the information contained therein. Reproduction, use or disclosure to third parties without express authority is strictly forbidden. © 20168 u-blox AG 1 Scope This document provides internal photo of the MAYA-W336-00B module. It is part of the equipment certification application issued to FCC and ISED. The photos have been taken with the RF shield removed. 2 FCC/IC ID reference Ordering Code(s) FCC ID ISED ID MAYA-W336-00B XPYMAYAW3A 8595A-MAYAW3A Table 1: FCC and IC IDs for MAYA-W336-00B module variant MAYA-W3 photos UBXDOC-885269510-116282 Page 2 of 2 3 Top view 3.1 Internal photo Figure 1: MAYA-W336-00B internal photo

Test Laboratory: 7layers GmbH Borsigstrasse 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7layers GmbH Geschäftsführer/ Borsigstraße 11 Managing Directors: Registergericht/registered: a Bureau Veritas 40880 Ratingen, Germany Jörg-Timm Kilisch Düsseldorf HRB 75554 Group Company T +49 (0) 2102 749 0 Bernhard Retka USt-Id.-Nr./VAT-No. DE203159652 F +49 (0) 2102 749 350 Steuer-Nr./TAX-No. 147/5869/0385 www.7layers.com Commerzbank AG Account No. 303 016 000 Bank Code 300 400 00 IBAN DE81 3004 0000 0303 0160 00 Swift Code COBADEFF FCC RF Exposure Assessment on MAYA-W3 FCC ID: XPYMAYAW3A Report Reference: MDE_UBLOX_2408_MPE_01 TEST REPORT REFERENCE: MDE_UBLOX_2408_MPE_01 Page 2 of 14 Contents 1 Applied Standards .................................................................................................... 3 2 Summary ................................................................................................................ 4 3 Revision History ....................................................................................................... 5 4 Administrative Data .................................................................................................. 6 4.1 Testing Laboratory ........................................................................................... 6 4.2 Project Data .................................................................................................... 6 4.3 Applicant Data ................................................................................................. 6 4.4 Manufacturer Data ........................................................................................... 6 5 Test object Data ...................................................................................................... 7 6 Assessment ............................................................................................................. 8 6.1 Assessment method and technologies of assessment ............................................ 8 6.2 Single RF Source exemption limits ...................................................................... 9 6.3 Multiple RF Source exemption limits ................................................................. 10 6.4 Calculation .................................................................................................... 12 TEST REPORT REFERENCE: MDE_UBLOX_2408_MPE_01 Page 3 of 14 1 Applied Standards Type of Authorization Certification for an Intentional Radiator Applicable FCC Rules Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 1 and 2 (10-1-23 Edition). The following subparts are applicable to the results in this test report. Part 1, Subpart I Practice and Procedure, Procedures Implementing the National Environmental Policy Act of 1969 § 1.1307: Actions that may have a significant environmental effect, for which Environmental Assessments (EAs) must be prepared. Part 2, Subpart J Equipment Authorization Procedures, Certification § 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. § 2.1093: Radiofrequency radiation exposure evaluation: portable devices. The following KDB is applied: KDB 447498 D04, v01: Interim General RF Exposure Guidance RF Exposure Procedures and Equipment Authorization Policies for Mobile and Portable Devices TEST REPORT REFERENCE: MDE_UBLOX_2408_MPE_01 Page 4 of 14 2 Summary This RF-exposure evaluation according to the – in chapter 1 - mentioned rule parts and KDB shows, that the worst-case RF exposure values of the assessed radio technologies and bands are below the exemption limits of the mentioned rule parts. The following exemption rule part(s) were selected: ☐ 1-mW Test Exemption, § 1.1307(b)(3)(i)(A) 447498 D04 Interim General RF Exposure Guidance v01, 2.1.2 Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. ☒ MPE based test exemption, § 1.1307(b)(3)(i)(C) 447498 D04 Interim General RF Exposure Guidance v01, 2.1.4 An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time- averaged power.10 For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). ☐ SAR based test exemption, § 1.1307(b)(3)(i)(B) 447498 D04 Interim General RF Exposure Guidance v01, 2.1.3 A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) powe…

Text truncated - open the document above for the full version.

APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLE BALANCE ANTENNA APPLICATION SPECIFICATION SHEET No. J1 EC No: 729862 1 of 31 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461530100 Liu Hai Andy Zhang Chris Zhong TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC TITLE WIFI 6E FLEX CABLE BALANCE ANTENNA TABLE OF CONTENTS 1.0 SCOPE 2.0 PRODUCT DESCRIPTION 3.0 APPLICABLE DOCUMENTS 4.0 ANTENNA PERFORMANCE 5.0 ASSEMBLY GUIDELINE 6.0 RF PERFORMANCE AS A FUNCTION OF IMPLEMENTATION 7.0 THE ANTENNA PERFORMANCE VARIATION WITH CABLE LENGTH 8.0 OTHER MOLEX ANTENNA PRODUCTS 9.0 CHANGE HISTORY APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLE BALANCE ANTENNA APPLICATION SPECIFICATION SHEET No. J1 EC No: 729862 2 of 31 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461530100 Liu Hai Andy Zhang Chris Zhong TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC WIFI 6E FLEX CABLE BALANCE ANTENNA 1.0 SCOPE This specification describes the antenna application and surrounding. The information in this document is for reference and benchmark purposes only. The user is responsible for validating antenna rf performance based on the user’s actual implementation. Antenna illustrations in this document are generic representations. They are not intended to be an image of any antenna listed in the scope. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: WIFI 6E flex cable balance antenna Series Number: 146153 2.2 DESCRIPTION Series 146153 is a balanced, dipole-type, high efficiency antenna for 2.4/5/6 GHz applications, including WiFi 6E, Bluetooth, Zigbee and others. This antenna is made from poly flexible material with small size 35*9*0.1mm and has double-sided adhesive tape for easy “peel and stick” mounting. This balanced antenna with ground plane independent design offers various cable length options for ease of integration into various devices. 2.3 PRODUCT STRUCTURE INFORMATION Please refer to PS-1461530100 for full information. ANTENNA 3D VIEW APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLE BALANCE ANTENNA APPLICATION SPECIFICATION SHEET No. J1 EC No: 729862 3 of 31 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461530100 Liu Hai Andy Zhang Chris Zhong TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 3.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing (SD) SD-1461530050 Mechanical Dimension of the product SD-1461531050 Product Specification (PS) PS-1461530100 Product Specification Packing Drawing (PK) PK-1461530100 Product packaging specifications 4.0 ANTENNA PERFORMANCE 4.1 RF TEST CONDITIONS All measurements are done of the antenna mounted on a PC/ABS material block of 1.5mm thickness with VNA Agilent E5071C and Over-The-Air (OTA) chamber. All measurements in this document are done with the part no.1461530100 with a cable length of 100mm. FIGURE4.1.1 ANTENNA LOADED WITH PC/ABS BLOCK OF 1.5 MM THICKNESS APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLE BALANCE ANTENNA APPLICATION SPECIFICATION SHEET No. J1 EC No: 729862 4 of 31 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461530100 Liu Hai Andy Zhang Chris Zhong TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC FIGURE4.1.2 ANTENNA LOADED WITH PC/ABS BLOCK OF 1.5 MM THICKNESS WITH VNA DUT APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLE BALANCE ANTENNA APPLICATION SPECIFICATION SHEET No. J1 EC No: 729862 5 of 31 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461530100 Liu Hai Andy Zhang Chris Zhong TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC FIGURE4.1.3 ANTENNA LOADED WITH PC/ABS BLOCK OF 1.5 MM THICKNESS WITH OTA CHAMBER DUT APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLE BALANCE ANTENNA APPLICATION SPECIFICATION SHEET No. J1 EC No: 729862 6 of 31 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461530100 Liu Hai Andy Zhang Chris Zhong TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.2 ANTENNA PERFORMANCE All measurements in this document are done with the part no.1461530100 with a cable length of 100mm DESCRIPTION EQUIPMENT REQUIREMENT Frequency Range VNA E5071C 2.4-2.5GHz 5.15-5.85GHz 5.925- 7.125GHz Return Loss VNA E5071C <- 10dB Peak Gain (Max) OTA Chamber 3.0dBi 4.0dBi 5.5dBi Average Total Efficiency OTA Chamber >75% >75% >70% Polarization OTA Chamber Linear Input Impedance VNA E5071C 50 ohms Note that the above antenna performance is measured with just the antenna mounted on a PC/ABS block to similar a free-space condition. When implement into the system, the frequency resonant might be off-tune due to the loading of surrounding components especially metal plane. This off-tune can be compensated through matching. Although module manufacturers specify a peak gain limit, it is based on free-space conditions. The peak gain will be degraded by 1 to 2dBi in the actual implementation as the radiation pattern will change due to the surround components. As such, during selection of antenna, you can select one with high peak gain to compensate for the loss. Molex can offer assistant to choose the best location and best tuning in-order to meet this peak gain requirement. APPLICATION SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E FLEX CABLE BALANCE ANTENNA APPLICATION SPECIFICATION SHEET No. J1 EC No: 729862 7 of 31 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: AS-1461530100 Liu Hai Andy Zhang Chris Zhong TEMPLATE FILENAME: APPLICATION_SPEC[SIZE_A](V.1).DOC 4.3 RETURN LOSS PLOT All measurements in this document are done with a cable length of 100mm. FIGURE 4.3.1 RETURN LOSS OF ANTENNA AT 2.4GHZ BAND IN FREE SPACE FIGURE 4.3.2 RET…

Text truncated - open the document above for the full version.

PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 1 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC TITLE WIFI 6E FLEX CABLE BALANCE ANTENNA TABLE OF CONTENTS 1. SCOPE 2. PRODUCT DESCRIPTION 3. GENERAL SPECIFICATION 4. PRODUCT STRUCTURE INFORMATION 5. APPLICABLE DOCUMENTS 6. ANTENNA SPECIFICATION 7. MECHANICAL SPECIFICATION 8. ENVIRONMENTAL SPECIFICATION 9. PACKING 10. OTHER MOLEX ANTENNA PRODUCTS 11. CHANGE HISTORY PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 2 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC WIFI 6E FLEX CABLE BALANCE ANTENNA 1.0 SCOPE This Product Specification covers the mechanical, electrical and environmental performances specification for WiFi 6E flex cable balance antenna. 2.0 PRODUCT DESCRIPTION 2.1 PRODUCT NAME AND SERIES NUMBER (S) Product name: WiFi 6E flex cable balance antenna Series Number: 146153 Series 2.2 DESCRIPTION Series 146153 is a balanced, dipole-type, high efficiency antenna for 2.4/5/6 GHz applications, including WiFi 6E, Bluetooth, Zigbee and others. This antenna is made from poly flexible material with small size 35*9*0.1mm and has double-sided adhesive tape for easy “peel and stick” mounting. This balanced antenna with ground plane independent design offers various cable length options for ease of integration into various devices. 2.3 FEATURES  2400~2500MHz,5150~5850MHz,5925~7125MHz, linear polarization  Ground plane independent, balanced dual band antenna  Flex size 35 x 9 x 0.1mm (not contain solder area)  MHF & U.FL compatible connector (Such as MHF1/MHF4)  Cable Ø1.13mm, 6 standard length options (50/100/150/200/250/300mm)  Cable and connector can be customized Molex 146153 SERIES 3D VIEW PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 3 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 3.0 GENERAL SPECIFICATION Product name WIFI 6E FLEX CABLE BALANCE ANTENNA Part number 146153 Frequency 2.4GHz-2.5GHz 5.15GHz- 5.85GHz 5.925GHz- 7.125GHz Polarization Linear Operating with matching -40°C to 85°C Storage with matching -40°C to 85°C RF Power 2 Watts Impedance with matching 50 Ohms Antenna type Flex Connector type 146153 0XXX 146153 1XXX Compatible MHF1 Compatible MHF4L User Implementation type Adhesive 3M9077 Cable diameter Ø1.13mm Cable length 50 mm (P/N for 1461530050/1461531050) 100 mm (P/N for 1461530100/1461531100) 150 mm (P/N for 1461530150/1461531150) 200 mm (P/N for 1461530200/1461531200) 250 mm (P/N for 1461530250/1461531250) 300 mm (P/N for 1461530300/1461531300) Adhesive Application Bond strength is dependent upon the amount of adhesive-to-surface contact developed. Firm application pressure helps develop better adhesive contact and improves bond strength. To obtain optimum adhesion, the bonding surfaces must be clean, dry, and well unified. Some typical surface cleaning solvents are isopropyl alcohol/water mixture or heptane. Ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial tape application to surfaces at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. However, once properly applied, low temperature holding is generally satisfactory. PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 4 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 4.0 PRODUCT STRUCTURE INFORMATION P/N 146153 0XXX Mechanical Structure Information for 1461530XXX PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 5 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC P/N 146153 1XXX Mechanical Structure Information for 1461531XXX PRODUCT SPECIFICATION REVISION: ECR/ECN INFORMATION: TITLE: WIFI 6E CABLE FLEX BALANCE ANTENNA PRODUCT SPECIFICATION SHEET No. F3 EC No: 729862 6 of 11 DATE: 2022/11/25 DOCUMENT NUMBER: CREATED / REVISED BY: CHECKED BY: APPROVED BY: PS-1461530100 Kang Cheng Ma Horace Benson Hung TEMPLATE FILENAME: PRODUCT_SPEC[SIZE_A4](V.1).DOC 5.0 APPLICABLE DOCUMENTS DOCUMENT NUMBER DESCRIPTION Sale Drawing (SD) SD-1461530050 Mechanical Dimension of the product SD-1461531050 Application Guide (AS) AS-1461530100 Antenna Application and surrounding Packing Drawing (PK) PK-1461530100 Product packaging specifications 6.0 ANTENNA SPECIFICATION All measurements are done of the antenna mounted on a PC/ABS material block of 1.5 mm thickness with VNA Agilent E5071C and Over-The-Air (OTA) chamber. All measurements in this document are done with the part no.1461530100 for different cable length. 6.1 ELECTRICAL REQUIREMENT 6.1.1 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 50mm P/N 1461530050 Frequency Range 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925-7.125GHz Peak Gain (Max) 3.2dBi 4.25dBi 5.8dBi Average Total efficiency >78% >79% >75% Return Loss < -10 dB < -10 dB < -10 dB 6.1.2 ELECTRICAL REQUIREMENTS FOR CABLE LENGHTH 100mm P/N 1461530100 Frequency Range 2.4GHz-2.5GHz 5.15GHz-5.85GHz 5.925-7.125GHz Peak Gain (Max) 3.0dBi 4.0dBi 5.5dBi Average Total eff…

Text truncated - open the document above for the full version.

Americas: +1.847.839.6907 [email protected] Europe: +44.1628.858941 [email protected] Asia: +86.21.5855.0827.127 [email protected] www.lairdtech.com FEATURES • Covers 2.4 to 2.5 GHz for 802.11b, and 4.9 to 6 GHz for 802.11a and all US, European, and Japanese WLAN applications • Omni-directional patterns at all frequencies with increased gain in upper bands for optimal coverage ANT-DS-WTS 2450 080114 Any information furnished by Laird, Inc. and its agents is believed to be accurate and reliable. All specifications are subject to change without notice. Responsibility for the use and application of Laird materials rests with the end user, since Laird and its agents cannot be aware of all potential uses. Laird makes no warranties as to the fitness, merchantability or suitability of any Laird materials or products for any specific or general uses. Laird shall not be liable for incidental or consequential damages of any kind. All Laird products are sold pursuant to the Laird Terms and Conditions of sale in effect from time to time, a copy of which will be furnished upon request. © Copyright 2014 Laird, Inc. All Rights Reserved. Laird, the Laird Logo, and other ma…

Text truncated - open the document above for the full version.
