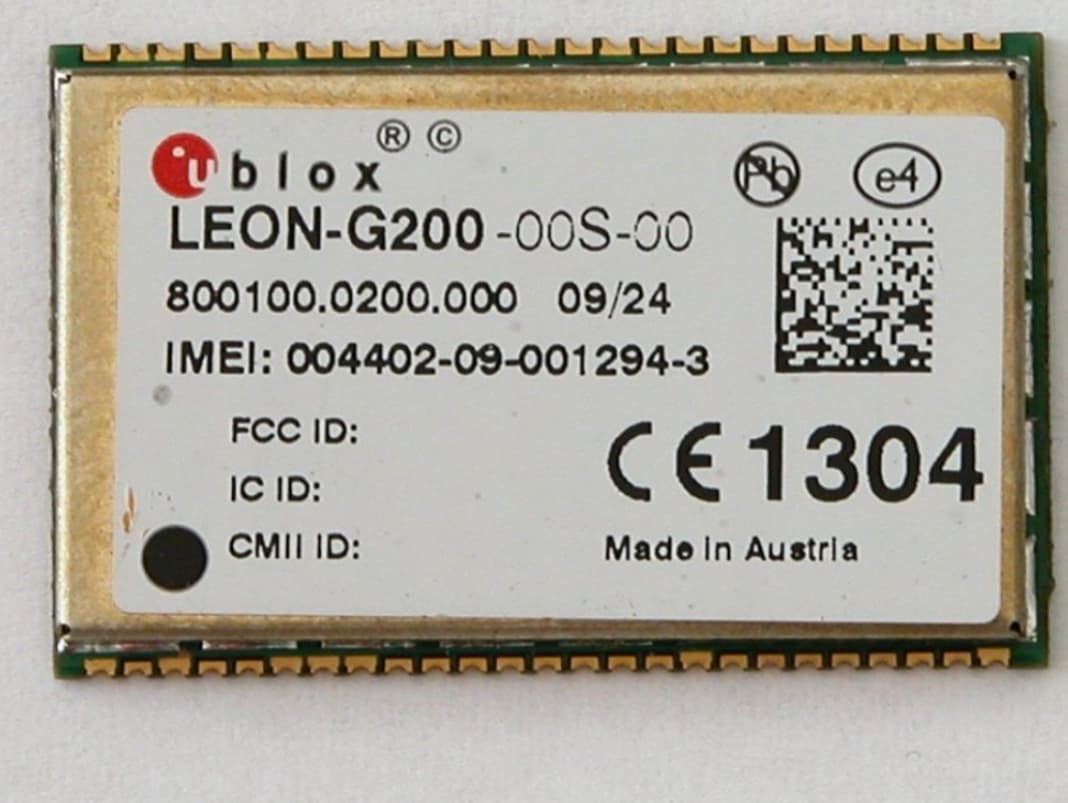

XPYLEONG200Quadband GSM/GPRS Module

u-blox AG
Quadband GSM/GPRS Module - FCC ID XPYLEONG200 - u-blox AG
Click to zoom

Application Details

Equipment Class
PCB - PCS Licensed Transmitter
Date of Grant
Oct 12, 2009
Application Purpose
Original Equipment
Date of Application
Oct 12, 2009
Equipment Note
Quadband GSM/GPRS Module
Frequency Range
1850.20000000 - 1909.80000000
Company
u-blox AG
Country
Switzerland

Documents & Files

Select a file to view

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

Internal Photos

RF Exposure Info

↗

Test Report

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

RF Exposure Info

Page 1 of 20 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Laboratory Accreditation and Listings DAT-P176/94-02 Reg. No.: 99538 MRA US-EU 0003 Industry Canada Reg. No.: 3462D-1 3462D-2 Reg. No.: R-2665, R-2666 C-2914, T-339 accredited according to DIN EN ISO/IEC 17025 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-954 • Fax: + 49 (0) 20 54 / 95 19-964 E-mail: [email protected] • Internet: www.cetecom.com RF-Exposure (MPE) TEST REPORT No.: 2-20773166d/09 for Quad Band GSM/GPRS data and voice module LEON-G200 FCC-ID: XPYLEONG200 According to: FCC Regulations Part 2.1091 IC Regulations RSS-102 u-blox AG Test Report 2-20773166d/09, Page 2 of 20 B_2_20773166d_09.doc Table of contents 1. SUMMARY OF TEST RESULTS ...................................................................................................................... 3 1.1. TESTS OVERVIEW FCC Part 2.1091 and Kanada IC Standards (RSS) ....................................................... 3 2. ADMINISTRATIVE DATA ............................................................................................................................... 4 2.1. Identification of the testing laboratory ............................................................................................................. 4 2.2. Test location .................................................................................................................................................... 4 2.3. Organizational items ........................................................................................................................................ 4 2.4. Applicant’s details ........................................................................................................................................... 4 2.5. Manufacturer’s details ..................................................................................................................................... 4 3. EQUIPMENT UNDER TEST (EUT) ................................................................................................................. 5 3.1. Additional declaration and description of main EUT ...................................................................................... 5 3.2. Configuration of cables used for testing .......................................................................................................... 5 3.3. EUT: Type, S/N etc. and short descriptions used in this test report ................................................................ 6 3.4. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions .................................................................. 6 3.5. EUT set-ups ..................................................................................................................................................... 7 3.6. EUT operating modes ...................................................................................................................................... 7 3.7. Parameter Settings on mobile phone and base station CMU200 ..................................................................... 8 4. DESCRIPTION OF TEST SET-UP’S ................................................................................................................ 9 4.1. Test Set-up for conducted measurements ........................................................................................................ 9 4.2. Test set-up for radiated measurements ............................................................................................................ 10 5. MEASUREMENTS RADIO FREQUENCY EXPOSURE EVALUATION: MOBILE EQUIPMENT, §2.1091 ...................................................................................................................................................................... 11 5.1. Measurement method ....................................................................................................................................... 12 5.2. Results for fixed operations ............................................................................................................................. 13 5.3. Results for mobile operations: ......................................................................................................................... 15 6. MEASUREMENT UNCERTAINTIES .............................................................................................................. 16 7. INSTRUMENTS AND ANCILLARY ................................................................................................................ 17 7.1. Used equipment “CTC” ................................................................................................................................... 17 Table of annex Total pages NONE Test Report 2-20773166d/09, Page 4 of 20 B_2_20773166d_09.doc 2. Administrative Data 2.1. Identification of the testing laboratory Company name: CETECOM GmbH Address: Im Teelbruch 116 45219 Essen - Kettwig Germany Laboratory accreditations/Listings: DAR-Registration No. DAT-P176/94-02 FCC-Registration No. 99538, MRA US-EU 0003 IC-Registration No. 3462D-1, 3462D-2 VCCI Registration No. R-2665,R-2666,C-2914,T-339 Responsible for testing laboratory: Dipl.-Ing. W. Richter Deputies: D. Franke 2.2. Test location 2.2.1. Test laboratory “CTC” Company name: see chapter 2.1. Identification of the testing laboratory 2.3. Organizational items Order No.: 20773166 Responsible for test report and project leader: Dipl.-Ing. C. Lorenz Receipt of EUT: 2009-08-03 Date(s) of test: 2009-08-03 to 2009-08-16 Date of report: 2009-08-31 --------------------------------------------------…

Text truncated - open the document above for the full version.

Test Report

Page 1 of 40 The test results relate only to the individual items which have been tested. This report shall not be reproduced in parts without the written approval of the testing laboratory © Copyright: All rights reserved by CETECOM Laboratory Accreditation and Listings DAT-P176/94-02 Reg. No.: 99538 MRA US-EU 0003 Industry Canada Reg. No.: 3462D-1 3462D-2 Reg. No.: R-2665, R-2666 C-2914, T-339 accredited according to DIN EN ISO/IEC 17025 CETECOM GmbH Laboratory Radio Communications & Electromagnetic Compatibility Im Teelbruch 116 • 45219 Essen • Germany Registered in Essen, Germany, Reg. No.: HRB Essen 8984 Tel.: + 49 (0) 20 54 / 95 19-954 • Fax: + 49 (0) 20 54 / 95 19-964 E-mail: [email protected] • Internet: www.cetecom.com TEST REPORT No.: 2-20773166b/09 for Quad Band GSM/GPRS data and voice module LEON-G200 FCC-ID: XPYLEONG200 According to: FCC Regulations Part 22 & Part 24 Part 15.209 IC Regulations RSS-132 RSS-133 RSS-Gen u-blox AG Test Report 2-20773166b/09, Page 2 of 40 B_2_20773166b_09.doc Table of contents 1. SUMMARY OF TEST RESULTS ...................................................................................................................... 3 1.1. TESTS OVERVIEW FCC Part 15/22/24 and Kanada IC Standards (RSS) .................................................... 3 2. ADMINISTRATIVE DATA ............................................................................................................................... 5 2.1. Identification of the testing laboratory ............................................................................................................. 5 2.2. Test location .................................................................................................................................................... 5 2.3. Organizational items ........................................................................................................................................ 5 2.4. Applicant’s details ........................................................................................................................................... 5 2.5. Manufacturer’s details ..................................................................................................................................... 5 3. EQUIPMENT UNDER TEST (EUT) ................................................................................................................. 6 3.1. Additional declaration and description of main EUT ...................................................................................... 6 3.2. Configuration of cables used for testing .......................................................................................................... 6 3.3. EUT: Type, S/N etc. and short descriptions used in this test report ................................................................ 7 3.4. Auxiliary Equipment (AE): Type, S/N etc. and short descriptions .................................................................. 7 3.5. EUT set-ups ..................................................................................................................................................... 8 3.6. EUT operating modes ...................................................................................................................................... 8 3.7. Parameter Settings on mobile phone and base station CMU200 ..................................................................... 9 4. DESCRIPTION OF TEST SET-UP’S ................................................................................................................ 10 4.1. Test Set-up for conducted measurements ........................................................................................................ 10 4.2. Test set-up for radiated measurements ............................................................................................................ 11 5. MEASUREMENTS ............................................................................................................................................. 12 5.1. RF power output (Conducted and Radiated).................................................................................................... 12 5.2. Occupied bandwidth ........................................................................................................................................ 16 5.3. Radiated emissions, below 30 MHz, §15.205 and §15.209, RSS210, RSS132, RSS133, RSS-gen ................ 18 5.4. Emission limits (Spurious emissions conducted and radiated), f> 30MHz ..................................................... 20 5.5. Frequency stability on temperature and voltage variations ............................................................................. 29 6. MEASUREMENT UNCERTAINTIES .............................................................................................................. 34 7. CALIBRATION METHOD OF ANECHOIC CHAMBER ............................................................................. 35 8. INSTRUMENTS AND ANCILLARY ................................................................................................................ 36 8.1. Used equipment “CTC” ................................................................................................................................... 36 9. CORRECTION FACTORS DUE TO REDUCED MEAS. DISTANCE (F< 30 MHZ) ................................. 40 Table of annex Total pages SEPARATE DOCUMENT B_2_20773166B_09_A1.PDF: DIAGRAMS OF TESTING 84 SEPARATE DOCUMENT B_2_20773166B_09_A2.PDF: EUT PHOTOGRAPHS 6 SEPARATE DOCUMENT B_2_20773166B_09_A3.PDF: SET-UP PHOTOGRAPHS 3 Test Report 2-20773166b/09, Page 3 of 40 B_2_20773166b_09.doc 1. Summary of test results The test results apply exclusively to the test samples as presented in chapter 3.1. The CETECOM GmbH does not assume responsibility for any conclusions and generalizations taken in conjunction with other specimens or samples of the …

Text truncated - open the document above for the full version.

Contact Information

Applicant

Giulio Comar(Certification Manager)
[email protected]+390402529400Fax: +390402529394

Test Firm

cetecom advanced GmbHGerald Schmidt
[email protected]+49 681 598 0Fax: +49 681 598 8775

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
224E1.85 GHz - 1.91 GHz1.148 W300KGXW0.028 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. This device contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations. Modular transmitter for use as a module in only mobile or fixed exposure conditions; antenna gain including cable loss must not exceed as documented in filing, for purposes of 2.1043 and 2.1091; the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons, and must not be co-located or operating in conjunction with other antennas or transmitters. Compliance of this device in all final product configurations is the responsibility of the Grantee; installation of this device into specific final products requires the submission of a Class II permissive change application where appropriate containing data demonstrating compliance for SAR, spurious emissions, ERP/EIRP, and host / module authentication, or new application if appropriate. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Other Applications from u-blox AG

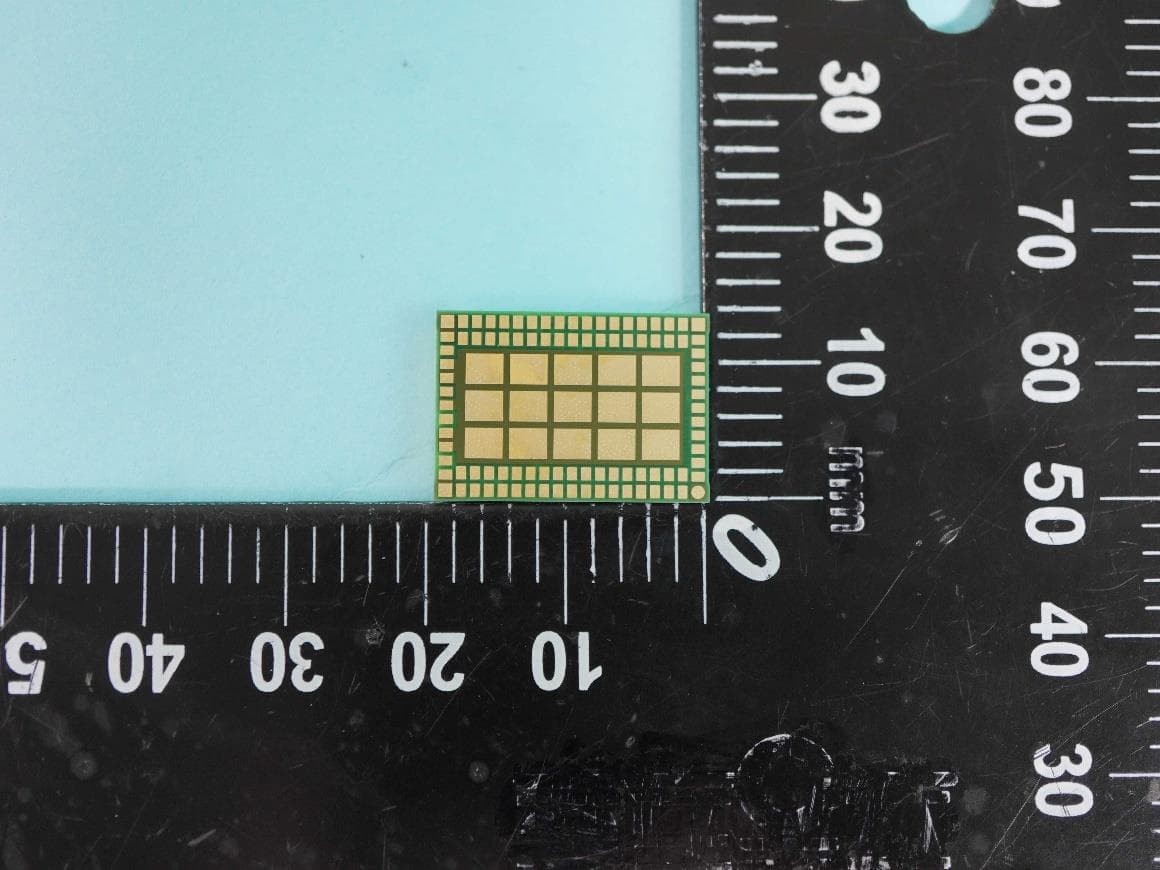

BT Module - FCC ID XPYJODYB1 - u-blox AG
XPYJODYB1

BT Module

Aug 07, 2026

Equipment Class

DSS - Part 15 Spread Spectrum Transmitter
WLAN and Bluetooth module - FCC ID XPYMAYAW3A - u-blox AG
XPYMAYAW3A

WLAN and Bluetooth module

Feb 01, 2026

Equipment Class

6XD - 15E 6 GHz Low Power Indoor Client

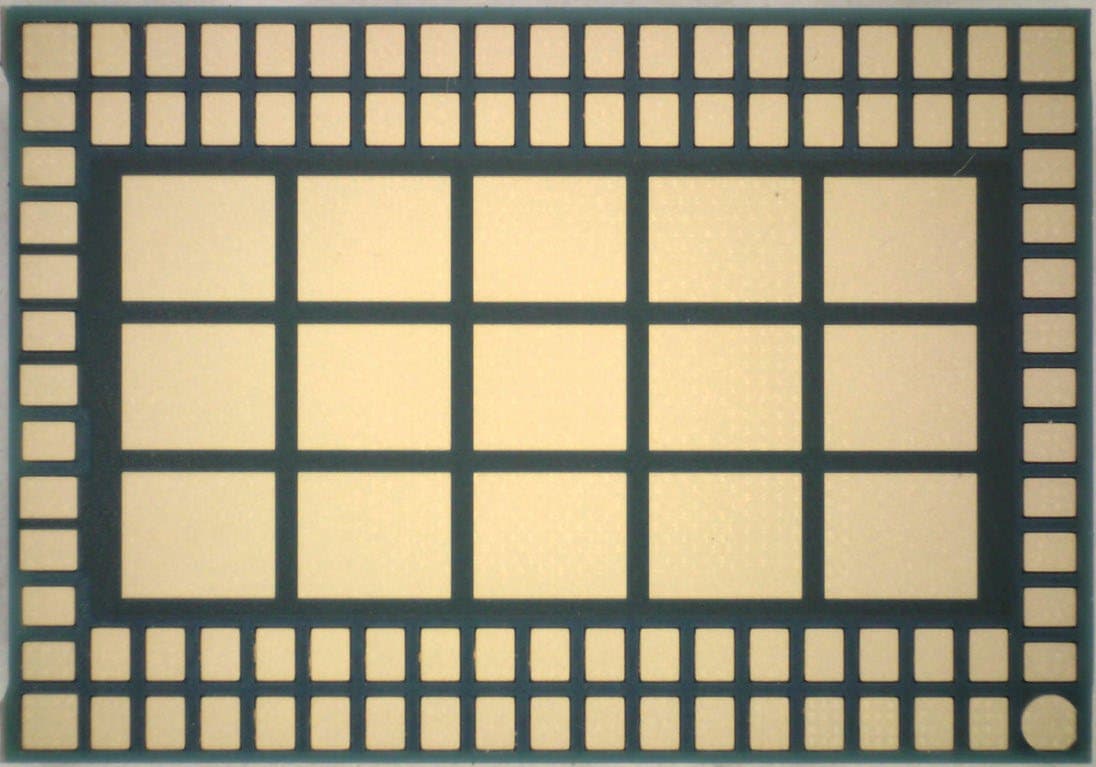

WLAN and Bluetooth module - FCC ID XPYJODYW6A - u-blox AG
XPYJODYW6A

WLAN and Bluetooth module

Jan 22, 2026

Equipment Class

NII - Unlicensed National Information Infrastructure TX
XPYUBX22VA03

NB CatM EGPRS data only module

Jul 22, 2024

Equipment Class

PCB - PCS Licensed Transmitter

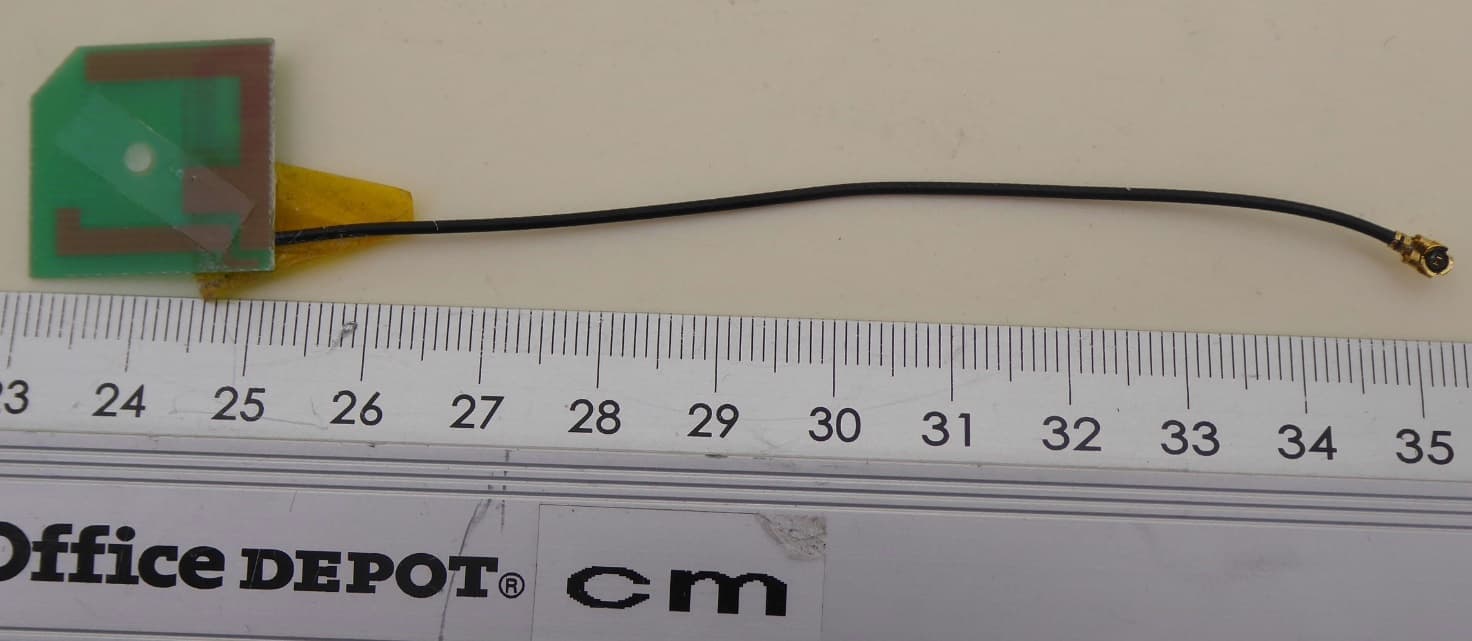

Stand-alone Tri-radio wireless MCU module - FCC ID XPYIRISW1 - u-blox AG
