XPYLUCYH200Quadband GSM/GPRS and Triband UMTS/HSDPA wireless module

LUCY-H200 3.5G tri-band HSDPA wireless module System Integration Manual Abstract This document describes the features and integration of the LUCY-H200 3.5G tri-band HSDPA data and voice module. The LUCY-H200 is a 3.5G solution offering high-speed tri-band HSDPA and quad-band GSM/GPRS data and voice transmission technology in a compact form factor. locate, communicate, accelerate 45.10 x 37.50 x 4.32 mm www.u-blox.com LUCY-H200 - System Integration Manual 3G.G1-HW-10002-P1 Page 2 Document Information Title LUCY-H200 Subtitle 3.5G tri-band HSDPA wireless module Document type System Integration Manual Document number 3G.G1-HW-10002-P1 Document status Advance Information Document status information Objective Specification This document contains target values. Revised and supplementary data will be published later. Advance Information This document contains data based on early testing. Revised and supplementary data will be published later. Preliminary This document contains data from product verification. Revised and supplementary data may be published later. Released This document contains the final product specification. This document applies to the following products: Name Type number Firmware version PCN reference LUCY-H200 LUCY-H200-00S-00 n.a. n.a. This document and the use of any information contained therein, is subject to the acceptance of the u-blox terms and conditions. They can be downloaded from www.u-blox.com. u-blox makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. u-blox reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © 2010, u-blox AG. u-blox ® is a registered trademark of u-blox Holding AG in the EU and other countries. LUCY-H200 - System Integration Manual 3G.G1-HW-10002-P1 Advance Information Preface Page 3 of 83 Preface u-blox Technical Documentation As part of our commitment to customer support, u-blox maintains an extensive volume of technical documentation for our products. In addition to our product-specific technical data sheets, the following manuals are available to assist u-blox customers in product design and development. AT Commands Manual: This document provides the description of the supported AT commands by the LUCY-H200 module to verify all implemented functionalities. System Integration Manual: This Manual provides hardware design instructions and information on how to set up production and final product tests. Application Note: document provides general design instructions and information that applies to all u-blox Wireless modules. See Section Related documents for a list of Application Notes related to your Wireless Module. How to use this Manual The LUCY-H200 System Integration Manual provides the necessary information to successfully design in and configure these u-blox wireless modules. This manual has a modular structure. It is not necessary to read it from the beginning to the end. The following symbols are used to highlight important information within the manual: An index finger points out key information pertaining to module integration and performance. A warning symbol indicates actions that could negatively impact or damage the module. Questions If you have any questions about u-blox Wireless Integration, please: Read this manual carefully. Contact our information service on the homepage http://www.u-blox.com Read the questions and answers on our FAQ database on the homepage http://www.u-blox.com Technical Support Worldwide Web Our website (www.u-blox.com) is a rich pool of information. Product information, technical documents and helpful FAQ can be accessed 24h a day. By E-mail Contact the nearest of the Technical Support offices by email. Use our service pool email addresses rather than any personal email address of our staff. This makes sure that your request is processed as soon as possible. You will find the contact details at the end of the document. Helpful Information when Contacting Technical Support When contacting Technical Support please have the following information ready: Module type (e.g. LUCY-H200) and firmware version Module configuration Clear description of your question or the problem A short description of the application Your complete contact details LUCY-H200 - System Integration Manual 3G.G1-HW-10002-P1 Advance Information Contents Page 4 of 83 Contents Preface ................................................................................................................................ 3 Contents .............................................................................................................................. 4 1 System description ....................................................................................................... 7 1.1 Overview .............................................................................................................................................. 7 1.2 Architecture .......................................................................................................................................... 8 1.2.1 Functional blocks ........................................................................................................................... 8 1.3 Pin-out ............................................................................................................................................... 10 1.4 Operating modes ................................................................................................................................ 12 1.5 Power management ........................................................................................................................... 14 1.5.1 Power supply circuit overview .............................................…

Text truncated - open the document above for the full version.

Attn: Reviewing Engineer RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To Whom It May Concern: We, u-blox AG, hereby requests for part 15 unlicensed modular transmitter approval of our device, described as follows: Brand name: u-blox Model name: LUCY-H200 Type number: LUCY-H200 FCC ID: XPYLUCYH200 Modular Approval requirements that our device complies with: (a) The module must be a complete radio transmitter with its own reference oscillator, antenna, etc. The only connectors to the module, if any, are power supply and modulation/data inputs. (b) The module has its own RF shielding. (c) The module has buffered modulation/data input(s). (d) The module has its own power supply regulation. (e) The Antenna configuration of the module complies with the maximum radiated Transmitter output Power conjunction with RF Exposure. The module must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. Senior Project Manager – 7 layers AG Sven Lüngen

MDE_UBLOX_0902 u-blox AG Mr. Giulio Comar Via Stazione di Prosecco, 15 34010 Sgonico (TS) Italy Sven Lüngen 30.06.2010 Phone +49 (0) 2102 749 153 Fax +49 (0) 2102 749 350 e-Mail : [email protected] Maximum Permissible Exposure for product: Lucy-H200 Dear Mr. Comar, please find enclosed your Maximum Permissible Exposure calculations for the Lucy-H200. Best Regards Sven Lüngen (Senior Project Manager) 7 layers AG Aufsichtsratsvorsitzenderh Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT No.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. Hans Jürgen Meckelburg TAX No. 147/5869/0385 www.7Layers.com Wilfried Klassmann - 2 - Maximum Permissible Exposure (as specified in Table 1B of 47 CFR 1.1310 – Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure) Frequency range (MHz) Power density (mW/cm²) 300 – 1500 f/1500 1,500 – 100000 1.0 (as specified in Table 2 in EN 1999/519-EC) Frequency range (MHz) Power density (mW/cm²) 400 – 2000 f/2000 2000 - 300000 1 mW/cm² General Comment The Lucy-H200 operates with power reduction as described in 3 GPP TS 51.010-1 v9.01. For reference see table 2. For determination of the maximum antenna gain in this calculation the power reduction and the duty cycle effect are considered. Table 1 shows measured power values in different uplink slot operation modes and the calculated RMS power under consideration of the duty cycle effect. Typical max output power (calibration target, calibration tolerances not considered) GSM850/GSM900 GSM1800/GSM1900 Power/slot Nof TX slots Power/slot Nof TX slots Operative Mode [dBm] [dBm] GSM Normal TCH 32.2 1 29.2 1 GPRS 1‐TX‐GMSK 32.2 1 29.2 1 GPRS 2‐TX‐GMSK 30.5 2 27.5 2 GPRS 3‐TX‐GMSK 29.0 3 27.5 3 GPRS 4‐TX‐GMSK 27.0 4 26.0 4 EDGE 1‐TX‐8PSK 26.0 1 25.0 1 EDGE 2‐TX‐8PSK 24.2 2 23.5 2 EDGE 3‐TX‐8PSK 22.4 3 21.8 3 EDGE 4‐TX‐8PSK 20.6 4 21.8 4 UMTS Band I Band II Band V Average Power Average Power Average Power Operative Mode [dBm] [dBm] [dBm] Max Power setting 23.0 23.0 23.0 Table 1: Power values of Lucy-H200 - 3 - Number of timeslots in uplink assignment Permissible nominal reduction of maximum output power, (dB) 1 0 2 3,0 3 4,8 4 6,0 5 7,0 6 7,8 7 8,5 8 9,0 Table 2: Allowed power reduction in multi slot class operation modes for Rel5 and onwards devices, ref: 3GPP TS 51.010-1 v9.01 - 4 - Calculations 850/900 MHz band Maximum RMS output power at Antenna terminal according to table 1 30.5 dBm – 6.02 dBm (2TX) = 24.48 dBm Maximum output power at Antenna terminal according Test report MDE_UBLOX_0902_FCCb: 33.29 dBm Prediction distance R: 20 cm Prediction frequency: 824.20 MHz MPE limit S: 0.5494 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain considering S limit 5.85 dBi Maximal permissible antenna gain considering output power limitation of 7 Watts ERP (FCC §22.931). G=10*log(7000)-33.29+2.15 7.30 dBi Prediction The maximum allowed MPE value of 0.5494 mW/cm²will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 5.85 dBi is used. Considering the max output power of 7 Watts ERP (FCC §22.931) for mobile stations the maximum antenna gain is 7.30 dBi, which is higher than 5.85 dBi. For mobile stations the antenna gain is limited to 5.85 dBi in accordance to the FCC regulations. - 5 - Calculations 1800 MHz band Maximum RMS output power at Antenna terminal according to table 1 27.5 dBm – 4.26 dBm (3TX) = 23.24 dBm Prediction distance R: 20 cm Prediction frequency: 1710.2 MHz MPE limit S: 1 mW/cm² (according to FCC Bulletin 65) Equation OET bulletin 65, page 18, edition 97-01: S = P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain considering S limit 15.03 dBi Prediction The maximum allowed MPE value of 0.8551 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 15.03 dBi is used. This means that the power density levels in a distance of 20 cm are in accordance with the EN regulations as long as the used antenna has a gain below 15.03 dBi. - 6 - Calculations 1900 MHz band Maximum RMS output power at Antenna terminal according to table 1 27.5 dBm – 4.26 dBm (3TX) = 23.24 dBm Maximum output power at Antenna terminal according Test report MDE_UBLOX_0902_FCCc: 30.72 dBm Enhancement factor EF 2.56 (see FCC Bulletin OET 65) Prediction distance R: 20 cm Prediction frequency: 1850.2 MHz MPE limit S: 1 mW/cm² Equation OET bulletin 65, page 18, edition 97-01: S = EF*P*G / (4πR²) S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna Maximum permissible antenna gain (Table 1B of 47 CFR 1.1310): 9.69 dBi Maximum permissible antenna gain for mobile / portable stations: 2.29 dBi (Considering 2 Watts EIRP FCC §24.235: G=10*log(2000)-30.72) Prediction The maximum allowed MPE value of 1 mW/cm² will be reached in a distance of 20 cm in case that an antenna with an antenna gain of 9.69 dBi is used. This means that the power density levels in a distance of 20 cm are in accordance with the FCC regulations as long as the used antenna has a gain below 9.69 dBi. Considering the max output power of 2 Watts EIRP (FCC §24.235) for mobile / portable stations the maximum antenna gain is 2.29 dBi, which is lower than 9.69 dBi. For mobile and portable stations the antenna gain is limited to 2.29 dBi in accordance with the FCC…

Text truncated - open the document above for the full version.

Final Report on LUCY H-200 MDE_UBLOX_0902_FCCb acc. Title 47 CFR chapter I part 22 subpart H Report Reference: A pril 29, 2010Date: Test Laboratory: 7 la yers AG Borsigstr. 11 DGA-PL-192/99-02 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstrasse 11 Chairman of the Supervisory Board: Düsseldorf, HRB 44096 40880 Ratingen, Germany Markus Becker USt-IdNr h VAT N o.: Phone: +49 (0) 2102 749 0 Vorstandh Board: DE 203159652 Fax: +49 (0) 2102 749 350 Dr. H.-J. Meckelburg TAX No. 147/5869/0385 www.7Layers.com Wilfried Klassmann Reference: MDE_UBLOX_0902_FCCb acc. Title 47 CFR chapter I part 22 subpart H 2.2Detailed Description of OUT Samples Sample : I02 OUT IdentifierLucy-H200 Sample DescriptionSample 9 Serial No.SN104 HW StatusHR118A00 SW StatusSR.03.00.05 Date of Receipt2010/04/14 Low VoltageLow Temp.3.2 V-25 °C High Temp.High Voltage4.2 V+70 °C Normal Temp.Nominal Voltage3.8 V+22 °C Sample : DC01 OUT IdentifierAC/DC adapter Sample DescriptionAC/DC adapter 100-240 V50-60 Hz Date of Receipt2010/03/04 Low Voltage100 V High Voltage240 V Nominal Voltage120 V Page 4 of 106 Reference: MDE_UBLOX_0902_FCCb acc. Title 47 CFR chapter I part 22 subpart H 2.3OUT Features Features for OUT: AC/DC adapter Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains Features for OUT: Lucy-H200 Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz PantCpermanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900EUT supports PCS1900 band 1850MHz - 1910MHz 2.4Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment I02_FCC15b_ACDC (OUT connected to dedicated AC/DC adapter) AE 07GSM/UMTS antennaDC01AC/DC adapter 100-240 V50-60 Hz Sample: AE 08HandsetI02Sample 9Sample: AE 05Power Supply AE 06Power Supply AE 02Controlling board 2 AE 09AC/DC Adaptor Notebook AE 04Laptop AE 01Controlling board 1 AE 03Controlling Board 3 Page 5 of 106 Reference: MDE_UBLOX_0902_FCCb acc. Title 47 CFR chapter I part 22 subpart H 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 22, Subpart H - Cellular Radiotelephone ServiceFCC47CFRChIPART22PUBLIC MOBILE SERVICES 3.3List of Test Specification Test Specification:FCC part 2 and 22 Version10-1-09 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 22 - PUBLIC MOBILE SERVICES Page 6 of 106 Reference: MDE_UBLOX_0902_FCCb acc. Title 47 CFR chapter I part 22 subpart H 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 22.1 RF Power Output §2.1046, §22.913 22.1; Frequency Band = 850, Mode = EDGE, Channel = 128, Frequency = 824.2MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 190, Frequency = 836.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = 850, Mode = EDGE, Channel = 251, Frequency = 848.8MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 128, Frequency = 824.2MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 190, Frequency = 836.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = 850, Mode = GSM, Channel = 251, Frequency = 848.8MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4132, Frequency = 826.4MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4183, Frequency = 836.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_1, Channel = 4233, Frequency = 846.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_2, Channel = 4132, Frequency = 826.4MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_2, Channel = 4183, Frequency = 836.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_2, Channel = 4233, Frequency = 846.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 22.1; Frequency Band = FDD5, Mode = HSDPA_subtest_3, Channel = 4132, Frequency = 826.4MHz, M…

Text truncated - open the document above for the full version.

Final Report on LUCY H-200 MDE_UBLOX_0902_FCCc acc. Title 47 CFR chapter I part 24 subpart E Report Reference: A pril 29, 2010Date: Test Laboratory: 7 layers AG Borsigstr. 11 DGA-PL-192/99-02 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstras se 11 Chairman of the Su pervisory Board : Düss eldor f, HRB 440 96 40 880 Ratingen, Germany Markus Becker U St-IdNr h VAT No.: Phon e: +49 (0 ) 2 102 74 9 0 Vorstandh Boar d: DE 203 1596 52 Fax: +49 (0 ) 2 102 74 9 350 Dr. H.-J. Meckelburg T AX No. 147 /5 869 /03 85 www.7Layers.com Wilfried Kla ssmann Reference: MDE_UBLOX_0902_FCCc acc. Title 47 CFR chapter I part 24 subpart E 2.2Detailed Description of OUT Samples Sample : I02 OUT IdentifierLucy-H200 Sample DescriptionSample 9 Serial No.SN104 HW StatusHR118A00 SW StatusSR.03.00.05 Date of Receipt2010/04/14 Low VoltageLow Temp.3.2 V-25 °C High Temp.High Voltage4.2 V+70 °C Normal Temp.Nominal Voltage3.8 V+22 °C Sample : DC01 OUT IdentifierAC/DC adapter Sample DescriptionAC/DC adapter 100-240 V50-60 Hz Date of Receipt2010/03/04 Low Voltage100 V High Voltage240 V Nominal Voltage120 V Page 4 of 107 Reference: MDE_UBLOX_0902_FCCc acc. Title 47 CFR chapter I part 24 subpart E 2.3OUT Features Features for OUT: AC/DC adapter Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 ACThe OUT is powered by or connected to AC Mains Features for OUT: Lucy-H200 Allowed ValuesDesignationDescriptionSupported Value(s) Features for scope: FCC_v2 DCThe OUT is powered by or connected to DC Mains EDGE850EUT supports EDGE in the band 824 MHz - 849 MHz EDGE1900EUT supports EDGE in the band 1850 MHz - 1910 MHz FDD2EUT supports UMTS FDD2 in the band 1850 MHz - 1910 MHz FDD5EUT supports UMTS FDD5 in the band 824 MHz - 849 MHz GSM850EUT supports GSM850 band 824MHz - 849MHz HSDPA- FDD2 EUT supports UMTS FDD2 HSDPA in the band 1850 MHz - 1910 MHz HSDPA- FDD5 EUT supports UMTS FDD5 HSDPA in the band 824 MHz - 849 MHz PantCpermanent fixed antenna connector, which may be built-in, designed as an indispensable part of the equipment PCS1900EUT supports PCS1900 band 1850MHz - 1910MHz 2.4Setups used for Testing For each setup a relation is given to determine if and which samples and auxiliary equipment is used. The left side list all OUT samples and the right side lists all auxiliary equipment for the given setup. Sample No.Sample DescriptionAE No.AE Description Setup No.List of OUT samplesList of auxiliary equipment I02_FCC15b_ACDC (OUT connected to dedicated AC/DC adapter) AE 07GSM/UMTS antennaDC01AC/DC adapter 100-240 V50-60 Hz Sample: AE 08HandsetI02Sample 9Sample: AE 05Power Supply AE 06Power Supply AE 02Controlling board 2 AE 09AC/DC Adaptor Notebook AE 04Laptop AE 01Controlling board 1 AE 03Controlling Board 3 Page 5 of 107 Reference: MDE_UBLOX_0902_FCCc acc. Title 47 CFR chapter I part 24 subpart E 3Results 3.1General Available at the test laboratory. The results of the inspection are described on the following pages, where 'Conformity' or 'Passed' means that the certification criteria were verified and that the tested device is conform to the applied standard. In cases where 'Declaration' is printed, the required documents are available in the manufacturers product documentation. In cases where 'not applicable' is printed, the test case requirements are not relevant to the specific equipment implementation. Documentation of tested devices: Interpretation of the test results: 3.2List of the Applicable Body (Body for Scope: FCC_v2) DesignationDescription Part 24, Subpart E - Broadband PCSFCC47CFRChIPART24PERSONAL COMMUNICATIONS SERVICES 3.3List of Test Specification Test Specification:FCC part 2 and 24 Version10-1-09 Edition Title:PART 2 - GENERAL RULES AND REGULATIONS PART 24 - PERSONAL COMMUNICATIONS SERVICES Page 6 of 107 Reference: MDE_UBLOX_0902_FCCc acc. Title 47 CFR chapter I part 24 subpart E 3.4Summary Test Case Identifier / Name SetupDate of TestResultTest (condition)Ref. Lab 24.1 RF Power Output §2.1046, §24.232 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 512, Frequency = 1850.2MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 661, Frequency = 1880.0MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = 1900, Mode = EDGE, Channel = 810, Frequency = 1909.8MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 512, Frequency = 1850.2MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 661, Frequency = 1880.0MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = 1900, Mode = GSM, Channel = 810, Frequency = 1909.8MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_1, Channel = 9262, Frequency = 1852.4MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_1, Channel = 9400, Frequency = 1880MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_1, Channel = 9538, Frequency = 1907.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_2, Channel = 9262, Frequency = 1852.4MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_2, Channel = 9400, Frequency = 1880MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_2, Channel = 9538, Frequency = 1907.6MHz, Method = conducted 2010/04/21I02_FCC15b_AC DC Lab 2Passed 24.1; Frequency Band = FDD2, Mode = HSDPA_subtest_3, C…

Text truncated - open the document above for the full version.

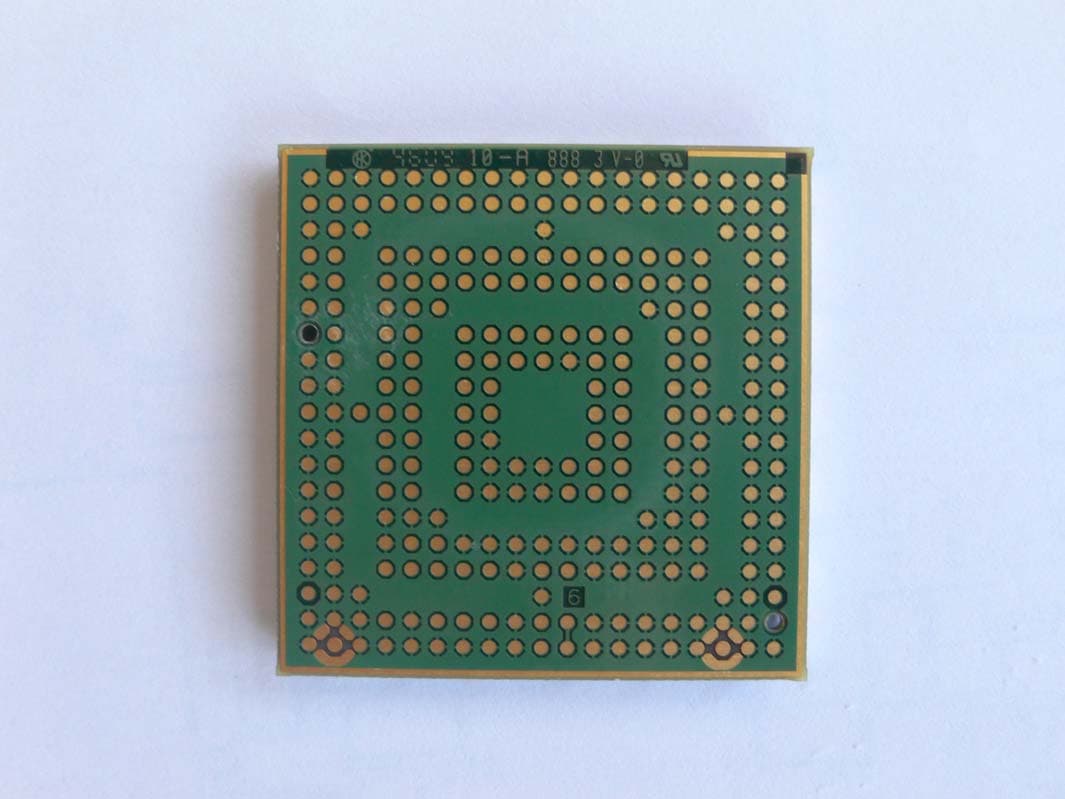

Final Report on LUCY H-200 Photo report to MDE_UBLOX_0902_FCCcReport Reference: A pril 29, 2010Date: Test Laboratory: 7 layers AG Borsigstr. 11 DGA-PL-192/99-02 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the test laboratory. 7 layers AG Aufsichtsratsvorsitzender h Registergerichth registered in: Borsigstras se 11 Chairman of the Su pervisory Board : Düss eldor f, HRB 440 96 40 880 Ratingen, Germany Markus Becker U St-IdNr h VAT No.: Phon e: +49 (0 ) 2 102 74 9 0 Vorstandh Boar d: DE 203 1596 52 Fax: +49 (0 ) 2 102 74 9 350 Dr. H.-J. Meckelburg T AX No. 147 /5 869 /03 85 www.7Layers.com Wilfried Kla ssmann Reference: Photo report to MDE_UBLOX_0902_FCCc 1Annex 1.1Additional Information for OUT Description front view Seite 2 von 5 Reference: Photo report to MDE_UBLOX_0902_FCCc back view Seite 3 von 5 Reference: Photo report to MDE_UBLOX_0902_FCCc 1.2Additional Information for Test Plan setup for the test spurious emissions radiated Seite 4 von 5 Reference: Photo report to MDE_UBLOX_0902_FCCc 2Index 1 Annex2 1.1 Additional Information for OUT Description2 1.2 Additional Information for Test Plan4 2 Index5 Seite 5 von 5
