XYEV100GMDSS SURVIVAL CRAFT VHF RADIOTELEPHONE

Ocean Signal User Manual for the SafeSea™ V100 GMDSS Survival Craft Portable Two Way VHF Radiotelephone © 2011 Ocean Signal Ltd The Technical Data, information and illustrations contained in this manual were believed to be correct at the time of print. Ocean Signal Ltd reserve the right to change specifications and other information contained in this manual as part of our continual improvement process. No part of this manual may be reproduced, stored in a retrieval system or transmitted in any form, electronic or otherwise, without prior permission of Ocean Signal Ltd. No liability can be accepted for any inaccuracies or omissions in this manual. Ocean Signal® and SafeSea® are registered trademarks of Ocean Signal Ltd SafeSea V100 User Manual 3 Version 0A.00 21/07/2011 Note: the use of this radio for transmitting may be covered by licensing requirements in the country it is being operated in. Please contact your regulatory authority for guidance. SafeSea V100 User Manual 4 Version 0A.00 21/07/2011 Basic Operation • In emergency ensure the yellow Lithium primary battery is fitted. • Before operation break off the red security tag from the battery. • Turn on by pressing the key • The radio will turn on with the distress and calling channel, 16, already selected • Use the PTT key to transmit • Use the ▲ and ▼ keys to select the required channel • Use the VOL key followed by the ▲ and ▼ keys to adjust the speaker volume • Use the SQ key followed by the ▲ and ▼ keys to adjust the squelch (muting) level To transmit a MAY DAY call the following procedure should be followed. Ensure the transmitter is turned on, channel 16 is selected and the PTT key is pressed. Announce the following clearly into the radio MAYDAY - MAYDAY - MAYDAY This is [Ship’s Name] - This is [Ship’s Name] - This is [Ship’s Name] MAYDAY [Ship’s Name or Call Sign] Position............ [LAT and LON or description] Nature of Distress is ........... [State the aid required] The Number of Persons on board is... [followed by any useful information] Over Release the PTT key and listen for a reply. Repeat if necessary. SafeSea V100 User Manual 5 Version 0A.00 21/07/2011 Contents Basic Operation..................................................................................................4 Contents.............................................................................................................4 General ..............................................................................................................6 Exposure to RF Electromagnetic Energy ................................................................ 6 Approvals .............................................................Error! Bookmark not defined. V100 Overview...................................................................................................7 Operation ...........................................................................................................8 Switching On..................................................................................................... 8 Switching Off..................................................................................................... 8 Channel Selection .............................................................................................. 8 Channel 16 selection .......................................................................................... 8 Transmitting...................................................................................................... 8 Volume Adjustment............................................................................................ 8 Squelch Adjustment ........................................................................................... 8 Lights Adjustment.............................................................................................. 9 Dual Watch ....................................................................................................... 9 Tri-Watch.......................................................................................................... 9 Scan ................................................................................................................ 9 Memory Scan .................................................................................................... 9 Scan advance .................................................................................................. 10 Setting Scan Channels...................................................................................... 10 Menu ................................................................................................................10 Individual Menu Modes ..................................................................................... 11 Batteries ..........................................................................................................13 Charging......................................................................................................... 13 Appendix..........................................................................................................15 Maintenance and Troubleshooting ...................................................................... 15 Channels ........................................................................................................ 16 Specifications .................................................................................................. 17 Accessories ..................................................................................................... 18 Approvals ....................................................................................................... 18 Limited Warranty ............................................................................................. 19 Declaration of conformity ........................................Error! Bookmark not defined. SafeSea V100 User Manual 6 Version 0A.00 21/07/2011 Gene…

Text truncated - open the document above for the full version.

Registration No 6627101 Vat No 938 4374 89 Registered Office 27 New Dover Road Canterbury Kent CT1 3DN FCC ID: XYEV100 Attestation Statement – Ocean Signal V100 VHF Handportable (GMDSS) Dear Sir, Ocean Signal hereby request that the SafeSea ® V100 VHF survival craft portable two way radiotelephone apparatus are approved under part 80.1101(c)(7) and 80.271 of the Commissions rules contained in CFR47, for use on SOLAS ships as part of the GMDSS as well as for voluntary fit by other users. There are two variants of the V100 which are identical with the exception of an accessory socket fitted for the connection of external devices such as headsets, helmets, etc. All testing was carried out on the accessory socket version. Both versions are identified under the generic product code of SafeSea V100. The SafeSea V100 has been tested in accordance with IEC61097-12 and IEC60945 and is compliant with IMO resolutions A.809(19), as amended by MSC149(77) and A.694(17). Signed on behalf of Ocean Signal Ltd David Sheekey Product and Approvals Manager 25 November 2010 Federal Communications Commission 445 12 th Street, SW Washington DC 20554 United States of America Attn: Reviewing Officer 20 th July 2011

Registration No 6627101 Vat No 938 4374 89 Registered Office 27 New Dover Road Canterbury Kent CT1 3DN FCCID: XYEV100 Request for Confidentiality With reference to the conditions laid out in CFR47 parts 0.457 and 0.459, Ocean Signal respectfully requests that the following categories of documents submitted with this application remain confidential and are not made available for public inspection. These documents contain commercially sensitive information which is the intellectual property of Ocean Signal Ltd. We also request that internal photographs are kept confidential. This equipment is a non-consumer device serviceable by the grantee and its designated service technicians only, as defined in KDB726920 D01 Exhibit Confidentiality Table v01 and in accordance with the FCC Confidential Attestation Policy for Internal Photos or Manuals, item 3. (Another example is when a non-consumer device is not accessible by the general public....). Please see attached sample Non-Disclosure Agreement between Ocean Signal Ltd and a designated technical support company. Internal Photographs - filename ‘CONF Appendix 002 IntPho.pdf’ Operational Descriptions - filename ‘CONF Appendix 002 OpDes.pdf’ Parts Lists/Tune Up Information - filename ‘CONF Appendix 004 Schem.pdf’ Schematics - ‘CONF Appendix 003 PartsLst.pdf’ I thank you for your cooperation in this matter. Signed on behalf of Ocean Signal Ltd David Sheekey Product and Approvals Manager 25 th November 2010 Federal Communications Commission 445 12 th Street, SW Washington DC 20554 United States of America Attn: Reviewing Officer 10 th August 2011 Federal Communications Commission 445 12 th Street, SW Washington DC 20554 United States of America Attn: Reviewing officer Registration No 6627101 Vat No 938 4374 89 Registered Office 27 New Dover Road Canterbury Kent CT1 3DN NON DISCLOSURE AGREEMENT BETWEEN [Designated Technical Support Company] and Ocean Signal Limited Date of Agreement: TBD This non-disclosure agreement (hereinafter referred to as the "Agreement") is made between: Name and Address of Designated Technical Support Company and Ocean Signal Limited, having its principal place of business at Unit 4, Ocivan Way, Margate, Kent, CT9 4NN being registered in England and Wales under registration number 6627101 (hereinafter each individually referred to as a "Party" and collectively referred to as the "Parties") WHEREAS In particular, the discussion of co-operation and technical details relating to providing technical support between parties is considered confidential as required by the FCC for non-consumer devices (KDB 26920) In all contacts and information regarding technology and/or supply of parts and/or products and /or other technical information and/or other services: The parties may, in conjunction with aforesaid, disclose to each other technical and commercial information relating to their respective business, facilities, products, techniques, processes, drawings and information of all kinds and in whatsoever form (hereinafter “Information”) and the parties are willing to undertake to restrict the use and further disclosure of the information; NOW, THEREFORE THE PARTIES HEREBY AGREE AS FOLLOWS 1) Any information exchanged by the Parties shall be deemed to be disclosed in confidence and will be used only for the co-operation between the Parties. 2) Any information disclosed hereunder shall only be disclosed by the receiving Party to employees or non executive directors of the receiving party on a need-to-know basis. It is the responsibility of the party to ensure that all persons provided with information are familiar with and accept to comply with this Agreement. 3) Documentation included in this agreement includes, but is not limited to, the following items: a) Internal Photographs - filename ‘CONF Appendix 001 IntPho.pdf’ b) Operational Descriptions - filename ‘CONF Appendix 002 OpDes.pdf’ c) Parts Lists/Tune Up Information - filename ‘CONF Appendix 004 Schem.pdf’ d) Schematics - ‘CONF Appendix 003 PartsLst.pdf’ Date of Agreement: TBD 4) The receiving party shall protect the information with the same degree of care that it uses to safeguard its own proprietary information from unauthorized use, disclosure or dissemination. 5) No license under any patents or copyrights is granted or implied by disclosure of information. 6) The Parties agree to report directly to each other if it has been observed or when it is feared that information covered by the Agreement has come to the knowledge of an unauthorized person. 7) The parties agree to return, upon each other's written request, all information received pursuant to the Agreement. The exception to this clause is where the receiving party has requested authorisation to archive information for the purposes of meeting approvals standards. 8) Information shall not be subject to this Agreement, if it is so publicly known, or is rightfully received from a third party, or is independently developed by the receiving Party or is approved for release by written authorization of the disclosing Party. 9) The rights and obligations of the parties under this Agreement shall cease to be in effect four (4) years from the date of signature, unless the Agreement is renewed by the Parties before such time. 10) This Agreement shall be subject to English Law. Any conflicts related to this Agreement shall – to the extent that an amicable solution cannot be found – be resolved in an English Court of Law. ------------------------------------ -------------------------------------- For and on Behalf of For and on Behalf of Company Ocean Signal Limited Name: Name: Alan Wrigley Position: Position: Managing Director

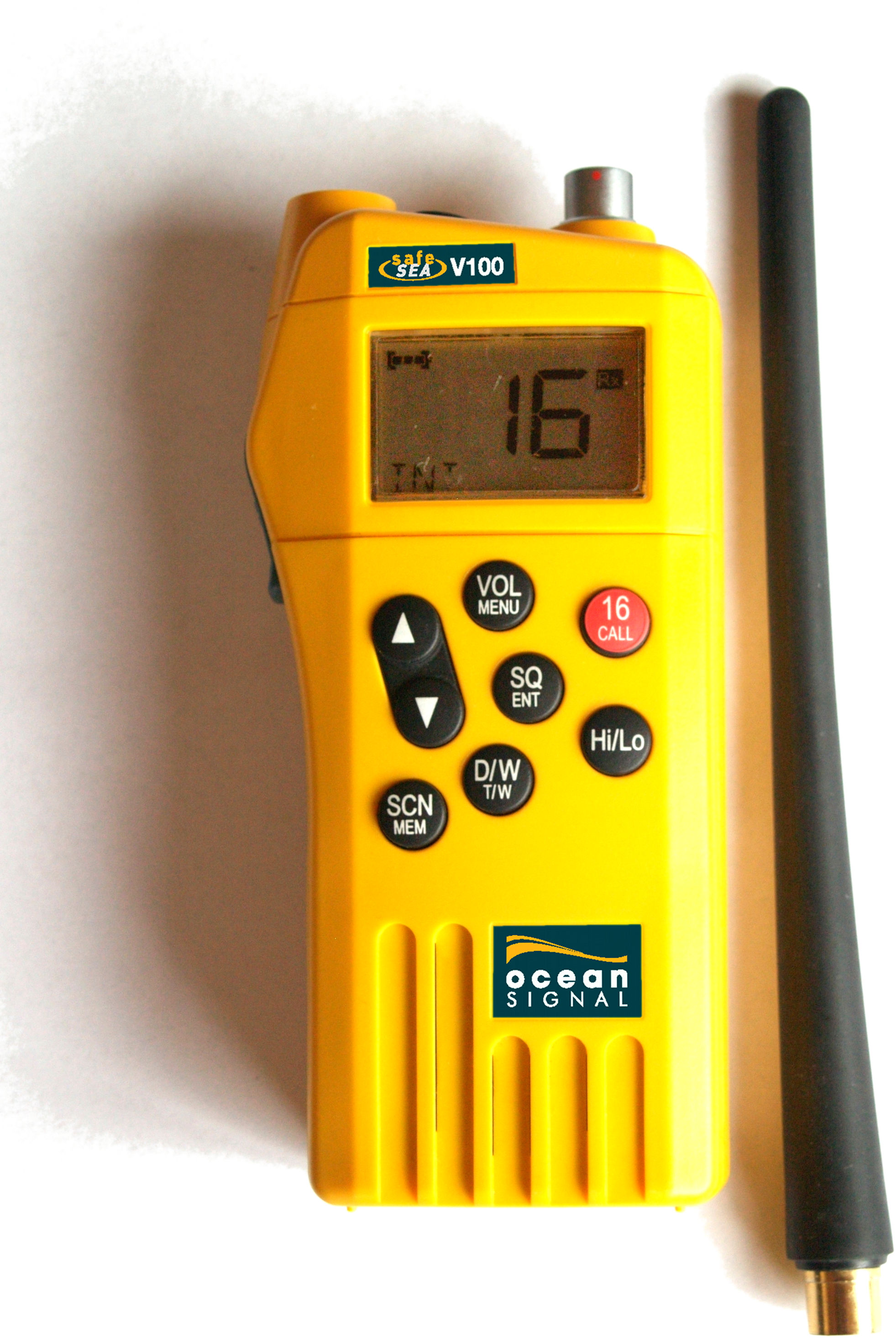

Ocean Signal SafeSea V100 VHF Handportable – External Photographs The version shown is the SafeSea V100 with accessory socket. The standard model is identical, but with accessory connector removed. Note that the labelling will be identical for both variants. Figure 1: V100 front view with antenna This accessory connector not present on standard variant of the V100 Figure 2: V100 Left hand side view (Note battery protection tab removed) Figure 3: V100 Right Hand Side View Figure 4: V100 Rear view with battery fitted. Figure 5: V100 Top and bottom views with battery fitted. Figure 6: V100 Rear View with battery removed showing approvals label. FCC Identification number here Window areas in label for laser etched data to show through, Serial number, Wheelmark year, etc. Figure 7: Inside view of Lithium battery showing ID label Figure 8: LB4V battery pack, showing break-off protection tab. Note that the battery is disabled when the tab is intact.

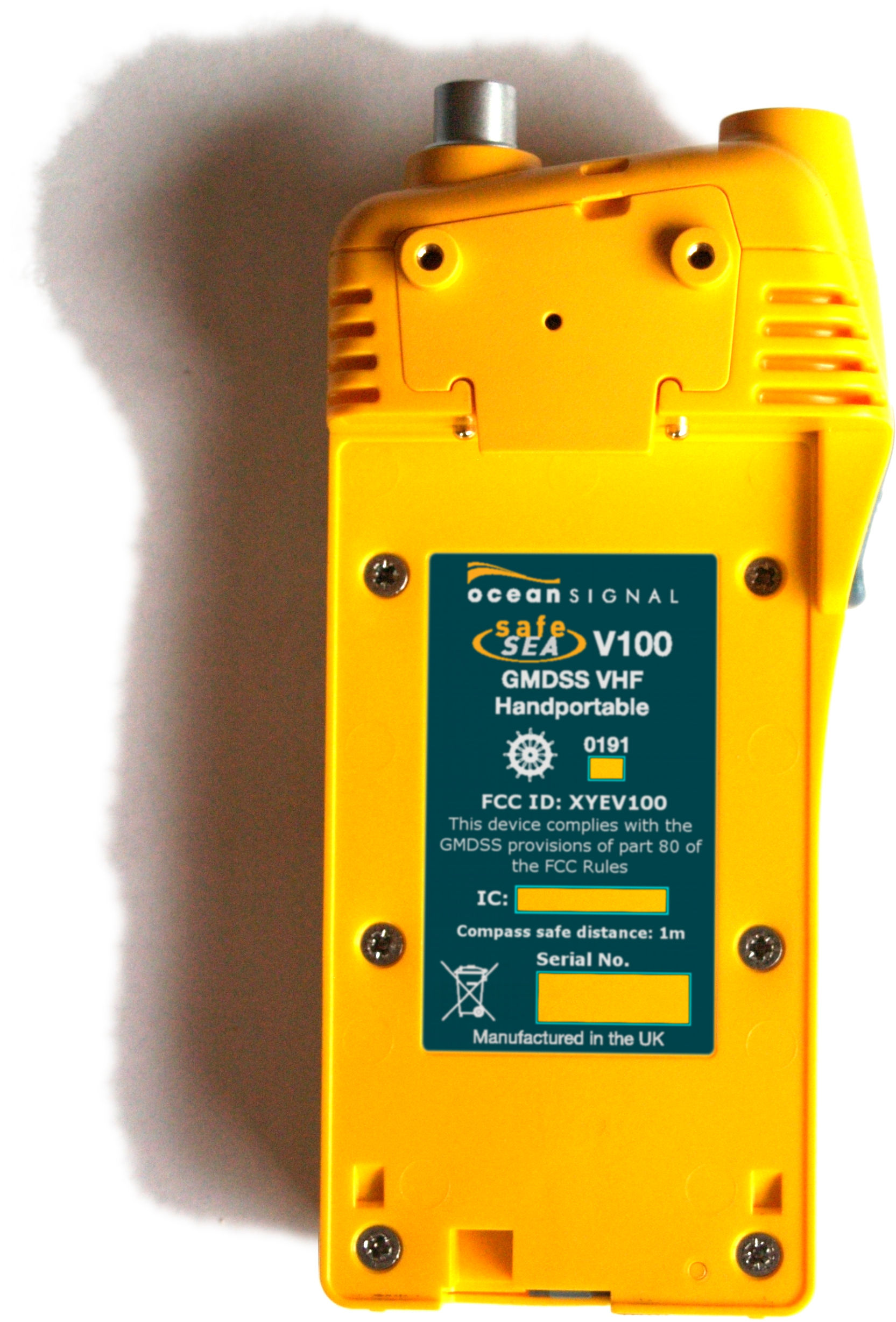

Ocean Signal SafeSea V100 VHF Handportable – Approval Labelling FCC ID: XYEV100 The following label will show the approval information for the SafeSea V100 VHF handportable radiotelephone. As shown, the label currently includes the European Wheelmark and the FCC Identifier. Other nation’s approvals identifiers may appear when granted. Figure 1: V100 VHF – Approvals Label Figure 2: V100 VHF – Location of Approvals Label FCC ID label on rear of radio.

Registration No 6627101 Vat No 938 4374 89 Registered Office 27 New Dover Road Canterbury Kent CT1 3DN FCC ID: XYEV100 Attestation Statement – Tune-up procedure Ocean Signal V100 VHF Handportable (GMDSS) Dear Sir, The V100 VHF handportable is factory setup for transmitter output power and modulation limiting levels during manufacture as part of an automated production process. Adjustment of transmitter parameters and other RF tune-up is not possible or allowed by service personnel in the field. Ocean Signal service policy will require PCB replacement and return of the exchanged PCB to the factory if PCB level servicing is required. For this reason, there is no tune-up procedure available as required by CFR47 part 2.1033(c)(9). Likewise the DC voltage to the final amplifier required by 2.1033(c)(8) is not provided. Signed on behalf of Ocean Signal Ltd David Sheekey Product and Approvals Manager 25 November 2010 Federal Communications Commission 445 12 th Street, SW Washington DC 20554 United States of America Attn: Reviewing Officer 3 rd August 2011

SafeSea V100 User Manual 6 Version 0A.00 21/07/2011 General Exposure to RF Electromagnetic Energy This product has been evaluated for compliance with the FCC RF exposure limits given in CFR 47 part 1.307(b) at a distance of greater than 2.5cm. Do not operate this radio without the antenna attached or with a damaged antenna. Always operate the radio with the antenna at least 2.5cm (1inch) away from your head and do not transmit for more than 50% of the total time the radio is used. Use of the radio in the body worn configuration with accessories is limited to ‘Occupational Use’ only. Do not transmit for more than 50% of the total time the radio is used. The use of this radio may be covered by licensing requirements in the country of use. Please check with your local regulatory body before use.

PUBLIC ENTEIRPRISE TESTING CENTER «OMEGA» TEST REPORT No. 11/651 Issue 2 on type approval of Council Directive 96/98/EC on marine equipment (MED) Survival craft portable two-way VHF radiotelephone apparatus Model: FCC ID Manufacturer: V100 XYEV100 Ocean Signal Ltd., Great Britain Sevastopol 2011 July 29, 2011 Approved by Acting director PE TC “OMEGA” ________Bogach S.V. PE TC “ОМЕGА” TEST REPORT No. 11/651 page 2 of 247 PUBLIC ENTERPRISE TESTING CENTER «OMEGA» P.O.B. No.37, Sevastopol, 99053, Ukraine Phone: +380 692 240 373 Fax: +380 692 469 679 E-mail: [email protected] ACCREDITATION COSPAS-SARSAT Secretariat Reference No. CS497/F530 dated 21/09/1994 Ministry of Transport Russian Federation Certificate of accreditation of testing laboratory No. АКР.0510-14 РТН dated 19.05.2010 valid until 19.05.2015 Russia Maritime Register of Shipping Certificate of Recognition testing laboratory No. 07.18114.184 dated 21.08.2007 valid until 21.08.2012 National Accreditation Agency of Ukraine Certificate of accreditation for compliance DSTU ISO 17025:2006 No. 2H339 dated 18.05.2011 valid until 17.05.2014 Letter of FCC acceptance #181479 dated August 19, 2008 IC registration of 3/10m OATS #8780A-1 dated January 18, 2010 IC registration of 3m alternative test site #8780A-2 dated January 18, 2010 BABT Certificate of Recognition testing laboratory No.LAB/033 dated 30.06.2011 valid until 30.06.2013 Letter of USCG Acceptance for testing EPIRBs #16714/161.011/OMEGA dated February 7, 2008 Equipment under test Survival craft portable two-way VHF radiotelephone apparatus model: V100 Manufacturer Ocean Signal limited, Unit 4, Ocivan way, Margate, Kent, CT9 4NN, United Kingdom Applicant Ocean Signal limited, Unit 4, Ocivan way, Margate, Kent, CT9 4NN, United Kingdom Technical officer job title phone number e-mail address Stefan Kennedy +44(0) 1843 282930 [email protected] Test commencement date 30.06.2011 Test completion date 15.07.2011 The results of this report shall be applied only to the tested samples Copying or replication of this report or any part of it is prohibited without prior written permission of PE TC “Omega” PE TC “ОМЕGА” TEST REPORT No. 11/651 page 3 of 247 CONTENTS DOCUMENT REVISION HISTORY....................................................................................................................................5 INTRODUCTION....................................................................................................................................................................5 EQUIPMENT UNDER TEST................................................................................................................................................5 1.1 EQUIPMENT TYPE NAME........................................................................................................................................5 1.2 EQUIPMENT TRADE MARK......................................................................................................................................5 1.3 EQUIPMENT MODEL...............................................................................................................................................5 1.4 EQUIPMENT CATEGORY.........................................................................................................................................5 1.5 EQUIPMENT SERIAL NUMBER.................................................................................................................................5 1.6 FIRMWARE VERSION..............................................................................................................................................5 1.7 SOFTWARE VERSION.............................................................................................................................................5 TEST CONDITIONS AND METHODS...............................................................................................................................5 TEST PROGRAM..................................................................................................................................................................6 TEST SCHEDULE...............................................................................................................................................................10 TEST RESULT.....................................................................................................................................................................13 CONCLUSION.....................................................................................................................................................................16 SUMMARY OF TEST RESULTS......................................................................................................................................17 ANNEX 1. WARMING-UP PERIOD TEST......................................................................................................................21 ANNEX 2. POWER SUPPLY TEST.................................................................................................................................24 ANNEX 3. BATTERY CAPACITY TEST.........................................................................................................................30 ANNEX 4. BATTERY EXPIRY DATE TEST...................................................................................................................36 ANNEX 5. IDENTIFICATION OF VHF RADIO BEFORE ELECTRICAL TESTS AND PHOTO OF TYPICAL TEST SITE............................................................................................................................................................................40 ANNEX 6. FREQUENCY ERROR TEST.........................................................................................................................47 ANNEX 7. EFFECTIVE RADIATED POWER TEST.........................................................…

Text truncated - open the document above for the full version.

PUBLIC ENTERPRISE TESTING CENTER «OMEGA» TEST REPORT No. 11/652 Issue 2 Corrosion and Oil Resistance tests for compliance with items 5.1.5.10, 5.1.5.8 IEC 61097-12 First edition 1996-11 Model: FCC ID Manufacturer: V100 XYEV100 Ocean Signal Ltd., Great Britain Sevastopol 2011 Approved by Acting director PE TC “OMEGA” ________Bogach S.V. July 29, 2011 PE TC “ОМЕGА” TEST REPORT No. 11/652 page 2 of 25 PUBLIC ENTERPRISE TESTING CENTER «OMEGA» P.O.B. No.37, Sevastopol, 99053, Ukraine Phone: +380 692 240 373 Fax: +380 692 469 679 E-mail: [email protected] ACCREDITATION COSPAS-SARSAT Secretariat Reference No. CS497/F530 dated 21/09/1994 Ministry of Transport Russian Federation Certificate of accreditation of testing laboratory No. АКР.0510-14 РТН dated 19.05.2010 valid until 19.05.2015 Russia Maritime Register of Shipping Certificate of Recognition testing laboratory No. 07.18114.184 dated 21.08.2007 valid until 21.08.2012 National Accreditation Agency of Ukraine Certificate of accreditation for compliance DSTU ISO 17025:2006 No. 2H339 dated 18.05.2011 valid until 17.05.2014 Letter of FCC acceptance #181479 dated August 19, 2008 IC registration of 3/10m OATS #8780A-1 dated January 18, 2010 IC registration of 3m alternative test site #8780A-2 dated January 18, 2010 BABT Certificate of Recognition testing laboratory No.LAB/033 dated 30.06.2011 valid until 30.06.2013 Letter of USCG Acceptance for testing EPIRBs #16714/161.011/OMEGA dated February 7, 2008 Equipment under test Survival craft portable two-way VHF radiotelephone apparatus model: V100 Manufacturer Ocean Signal limited, Unit 4, Ocivan way, Margate, Kent, CT9 4NN, United Kingdom Applicant Ocean Signal limited, Unit 4, Ocivan way, Margate, Kent, CT9 4NN, United Kingdom Technical officer job title phone number e-mail address Stefan Kennedy +44(0) 1843 282930 [email protected] Test commencement date June 10, 2011 Test completion date July 12, 2011 The results of this report shall be applied only to the tested samples Copying or replication of this report or any part of it is prohibited without prior written permission of PE TC “Omega” PE TC “ОМЕGА” TEST REPORT No. 11/652 page 3 of 25 CONTENTS DOCUMENT REVISION HISTORY..................................................................................................................................4 INTRODUCTION.................................................................................................................................................................4 EQUIPMENT UNDER TEST.............................................................................................................................................4 1.1 EQUIPMENT TYPE NAME......................................................................................................................................4 1.2 EQUIPMENT TRADE MARK...................................................................................................................................4 1.3 EQUIPMENT MODEL.............................................................................................................................................4 1.4 EQUIPMENT CATEGORY......................................................................................................................................4 1.5 EQUIPMENT SERIAL NUMBER..............................................................................................................................4 1.6 FIRMWARE VERSION............................................................................................................................................4 1.7 SOFTWARE VERSION...........................................................................................................................................4 TEST CONDITIONS AND METHODS.............................................................................................................................5 TEST PROGRAM................................................................................................................................................................5 TEST SCHEDULE..............................................................................................................................................................5 TEST RESULT....................................................................................................................................................................5 CONCLUSION.....................................................................................................................................................................6 SUMMARY OF TEST RESULTS......................................................................................................................................7 ANNEX 1. CORROSION TEST........................................................................................................................................8 ANNEX 2. OIL RESISTANCE TEST..............................................................................................................................17 LIST OF TEST INSTRUMENTS.....................................................................................................................................25 PE TC “ОМЕGА” TEST REPORT No. 11/652 page 4 of 25 DOCUMENT REVISION HISTORY Version Date Description Issue 1 July 20, 2011 Initial release Issue 2 July 29, 2011 Complete list of all test equipment is added INTRODUCTION The V100 radio is available as two variants, V100 and V100 with accessory socket. The two radios are identical except for an additional socket assembly that is fitted to the V100 with accessory socket variant. All tests were carried out on the V100 with accessory socket variant as this provides the worse case configuration. The accessory socket also provides the electrical signals necessary for laboratory testing. This document contains the results of testing of VHF radio to the …

Text truncated - open the document above for the full version.

PUBLIC ENTEIRPRISE TESTING CENTER «OMEGA» TEST REPORT No. 11/679 Issue 2 Model: FCC ID Manufacturer: V100 XYEV100 Ocean Signal Ltd., Great Britain Tested in accordance with Federal Communications Commission (FCC) 47 CFR, Part 2 and Part 80 Sevastopol 2011 Approved by Acting director PE TC “OMEGA” ________Bogach S.V. July 29, 2011 PE TC “ОМЕGА” TEST REPORT No 11/679 page 2 from 18 PUBLIC ENTERPRISE TESTING CENTER «OMEGA» P.O.B. No.37, Sevastopol, 99053, Ukraine Phone: +380 692 240 373 Fax: +380 692 469 679 E-mail: [email protected] ACCREDITATION COSPAS-SARSAT Secretariat Reference No. CS497/F530 dated 21/09/1994 Ministry of Transport Russian Federation Certificate of accreditation of testing laboratory No. АКР.0510-14 РТН dated 19.05.2010 valid until 19.05.2015 Russia Maritime Register of Shipping Certificate of Recognition testing laboratory No. 07.18114.184 dated 21.08.2007 valid until 21.08.2012 National Accreditation Agency of Ukraine Certificate of accreditation for compliance DSTU ISO 17025:2006 No. 2H339 dated 18.05.2011 valid until 17.05.2014 Letter of FCC acceptance #181479 dated August 19, 2008 IC registration of 3/10m OATS #8780A-1 dated January 18, 2010 IC registration of 3m alternative test site #8780A-2 dated January 18, 2010 BABT Certificate of Recognition testing laboratory No.LAB/033 dated 30.06.2011 valid until 30.06.2013 Letter of USCG Acceptance for testing EPIRBs #16714/161.011/OMEGA dated February 7, 2008 Equipment under test Survival craft portable two-way VHF radiotelephone apparatus model: V100 Manufacturer Ocean Signal limited, Unit 4, Ocivan way, Margate, Kent, CT9 4NN, United Kingdom Applicant Ocean Signal limited, Unit 4, Ocivan way, Margate, Kent, CT9 4NN, United Kingdom Technical officer job title phone number e-mail address Stefan Kennedy +44(0) 1843 282930 stef…

Text truncated - open the document above for the full version.
