Y29SA-DR-1000Wireless, Hands-free Access Control and Tracking System

DOOR READER USER MANUAL The SecureALL door reader is installed in an electronic lock, typically one that is locally controlled and where a customer requires single point, central control capability throughout a facility. Once the reader unit is installed, the only user requirement is to replace four AA batteries when their voltage falls below a predetermined level. This is accomplished by removing a single screw on the back of the unit, removing a screw that holds the inside handle in place, lifting the back cover off, removing the battery compartment cover, replacing the batteries and then reversing the process to put it back together again. As with the U-Key, there are no buttons to press and no settings to be changed. This is all accomplished at the factory. FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

SecureALL Corporation x 695 Woburn Court Mountain View, CA 94040 x (M) 650.704.2725 (F) 650.938.3755 FCC Confidential Authorization December 15, 2010 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: Y29SA-DR-1000 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, SecureALL Corporation hereby requests confidential treatment of information accompanying this application as outlined below: Long Term: • Block Diagram • Schematics • Operation Description Short Term: • EUT External Photos • EUT Internal Photos The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Dr. Richard Schaffzin

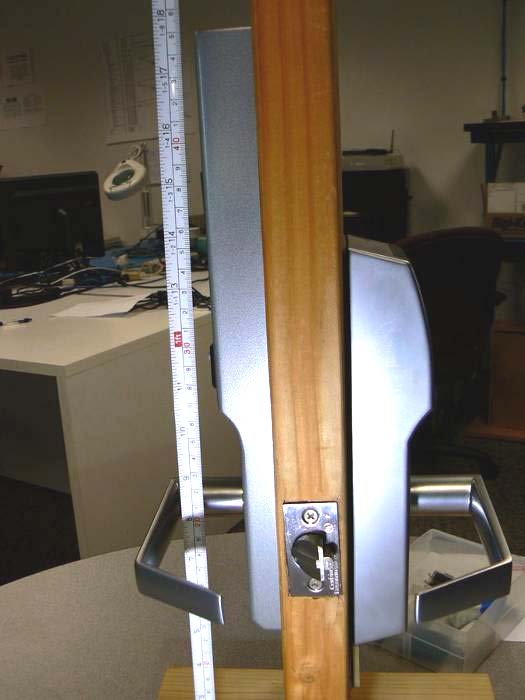

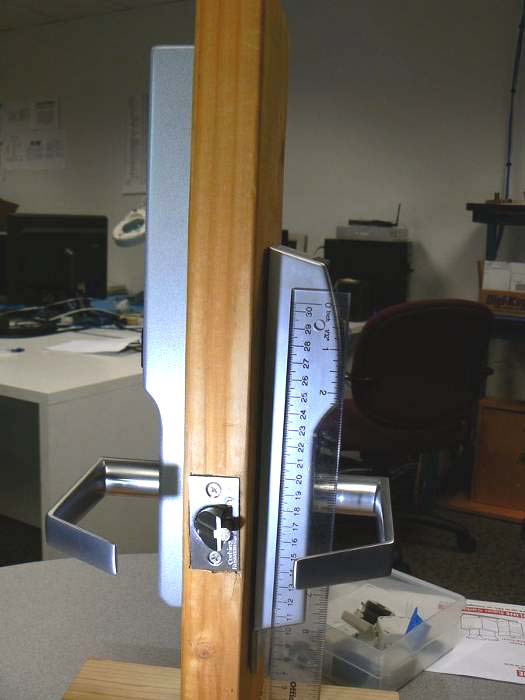

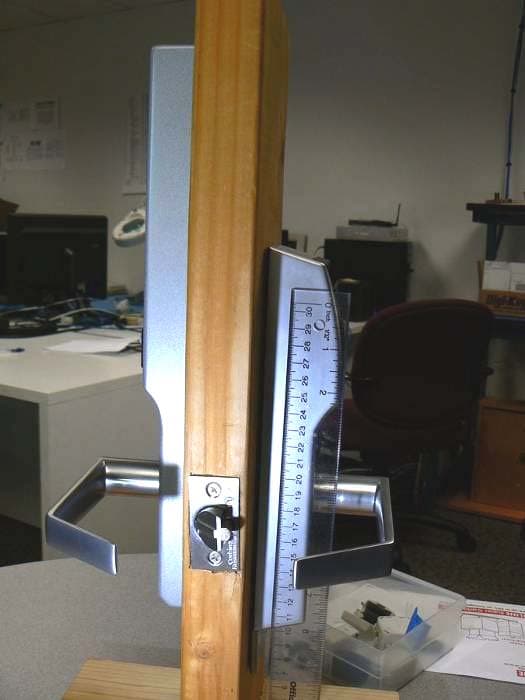

SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 97 of 103 FCC Part 15C Test Report 18 Exhibit C - EUT Photographs 18.1 EUT– Front View 18.2 EUT– Back View SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 98 of 103 FCC Part 15C Test Report 18.3 EUT Side View 1 18.4 EUT Side View 2

SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 92 of 103 FCC Part 15C Test Report 16 Exhibit A - FCC Equipment Labeling Requirements 16.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code 123—Equipment Product Code As per FCC §15.19, (a) In addition to the requirements in part 2 of this chapter, a device subject to certification, or verification shall be labeled as follows: (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. (4) Where a device is constructed in two or more sections connected by wires and marketed together, the statement specified above is required to be affixed only to the main control unit. If the EUT is integrated within another device then a label affixed to the host shall also state, “Contains FCC ID: XXXXXX” (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. 16.2 FCC ID Label Content Model: SA-DR-1000 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: Y29SA-DR-1000 SecureALL Corporation SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 93 of 103 FCC Part 15C Test Report 16.3 FCC ID Label Location Label here

SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 99 of 103 FCC Part 15C Test Report 18.5 EUT Open Chassis View 1 18.6 EUT PCB Assembly Main Board - Top View SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 100 of 103 FCC Part 15C Test Report 18.7 EUT PCB Assembly Main Board - Bottom View 18.8 EUT PCB Assembly Main Antenna View SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 101 of 103 FCC Part 15C Test Report 18.9 EUT PCB Assembly Bottom Antenna – Top View 18.10 EUT PCB Assembly Bottom Antenna – Bottom View SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 102 of 103 FCC Part 15C Test Report 18.11 EUT PCB Assembly Back Antenna – Top View 18.12 EUT PCB Assembly Back Antenna – Bottom View SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 103 of 103 FCC Part 15C Test Report 18.13 AC/DC Adaptor View ***** END OF REPORT *****

SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 10 of 103 FCC Part 15C Test Report 4 FCC §15.247(i) & §2.1091 - RF Exposure Information 4.1 Applicable Standard According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results DSSS: Main Antenna Maximum peak output power at antenna input terminal (dBm): 4.35 Maximum peak output power at antenna input terminal (mW): 2.723 Prediction distance (cm): 20 Prediction frequency (MHz): 2475 Maximum Antenna Gain, typical (dBi): 5 Maximum Antenna Gain (numeric): 3.162 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.00171 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.00171mW/cm 2 .Limit is 1mW/cm 2. SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 11 of 103 FCC Part 15C Test Report Bottom Antenna Maximum peak output power at antenna input terminal (dBm): 4.35 Maximum peak output power at antenna input terminal (mW): 2.723 Prediction distance (cm): 20 Prediction frequency (MHz): 2475 Maximum Antenna Gain, typical (dBi): 2 Maximum Antenna Gain (numeric): 1.585 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.00086 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.00086mW/cm 2 .Limit is 1mW/cm 2. Back Antenna at Vertical Polarity Maximum peak output power at antenna input terminal (dBm): 4.35 Maximum peak output power at antenna input terminal (mW): 2.723 Prediction distance (cm): 20 Prediction frequency (MHz): 2475 Maximum Antenna Gain, typical (dBi): 3 Maximum Antenna Gain (numeric): 1.995 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.00108 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.00108mW/cm 2 .Limit is 1mW/cm 2. Back Antenna at Horizontal Polarity Maximum peak output power at antenna input terminal (dBm): 4.35 Maximum peak output power at antenna input terminal (mW): 2.723 Prediction distance (cm): 20 Prediction frequency (MHz): 2475 Maximum Antenna Gain, typical (dBi): 3 Maximum Antenna Gain (numeric): 1.995 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.00108 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.00108mW/cm 2 .Limit is 1mW/cm 2 SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 12 of 103 FCC Part 15C Test Report FHSS Mode: Main Antenna Maximum peak output power at antenna input terminal (dBm): 0.32 Maximum peak output power at antenna input terminal (mW): 1.076 Prediction distance (cm): 20 Prediction frequency (MHz): 2479 Maximum Antenna Gain, typical (dBi): 5 Maximum Antenna Gain (numeric): 3.162 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.00068 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.00068mW/cm 2 .Limit is 1mW/cm 2. Bottom Antenna Maximum peak output power at antenna input terminal (dBm): 0.32 Maximum peak output power at antenna input terminal (mW): 1.076 Prediction distance (cm): 20 Prediction frequency (MHz): 2479 Maximum Antenna Gain, typical (dBi): 2 Maximum Antenna Gain (numeric): 1.585 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.00034 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ): 1 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.00034mW/cm 2 .Limit is 1mW/cm 2.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15 SUBPART C TEST AND MEASUREMENT REPORT For SecureALL Corporation 695 Woburn Court, Mountain View, CA 94040, USA FCC ID: Y29SA-DR-1000 Model: SA-DR-1000 Report Type: Original Report Product Type: Door Reader with DSSS & FSSS Transceiver Test Engineers: Jerry Huang Report Number: R1012013-247 Report Date: 2010-12-20 Reviewed By: Victor Zhang RF Lead Prepared By: (84) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 2 of 103 FCC Part 15C Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 6 1.1 Product Description for Equipment under Test (EUT) ........................................................................................ 6 1.2 Mechanical Description of EUT .......................................................................................................................... 6 1.3 Objective.............................................................................................................................................................. 6 1.4 Related Submittal(s)/Grant(s) .............................................................................................................................. 6 1.5 Test Methodology................................................................................................................................................ 6 1.6 Measurement Uncertainty.................................................................................................................................... 7 1.7 Test Facility......................................................................................................................................................... 7 2 System Test Configuration.......................................................................................................................................... 8 2.1 Justification.......................................................................................................................................................... 8 2.2 EUT Exercise Software ....................................................................................................................................... 8 2.3 Equipment Modifications .................................................................................................................................... 8 2.4 Special Accessories ............................................................................................................................................. 8 2.5 EUT Internal Configuration Details .................................................................................................................... 8 2.6 Power Supply and Line Filters............................................................................................................................. 8 3 Summary of Test Results............................................................................................................................................. 9 4 FCC §15.247(i) & §2.1091 - RF Exposure Information ............................................................................................ 10 4.1 Applicable Standard .......................................................................................................................................... 10 4.2 MPE Prediction.................................................................................................................................................. 10 4.3 MPE Results ...................................................................................................................................................... 10 5 FCC §15.203 – Antenna Requirements ...................................................................................................................... 13 5.1 Applicable Standard .......................................................................................................................................... 13 5.2 Antenna Connector Construction....................................................................................................................... 13 6 FCC §15.207 – AC Line Conducted Emissions ......................................................................................................... 14 6.1 Applicable Standards ......................................................................................................................................... 14 6.2 Test Setup .......................................................................................................................................................... 14 6.3 Test Equipment List and Details........................................................................................................................ 14 6.4 Test Procedure ................................................................................................................................................... 15 6.5 Test Setup Block Diagram................................................................................................................................. 15 6.6 Corrected Amplitude & Margin Calculation .............................................................…

Text truncated - open the document above for the full version.

SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 94 of 103 FCC Part 15C Test Report 17 Exhibit B - Test Setup Photographs 17.1 Radiated Emission below 1 GHz Front View @ 3 Meters 17.2 Radiated Emission below 1 GHz Rear View @ 3 Meters SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 95 of 103 FCC Part 15C Test Report 17.3 Radiated Emission above 1 GHz Front View @ 3 Meters 17.4 Radiated Emission above 1 GHz Front View @ 3 Meters SecureALL Coropration FCC ID: Y29SA-DR-1000 Report Number: R1012013-247 Page 96 of 103 FCC Part 15C Test Report 17.5 AC Line Conducted Emission Front View 17.6 AC Line Conducted Emission Side View
