Y29SA-MDRWireless Security Door Reader

SecureALL Corporation
Wireless Security Door Reader - FCC ID Y29SA-MDR - SecureALL Corporation
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Aug 16, 2012
Application Purpose
Original Equipment
Date of Application
Aug 16, 2012
Equipment Note
Wireless Security Door Reader
Frequency Range
2405.00000000 - 2479.00000000
Company
SecureALL Corporation
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MORTISE LOCK DOOR READER USER MANUAL The SecureALL mortise lock door reader is an RF communication electronic lock, which enables single point, central control capability throughout a facility. The mortise lock unit is delivered to a customer who is responsible for 1) installing the mortise latch in the pre-fabricated door pocket and 2) mounting the front and back trim, which contain all the RF electronics. Once the reader unit is installed, the only user interaction is to replace three AA batteries when their voltage falls below a predetermined level. This is accomplished by removing three screws on the back of the unit, lifting the back cover off, replacing the batteries and then reversing the process to put it back together again. As with the U-Key, there are no buttons to press and no settings to be changed. This is all accomplished at the factory. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

External Photos

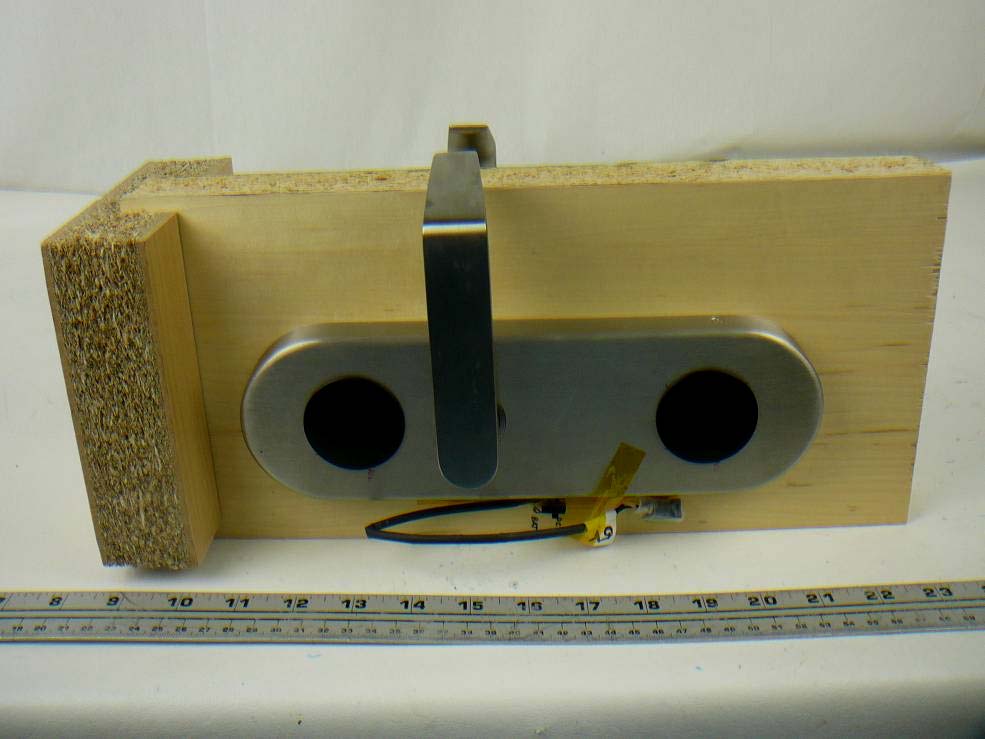

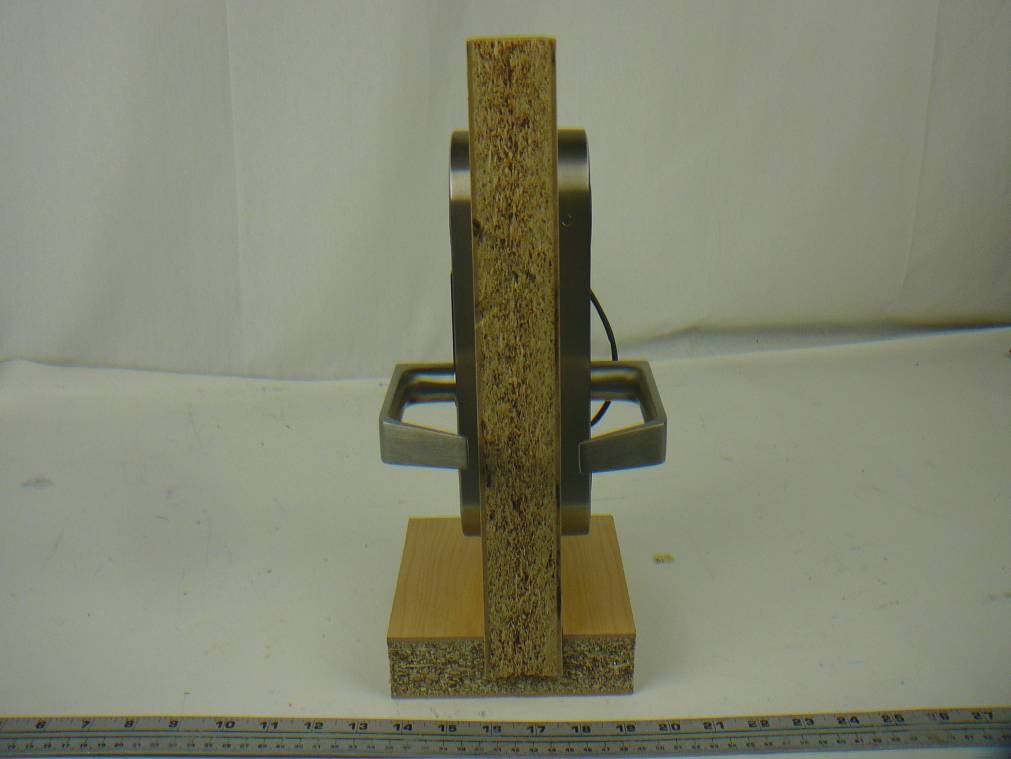

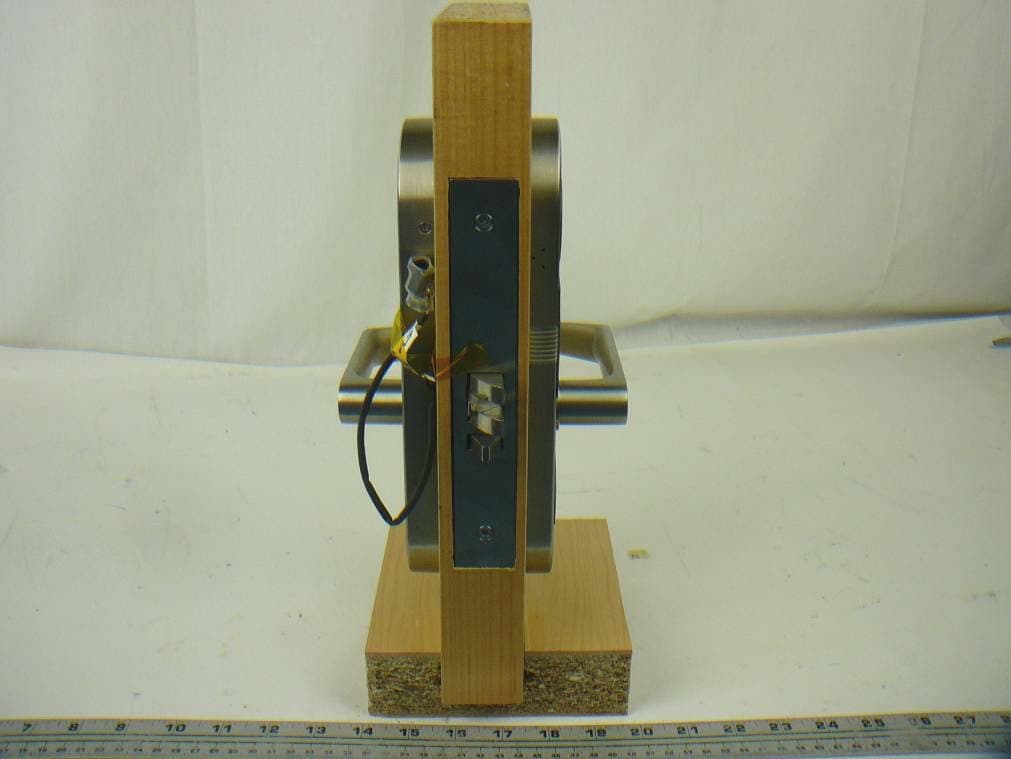

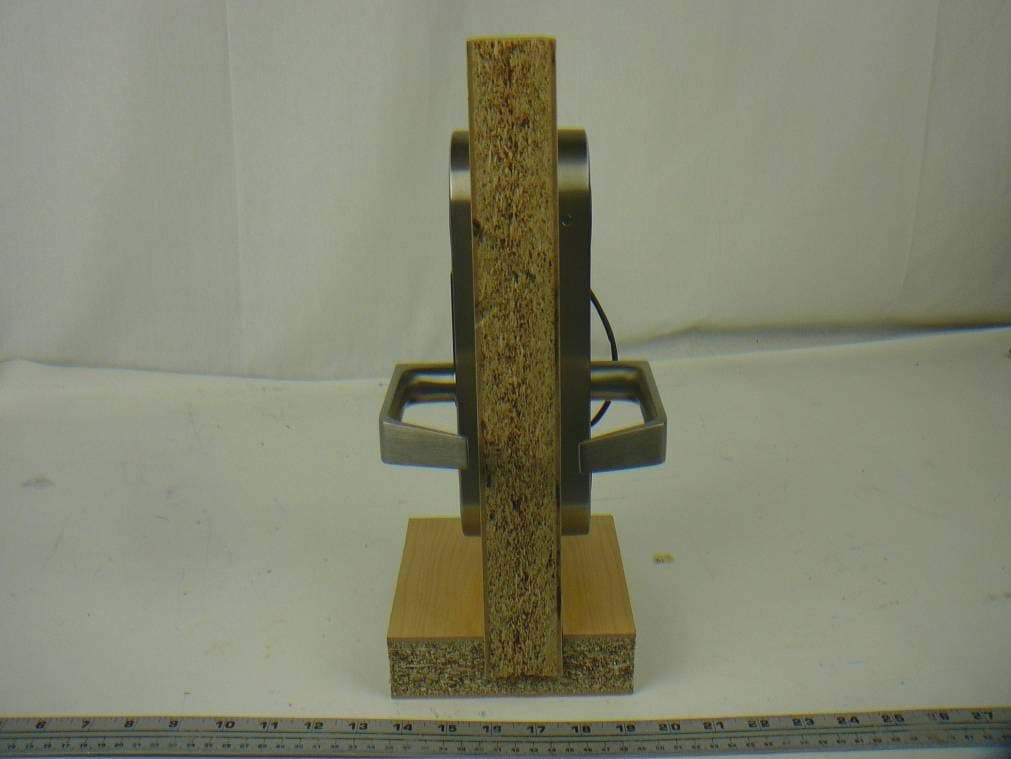

SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 48 of 53 FCC Part 15C Test Report 17 Exhibit C – EUT Photographs 17.1 EUT – Front View 17.2 EUT – Back View SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 49 of 53 FCC Part 15C Test Report 17.3 EUT – Side View 1 17.4 EUT – Side View 2

ID Label/Location Info

SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 44 of 53 FCC Part 15C Test Report 15 Exhibit A – FCC Equipment Labeling Requirements 15.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 15.2 As per FCC §15.19, (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. (4) The label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in §2.925(d) of this chapter. “Permanently affixed” means that the label is etched, engraved, stamped, silkscreened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. 15.3 FCC ID Label Contents and Location

Internal Photos

SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 50 of 53 FCC Part 15C Test Report 17.5 EUT – Open Chassis View 17.6 EUT – PCB Board 114 Top View SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 51 of 53 FCC Part 15C Test Report 17.7 EUT – PCB Board 114 Bottom View 17.8 EUT – PCB Board 115 Top View SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 52 of 53 FCC Part 15C Test Report 17.9 EUT – PCB Board 115 Bottom View 17.10 EUT – Antenna Top View SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 53 of 53 FCC Part 15C Test Report 17.11 EUT – Antenna Bottom View 17.12 EUT – AC/DC Power Adapter --- END OF REPORT ---

RF Exposure Info

SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 9 of 53 FCC Part 15C Test Report 4 FCC §15.247 (i) & § 2.1091 RF Exposure Evaluation 4.1 Applicable Standard According to FCC §15.247(i), §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density 4.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 4.3 MPE Results Maximum peak output power at antenna input terminal (dBm): 5.12 Maximum peak output power at antenna input terminal (mW): 3.25 Prediction distance (cm): 20 Prediction frequency (MHz): 2405 Maximum Antenna Gain, typical (dBi): 5 Maximum Antenna Gain (numeric): 3.16 Power density of prediction frequency at 20.0 cm (mW/cm 2 ): 0.002 MPE limit for uncontrolled exposure at prediction frequency (mW/cm 2 ):1.0 The device is compliant with the requirement MPE limit for uncontrolled exposure. The maximum power density at the distance of 20 cm is 0.002 mW/cm 2 , limit is 1.0 mW/cm 2 .

Test Report

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by A2LA*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 15, SUBPART C TEST AND MEASUREMENT REPORT For SecureALL Corporation 695 Woburn Court, Mountain View, CA 94040, USA Report Type: Original Report Product Type: Wireless Security Door Reader Prepared By: Ning Ma Report Number: R1204301-247 FHSS Report Date: 2012-08-15 Reviewed By: Victor Zhang EMC/RF Lead Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732-9164 FCC ID: Y29SA-MDR SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 2 of 53 FCC Part 15C Test Report TABLE OF CONTENTS 1 General Description ..................................................................................................................................................... 5 1.1 Product Description for Equipment Under Test (EUT) ....................................................................................... 5 1.2 Mechanical Description of EUT .......................................................................................................................... 5 1.3 Objective.............................................................................................................................................................. 5 1.4 Related Submittal(s)/Grant(s) .............................................................................................................................. 5 1.5 Test Methodology................................................................................................................................................ 5 1.6 Measurement Uncertainty.................................................................................................................................... 5 1.7 Test Facility......................................................................................................................................................... 6 2 System Test Configuration.......................................................................................................................................... 7 2.1 Justification.......................................................................................................................................................... 7 2.2 EUT Exercise Software ....................................................................................................................................... 7 2.3 Special Equipment ............................................................................................................................................... 7 2.4 Equipment Modifications .................................................................................................................................... 7 2.5 Local Support Equipment .................................................................................................................................... 7 2.6 EUT Internal Configuration Details .................................................................................................................... 7 2.7 Power Supply List and Details............................................................................................................................. 7 3 Summary of Test Results............................................................................................................................................. 8 4 FCC §15.247 (i) & § 2.1091 RF Exposure Evaluation .............................................................................................. 9 4.1 Applicable Standard ............................................................................................................................................ 9 4.2 MPE Prediction.................................................................................................................................................... 9 4.3 MPE Results ........................................................................................................................................................ 9 5 FCC §15.203 – Antenna Requirements ...................................................................................................................... 10 5.1 Applicable Standard .......................................................................................................................................... 10 5.2 Antenna Information.......................................................................................................................................... 10 6 FCC §15.207(a) – AC Line Conducted Emissions..................................................................................................... 11 6.1 Applicable Standard .......................................................................................................................................... 11 6.2 Test Setup .......................................................................................................................................................... 11 6.3 Test Procedure ................................................................................................................................................... 11 6.4 Test Setup Block Diagram................................................................................................................................. 12 6.5 Corrected Amplitude & Margin Calculation ...................................................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 45 of 53 FCC Part 15C Test Report 16 Exhibit B – Test Setup Photographs 16.1 AC Line Conducted Emission Front View 16.2 AC Line Conducted Emission Side View SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 46 of 53 FCC Part 15C Test Report 16.3 Radiated Emission below 1 GHz Front View at 3 Meter 16.4 Radiated Emission below 1 GHz Rear View at 3 Meter SecureALL Corporation FCC ID: Y29SA-MDR Report Number: R1204301-247 FHSS Page 47 of 53 FCC Part 15C Test Report 16.5 Radiated Emission above 1 GHz Front View at 3 Meter 16.6 Radiated Emission above 1 GHz Front View at 3 Meter

Contact Information

Applicant

Richard Schaffzin(CEO)
[email protected]650-704-2725Fax: 650-938-3755

Test Firm

Bay Area Compliance LaboratoryJohn Chan
[email protected]408-732-9162Fax: 408-732-9164

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz3.25 mW
Confidentiality
Long Term
Grant Notes
Output power listed is conducted. The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance.
