WALL READER-CORE, USER MANUAL The SecureALL wall reader-core is an RF communication device that interfaces with doors which contain both electrified strikes and panic bars for egress capability (i.e. Von Duprin hardware). The electrified strike doors come complete with a control box, typically mounted above the door or at a remote location within 100 feet of the door, into which a SecureALL interface unit is mounted and wired to the control electronics. A CAT-5 cable runs from the interface unit, typically along the door frame, to a double- gang plastic box at approximately waist height. The SecureALL reader unit is mounted in this box. The CAT-5 cable provides both power and communication between the reader and the control unit. The reader contains antennas that allow it to communicate with routers mounted throughout a building (which enables single point, central control capability), as well as with hands-free U-Keys that users carry with them which identify all portals they have access to. When a U-Key approaches a door, the reader unit communicates with it and if it determines that individual is allowed access, a signal is sent to the control box and a dry contact closure unlocks the door. There are no buttons to press and no settings to be changed in the wall reader. This is all accomplished at the factory. The wall reader-core can also be used to control a garage gate system (i.e. Elite gate opener). The same basic cabling as described above will apply but it is most likely that there will be two reader boxes, mounted on opposite sides of the gate. This will allow for improved beam focusing as a car approaches and yield better system repeatability. A dry contact closure is used to activate the gate. The wall reader-core can be powered by certified AC powered DC source. The wall reader-core can be used as an automatic U-Key ID reader (similar to a Barcode reader), powered by a USB adapter that provides both power and data connectivity. The wall reader-core can be battery operated if a customer so desires. In this case, there will be no power cabling and if RF communication is possible between the reader unit and the actuator unit, then data lines can also be eliminated. In this instance, once the reader unit is installed, the only user interaction is to replace three AA batteries when their voltage falls below a predetermined level. This is accomplished by removing the battery compartment cover, replacing the batteries and then reversing the process to put it back together again. Users change no settings in the reader unit. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

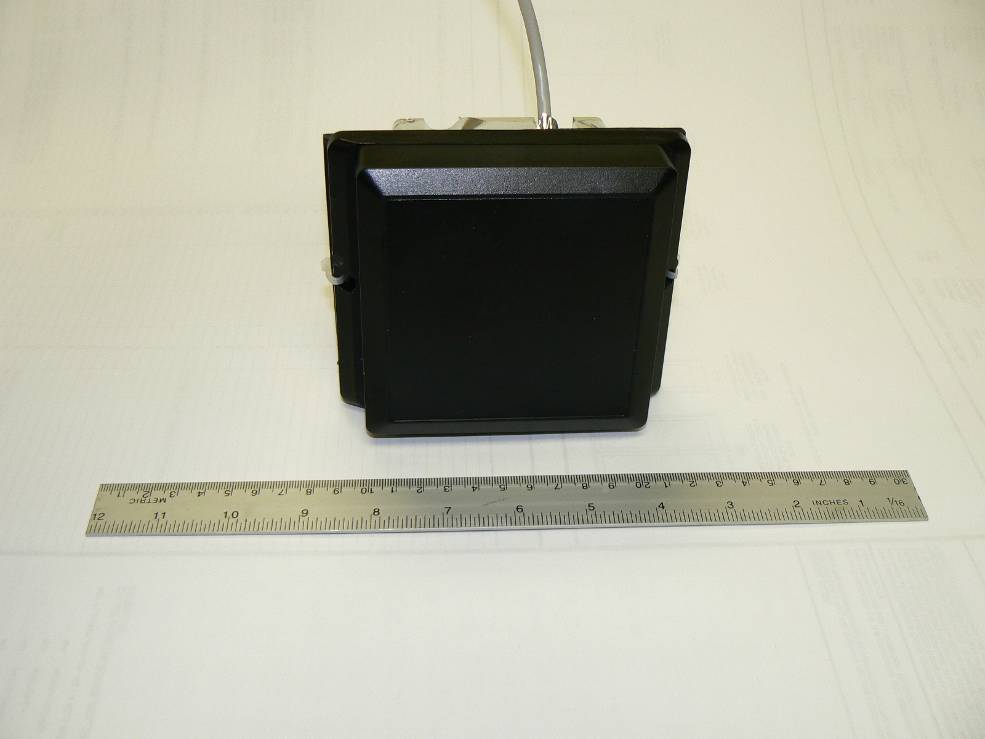

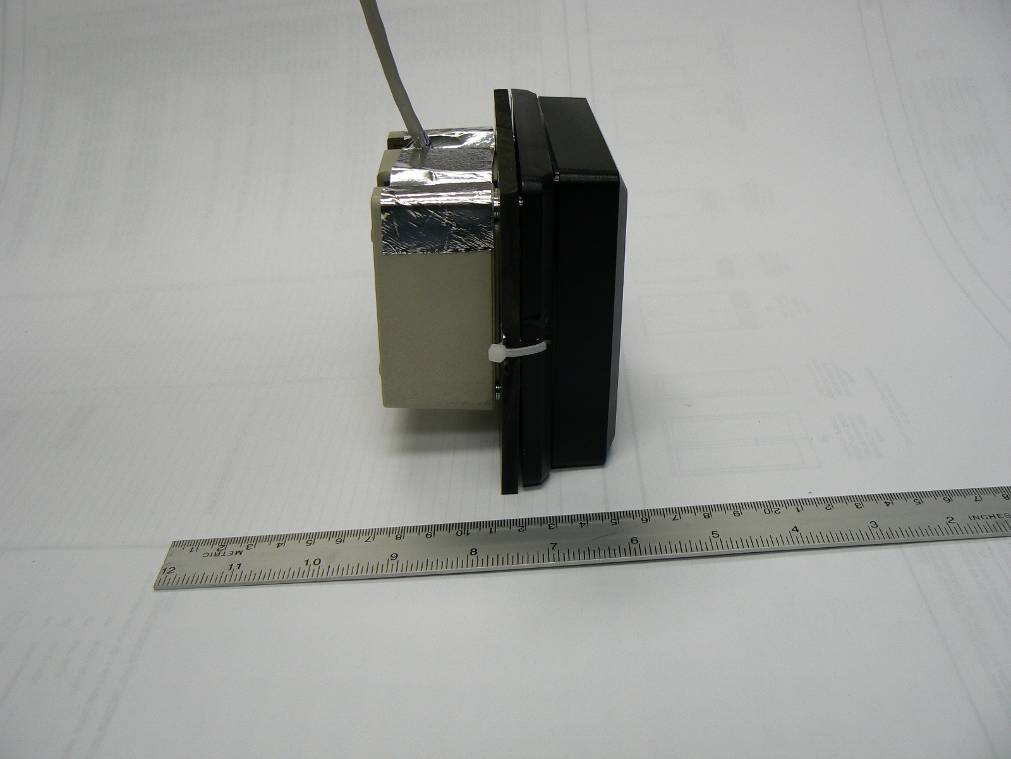

SecureALL Coprporation FCC ID: Y29SA-PWR-C Report Number: R1204302-247 DTS Page 52 of 56 FCC Part 15C Test Report 15 Exhibit C – EUT Photographs 15.1 EUT – Front View 15.2 EUT – Back View SecureALL Coprporation FCC ID: Y29SA-PWR-C Report Number: R1204302-247 DTS Page 53 of 56 FCC Part 15C Test Report 15.3 EUT – Side View 1

SecureALL Coprporation FCC ID: Y29SA-PWR-C Report Number: R1204302-247 DTS Page 48 of 57 FCC Part 15C Test Report 13 Exhibit A – FCC Equipment Labeling Requirements 13.1 FCC ID Label Requirements As per FCC §2.925, (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID: XXX123 Where: XXX—Grantee Code, 123—Equipment Product Code As per FCC §15.19, (3) All other devices shall bear the following statement in a conspicuous location on the device: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. (4) The label shall not be a stick-on, paper label. The label on these products shall be permanently affixed to the product and shall be readily visible to the purchaser at the time of purchase, as described in §2.925(d) of this chapter. “Permanently affixed” means that the label is etched, engraved, stamped, silkscreened, indelibly printed, or otherwise permanently marked on a permanently attached part of the equipment or on a nameplate of metal, plastic, or other material fastened to the equipment by welding, riveting, or a permanent adhesive. The label must be designed to last the expected lifetime of the equipment in the environment in which the equipment may be operated and must not be readily detachable. 13.2 FCC ID Label Contents and Location

SecureALL Coprporation FCC ID: Y29SA-PWR-C Report Number: R1204302-247 DTS Page 49 of 57 FCC Part 15C Test Report 14 Exhibit B – Test Setup Photographs 14.1 AC Line Conducted Emission - Front View 14.2 AC Line Conducted Emission - Side View SecureALL Coprporation FCC ID: Y29SA-PWR-C Report Number: R1204302-247 DTS Page 50 of 57 FCC Part 15C Test Report 14.3 Radiated Emission below 1 GHz Front View at 3 Meter 14.4 Radiated Emission below 1 GHz Rear View at 3 Meter SecureALL Coprporation FCC ID: Y29SA-PWR-C Report Number: R1204302-247 DTS Page 51 of 57 FCC Part 15C Test Report 14.5 Radiated Emission above 1 GHz Front View at 3 Meter 14.6 Radiated Emission above 1 GHz Rear View at 3 Meter
