Y38TE1211Mmodlet gateway

ThinkEco™ Products and Specifications For more information and to learn about your product(s) please read all user guide/manuals provided to you (in both paper and electronic form) including in the software downloaded in connection with the usage of these products and all operating and safety instructions. If you fail to do so the products listed below may not function properly and may lead to damage to the products and to other danger. modlet® Model Name: TE1010 Specifications • Electrical Rating: 125V~15A/60Hz/1875W • NEMA 5-15 • ZigBee (IEEE 802.15.4) wireless communication Important Safety Information: • Use indoors in a dry location. • Do not use this product in connection with critical care equipment (i.e. life-support systems). • Contains non-user serviceable parts; do not open. • This is a live AC outlet, even when the Modlet is in an “off scheduled mode”. • This product is not a toy. Do not allow children to operate it. • Not intended for use with loads rated above 15 Amps • Do not “daisy-chain” the Modlet. Only plug the Modlet into a duplex outlet or a grounded extension cord rated 15 Amps or higher. • In an over current condition or if the Modlet is plugged into an old and/or damaged socket the Modlet and socket temperature may increase substantially. Unplug the Modlet and appliances immediately and discontinue use. You should contact a qualified electrician to inspect and/or replace the outlet. Connecting a Modlet to an improperly grounded outlet will void all warranties. • UL 916 listed modletBN™ Model Name: TE4010 Specifications • Electrical Rating: 125V~15A/60Hz/1875W • NEMA 5-15 • ZigBee (IEEE 802.15.4) wireless communication Important Safety Information: • Use indoors in a dry location. • Do not use this product in connection with critical care equipment (i.e. life-support systems). • Contains non-user serviceable parts; do not open. • This is a live AC outlet, even when the Modlet is in an “off scheduled mode”. • This product is not a toy. Do not allow children to operate it. • Not intended for use with loads rated above 15 Amps • Do not “daisy-chain” the Modlet. Only plug the Modlet into a duplex outlet or a grounded extension cord rated 15 Amps or higher. • In an over current condition or if the Modlet is plugged into an old and/or damaged socket the Modlet and socket temperature may increase substantially. Unplug the Modlet and appliances immediately and discontinue use. You should contact a qualified electrician to inspect and/or replace the outlet. Connecting a Modlet to an improperly grounded outlet will void all warranties. • UL 916 listed Model Name: TE4011 Specifications • Electrical Rating: 125V~20A/60Hz/3000W • NEMA 5-20 • ZigBee (IEEE 802.15.4) wireless communication Important Safety Information: • Use indoors in a dry location. • Do not use this product in connection with critical care equipment (i.e. life-support systems). • Contains non-user serviceable parts; do not open. • This is a live AC outlet, even when the Modlet is in an “off scheduled mode”. • This product is not a toy. Do not allow children to operate it. • Not intended for use with loads rated above 20 Amps • Do not “daisy-chain” the Modlet. Only plug the Modlet into a duplex outlet or a grounded extension cord rated 20 Amps or higher. • In an over current condition or if the Modlet is plugged into an old and/or damaged socket the Modlet and socket temperature may increase substantially. Unplug the Modlet and appliances immediately and discontinue use. You should contact a qualified electrician to inspect and/or replace the outlet. Connecting a Modlet to an improperly grounded outlet will void all warranties. • UL 916 listed Model Name: TE4012 Specifications • Electrical Rating: 240V~15A/60Hz/3600W • NEMA 6-15 • ZigBee (IEEE 802.15.4) wireless communication Important Safety Information: • Use indoors in a dry location. • Do not use this product in connection with critical care equipment (i.e. life-support systems). • Contains non-user serviceable parts; do not open. • This is a live AC outlet, even when the Modlet is in an “off scheduled mode”. • This product is not a toy. Do not allow children to operate it. • Not intended for use with loads rated above 15 Amps • Do not “daisy-chain” the Modlet. Only plug the Modlet into a duplex outlet or a grounded extension cord rated 15 Amps or higher. • In an over current condition or if the Modlet is plugged into an old and/or damaged socket the Modlet and socket temperature may increase substantially. Unplug the Modlet and appliances immediately and discontinue use. You should contact a qualified electrician to inspect and/or replace the outlet. Connecting a Modlet to an improperly grounded outlet will void all warranties. • UL 916 listed Model Name: TE4013 Specifications • Electrical Rating: 240V~20A/60Hz/4800W • NEMA 6-20 • ZigBee (IEEE 802.15.4) wireless communication Important Safety Information: • Use indoors in a dry location. • Do not use this product in connection with critical care equipment (i.e. life-support systems). • Contains non-user serviceable parts; do not open. • This is a live AC outlet, even when the Modlet is in an “off scheduled mode”. • This product is not a toy. Do not allow children to operate it. • Not intended for use with loads rated above 20 Amps • Do not “daisy-chain” the Modlet. Only plug the Modlet into a duplex outlet or a grounded extension cord rated 20 Amps or higher. • In an over current condition or if the Modlet is plugged into an old and/or damaged socket the Modlet and socket temperature may increase substantially. Unplug the Modlet and appliances immediately and discontinue use. You should contact a qualified electrician to inspect and/or replace the outlet. Connecting a Modlet to an improperly grounded outlet will void all warranties. • UL 916 listed modlet® Gateway Model Name: TE1210 Specifications • AC/DC power supply: 100V-240V/50-60Hz/0.5A Max • Gateway device: 12V/1A • ZigBee (IEEE 802.15.4) wireless com…

Text truncated - open the document above for the full version.

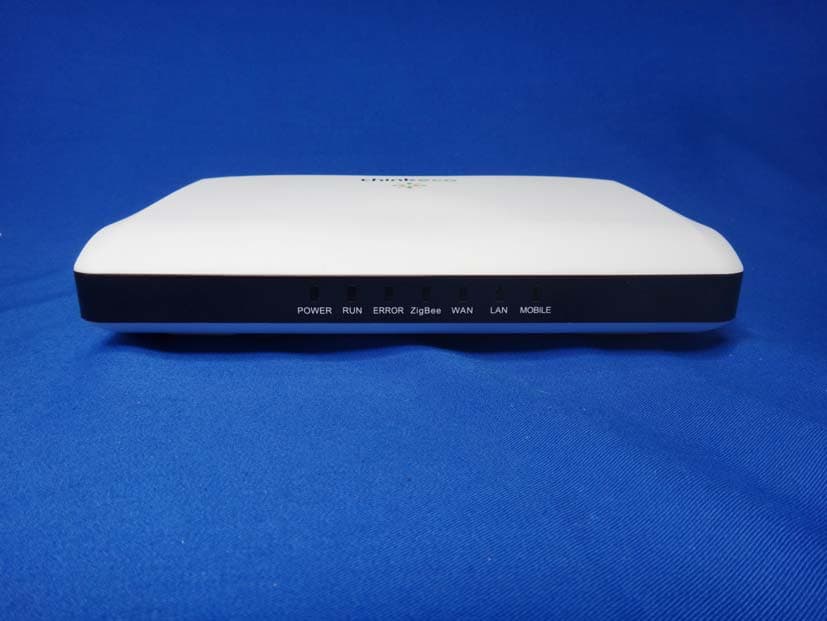

R User Guide Back View Hardware Top View Bottom View Wall mounts Front View WAN interface LED USB interface LEDs ZigBee interface LED Power LED Error LED Run LED AC/DC power supply RJ45/WAN connector 2 USB 2.0 connectors Reset button LED light overview Power LED: ON when AC/DC power supply is connected and modlet® gateway is powered ON. OFF when AC/DC power supply is not connected. To power on the modlet® gateway please verify the AC/DC adapter is properly connected. Run LED: OFF when the modlet® gateway is in IDLE mode Flashing when the modlet® gateway is in OPERATIVE mode Error LED: ON when the modlet® gateway is in ERROR mode. To restart the modlet® gateway press Reset Button on the back. If the modlet® gateway does not exit Error mode please unplug and replug the AC/DC adapter USB interface LEDs: ON when a USB device is connected to the modlet® gateway WAN interface LEDs (front and back): ON (Orange) when a 10/100 Mbps device is connected to the port. Flashing (Orange) when a 10/100 Mbps device is transmitting or receiving to the port. ON (Green) when a 1000 Mbps device is connected to the port. Flashing (Green) when a 1000 Mbps device is transmitting or receiving to the port. ZigBee interface LED: Flashing (Blue) when the imbedded ZigBee module is transmitting or receiving data. On (Blue) when the imbedded ZigBee module is in IDLE mode. Installation What you need to get started 1 power cord (included) 1 Ethernet cord (included) IP address of your home/office router (user provides) To find your router’s IP address consult your router’s manual or contact the manufacturer INSTRUCTIONS 1. Plug in modlet gateway Plug in the modlet gateway into an electrical outlet using the power cord provided. The green power LED light should turn on. Then plug the gateway into your home or office router using the Ethernet cord provided. The WAN interface LED will be flashing and then become solid when connected. 2. Access your router’s information Using an Internet-connected computer, open a new browser window (Internet Explorer, Firefox, Chrome or Safari). Type in the IP address of your router in your browser’s address bar and press enter. If you do not know the IP address of your router then consult the router’s user manual or contact the manufacturer. Once you are connected to the router manager page, look on the left side of the screen for the “Attached Devices” link and click on it. Under the list of Devices, look for the device named “THINKECO_GATEWAY”. Write down the IP address written to the left of the THINKECO_GATEWAY. In your browser’s address bar, type in the IP address of the THINKECO_GATEWAY that you just wrote down and press enter. You will be directed to a ThinkEco page. 3. Register a modlet account To create a new account, select the link that says “New User? Create an Account”. Follow all on screen instructions to register an account. On the last screen, click the “Go Back to Router Settings” button. You will be directed back to the ThinkEco page. 4. Set up your modlet(s) Log into your account, using the username and password you just created. Then follow all on screen instructions to set up your modlet(s). my router IP address: ThinkEco Gateway IP address: my username & password: If you are connected to the internet and logged into your account, but you’re not seeing the latest data, try these tips. 1. Check gateway Make sure your gateway is correctly connected AC/DC adapter plugged in (POWER led ON) LAN cable plugged in (WAN led flashing) ZigBee module in operative mode (ZigBee led ON) Next restart gateway Restart gateway from Web GUI if not successful please: press reset button and wait system restart if still not successful please: unplug and replug AC/DC power supply Check the status of your gateway by clicking on the Modlet Network link in the top right of your screen and then clicking on USB Receiver. 2. Be patient When you first set up your network, or if your computer has been off for a while, the data may take a few minutes to load onto the interface. Check back in 15 minutes. 3. Refresh Try hitting the refresh button on the Energy Usage tab or your browser. 4. Verify parameters Check the variables you selected for the graph: does the start and end date match when you plugged in your modlet? Do you have at least one device selected? Click on the name of the devices you want to graph or select all to see total energy consumption. 5. Check devices Check the status of your devices on the energy usage tab. A green light next to your device means it has reported data to your computer in the last 24 hours. If the light is red, first restart you gateway. Next, verify your devices are labeled correctly and assigned to the correct outlet by clicking Modlet Network and then Modlets. For more troubleshooting information, call the modlet tech support center at 1-800-682-0152. Troubleshooting Modlet® gateway PACKING LIST 1 modlet gateway TE121 0 1 Cable Ethernet, 6FT min 1 AC/DC Power supply, 1 10V/240V Input, 12V/1A output ThinkEco modlet® gateway Thank you for purchasing your new modlet® gateway! For more information and to learn about your modlet® gateway please visit www.themodlet.com. Please read all user guides/manuals provided to you (in both paper and electronic form) including in the software downloaded in connection with the usage of this device and all operating and safety instructions. If you fail to do so this product may not function properly and may lead to damage to the pr oduct and to other danger. modlet® gateway Specifications ZigBee (IEEE 802.15.4) wireless communication Power source: 12V DC Important Safety Information: Use indoors in a dry location. Contains non-user serviceable parts; do not open. This product is not a toy. Do not allow children to operate it. Regulatory Information: Installation and use of this device must be in strict accordance with the instructions included in the user documentation pr ovided with the p…

Text truncated - open the document above for the full version.

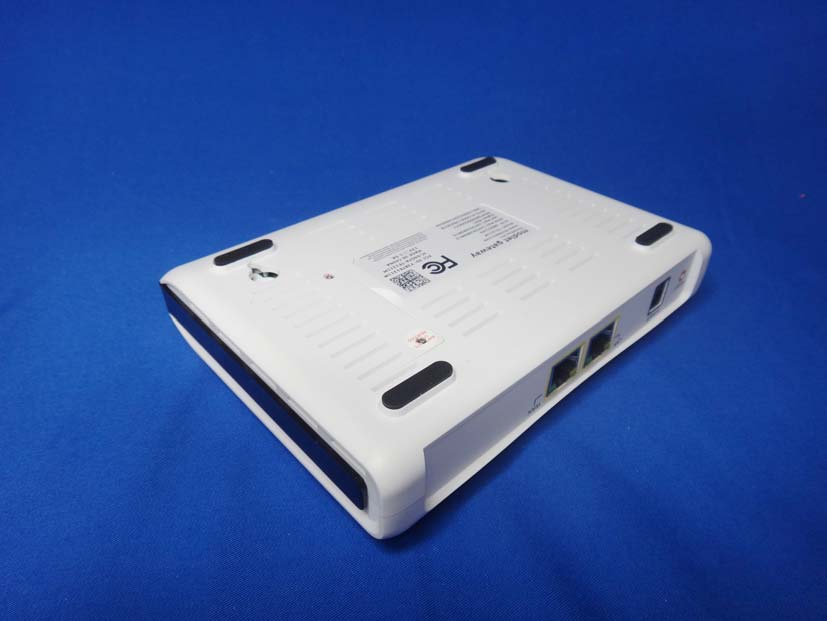

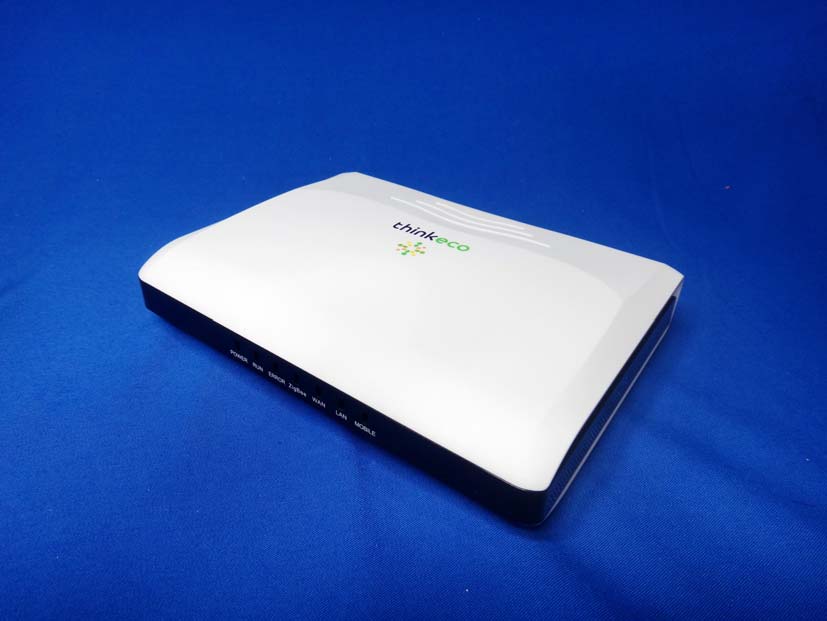

Report No.: 138044R-RFUSP42V01 Page : 1 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 2 (3) EUT Photo (4) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 3 (5) EUT Photo (6) EUT Photo

ThinkEco Inc. FCC ID.: Y38TE1211E 148 Madison Avenue, 8th Floor, New York, NY, United States,10016.Tel : 212-684-2085 FCC ID Label

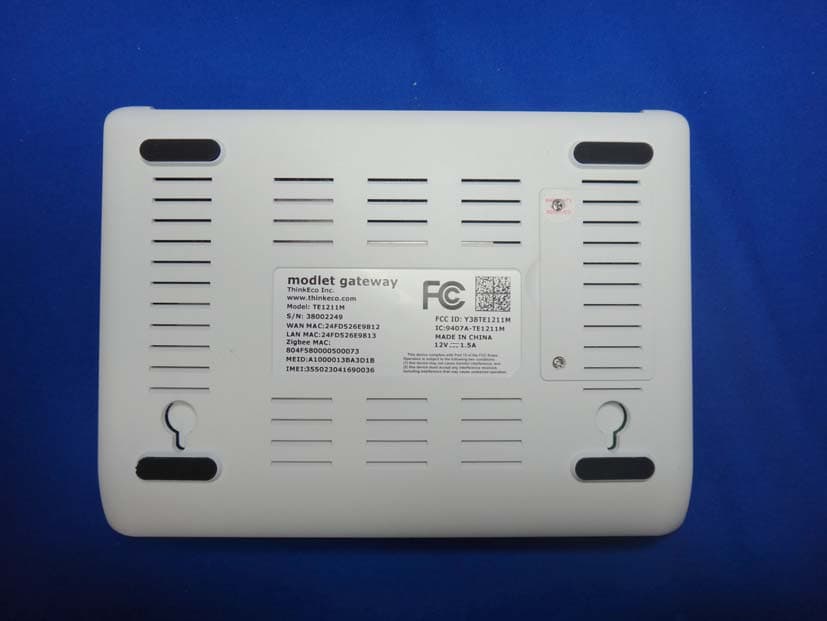

ThinkEco Inc. FCC ID.: Y38TE1211E 148 Madison Avenue, 8th Floor, New York, NY, United States,10016.Tel : 212-684-2085 The FCC ID Label will be placed on the equipment as shown in the photograph below.

Report No.: 138044R-RFUSP42V01 Page : 4 (7) EUT Photo (8) EUT Photo Antenna Report No.: 138044R-RFUSP42V01 Page : 5 (9) EUT Photo (10) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 6 (11) EUT Photo (Antenna) (12) EUT Photo Zigbee Module Report No.: 138044R-RFUSP42V01 Page : 7 (13) EUT Photo (14) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 8 (15) EUT Photo (16) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 9 (17) EUT Photo (18) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 10 (19) EUT Photo (20) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 11 (21) EUT Photo (22) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 12 (23) EUT Photo (24) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 13 (25) EUT Photo (26) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 14 (27) EUT Photo (28) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 15 (29) EUT Photo (30) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 16 (31) EUT Photo (32) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 17 (33) EUT Photo (34) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 18 (35) EUT Photo (36) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 19 (37) EUT Photo (38) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 20 (39) EUT Photo (40) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 21 (41) EUT Photo (42) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 22 (43) EUT Photo (44) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 23 (45) EUT Photo (46) EUT Photo Report No.: 138044R-RFUSP42V01 Page : 24 (47) EUT Photo

Tune-Up Procedure 1. Description : The Gobi 3000 and Gobi 3000Udevices are WWAN datacards implemented in a PCI Express full-size mini card form factor, the datacard and host PC software combination deliver multiband, multimode WWAN connectivity in a single hardware configuration. Gobi3000 supports CDMA2000® 1x EV-DO,UMTS,and GSM. The Gobi3000 devices also have an internal GPS receiver that can operate standalone or in simultaneous operation with its WWAN radios. Gobi3000U has the same HW/SW features as Gobi3000, but does not operate in 1x/1x EV-DO mode. Aside from this difference, all references below to Gobi3000 also apply to Gobi3000U. The Gobi3000 module mounts in a notebook PC's internal PCI-E full-size mini card slot and connects to the notebook’s antenna system via RF cables embedded within the notebook. The Gobi3000 host PC software enables communication between the connection manager software and the Gobi3000 module via a HS-USB interface. The host PC hard drive stores multiple network carrier specific modem firmware images, and up to six firmware images may be programmed into the Gobi3000 flash memory. After the connection manager selects a specific network carrier image for use, if the image is already present in the flash, the Gobi3000 device runs the specified image from its on-board memory. If the image is not present in flash, the host PC software downloads the selected image into the Gobi3000, where it is authenticated and then programmed into the flash memory. Programming the image into the flash takes approximately 30 seconds. When executing from an image already in flash, initialization time is a few seconds 2. Qualcomm chipsets The Gobi3000 device uses the following Qualcomm chipset components. Baseband and RF: MDM6600 (Gobi3000), MDM6200 (Gobi3000U) Power: PM8028™ IC The MDM6600/MDM6200 device is the Qualcomm third-generation data modem designed exclusively for 3G data card applications without voice or multimedia features. It is a single-chip device that integrates the ARM1136-J™ processor core; two low-power, high-performance modem DSPs; and radioOne® RF into a single package. 3. Modem capabilities WCDMA R99 All modes and data rates for WCDMA frequency division duplex (FDD), with the following restrictions: The downlink supports the following specifications: □ Up to four physical channels, including the broadcast channel (BCH), if present □ Up to three dedicated physical channels (DPCHs) □ Spreading factor (SF) range support from 4 to 256 □ Support for the following transmit diversity modes: – Space-time transmit diversity (STTD) – Time-switched transmit diversity (TSTD) – Closed-loop feedback transmit diversity (CLTD) □ The uplink supports the following specifications: – One physical channel, eight TrCH, and 16 TrBks starting at any frame boundary – A maximum data rate of 384 kbps □ SMS (CS and PS) □ PS data rate – 384 kbps DL/384 kbps UL □ Supports receive diversity in all bands HSDPA □ Downlink Category 8 (7.2 Mbps) or 10 (14.4 Mbps), depending on carrier support □ HS-DSCH (HS-SCCH, HS-PDSCH, and HS-DPCCH) and the R99 transport channels, as defined in 3GPP specifications □ A maximum of four simultaneous HS-SCCH channels, as defined in the 3GPP specifications □ A maximum of 10 HS-PDSCH channels, both QPSK and 16 QAM modulation □ CQI and ACK/NACK on HS-DPCCH channel, as defined in the 3GPP specifications □ All incremental redundancy versions for HARQ, as defined in the 3GPP specifications □ Can switch between HS-PDSCH and DPCH channel resources, as directed by the network □ Network activation of compressed mode by SF/2 or HLS on the DPCH for conducting inter-frequency or inter-RAT measurements when the HS-DSCH is active □ STTD on both associated DPCH and HS-DSCH simultaneously □ CLTD mode 1 on the DPCH when the HS-PDSCH is active □ STTD on HS-SCCH when either STTD or CLTD mode 1 are configured on the associated DPCH □ TFC selection limitation on the UL factoring in transmissions on the HS-DPCCH, as required in TS 25.133 □ Supports receive diversity in all bands □ Supports equalizer on all bands □ Supports Type 3i Receiver requirements HSUPA – Support the release 6, March 2006 standard for HSUPA, including the following features: □ E-DCH data rates of up to 5.76 Mbps for 2 ms TTI (UE category 6) uplink □ N E-AGCH, E-RGCH and E-HICH channels for downlink, as defined in the 3GPP specifications. E-RGCH and E-HICH support serving and non-serving radio links, with up to four radio links in the E-DCH active set □ STTD on all HSUPA downlink channels □ CLTD mode 1 on HS-PDSCH and DPCH, along with HSUPA channels □ All incremental redundancy versions for HARQ and maximum number of HARQ retransmissions, as defined in 3GPP specifications □ E-DCH channel on the uplink, as defined in the 3GPP specifications, with support for up to four E-DPDCH channels □ HSUPA channels simultaneously with R99 and HSDPA channels, as defined in the 3GPP specifications □ Switch between HSUPA channels and DPCH channel resources, as directed by the network □ Handover using compressed mode with simultaneous E-DCH and HS-DSCH interactive/background and streaming QoS classes GSM R99 □ Supports CS SMS GPRS □ Packet-switched data (GPRS) □ DTM (simple class A) operation □ Multislot class 10 data services □ CS schemes – CS1, CS2, CS3, and CS4 □ GEA1, GEA2, and GEA3 ciphering □ Maximum of four Rx time slots per frame EDGE □ EDGE E2 power class for 8 PSK □ DTM (simple class A), multislot class 10 □ Downlink coding schemes – CS 1-4, MCS 1-9 □ Uplink coding schemes – CS 1-4, MCS 1-9 □ BEP reporting □ Enhanced DTM □ PS handover □ RSACCH □ RFACCH □ HMSC □ SRB loopback and test mode B □ 8-bit and 11-bit RACH □ PBCCH support □ One-phase/two-phase access procedures □ Link adaptation and incremental redundancy □ NACC, extended UL TBF CDMA1x (IS-2000) □ Supports RC1, 2, 3, 4, and 5 □ Supports SO-2, 9, 32, 35, 55 □ Does not support circuit switched data calls □ Forward quick paging channel (F-QPCH) □ Supports receive di…

Text truncated - open the document above for the full version.

Report No. 138044R-RF-US-RFEXP Page: 1 of 4 RF Exposure Evaluation declaration Product Name : modlet gateway Model No. : TE1211M FCC ID : Y38TE1211M Applicant : ThinkEco Inc. Address : 148 Madison, 8th Floor New York, NY 10016 Date of Receipt : Jul. 29, 2013 Date of Declaration : Aug. 22, 2013 Report No. : 138044R-RF-US-RFEXP The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No. 138044R-RF-US-RFEXP Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 30 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*Pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 21°Cand 60％ RH. Report No. 138044R-RF-US-RFEXP Page: 3 of 4 1.3. Test Result of RF Exposure Evaluation Product : modlet gateway Test Item : RF Exposure Evaluation Test Site : N/A CDMA 1X (BC0)-Peak Gain: 4.4dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 824.70 24.05 1 24.0500 254.1 0.1392 0.55 Pass 836.52 23.88 1 23.8800 244.3 0.1339 0.56 Pass 848.31 23.87 1 23.8700 243.8 0.1336 0.57 Pass CDMA 1X EV-DO REL 0 (BC0)-Peak Gain: 4.4dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 824.70 23.88 1 23.8800 244.3 0.1339 0.55 Pass 836.52 23.60 1 23.6000 229.1 0.1255 0.56 Pass 848.31 23.46 1 23.4600 221.8 0.1215 0.57 Pass CDMA 1X EV-DO REL A (BC0)-Peak Gain: 4.4dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 824.70 23.84 1 23.8400 242.1 0.1327 1 Pass 836.52 23.67 1 23.6700 232.8 0.1276 1 Pass 848.31 23.48 1 23.4800 222.8 0.1221 1 Pass CDMA 1X (BC1)-Peak Gain: 4.4dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 1851.25 23.97 1 23.9700 249.5 0.1367 1 Pass 1880.00 24.08 1 24.0800 255.9 0.1402 1 Pass 1908.75 23.64 1 23.6400 231.2 0.1267 1 Pass Report No. 138044R-RF-US-RFEXP Page: 4 of 4 CDMA 1X EV-DO REL 0 (BC1)-Peak Gain: 4.4dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 1851.25 23.84 1 23.8400 242.1 0.1327 1 Pass 1880.00 23.86 1 23.8600 243.2 0.1333 1 Pass 1908.75 23.57 1 23.5700 227.5 0.1247 1 Pass CDMA 1X EV-DO REL A (BC1)-Peak Gain: 4.4dBi Frequency (MHz) Conducted Peak Power (dBm) Duty Cycle Conducted Average Power (dBm) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) Limit (mW/cm 2 ) Pass/Fail 1851.25 23.98 1 23.9800 250.0 0.1370 1 Pass 1880.00 23.98 1 23.9800 250.0 0.1370 1 Pass 1908.75 23.47 1 23.4700 222.3 0.1218 1 Pass Note: The conducted output power is refer to report No.: 138044R-HPUSP08V01 from the QuieTek.

Report No.:138044R-HPUSP08V01 Page: 1 of 79 FCC Test Report Product Name : modlet gateway Model No : TE1211M FCC ID : Y38TE1211M Applicant : ThinkEco Inc. Address : 494 8th Avenue, PH floor, New York, NY, United States, 10001 Date of Receipt：2013/07/29 Issued Date ：2013/08/22 Report No. ：138044R-HPUSP08V01 Report Version：V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. Report No.:138044R-HPUSP08V01 Page: 2 of 79 Test Report Certification Issued Date : 2013/08/22 Report No.: 138044R-HPUSP08V01 Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of Quie Tek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : modlet gateway Applicant : ThinkEco Inc. Address : 494 8th Avenue, PH floor, New York, NY, United States, 10001 Manufacturer : DONG GUAN G-COM COMPUTER CO., LTD. Trade Name : ThinkEco Inc. Model No. : TE1211M EUT Voltage : AC 120V/ 60Hz Measurement Standard : FCC CFR Title 47 Part 2 22 24 Measurement Reference : TIA/EIA 603-C, SRSP- 503, SRSP-510 Test Result : Complied Documented By : (Adm. Specialist / April Chen) Tested By : (Engineer / Wen Lee) Approved By : (Manager /Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No.:138044R-HPUSP08V01 Page: 3 of 79 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................ 4 1.1. EUT Description ........................................................................................................... 4 1.2. Operational Description............................................................................................... 5 1.3. Configuration of tested System .................................................................................. 6 1.4. EUT Setup Procedures ................................................................................................ 6 1.5. Test Facility ...................................................................................................................7 1.6. Type of Emission .......................................................................................................... 8 1.7. voltages and DC currents ............................................................................................ 8 2. Peak Power Output ....................................................................................................... 9 2.1. Test Equipment............................................................................................................. 9 2.2. Test Setup ................................................................................................................... 10 2.3. Limits ........................................................................................................................... 10 2.4. Test Procedure ........................................................................................................... 11 2.5. Test Specification ....................................................................................................... 11 2.6. Test Result of Peak Power Output ............................................................................ 12 3. Occupied Bandwidth .................................................................................................. 20 3.1. Test Equipment........................................................................................................... 20 3.2. Test Setup ................................................................................................................... 20 3.3. Test Procedure ........................................................................................................... 20 3.4. Test Specification ....................................................................................................... 21 3.5. Test Result of Occupied Bandwidth ......................................................................... 21 4. Spurious Emission At Antenna Terminals (+/-1MHz)............................................... 34 4.1. Test Equipment........................................................................................................... 34 4.2. Setup ........................................................................................................................... 34 4.3. Limits ........................................................................................................................... 35 4.4. Test Procedure ........................................................................................................... 35 4.5. Test Specification ....................................................................................................... 35 4.6. Test Result of Spurious Emission At Antenna Terminals (+/-1MHz)...................... 36 5. Spurious Emission ..................................................................................................... 42 5.1. Test Equipment........................................................................................................... 42 5.2. Test Setup ................................................................................................................... 43 5.3. Limits ........................................................................................................................... 43 5.4. Test Procedure ..................................................................…

Text truncated - open the document above for the full version.
