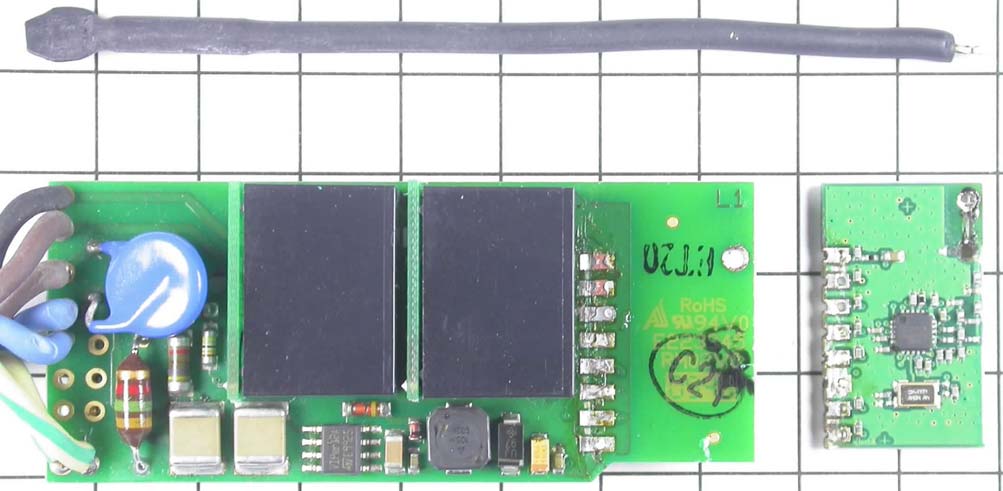

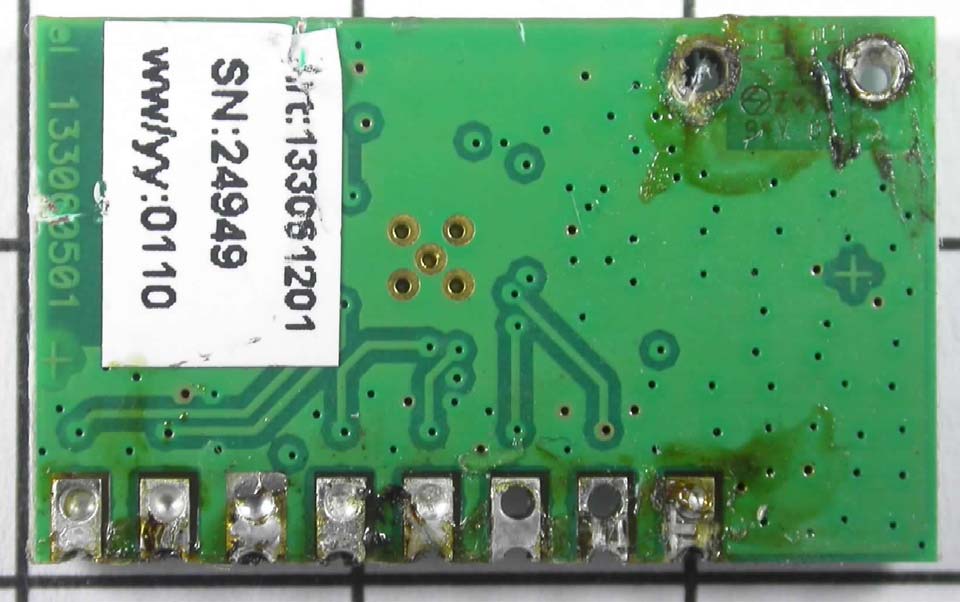

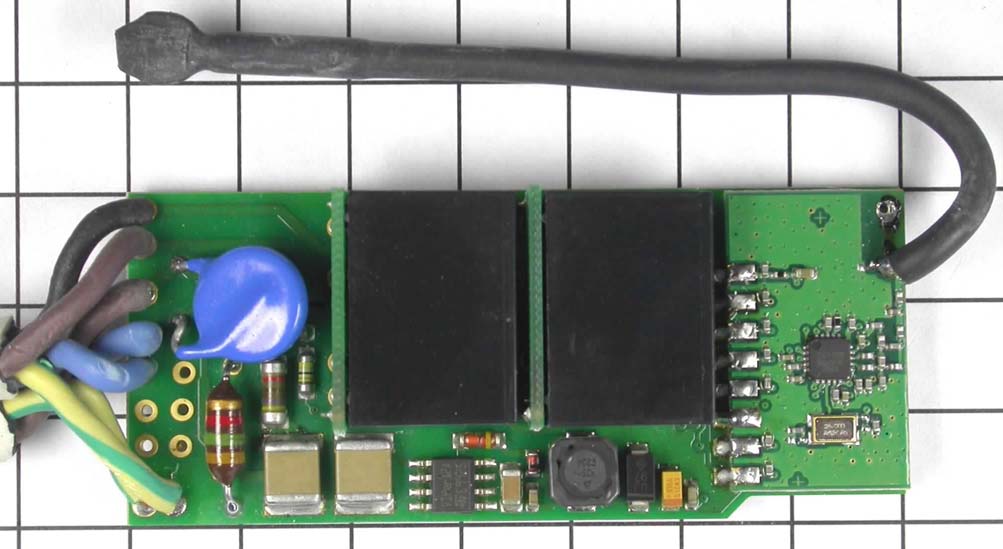

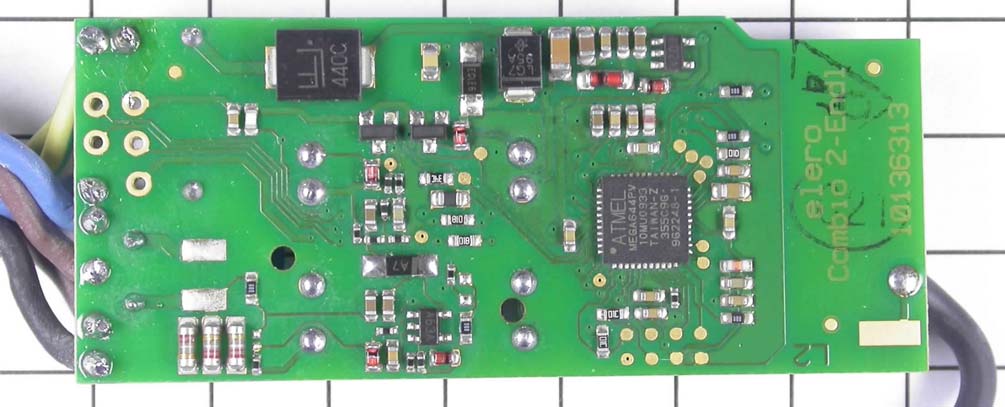

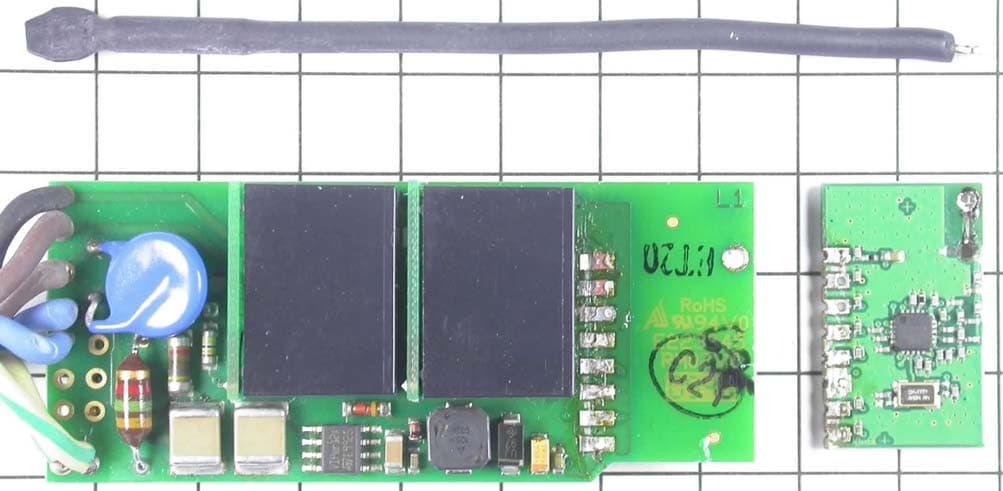

FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 8 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 3.2 Photo documentation of the EUT – Internal Photos Combio-915 RevoLine PCB top view Combio-915 RevoLine PCB rear view FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 9 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 Combio-915 RevoLine PCB side view Combio-915 RevoLine PCB top view (with unsoldered RF board and antenna) FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 10 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 Combio-915 RevoLine RF board - PCB top view Combio-915 RevoLine RF board - PCB rear view

FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 1 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 EMI -- T E S T R E P O R T - FCC Part 15.249 - Test Report No. : T34021-00-04KJ 30. April 2010 ______________________________________________________________________________________________ Date of issue Type / Model Name : Combio-915 RevoLine Product Description : Transceiver unit for controlling roller shutters, veneation blinds and sun protection systems Applicant : elero GmbH Antriebstechnik Address : Linsenhofer Str. 59-63 72660 BEUREN, GERMANY Manufacturer : elero GmbH Antriebstechnik Address : Linsenhofer Str. 59-63 72660 BEUREN, GERMANY Licence holder : elero GmbH Antriebstechnik Address : Linsenhofer Str. 59-63 72660 BEUREN, GERMANY Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. DAT-P-207/05-00 Registration No. DAT-P-207/05 FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 2 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 Contents 1 TEST STANDARDS 3 2 SUMMARY 4 3 EQUIPMENT UNDER TEST 5 3.1 Photo documentation of the EUT – External Photos 5 3.2 Photo documentation of the EUT – Internal Photos 8 3.3 Power supply system utilised 11 3.4 Short description of the equipment under test (EUT) 11 4 TEST ENVIRONMENT 12 4.1 Address of the test laboratory 12 4.2 Environmental conditions 12 4.3 Statement of the measurement uncertainty 12 4.4 Measurement protocol for FCC, VCCI and AUSTEL 12 4.5 Discovery of worst case measurement conditions 14 5 TEST CONDITIONS AND RESULTS 15 5.1 Conducted emissions 15 5.2 Radiated emission of the fundamental wave 21 5.3 Spurious emissions radiated 23 5.4 Emission Bandwidth 26 5.5 Band edge test 29 5.6 Correction for pulse operation (duty cycle) 33 5.7 Antenna application 37 5.8 Receiver radiated emissions 38 6 USED TEST EQUIPMENT AND ACCESSORIES 41 FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 3 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (October, 2009) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart C - Intentional Radiators (October, 2009) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 - 928 MHz, 2400 - 2483.5 MHz, 5725 - 5875 MHz, and 24.0 - 24.25 GHz ANSI C63.4: 2003 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 4 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 2 SUMMARY GENERAL REMARKS: The EuT is working in transmit mode and receive mode at 918.3 MHz. The frequency range was scanned from 9 kHz to 10000 MHz. All emissions not reported in this test report were more than 10 dB below the specified limit. FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : acc. to storage records Testing commenced on : 02. March 2010 Testing concluded on : 12. April 2010 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Josef Knab FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 5 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EUT – External Photos Combio-915 RevoLine System overview (incl. VarioTel2 at lower left side) Combio-915 RevoLine Front view FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 6 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 Combio-915 RevoLine Rear view Combio-915 RevoLine Top view Combio-915 RevoLine Cable entry FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 7 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 Combio-915 RevoLine Label view FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 8 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 3.2 Photo documentation of the EUT – Internal Photos Combio-915 RevoLine PCB top view Combio-915 RevoLine PCB rear view FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 9 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 Combio-915 RevoLine PCB side view Combio-915 RevoLine PCB top view (with unsoldered RF board and antenna) FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 10 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+4…

Text truncated - open the document above for the full version.

FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 15 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 5 TEST CONDITIONS AND RESULTS 5.1 Conducted emissions For test instruments and accessories used see section 6 Part A 4. 5.1.1 Description of the test location Test location: Shielded Room S2 5.1.2 Photo documentation of the test set-up FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 21 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 5.2 Radiated emission of the fundamental wave For test instruments and accessories used see section 6 Part CPR 2. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 23 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 5.3 Spurious emissions radiated For test instruments and accessories used see section 6 Part SER 1, SER 2, SER 3. 5.3.1 Description of the test location Test location: OATS1 Test location: Anechoic Chamber A2 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up FCC ID: YBU285XX0901 mikes-testingpartners gmbh File No. T34021-00-04KJ, page 24 of 41 Ohmstrasse 2-4 x 94342 STRASSKIRCHEN x GERMANY Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1, 23.4.2009 5.3.3 Applicable standard According to FCC Part 15C, Section 15.249(d): Emission radiated outside of the specified frequency bands, except harmonics, shall be attenuated by at least 50 dB below the level of the fundamental or to the general radiated limit in §15.209, whichever is the lesser attenuation.
