Technotes TBOS‐II TM Radio Adaptor DRAFT – Field Test Version STATEMENT RF EXPOSURE This device complies with FCC RF and Industry Canada radiation exposure limits set forth for general population. This device must be installed to provide a separation distance of at least 20cm from all persons and must not be co‐located or operating in conjunction with any other antenna or transmitter. FCC STATEMENT The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B di gi tal device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause har mful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to co rrect interference by on e or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on circuit different from that to which the receiver is connected. ‐ Consult the dealer or an experienced radio/TV technician for hel p . Labeling requirements. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IC STATEMENT RSS Gen / Transmitter Antenna. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalen t isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les ri sques de brouillage ra dioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. RSS Gen / User Manual Notice for Licence‐Exempt Radio Apparatus. This device co mplies with Indus try Canada license‐exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux apparei ls ra dio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. RADIO Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la pui ssance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. NORMES CEM (radio) CE ‐ ETSI EN 300220-(V2.3.1-2010/02) and ETSI EN 300220-1 (V2.3.1-2010/02) ‐ EN 50371 (20 02) ‐ ETSI EN 301 489‐1 (V1.8.1‐2008/4) et ETSI EN 301 489‐3 (V1.4.1‐2002108) CANADA ‐ RSS‐210 Issue 7‐ Jun 2007 ‐ RSS‐Gen Issue 2‐ Jun 2007 FCC ‐ FCC Part 15, Subpart C 15.247 ‐ ANSI C63.4 (2009) DÉCLARATION DE CONFORMITÉ FR ‐ Le produit est destiné à fonctionner dabs un regard fermé, hermétique aux rayons UV.‐ Etanchéité IP68. EN ‐ The device shall be placed on a closed valve box, isolated from UV.‐ IP68 sealing ES ‐ El producto està pensado para operar en un sitio cerrado y hermético a los rayos UV.‐ Estanqueidad IP68 Conformément à la Directive Européenne 2002/96/CE et à la norme EN50419:2005, cet équipement ne doit pas être jeté avec les ordures ménagères. Il doit faire l’objet d’une collecte sélective appropriée afin de permettre sa valorisation. Par ce geste, vous contribuerez au respect de l’environnement et à la protection des ressources naturelles. 9V 6LR61 - 6AM6 (Duracell, Varta...) 2 1 RAIN BIRD CORPORATION 6991 E.Southpoint Road Tucson, AZ 85756 ‐ USA www.rainbird.com © 2011 Rain Bird Corporation ®Registered trademark of Rain Bird Corporation RAIN BIRD EUROPE SNC 900, rue Ampère, BP 72000 13792 Aix‐en‐Provence CEDEX 3 – France www.rainbird.eu RBE‐11‐TM‐02

FCC ID: YWW-TBOS2ADUS1 IC : 9319A-TBOS2ADUS1 Page 1/3 EXTERNAL PHOTOS OF TESTED EUT FCC ID: YWW-TBOS2ADUS1 IC : 9319A-TBOS2ADUS1 Page 2/3 FCC ID: YWW-TBOS2ADUS1 IC : 9319A-TBOS2ADUS1 Page 3/3

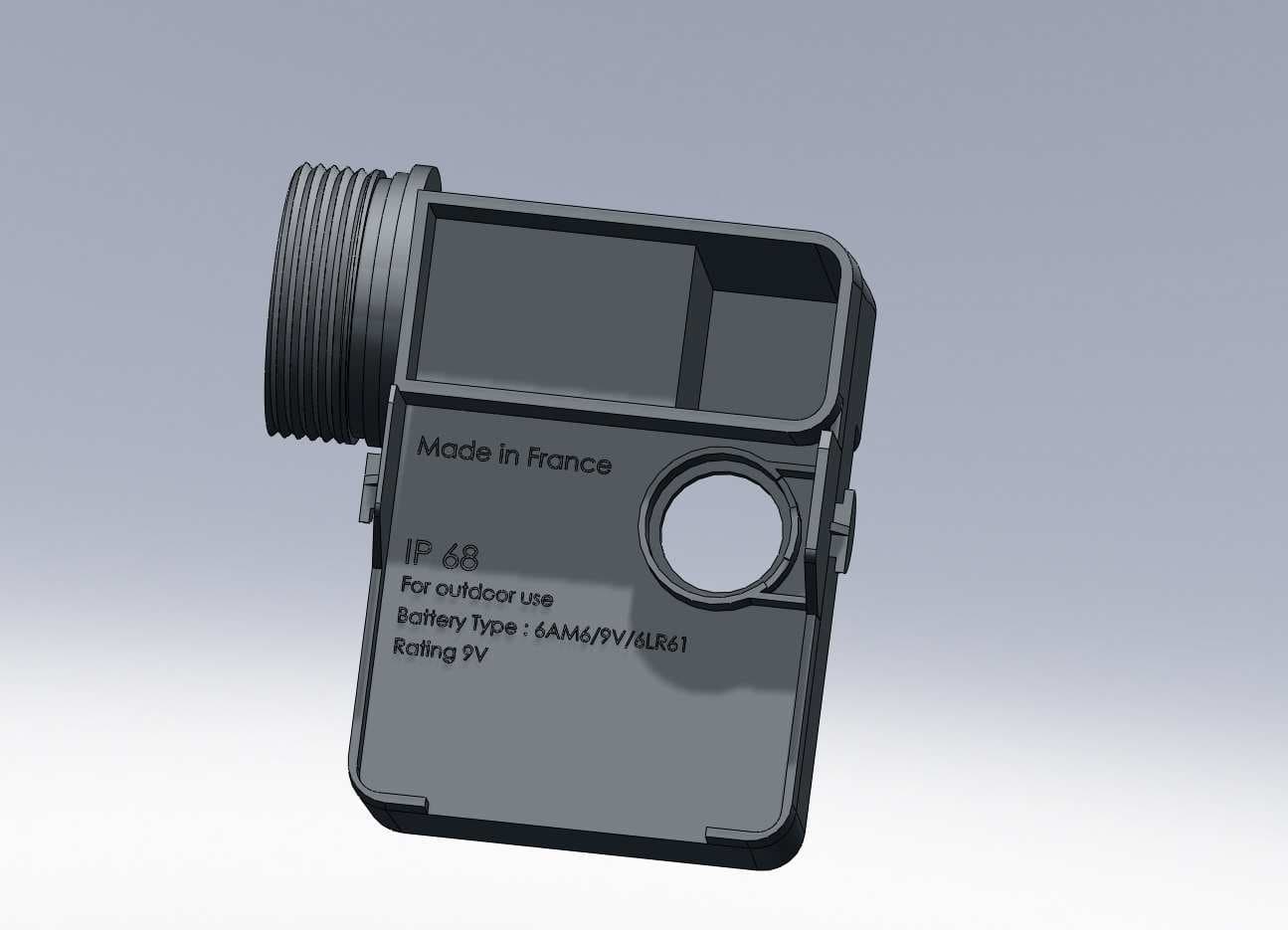

FCC ID: YWW-TBOS2ADUS1 IC : 9319A-TBOS2ADUS1 Page 1/1 PRODUCT LABELING FCC ID / IC number label This is the copy of the label stuck on the product Details of label: - Printer Type = Thermal Transfer - Label Height = 30 mm - Label Width = 20 mm - Polyester Material

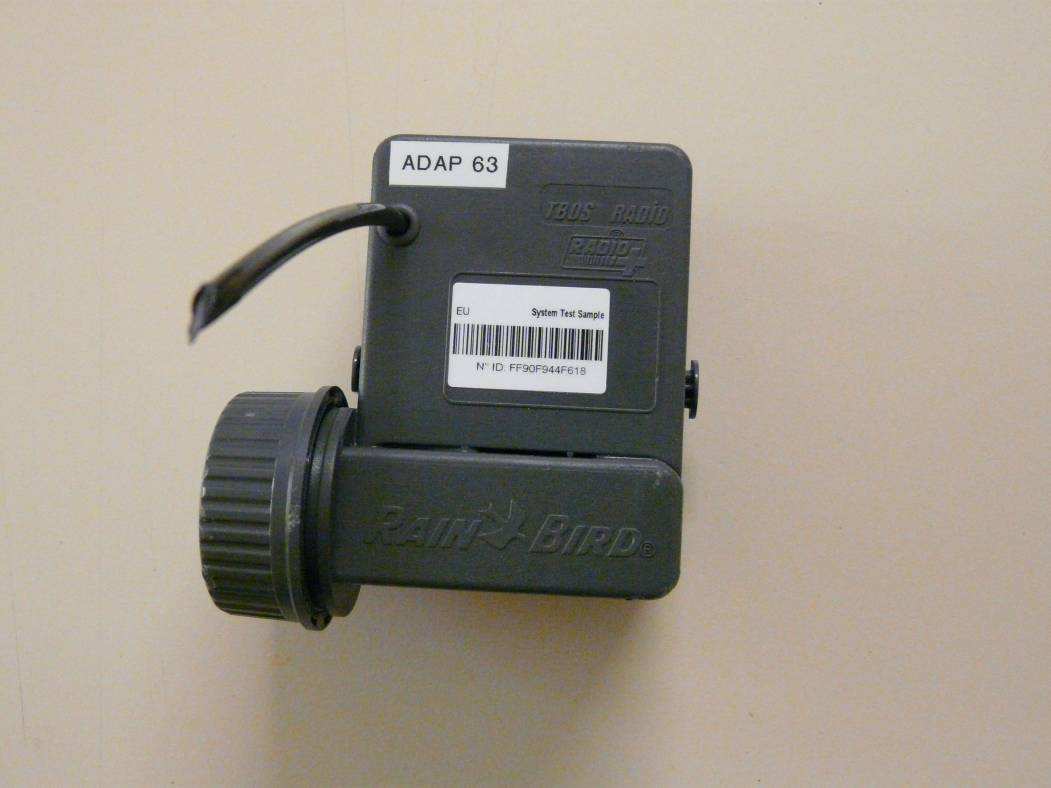

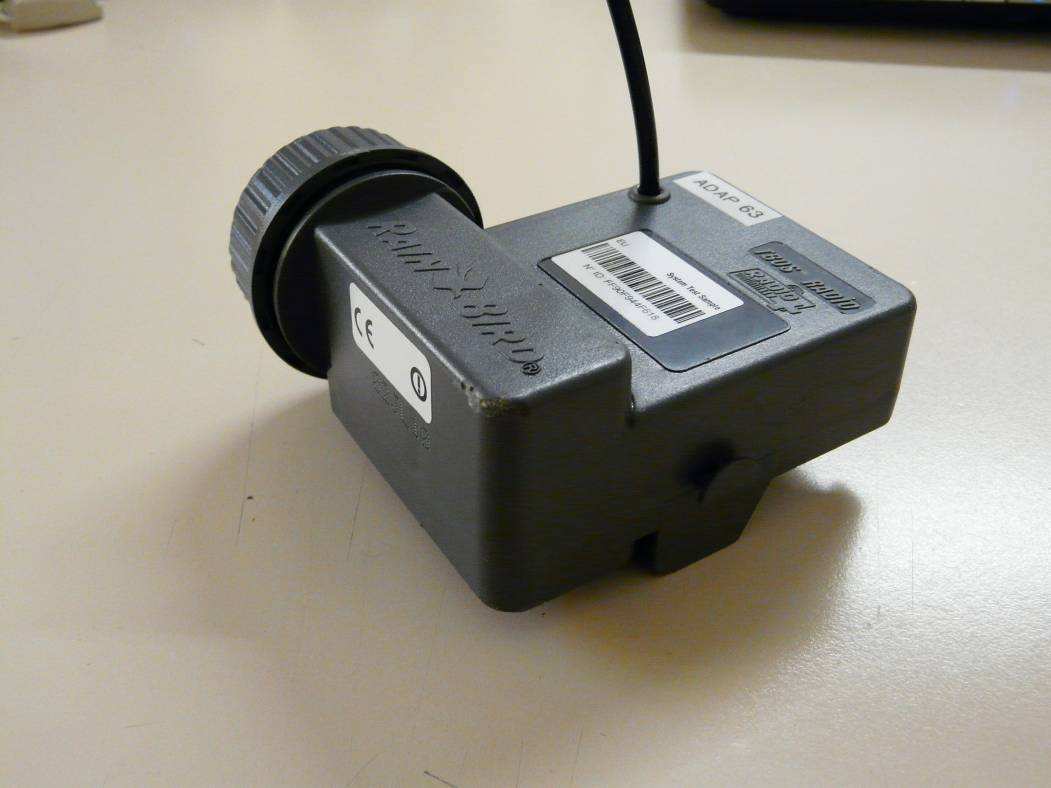

FCC ID: YWW-TBOS2ADUS1 IC : 9319A-TBOS2ADUS1 1 INTERNAL PHOTOS OF EUT Detail views of PCB FCC ID: YWW-TBOS2ADUS1 IC : 9319A-TBOS2ADUS1

FCC ID: YWW-TBOS2ADUS1 IC: 9319A-TBOS2ADUS1 GENERAL INFORMATION 1.1. Product description FCC ID: YWW-TBOS2ADUS1 IC: 9319A-TBOS2ADUS1 FCC ID: YWW-TBOS2ADUS1 IC: 9319A-TBOS2ADUS1 1.2. Related Submittal(s) / Grant(s) All host equipments used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, with description of all cables used in the tested system are: Internal max frequencies: 32MHz • Input/output: - Alkaline Battery 9VDC • Auxiliaries used for testing: - None • I/O cables used for testing: - None • Equipment information: - External antenna connector: NO, special EUT with connector for conducted tests. - Radiated fundamental frequency band: [915.5-926.5]MHz, 12 channels - Antenna type: Integral - Stand By mode: Yes - Normal power source: battery 9VDC. - Modulation Type: FSK +/- 140kHz - Modulation Technology: DSSS - Transfer rate: 38400 bps - Maximum Antenna Gain: 0 dBi 1.4. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed from December 01 st to 14 th , 2011. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

FCCID : YWW-TBOS2ADUS1 LOW POWER RF EXPOSURE SAMPLE Frequency Range: [915.5-926.5]MHz, 12 channels Low threshold = 60/f(GHz) mW = 60 / 0.915 = 64.7mW Conducted Output Power Measured (dBm) = 6.8dBm Antenna Gain (dBi) = 0dBi EIRP = 4.8mW Conducted Output Power (mW) = 4.8mW Since both Conducted Output Power and EIRP are below the low threshold, device complies with FCC and Industry Canada RF radiation exposure limits for general population/uncontrolled exposure as a portable device without SAR evaluation.

Rapport d’essai / Test report N° 275423-R3-E JDE : 110125 DELIVRE A / ISSUED TO : SOLEM ZAE LA PLAINE 5 rue Georges Besse 34830 CLAPIERS - FRANCE Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes FCC CFR 47 Part 15, Subpart B et C. Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart B and C Matériel testé / Apparatus under test : • Produit / Product : RF WATERING SYSTEM • Marque / Trade mark : RAIN BIRD • Constructeur / Manufacturer : SOLEM • Type / Model : TBOSII-RADIO ADAPTATOR • N° de série / serial number : 302 • FCCID YWW-TBOS2ADUS1 Date des essais / Test date : Du 1er au 14 Décembre 2011 / From December 01 st to 14 th , 2011 Lieu d’essai / Test location : LCIE SUD-EST ZI Centr’Alp – 170 rue de Chatagnon 38430 MOIRANS - FRANCE Test réalisé par / Test performed by : Anthony MERLIN / Nicolas BILLAUD Ce document comporte /Composition of document : 23 pages. M OIRANS, LE 9 JANVIER 2012 / JANUARY 9 TH , 2012 Ecrit par / Written by, Approuvé par / Approved by, Anthony MERLIN Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Sauf indication contraire, la décision de conformité prend en compte l’incertitude de mesures. Il ne préjuge en aucun cas d’une décision de certification. This document shall not be reproduced, except in full, without t he written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision.. RAPPORT D'ESSAI / TEST REPORT N° 275423-R3-E Page : 2 / 23 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ..................................................................................................... 4 3. RADIATED EMISSION DATA ............................................................................................................. 6 4. BANDWIDTH (15.247) ...................................................................................................................... 10 5. MAXIMUM PEAK OUTPUT POWER (15.247) .................................................................................. 12 6. BAND EDGE MEASUREMENT (15.247) .......................................................................................... 14 7. POWER SPECTRAL DENSITY (15.247) .......................................................................................... 17 8. ANNEX 1 (GRAPHS) ........................................................................................................................ 19 9. TEST EQUIPMENT LIST .................................................................................................................. 22 10. UNCERTAINTIES CHART ................................................................................................................ 23 RAPPORT D'ESSAI / TEST REPORT N° 275423-R3-E Page : 3 / 23 1. TEST PROGRAM Standard: - FCC Part 15, Subpart C 15.247 - ANSI C63.4 (2003) EMISSION TEST LIMITS RESULTS (Comments) Limits for conducted disturbance at mains ports 150kHz-30MHz Frequency Quasi-peak value (dBμV) Average value (dBμV) NA 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 5-30MHz 60 50 Radiated emissions 9kHz-30MHz Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m PASS Radiated emissions 30MHz-10GHz* Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Bandwidth 6dB 15.247 (a) (2) At least 500kHz PASS Maximum Peak Output Power 15.247 (b) Limit: 30dBm Conducted or Radiated measurement PASS Band Edge Measurement 15.247 (d) Limit: -20dBc or Radiated emissions limits in restricted bands PASS Power spectral Density 15.247 (e) Limit: 8dBm/3kHz PASS *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. RAPPORT D'ESSAI / TEST REPORT N° 275423-R3-E Page : 4 / 23 2. SYSTEM TEST CONFIGURATION 2.1. JUSTIFICATION The system was configured for testing in a typical fashion (as a customer would normally use it). 2.2. HARDWARE IDENTIFICATION • Equipment under test (EUT): TBOSII-RADIO ADAPTATOR Serial number: 302 Internal max frequencies: 32MHz • Input/output: - Alkaline Battery 9VDC • Auxiliaries used for testing: - None • I/O cables used for testing: • - None • Equipment information: - External antenna connector: NO, special EUT with connector for conducted tests. - Radiated fundamental frequency band: [915.5-926.5]MHz, 12 channels - Antenna type: Integral - Stand By mode: Yes - Normal p…

Text truncated - open the document above for the full version.

FCC ID: YWW-TBOS2ADUS1 IC : 9319A-TBOS2ADUS1 Page 1/1 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Radiated emissions
