FCC ID: YWW-WFS IC : 9319A-WFS Page 1/2 USER MANUAL (FCC STATEMENT – IC STATEMENT) This is a copy of the page where the FCC statement is included: FCC ID: YWW-WFS IC : 9319A-WFS Page 2/2

Letter of Agency March 10 th , 2014 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Curtis-Straus LLC TCB One Distribution Center Circle #1 Littleton, MA 01460 We, the undersigned SOLEM hereby authorize Anthony MERLIN, LCIE SUD EST, to act on our behalf in all matters relating to all processes required for FCC certification of our devices. Any and all acts carried out by the above agent on our behalf shall have the same effects as acts of our own. This authorization is valid until: June 10 th , 2014 If you have any questions regarding this authorization, let us know please. Sincerely,

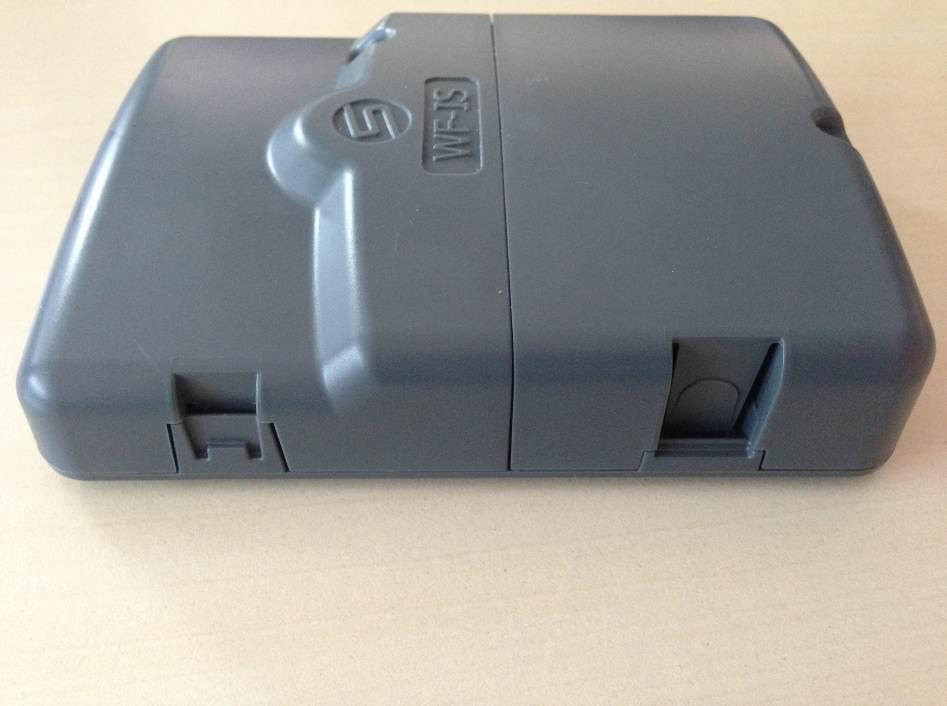

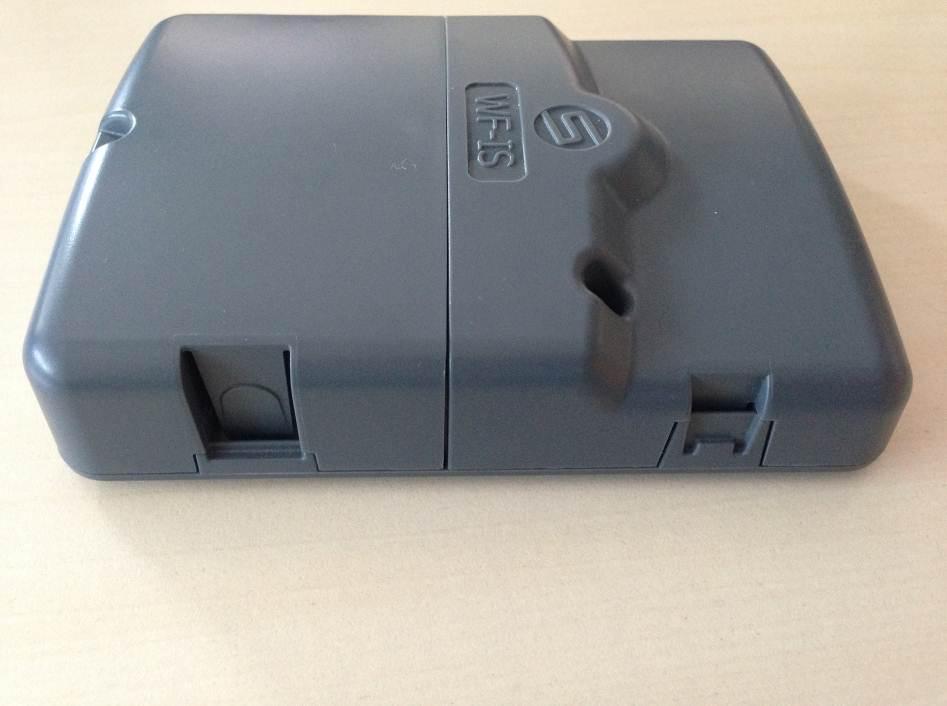

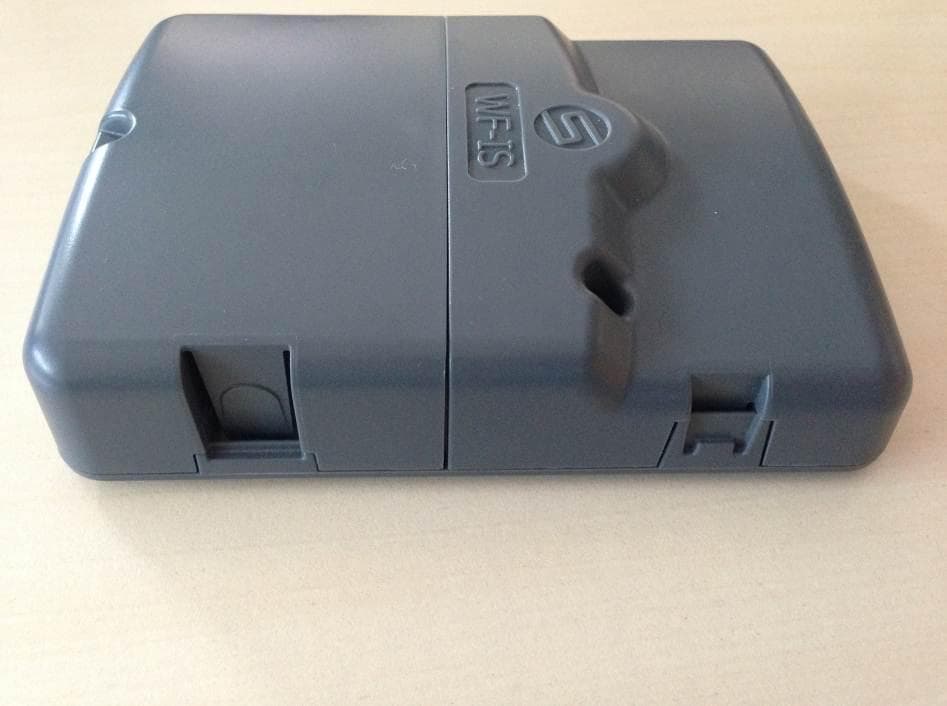

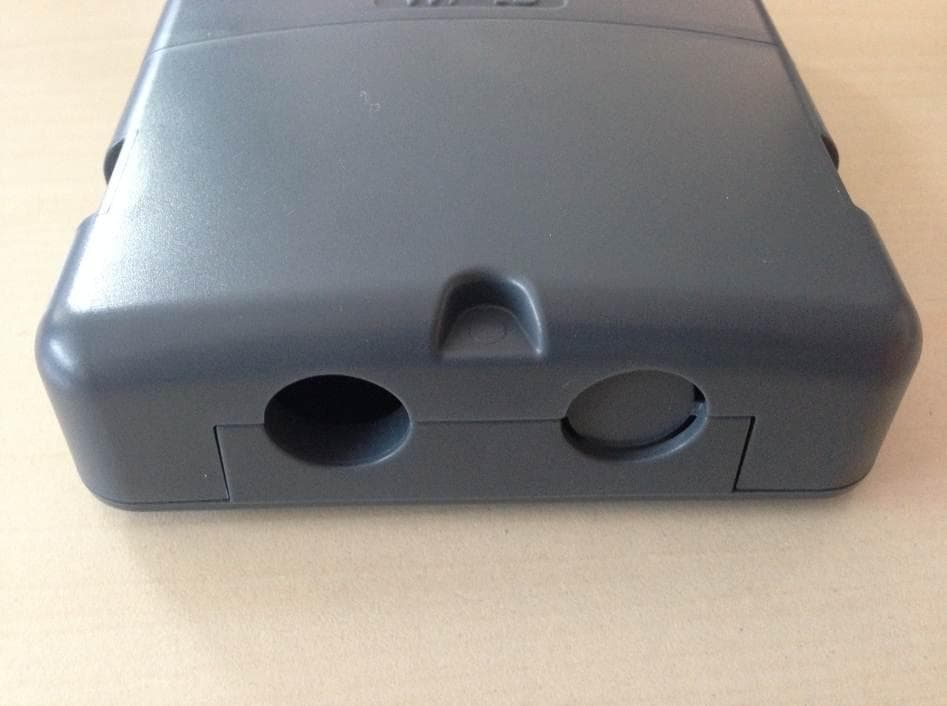

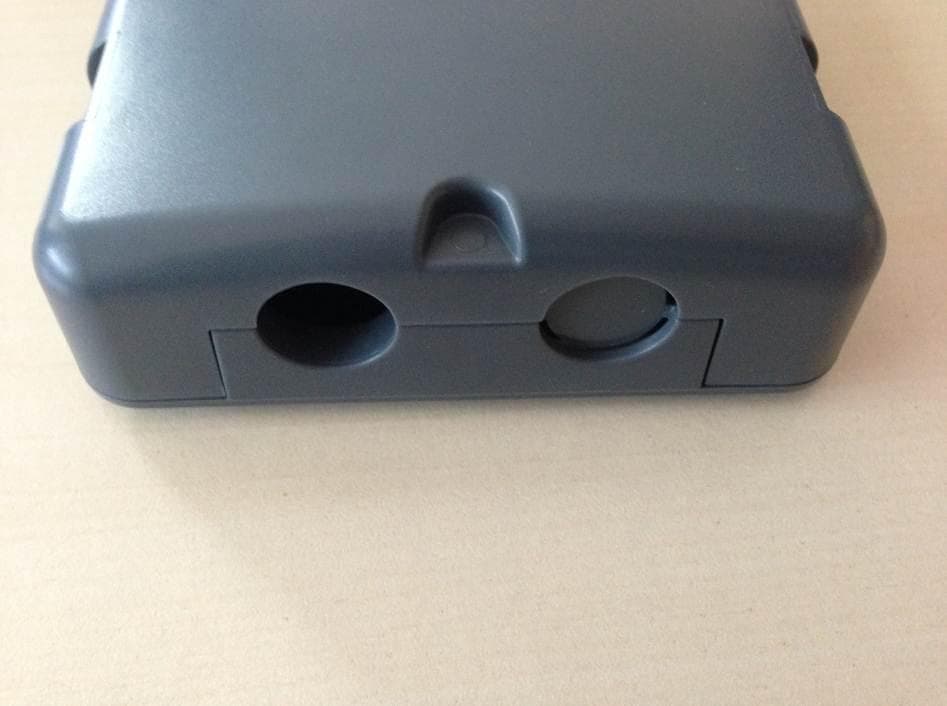

FCC ID: YWW-WFS IC : 9319A-WFS Page 1/6 EXTERNAL PHOTOS OF TESTED EUT FCC ID: YWW-WFS IC : 9319A-WFS Page 2/6 FCC ID: YWW-WFS IC : 9319A-WFS Page 3/6 FCC ID: YWW-WFS IC : 9319A-WFS Page 4/6 FCC ID: YWW-WFS IC : 9319A-WFS Page 5/6 FCC ID: YWW-WFS IC : 9319A-WFS Page 6/6

FCC ID: YWW-WFS IC : 9319A-WFS Page 1/4 PRODUCT LABELING FCC ID / IC number label This is the copy of the label stuck on the product FCC ID: YWW-WFS IC : 9319A-WFS Page 2/4 Details of label: Manufacturer: BRADY Label: THT.17 - 483 -3 B-483 Overall dimensions 50.8 x 25.4 mm @ 0.102 mm thickness Ink: R-4900 Impression type: THERMIQUE FCC ID: YWW-WFS IC : 9319A-WFS Page 3/4 FCC ID: YWW-WFS IC : 9319A-WFS Page 4/4

FCC ID: YWW-WFS IC : 9319A-WFS 1 INTERNAL PHOTOS OF EUT FCC ID: YWW-WFS IC : 9319A-WFS FCC ID: YWW-WFS IC : 9319A-WFS WF-OL Antenna FCC ID: YWW-WFS IC : 9319A-WFS FCC ID: YWW-WFS IC : 9319A-WFS Antenna FCC ID: YWW-WFS IC : 9319A-WFS WF-IS FCC ID: YWW-WFS IC : 9319A-WFS WF-IS-4 FCC ID: YWW-WFS IC : 9319A-WFS WF-IS-2

FCC ID: YWW-WFS IC: 9319A-WFS GENERAL INFORMATION 1.1. Product description FCC ID: YWW-WFS IC: 9319A-WFS FCC ID: YWW-WFS IC: 9319A-WFS FCC ID: YWW-WFS IC: 9319A-WFS FCC ID: YWW-WFS IC: 9319A-WFS 1.2. Related Submittal(s) / Grant(s) All host equipments used in the test configuration are FCC granted, when relevant. 1.3. Tested System Details The FCC IDs for all equipment, with description of all cables used in the tested system are: The system was configured for testing in a typical fashion (as a customer would normally use it). WF-IS and WF-OL uses same WIFI module, only modification is number of way and type:  WF-IS-2, 2 stations  WF-IS-4, 4 stations  WF-IS-6, 6 stations  WF-OL-4, 4 relays Power supply is the same; to show compliance to standard, all tests are performed on WF-IS-6 (worst case) and partial and WF-OL-4. - Internal max frequencies: 44MHz Power supply: - AC / AC Adaptor: GPU482400750WA00, Sn : None - Rating: 120VAC/60Hz to 24VAC – 50Hz 0.75A During all the tests, EUT is supplied by this adaptor. - Input/output and cable: - 1 x Power supply, 2 wires, unshielded, to adaptor, length: 1.5m - 6 x 2 ways Master, slave and sensor (WF-IS-6) - 4 x 2 ways (WF-OL) - Auxiliaries used for testing: - Laptop ASUS, provided by customer - Equipment information: (Declared by provider) - Frequency band: [2400.0 – 2483.5] MHz - Standard: Wifi 802.11b Bluetooth Zigbee - Spectrum Modulation: FHSS DSSS - Number of channel: 11 - Channel separation: 5MHz 2MHz 1MHz - Channel bandwidth: 10MHz 20MHz 1MHz - Channel tested: Full test on C1: 2412MHz, C6: 2437MHz and C11:2462MHz - RF mode: TX/RX RX Standby - Antenna type: PCB - Antenna gain: 1dBi - Antenna connector: Permanent external Permanent internal None Temporary (only for tests) - Normal power source: 24VAC + Adaptor AC/AC supply network FCC ID: YWW-WFS IC: 9319A-WFS 1.4. Test Methodology Both conducted and radiated testing were performed according to the procedures in ANSI C63.4-2003, FCC Part 15 Subpart C. Radiated testing was performed at an antenna to EUT distance of 10 meters. During testing, all equipment’s and cables were moved relative to each other in order to identify the worst case set-up. 1.5. Test facility Tests have been performed from December 2nd to 11th, 2013. This test facility has been fully described in a report and accepted by FCC as compliant with the radiated and AC line conducted test site criteria in ANSI C63.4-2003 in a letter dated March 25 th , 2008 (registration number 94821). This test facility has also been accredited by COFRAC (French accreditation authority for European Union test lab accreditation organization) according to NF EN ISO/IEC 17025, accreditation number 1-1633 as compliant with test site criteria and competence in 47 CFR Part 15/ANSI C63.4 and EN55022/CISPR22 norms for 89/336/EEC European EMC Directive application. All pertinent data for this test facility remains unchanged.

FCCID : YWW-WFS Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Prediction Frequency MHz Conducted Output Power dBm Max Antenna Gain dBi Distance cm Power Density mW/cm2 Limit mW/cm2 241225.31200.08491.00 243725.01200.07921.00 246224.01200.06291.00 Conclusion: Therefore our device complies with FCC’s RF radiation exposure limits for general population without SAR evaluation with at least 20cm separation from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Rapport d’essai / Test report N° 710383-R1-E JDE : 124643 DELIVRE A / ISSUED TO : SOLEM ZAE la Plaine 5 rue Georges Besses 34830 CLAPIER - FRANCE Objet / Subject : Essais de compatibilité électromagnétique conformément aux normes FCC CFR 47 Part 15, Subpart B et C. Electromagnetic compatibility tests according to the standards FCC CFR 47 Part 15, Subpart B and C Matériel testé / Apparatus under test :  Produit / Product : Module irrigation ou automatisme / Irrigation or automatic module  Marque / Trade mark : SOLEM  Constructeur / Manufacturer : SOLEM  Type / Model : WF-IS-6 AND WF-OL-4  N° de série / serial number : 58B96102005A & 68B96101002A  FCC ID : YWW-WFS  IC ID : 9319A-WFS Date des essais / Test date : Du 2 au 11 Décembre 2013 / From December 2 nd to 11 th , 2013 Lieu d’essai / Test location : LCIE SUD-EST ZI Centr’Alp – 170 rue de Chatagnon 38430 MOIRANS - FRANCE Test réalisé par / Test performed by : Anthony MERLIN / Gaëtan DESCHAMPS Ce document comporte /Composition of document : 57 pages. MOIRANS, LE 28 FEVRIER 2014 / FEBRUARY 28TH, 2014 Ecrit par / Written by, Approuvé par / Approved by, Anthony MERLIN Jacques LORQUIN La reproduction de ce document n'est autorisée que sous sa forme intégrale. Toute reproduction partielle ou toute insertion de résultats dans un texte d'accompagnement en vue de leur diffusion doit recevoir un accord préalable et formel du LCIE. Ce document résulte d’essais effectués sur un spécimen, un échantillon ou une éprouvette. Il ne préjuge pas de la conformité de l’ensemble des produits fabriqués à l’objet essayé. Sauf indication contraire, la décision de conformité prend en compte l’incertitude de mesures. Il ne préjuge en aucun cas d’une décision de certification. This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the item tested. It does not imply the conformity of the whole production to the item tested .Unless otherwise specified; the decision of conformity takes into account the uncertainty of measures. This document does not anticipate any certification decision. RAPPORT D'ESSAI / TEST REPORT N° 710383-R1-E Page : 2 / 57 SUMMARY 1. TEST PROGRAM ............................................................................................................................... 3 2. SYSTEM TEST CONFIGURATION ..................................................................................................... 4 3. CONDUCTED EMISSION DATA......................................................................................................... 6 4. RADIATED EMISSION DATA ............................................................................................................. 8 5. BANDWIDTH (15.247) ...................................................................................................................... 15 6. MAXIMUM PEAK OUTPUT POWER (15.247) .................................................................................. 17 7. POWER SPECTRAL DENSITY (15.247) .......................................................................................... 21 8. BAND EDGE MEASUREMENT (15.247) .......................................................................................... 25 9. OCCUPIED BANDWIDTH ................................................................................................................. 33 10. ANNEX 1 (GRAPHS) ........................................................................................................................ 35 11. UNCERTAINTIES CHART ................................................................................................................ 57 RAPPORT D'ESSAI / TEST REPORT N° 710383-R1-E Page : 3 / 57 1. TEST PROGRAM Standard: - FCC Part 15, Subpart C 15.247 - ANSI C63.4 (2003) - RSS-210 Issue 8 – Dec 2010 - RSS-Gen Issue 3 – Dec 2010 EMISSION Test LIMITS RESULTS (Comments) Limits for conducted disturbance at mains ports 150kHz-30MHz Frequency Quasi-peak value (dBμV) Average value (dBμV) PASS 150-500kHz 66 to 56 56 to 46 0.5-5MHz 56 46 5-30MHz 60 50 Radiated emissions 9kHz-30MHz CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-210 §A8.5 Measure at 300m 9kHz-490kHz : 67.6dBμV/m /F(kHz) Measure at 30m 490kHz-1.705MHz : 87.6dBμV/m /F(kHz) 1.705MHz-30MHz : 29.5 dBμV/m PASS Radiated emissions 30MHz-25GHz* CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-210 §A8.5 Measure at 3m 30MHz-88MHz : 40 dBμV/m 88MHz-216MHz : 43.5 dBμV/m 216MHz-960MHz : 46.0 dBμV/m Above 960MHz : 54.0 dBμV/m PASS Bandwidth 6dB CFR 47 §15.247 (a) (2) RSS-210 §A8.2 At least 500kHz PASS Maximum Peak Output Power CFR 47 §15.247 (b) RSS-210 §A8.4 (4) Limit: 30dBm Conducted or Radiated measurement PASS Band Edge Measurement CFR 47 §15.209 (a) CFR 47 §15.247 (d) RSS-210 §A8.5 Limit: -20dBc or Radiated emissions limits in restricted bands PASS Power spectral Density CFR 47 §15.247 (e) RSS-210 §A8.2 Limit: 8dBm/3kHz PASS Occupied bandwidth RSS-Gen §4.6.1 No limit PASS Receiver Spurious Emission** RSS-Gen §4.10 See RSS-Gen §4.10 NA *§15.33: The highest internal source of a testing device is defined like more the highest frequency generated or used in the testing device or on which the testing device works or agrees. - If the highest frequency of the internal sources of the testing device is lower than 108 MHz, measurement must be only performed until 1GHz. - If the highest frequency of the internal sources of the testing device ranges between 108 MHz and 500 MHz, measurement must be only performed until 2GHz. - If the highest frequency of the internal sources of the testing device ranges between 500 MHz and 1 GHz, measurement must be only performed until 5GHz. If the highest frequency of the internal sources of the testing device is above 1 GHz, measurement must be only performed until 5 times the highest frequency or 40 GHz, while taking smallest of both. RAPPORT D'ESSAI / TEST REPORT N° 710383-R1-E Page : 4 / 57 2. SYSTEM TEST CONFIGURATION 2.1. …

Text truncated - open the document above for the full version.

FCC ID: YWW-WFS IC : 9319A-WFS Page 1/3 CONDUCTED AND RADIATED MEASUREMENT PHOTO 1.1 Radiated emissions Radiated emission test setup / WF-IS-6 FCC ID: YWW-WFS IC : 9319A-WFS Page 2/3 Radiated emission test setup / WF-OL-4 FCC ID: YWW-WFS IC : 9319A-WFS Page 3/3 1.2 Conducted emissions
