YWZ-HB-PRICETAGHummingbird LCD PRICETAG

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HB-PRICETAG IC: 3356F-HBPTAG FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-0165 Manufacturer: Alpha - High Theft Solutions Model: HB-PRICETAG Manual Instructions for Hummingbird Price Tag For supplemental information, check out our instructional videos at www.alphaworld.com/videos.asp Hummingbird Price Tag A battery operated device which allows data, price information, to be displayed and updated on display shoes. Facts about the Hummingbird Price Tag: Provides accurate and up to date pricing Ability to display regular or sale price Long lasting replaceable lithium battery Linking Price Tag to shoe: 1. Using the HB Scan Gun, scan the UPC on either the display shoe or shoe box. 2. Scan the bar code on back of Price Tag. NOTE: If successful, display on Linking Device will read Link: Successful. If unsuccessful, display on Linking Device will read Link: Unsuccessful. Try again. 3. Gently shake the Price Tag to initiate price change. 4. Attach to right display shoe. Unlinking Hummingbird Price Tag from shoe: 1. Using the HB Scan Gun, scan the bar code on back of tag twice within four (4) seconds. If successful, display on Linking Device will read Unlink: Successful. If unsuccessful, display on Linking Device will read Unlink: Unsuccessful. Try again. 2. Place the Price Tag in appropriate storage container for later use. HB Scan Gun Back of Price Tag Link: Successful Linking Device Price Tag Instructions for Hummingbird Price Tag For supplemental information, check out our instructional videos at www.alphaworld.com/videos.asp General Statements (For all devices): Warning: Changes or modifications to this device not expressly approved by Alpha could void the user’s authority to operate the equipment. FCC Information and Compliance RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For Class A Devices: “NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 o f the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be requ ired to correct the interference at his own expense.“ Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successfulcommunication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’util isateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

5015 B. U. Bowman Dr. Buford, GA 30518 June 4, 2013 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: YWZ-HB-PRICETAG To Whom It May Concern: The following application is submitted on behalf of our client, Alpha - High Theft Solutions, A Division of Checkpoint Systems, Inc., for evaluation of their model HB-PRICETAG for certification under FCC Part 15.247. The HummingBird LCD HB-PRICETAG provides price display and retail display sample compliance information for retail environments. It attaches to the product by various means on the product in a reasonably secure method; it is not intended to protect the display sample. The HB-PRICETAG includes a replaceable CR2477 battery and an 802.15.4 Based 2.4 GHz radio transceiver. The HB-PRICETAG was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

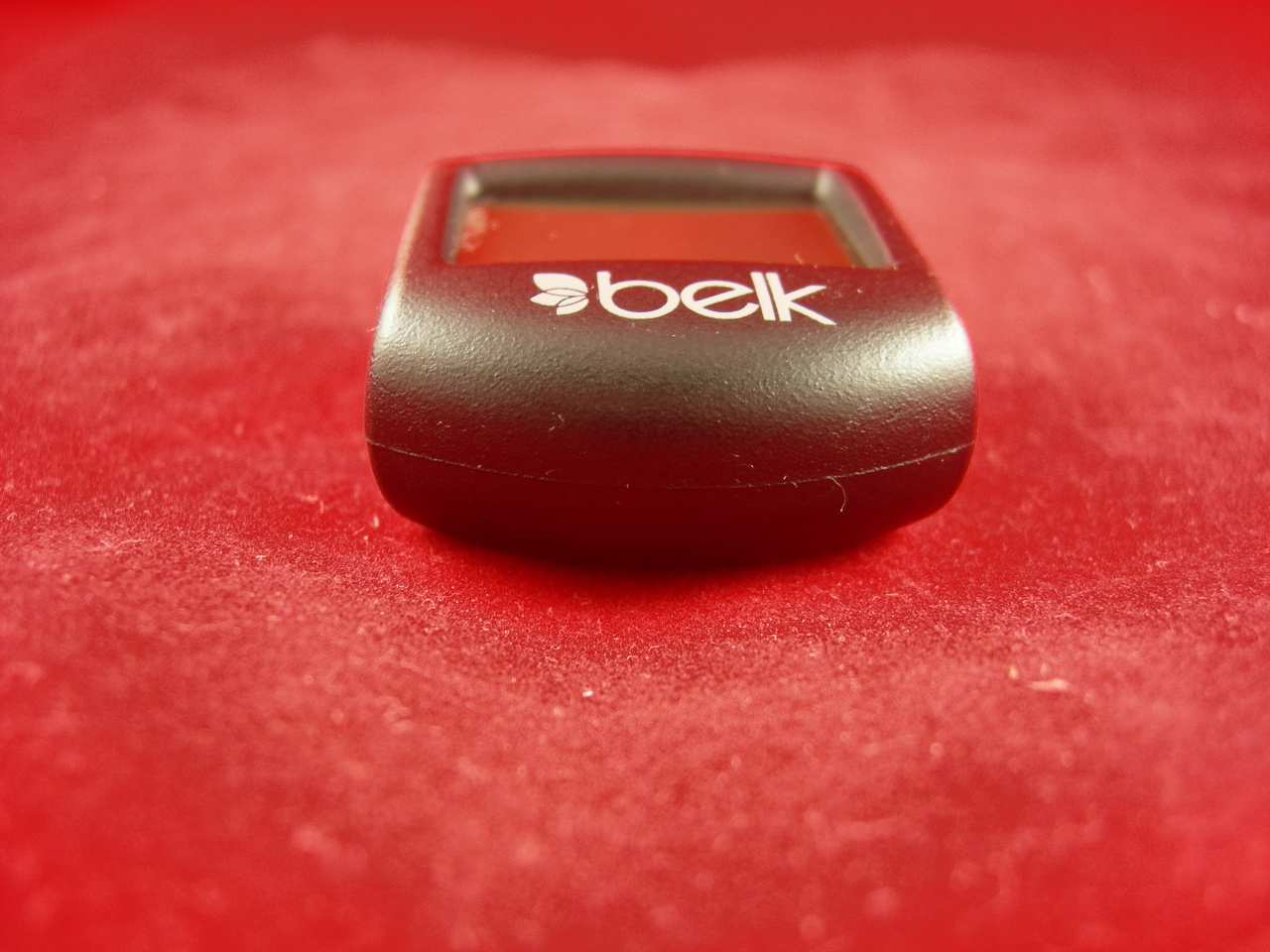

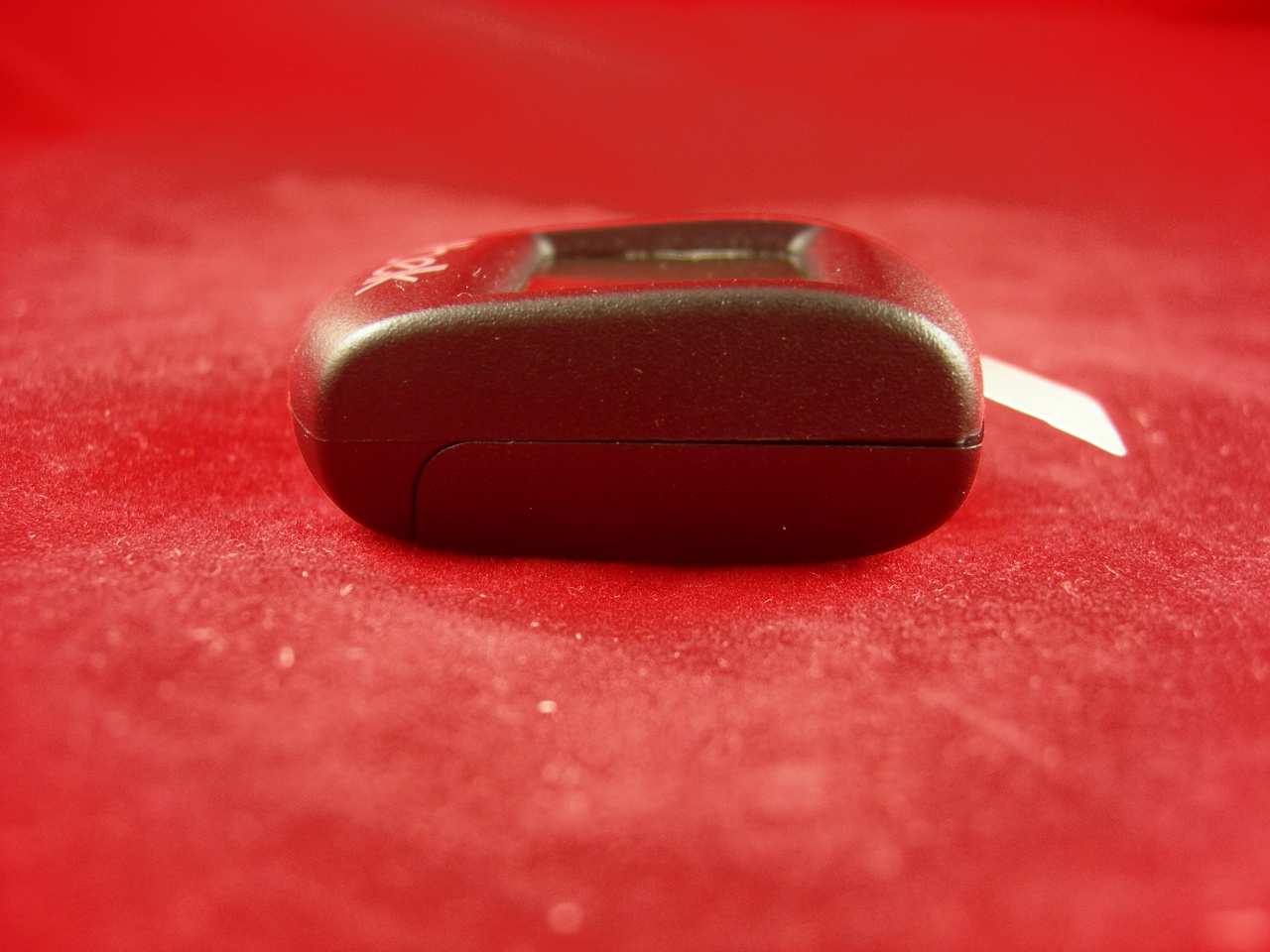

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HB-PRICETAG IC: 3356F-HBPTAG FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-0165 Manufacturer: Alpha - High Theft Solutions Model: HB-PRICETAG External Photos Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 2 Figure 1: External Photo Figure 2: External Photo Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 3 Figure 3: External Photo Figure 4: External Photo Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 4 Figure 5: External Photo Figure 6: External Photo

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HB-PRICETAG IC: 3356F-HBPTAG FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-0165 Manufacturer: Alpha - High Theft Solutions Model: HB-PRICETAG Label Information Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 2 Figure 1: Sample Label D C B A D C B A 1 3 45 678 12 34 56 78 2 VERSION DWG SIZE DRAWING NO. TITLE ALPHA HIGH THEFT SOLUTIONS 1510 4TH STREET SE CANTON, OH 44707 PHONE (800) 633-2155 DESIGNER PRODUCT ENGINEER MFG ENGINEER SCALE STATE PROJECT NAME A A B B 36 37.63 2.1 3.3 0.9, 4X 0.9 4.1 1 25.7 3 26 7.5 10 REVDATEDESCRIPTIONBY R0 7-3-2012 INITIAL BVC R1 7-23-2012 TOOLING RELEASE BVC R2 4-26-2013 UPDATED REGULATORY TEXT BVC BVC THIS DRAWING IS PROPERTY OF ALPHA SECURITY PRODUCTS, INC. AND IS LOANED UPON CONDITION THAT IT IS NOT TO BE REPRODUCED OR COPIED IN WHOLE OR IN PART, OR USED FOR FURNISHING INFORMATION TO OTHERS, OR FOR ANY OTHER PURPOSE DETRIMENTAL TO THE INTEREST OF ALPHA ENTERPRISES, INC. AND WILL BE RETURNED UPON REQUEST BVC HB LCD TAG BACK COVER 3.000D H1327002.0 SHEET 1 OF 1 PART NUMBERPLASTIC COLOR H1327002-1BLACK H1327002-2PMS WARM GRAY 3C TOLERANCE TABLE (UNLESS OTHERWISE SPECIFIED) mmmm 0 - 20 .15 20.01 - 70 .25 70.01 - 150 .35 150.0 - ABOVE .45 ANGLES 1 NOTES: 1. APPLICABLE STANDARDS/SPECIFICATIONS. ASME Y14.5M-1994 DIMENSIONS AND TOLERANCES. 2. REMAINDER OF DIMENSIONS VIA 3D CAD DATA. 3. MOLD DESIGN AND MOLD MATERIALS TO BE APPROVED BY ALPHA SECURITY PRODUCTS ENGINEERING. MOLD DESIGN ENGINEERING DRAWINGS AND 3D DATA TO BE PROVIDED TO ALPHA SECURITY PRODUCTS ENGINEERING UPON COMPLETION OF TOOL BUILD. 4. MARKING: N/A 5. MATERIAL: PC/ABS, CHI MEI PC365 (OR ALPHA APPROVED EQUIVALENT) 6. COLOR: SEE TABLE 7. FINISH: 7.1 POLISH: HIGH POLISH SPI A2 WHERE INDICATED 7.2 TEXTURE: MT11020 (OR EQUIVALENT) WHERE INDICATED 8. MOLDINGS TO BE FREE FROM CRACKS, BURN MARKS, SHORTING, WELD LINES & FLOW MARKS. 9. EJECTOR PIN MARKS TO BE FLUSH TO .125MM RECESSES WITH .063MM MAX FLASH. 10. .063MM MAX PARTING LINE MISMATCH. 11. TRIM GATE REMNANT FLUSH TO .25MM BELOW ADJACENT WALL. 12. MAXIMUM ALLOWABLE FLASH IS 0.063MM UNLESS OTHERWISE SPECIFIED. 13. RELEASE AGENTS NOT TO BE USED (EG. SILICONES, ETC.) UNLESS OTHERWISE APPROVED BY ALPHA SECURITY PRODUCTS ENGINEERING. 1 2 3 5 6 7 4 9 8 10 11 13 14 SECTION A-A SECTION B-B TEXTURE EXTERIOR SURFACES PER 7.2 NO TEXTURE

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HB-PRICETAG IC: 3356F-HBPTAG FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-0165 Manufacturer: Alpha - High Theft Solutions Model: HB-PRICETAG Internal Photos Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 2 Figure 1: Internal Photo Figure 2: Internal Photo Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 3 Figure 3: Internal Photo Figure 4: Internal Photo – Shield Removed Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 4 Figure 5: Internal Photo

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HB-PRICETAG IC: 3356F-HBPTAG FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-0165 Manufacturer: Alpha - High Theft Solutions Model: HB-PRICETAG RF Exposure Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 2 General Information: Applicant:Alpha – High Theft Solutions, A Division of Checkpoint Systems, Inc. Device Category:Mobile Environment:General Population/Uncontrolled Exposure Technical Information: Antenna Type: PCB Wiggle Antenna Antenna Gain: 2.15dBi Maximum Transmitter Conducted Power: 0.72 dBm, 1.18 mW Maximum System EIRP: 2.87 dBm, 1.94 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 24800.721.001.182.151.641 200.0004 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Installation Guidelines The installation manual should contain text similar to the following advising how to install the equipment to maintain compliance with the FCC RF exposure requirements: RF Exposure In accordance with FCC requirements of human exposure to radio frequency fields, the radiating element shall be installed such that a minimum separation distance of 20 centimeters will be maintained. Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: YWZ-HB-PRICETAG IC: 3356F-HBPTAG FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 13-0165.W06.1A Manufacturer: Alpha - High Theft Solutions Model: HB-PRICETAG Test Begin Date: April 8, 2013 Test End Date: April 18, 2013 Report Issue Date: June 4, 2013 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 19 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ......................................................................................................................10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ........................................................................10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207, IC: RSS-GEN 7.2.4 ......................10 7.2.1 Measurement Procedure ........................................................................................................10 7.3 6DB / 99% BANDWIDTH – FCC: SECTION 15.247(A)(2), IC: RSS-210 A8.2(A)..............................10 7.3.1 Measurement Procedure ........................................................................................................10 7.3.2 Measurement Results .............................................................................................................10 7.4 FUNDAMENTAL EMISSION OUTPUT POWER – FCC: SECTION 15.247(B)(3), IC: RSS-210 A8.4(4) .12 7.4.1 Measurement Procedure ........................................................................................................12 7.4.2 Measurement Results .............................................................................................................12 7.5 EMISSION LEVELS – FCC: SECTION 15.247(D), 15.205 IC: RSS-210 2.2, A8.5 ..............................13 7.5.1 Emissions into Non-restricted Frequency Bands ...................................................................13 7.5.1.1 Measurement Procedure ................................................................................................................... 13 7.5.1.2 Measurement Results ....................................................................................................................... 13 7.5.2 Emissions into Restricted Frequency Bands ..........................................................................16 7.5.2.1 Measurement Procedure ................................................................................................................... 16 7.5.2.2 Duty Cycle Correction ..................................................................................................................... 16 7.5.2.3 Measurement Results ....................................................................................................................... 16 7.5.2.4 Sample Calculation: ......................................................................................................................... 17 7.6 MAXIMUM POWER SPECTRAL DENSITY IN THE FUNDAMENTAL EMISSION – FCC: SECTION 15.247(E) IC: RSS-210 A8.2(B) .................................................................................................................18 7.6.1 Measurement Procedure ........................................................................................................18 7.6.2 Measurement Results ...........................................................................…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HB-PRICETAG IC: 3356F-HBPTAG FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 13-0165 Manufacturer: Alpha - High Theft Solutions Model: HB-PRICETAG Test Setup Photos Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 2 Figure 1: Radiated Emissions – XPOS Figure 2: Radiated Emissions – XPOS Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 3 Figure 3: Radiated Emissions – YPOS Figure 4: Radiated Emissions – YPOS Model: HB-PRICETAGFCC ID: YWZ-HB-PRICETAGIC: 3356F-HBPTAG ACS Project: 13-0165Advanced Compliance SolutionsPage 4 Figure 5: Radiated Emissions – ZPOS Figure 6: Radiated Emissions – ZPOS
