YWZ-S3I0004S3i XL Spider Wrap (Dual Tech EAS) Alarming

Checkpoint Systems, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 19, 2014
Application Purpose: Original Equipment
Date of Application: Aug 19, 2014
Equipment Note: S3i XL Spider Wrap (Dual Tech EAS) Alarming
Frequency Range: 2405.00000000 - 2480.00000000
Company: Checkpoint Systems, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Certification Exhibit FCC ID: YWZ-S3I0004 IC: 3356F-S3I0004 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project: 14-2070 Manufacturer: Alpha - High Theft Solutions Model: S3I-0004 User Manual 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 INSTRUCTIONS FOR S3I SPIDER WRAP XL – S3i 2 Alarm XL Spider Wrap (S3I-‐0004) • Dual EAS technology (AM/RF) • Includes Lithium baMery. Note: BaMery is factory replaceable. • If a Cable is cut, the Spider Wrap will alarm for approximately five (5) minutes before it is automaXcally silenced. • The sound of the alarm emiMed is between 90-‐95 decibels. • 132” (335.28cm) cable Key Features: Flip-‐Up Winder Dual EAS Technology Medallion Main Housing Key Locators Audible Alarm Locking Clip Aircra` Grade Cable ApplicaXon: 1. Extend Cables to desired length 2. Lay Spider Wrap out and posiXon merchandise on top 3. PosiXon Cables around the merchandise. Be sure there is one (1) cable on each side of the merchandise. Insert the Locking Clip into Main Housing unXl you hear it click 4. Li` and turn the Flip-‐Up Winder Clockwise to snugly Xghten the Cables around the merchandise. An audible clicking noise will be heard. Close the Flip-‐Up Winder 5. Ensure that the Locking Clip is completely secured and the Cables are snug around the merchandise. This completes the applicaXon process. This device complies with Part 15 of the FCC Rules. OperaXon is subject to the following two condiXons: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operaXon. FCC ID:YWZ-‐S3I0004, IC: 3356F-‐S3I0004 INSTRUCTIONS FOR S3I SPIDER WRAP XL – S3i 2 Alarm XL Spider Wrap (S3I-‐0004) PAGE 2 Removal: 1. Align Detaching Locators into Key Locators. Lay the S3 HandKey or Super XT Key on the Main Housing 2. Fully engage the S3 HandKey or Super XT Key on the main housing as shown above. 3. Push the Locking Clip into the Main Housing unXl you hear a faint click 4. Once the Locking Clip is released from the Main Housing, pull out completely. 5. Wind up the Cables so the Medallion is engaged with the Main Housing and store in the appropriate bin. This device complies with Part 15 of the FCC Rules. OperaXon is subject to the following two condiXons: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operaXon. FCC ID: YWZ-‐S3I0004, IC: 3356F-‐S3I0004 Alpha High The6 Solu9ons S3I-‐0004 (S3I SPIDER WRAP XL) Warning: Changes or modifica9ons to this device not expressly approved by Alpha could void the user’s authority to operate the equipment. FCC Informa9on and Compliance RF Exposure This equipment complies with FCC radiaXon exposure limits set forth for an uncontrolled environment. This equipment may operate in direct contact with the body of the user under normal operaXng condiXons. This transmiMer must not be co-‐located or operaXng in conjuncXon with any other antenna or transmiMer. For Class A Devices: “NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protecEon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucEon manual, may cause harmful interference to radio communicaEons. OperaEon of this equipment in a residenEal area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.“ Under Industry Canada regulaXons, this radio transmiMer may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmiMer by Industry Canada. To reduce potenXal radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communicaXon. Conformément à la réglementaEon d’Industrie Canada, le présent émeLeur radio peut foncEonner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émeLeur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intenEon des autres uElisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communicaEon saEsfaisante. This device complies with Industry Canada licence-‐exempt RSS standard(s). OperaXon is subject to the following two condiXons: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operaXon of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitaEon est autorisée aux deux condiEons suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’uElisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscepEble d’en compromeLre le foncEonnement.

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 July 31, 2014 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: YWZ-S3I0004 To Whom It May Concern: The following application is submitted on behalf of our client, Alpha - High Theft Solutions, A Division of Checkpoint Systems, Inc., for evaluation of their model S3I-0004 for certification under FCC Part 15.247. The FCC ID: YWZ-S3I0004 is an IEEE 802.15.4 transceiver operating in the 2.4 GHz ISM band. The equipment is wrapped around a product in a retail environment. The model S3I-0004 generates an alarm and notifies the store network after un-authorized removal. The FCC ID: YWZ-S3I0004 was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

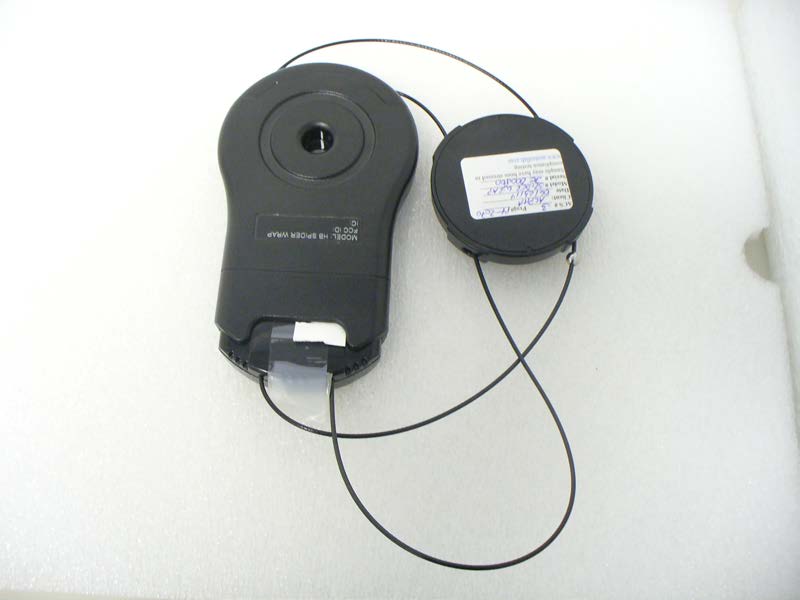

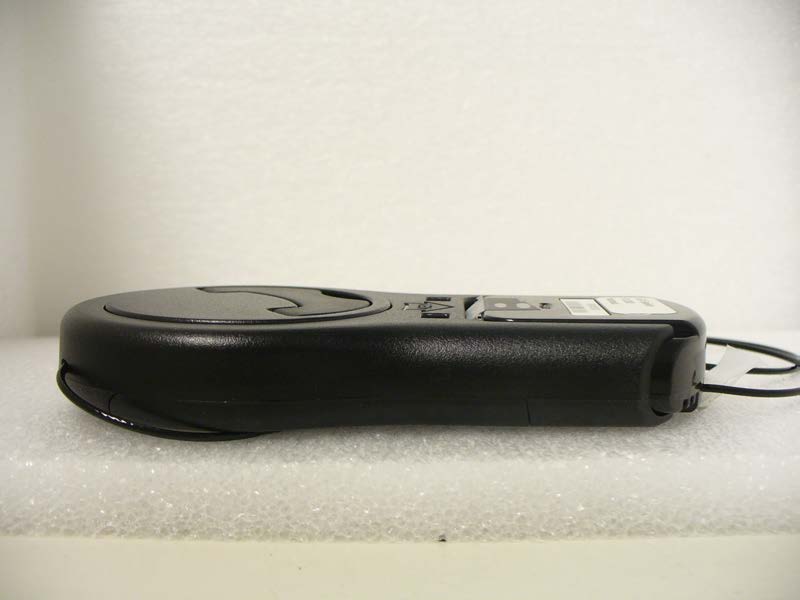

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Certification Exhibit FCC ID: YWZ-S3I0004 IC: 3356F-S3I0004 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-2070 Manufacturer: Alpha - High Theft Solutions Model: S3I-0004 RF Exposure 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Model: S3I-0004 FCC ID: YWZ-S3I0004 IC: 3356F-S3I0004 General Information: Applicant: Alpha - High Theft Solutions ACS Project: 14-2070 Device Category: Mobile/Portable Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: PCB Wiggle Trace Antenna Antenna Gain: 2.15 dBi Maximum Transmitter Conducted Power: 3.92dBm, 2.466mW Maximum System EIRP: 6.07 dBm, 4.0458 mW Exemption from Routine Evaluation Limits 1. Per KDB 447498 D01 General RF Exposure Guidance v05r02 the equipment qualifies for exemption to the routine evaluation if the thresholds of 3.0 for 1-g SAR and 7.5 for 10-g extremity SAR are not exceeded. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz – 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]*[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR Minimum Test Distance: 5mm Highest Operating Frequency: 2480 MHz Maximum Conducted Power: 2.466 mW (2.466/5)*(√2.48) 0.4932 * 1.575 0.8 2. Per IC Radio Standards Specification RSS-102 Issue 4, March 2010, SAR evaluation is required except when the device operates above 2.2 GHz and up to 3 GHz inclusively, and with output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) that is less than or equal to 20 mW for general public use. In addition, an MPE calculation is provided below. ACS Project: 14-2070 Advanced Compliance Solutions Page 2 Model: S3I-0004 FCC ID: YWZ-S3I0004 IC: 3356F-S3I0004 MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4 R PG π Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 2480 3.921.002.47 2.151.641 200.001 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population. ACS Project: 14-2070 Advanced Compliance Solutions Page 3

Test Report

Certification Test Report FCC ID: YWZ-S3I0004 IC: 3356F-S3I0004 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 14-2070.W06.1A Applicant: Alpha - High Theft Solutions, A Division of Checkpoint Systems, Inc. Model(s): S3I-0 004 Test Begin Date: June 30, 2014 Test End Date: July 10, 2014 Report Issue Date: July 28, 2014 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ACLASS, ANSI, or any agency of the Federal Government. Project Manager: Reviewed by: Thierry Jean-Charles Kirby Munroe EMC Engineer Director, Wireless Certifications Advanced Compliance Solutions, Inc. Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 30 pages 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose .............................................................................................................................................. 3 1.2 Applicant Information ..................................................................................................................... 3 1.3 Product Description .......................................................................................................................... 3 1.4 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES .......................................................................................... 4 2.1 Location ............................................................................................................................................. 4 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 4 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 5 3 APPLICABLE STANDARD REFERENCES................................................... 7 4 LIST OF TEST EQUIPMENT .......................................................................... 8 5 SUPPORT EQUIPMENT ................................................................................ 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM .............................. 9 7 SUMMARY OF TESTS ................................................................................. 10 7.1 Antenna Requirement – FCC: Section 15.203 ..............................................................................10 7.2 6 dB Bandwidth - FCC: Section 15.247(a)(2) 99% Bandwidth IC: RSS-210 A8.2(a) ................10 7.3 Peak Output Power - FCC Section 15.247(b)(3) IC: RSS-210 A8.4(4) .......................................14 7.4 Band-Edge Compliance and Spurious Emissions-FCC 15.247(d) IC: RSS-210 A8.5 ................16 7.5 Power Spectral Density - FCC Section 15.247(e) IC: RSS-210 A8.2(b) ......................................28 8 CONCLUSION .............................................................................................. 30 Models: S3I-0004 FCC ID: YWZ-S3I0004 IC: 3356F-S3I0004 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Applicant Information Alpha - High Theft Solutions 10715 Sikes Place, Ste 200 Charlotte, NC 28277 1.3 Product Description The model S3I-0004 is an IEEE 802.15.4 wireless transceiver which allows the monitoring of items for sale in a retail environment. The EUT is wrapped around the product to be monitored, securing each side of the package, with a buckle on one side and an alarm unit on the other side. Un-authorized removal causes an alarm to sound and the store network to be notified electronically. Technical Details Mode of Operation: IEEE 802.15.4 Frequency Range: 2405 MHz - 2480 MHz Number of Channels: 16 Channel Separation: 5 MHz Modulations: O-QPSK Antenna Type/Gain: PCB Wiggle Antenna, 2.15 dBi Input Power: 3 VDC CR2477 Lithium Battery Model Number: S3I-0004 Test Sample Serial Number(s): 15F0 (RF Conducted), DE00030A (Radiated) Test Sample Condition: The EUT was in good condition with no observable physical damages. 1.4 Test Methodology and Considerations The EUT was evaluated for radiated and RF conducted emissions while powered via battery. The RF conducted measurements were performed on the PCB configured with an SMA connector for direct coupling with the measurement equipment. For the radiated emissions evaluation, preliminary evaluations were performed for the EUT set in three orthogonal orientations with the fastening cables configured for worst case results. The highest emissions relative to the limits were observed for the EUT set lengthwise on the test table. The corresponding measurement results are documented in this document. The EUT was also evaluated for unintentional emissions. The results are documented separately in a verification test report. ACS Report: 14-2070.W06.1A Advanced Compliance Solutions Page 3 of 30 Models: S3I-0004 FCC ID: YWZ-S3I0004 IC: 3356F-S3I0004 2 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions, Inc. 3998 FAU Blvd, Suite 310 Boca Raton, Florida 33431 Phone: (561) 961-5585 Fax: (561) 961-5587 www.acstestlab.com FCC Test Firm Registration #: 475089 Industry Canada Lab Code: 4175C 2.2 Laboratory Accreditations/Recognitions/Certifications ACS is accredited to ISO/IEC 17025 by ANSI-ASQ National …

Text truncated - open the document above for the full version.

Test Setup Photos

Contact Information

Applicant

Peter Bremer(VP R&D Worldwide)

[email protected]856-628-2491Fax: 856-384-2366

Test Firm

TUV SUD America, Inc.Sam Wismer

[email protected]678-341-5924Fax: 678-341-5924

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	2.50 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment may operate in direct contact with the body of the user under normal operating conditions. Device must operate with a source-based, time-averaged duty cycle not to exceed 15.4% controlled via firmware or software.
