YWZ-NANOGATEAMAM Nano Gate

Checkpoint Systems, Inc.

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Mar 06, 2012
Application Purpose: Original Equipment
Date of Application: Mar 06, 2012
Equipment Note: AM Nano Gate
Frequency Range: 0.05800000 - 0.05800000
Company: Checkpoint Systems, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-NANOGATEAM IC: 3356F-NANOGATEAM FCC Rule Part: 15.209 IC Radio Standards Specification: RSS-210 ACS Project Number: 12-0033 Manufacturer: Alpha - High Theft Solutions Model: NANOGATE-AM Manual www.alphaworld.com Instructions for the Nano Gate NANOGATE-AM 1. The Nano Gate can be installed on any flat surface. 2. The Nano Gate can be installed with Power Cord up or down. 3. The Nano Gate triggers 3 Alarm AM devices. 4. The red light indicates good power and serves as a visual deterrent. 5. The Nano Gate can pivot side-to-side if bumped into. 6. The Nano Gate will alarm continuously if the Pressure Switch comes off the wall. NOTE: If power is removed, the Nano Gate will chirp for 2 minutes. 7. The Nano Gate should not be placed within 4m (13’) of EAS systems FACTS ABOUT THE NANO GATE: • (1) Nano Gate - AM • (1) Mounting Template • (2) Brackets • (4) P-Clips with Screws • (10) Metal Screws • (2) Caps • (1) AC Power Cord - .6 m (2’) L TOOLS SUPPLIED: Clear Antenna LED Annunciator 1. Place the provided Mounting Template onto a flat surface with tape. The Mounting Template will be marked with TOP and BOTTOM for placement and provides where the holes need to be drilled. NOTE: Must mount Nano Gate at least 0.91 m (3 feet) from floor 2. Drill 6 holes as indicated on the template. (Fig. 1) 3. Remove the template. You should have 3 holes on top and 3 holes on bottom. 4. Screw bottom bracket in place with 3 screws. (Fig. 2) 5. Screw in the top screw only - allowing space for the Bracket to slide. (Fig. 3) 6. Insert bottom end of the Nano Gate into the bottom Bracket. (Fig. 4) 7. Push the top Bracket down onto the Nano Gate. (Fig. 5) Screw remaining screws into top Bracket. (Fig. 6) 8. Plug power supply cord in power box and wind extra cable into storage box. Mount storage box. (Fig. 7) Place the Caps on the top and bottom end of the Nano Gate and screw in with the 4 small screws provided. (Fig. 8) NOTE: Once the Nano Gate is flush to the wall the unit will chirp to indicate the Pressure Switch is engaged and the unit is armed. 9. The Nano Gate is now installed. (Fig. 9) NOTE: 1.83 m (6’) coverage requires mounting Nano Gate in off-set locations on the door. (See Diagram 1) INSTALLATION: 1.83 m (6’) Diagram 1 1.06 m (3.5’) .91 m (3’) Pivoting Antenna Pressure Switch TOOLS REQUIRED: • Electric Hand Drill • 1/8” Drill Bit • Phillips PH0 Screw Driver • Tape Measure • Tape Pivoting Antenna www.alphaworld.com Instructions for the Nano Gate NANOGATE-AM PAGE 2 Figure 1 - Drill holes as indicated on template. Figure 2 - Screw in bottom Bracket. Figure 4 - Insert bottom end of Nano Gate into bottom Bracket. Figure 3 - Screw in top screw only - allowing space for the Bracket to slide on. Figure 7 - Plug power supply cord in power box and wind extra cable into storage box. Mount storage box. Figure 6 - Screw remaining screws into top Bracket. INSTALLATION: Figure 8 - Screw in both top and bottom Caps. Figure 5 - Push top Bracket down onto Nano Gate. Figure 9 - Nano Gate is now installed. Warning: Changes or modifications to this device not expressly approved by Alpha High Theft Solutions could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. www.alphaworld.com Instru…

Text truncated - open the document above for the full version.

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 March 1, 2012 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: YWZ-NANOGATEAM To Whom It May Concern: The following application is submitted on behalf of our client, Alpha - High Theft Solutions, for evaluation of their model NANOGATE-AM for certification under FCC Part 15.209. The NANOGATE-AM works in conjunction with Alpha – High Theft Solution’s 3Alarm AM Tags to provide a simulation of the 58kHz AM Electronic Article Surveillance (EAS) gate to help prevent retail theft. The NANOGATE-AM was tested in a configuration representative of typical installation and use. The EUT was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

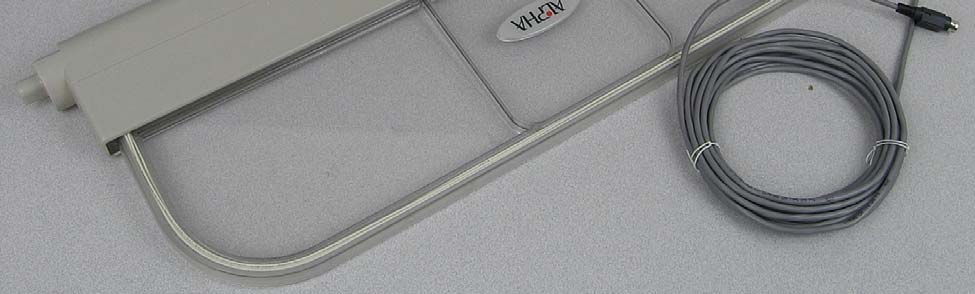

External Photos

ID Label/Location Info

Internal Photos

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: YWZ-NANOGATEAM IC: 3356F-NANOGATEAM FCC Rule Part: 15.209 IC Radio Standards Specification: RSS-210 ACS Report Number: 12-0033.W06.1A Manufacturer: Alpha High Theft Solutions Model: NANOGATE-AM Test Begin Date: January 24, 2012 Test End Date: February 9, 2012 Report Issue Date: February 27, 2012 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 17 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ....................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207 IC: RSS-GEN 7.2.4 ...................... 10 7.2.1 Measurement Procedure ....................................................................................................... 10 7.2.2 Measurement Results ............................................................................................................ 10 7.3 RADIATED EMISSIONS – FCC CFR 47 PART 15.209 / RSS-210 SECTION 2.5................................. 12 7.3.1 Measurement Procedure ....................................................................................................... 12 7.3.2 Distance Correction for Measurements Below 30 MHz – Part 15.31 .................................. 13 7.3.3 Duty Cycle Correction – Part 15.35 ..................................................................................... 14 7.3.4 Measurement Results ............................................................................................................ 14 7.3.5 Sample Calculation ............................................................................................................... 15 7.4 20DB / 99% BANDWIDTH – FCC: SECTION 15.215, IC: RSS-GEN 4.6.1 ........................................ 16 7.4.1 Measurement Procedure ....................................................................................................... 16 7.4.2 Measurement Results ............................................................................................................ 16 8 CONCLUSION ................................................................................................................................... 17 Model: NANOGATE-AM FCC ID: YWZ-NANOGATEAM IC: 3356F-NANOGATEAM ACS Report: 12-0033.W06.1A Advanced Compliance Solutions Page 3 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Product description The NANOGATE-AM provides simulation of the 58kHz AM Electronic Article Surveillance (EAS) gate. When the NANOGATE-AM is used in conjunction with Alpha High Theft Solutions 3Alarm AM Tags it provides a EAS barrier to prevent retail theft. Technical Details: Frequency Range: 58 kHz Operating channels: 1 Modulation: AM Operating Voltage: 120VAC / 60 Hz power supply (12VDC to EUT) Manufacturer Information: Alpha High Theft Solutions 10715 Sikes Place, Ste. 200 Charlotte, NC 28277 Test Sample Serial Number(s): C002, C003 Test Sample Condition: The test samples were provided in good working order with no visible defects. 1.3 Test Methodology and Considerations The EUT …

Text truncated - open the document above for the full version.

Test Setup Photos
