YWZ-S3I0007S3i Shelfnet Sensor

Checkpoint Systems, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: May 31, 2015
Application Purpose: Original Equipment
Date of Application: May 31, 2015
Equipment Note: S3i Shelfnet Sensor
Frequency Range: 2405.00000000 - 2480.00000000
Company: Checkpoint Systems, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 15-0129 Manufacturer: Alpha - High Theft Solutions, A Division of Checkpoint Systems, Inc. Model: S3I-0007 INSTRUCTIONS FOR S3I-‐SHELFNET-‐SENSOR – (S3I-‐0007) • A series of plas<c tag backs have been designed to fit specific brand pushers (1) • Product in place switch (2) • Pusher is place switch (3) • Commission ac<on buMon (4) • Replaceable CR240 baMery • 802.15.4 based 2.4 GHz radio transceiver • S3i pusher sensor works in tandem with the S3i network to trigger audio feedback to the user and to store personnel KEY FEATURES: PRODUCT DESCRIPTION: This device complies with Part 15 of the FCC Rules. Opera<on is subject to the following two condi<ons: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired opera<on. FCC ID: YWZ-‐S3I007, IC: 3356F-‐S3I007 • The tag will join any available S3i network and check in within the set interval (default: 3 minutes) • The tag will communicate status change to the product in place switch or the pusher in place switch • When the commission ac<on buMon is pressed during the check-‐in process the device will report current status (baMery voltage, switch states etc..) as well as receive commands from the network • Dashboards and alerts are generated to show compliance, security breaches and inventory levels (1) (3) (2) (4) S3i Shelfnet Sensor communicates through the S3i network No<fica<ons and reports are generated based on the ac<vity reported by the S3i Shelfnet Sensor Alpha High Theft Solutions S3I-0007 Warning: Changes or modifications to this device not expressly approved by Alpha could void the user’s authority to operate the equipment. FCC Information and Compliance RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For Class A Devices: “NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.“ Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 April 27, 2015 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: YWZ-S3I0007 To Whom It May Concern: The following application is submitted on behalf of our client, Alpha - High Theft Solutions, A Division of Checkpoint Systems, Inc., for evaluation of their model S3I-0007 for certification under FCC Part 15.247. The S3I-0007 is a simple RF remote sensor operating in the frequency range 2405 – 2480 MHz that includes three different switches for communicating states to the S3i System. The product is placed on retail forward facing mechanisms and provides out of stock notification to in store S3I network. The S3I-0007 was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

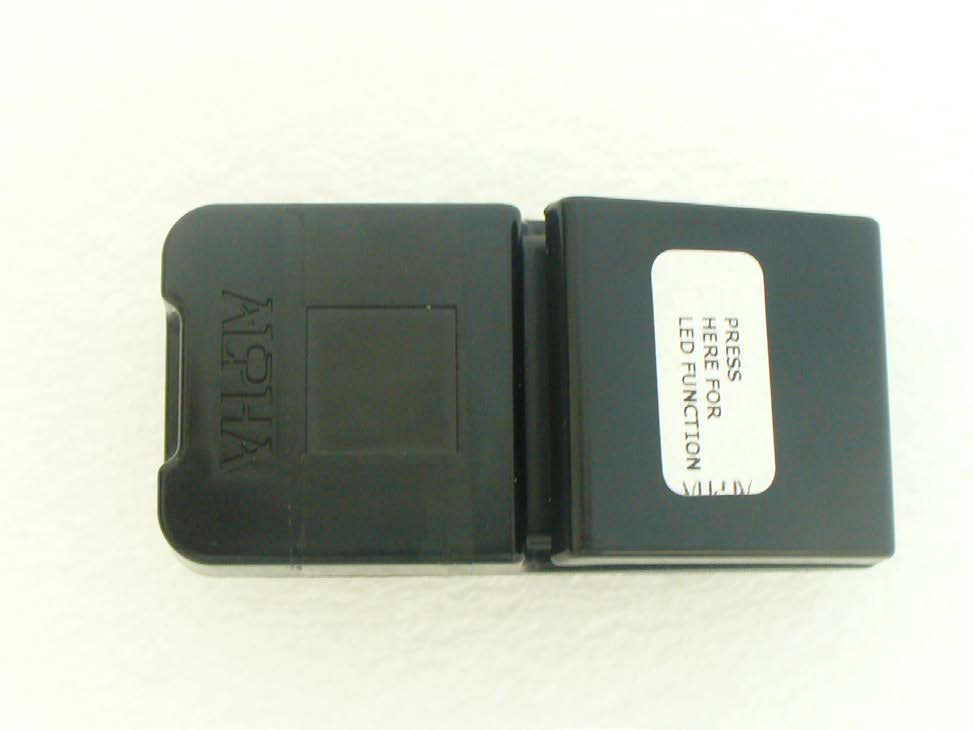

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0007 FCC Rule Part: 15.247 ACS Project Number: 15-0129 Manufacturer: Alpha - High Theft Solutions, A Division of Checkpoint Systems, Inc. Model: S3I-0007 Model: S3I-0007FCC ID: YWZ-S3I0007 ACS Project: 15-0129Advanced Compliance SolutionsPage 2 General Information: Applicant:Alpha – High Theft Solutions, A Division of Checkpoint Systems, Inc. Device Category:Mobile Environment:General Population/Uncontrolled Exposure Technical Information: Antenna Type: Printed Circuit board wiggle Antenna Gain: 2.15 dBi Maximum Transmitter Conducted Power: 4.07 dBm, 2.55 mW Maximum System EIRP: 6.22 dBm, 4.19 mW Exposure Conditions: Greater than 20 centimeters MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) 24404.071.002.552.151.641 200.001 Power Density (mW/cm^2) Distance (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Antenna Gain (dBi) Antenna Gain (mW eq.) Conclusion This device complies with the MPE requirements by providing adequate separation between the device, any radiating structure and the general population.

Test Report

Certification Test Report FCC ID: YWZ-S3I-0007 IC: 3356F-S3I0007 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 15-2025.W06.1A Applicant: Alpha High Theft Solutions, A Division of Checkpoint Systems, Inc. Model(s): S3I-0007 Test Begin Date: April 15, 2015 Test End Date: April 22, 2015 Report Issue Date: May 6, 2015 FOR THE SCOPE OF ACCREDITATION UNDER CERTIFICATE NUMBER AT-1533 This report must not be used by the client to claim product certification, approval, or endorsement by ANAB, ANSI, or any agency of the Federal Government. Reviewed by: Thierry Jean-Charles EMC Engineer Advanced Compliance Solutions, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 30 pages 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 TABLE OF CONTENTS 1 GENERAL ...................................................................................................... 3 1.1 Purpose .............................................................................................................................................. 3 1.2 Applicant Information ..................................................................................................................... 3 1.3 Product Description .......................................................................................................................... 3 1.4 Test Methodology and Considerations ........................................................................................... 3 2 TEST FACILITIES .......................................................................................... 4 2.1 Location ............................................................................................................................................. 4 2.2 Laboratory Accreditations/Recognitions/Certifications ............................................................... 4 2.3 Radiated & Conducted Emissions Test Site Description .............................................................. 5 3 APPLICABLE STANDARD REFERENCES................................................... 7 4 LIST OF TEST EQUIPMENT .......................................................................... 8 5 SUPPORT EQUIPMENT ................................................................................ 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM .............................. 9 7 SUMMARY OF TESTS ................................................................................. 10 7.1 Antenna Requirement – FCC: Section 15.203 ..............................................................................10 7.2 6 dB Bandwidth - FCC: Section 15.247(a)(2) 99% Bandwidth IC: RSS-210 A8.2(a) ................10 7.3 Peak Output Power - FCC Section 15.247(b)(3) IC: RSS-210 A8.4(4) .......................................14 7.4 Band-Edge Compliance and Spurious Emissions-FCC 15.247(d) IC: RSS-210 A8.5 ................16 7.5 Power Spectral Density - FCC Section 15.247(e) IC: RSS-210 A8.2(b) ......................................28 8 CONCLUSION .............................................................................................. 30 Model: S3I-0007 FCC ID: YWZ-S3I-0007 IC: 3356F-S3I0007 1 GENERAL 1.1 Purpose The purpose of this report is to demonstrate compliance with Part 15 Subpart C of the FCC’s Code of Federal Regulations and Industry Canada’s Radio Standards Specification RSS-210. 1.2 Applicant Information Alpha - High Theft Solutions 10715 Sikes Place, Ste 200 Charlotte, NC 28277 1.3 Product Description The S3I-0007 S3I‐SHELFNET‐SENSOR is a simple RF remote sensor that includes three different switches for communicating states to the S3i System. The product is placed on retail forward facing mechanisms and provides out of stock notification to in store S3I network. Technical Details Mode of Operation: IEEE 802.15.4 Frequency Range: 2405 MHz - 2480 MHz Number of Channels: 16 Channel Separation: 5 MHz Modulations: O-QPSK Antenna Type/Gain: Printed Circuit board wiggle / 2.15 dBi Input Power: 3 VDC (CR2450 Battery) Model Number: S3I-0007 Test Sample Serial Number(s): ACS#1 (Radiated Emissions), 14370199 (RF Conducted Measurements) Test Sample Condition: The equipment was provided in good condition without any physical damage. 1.4 Test Methodology and Considerations The EUT was evaluated for RF conducted and radiated emission measurements. For radiated emissions, including band edge, three orientations of the EUT were evaluated to determine worst case. The worst case orientation was determined to be the EUT flat on the tabletop. For the purpose of RF conducted measurements, the EUT was modified with a temporary 50 ohm antenna port. The EUT was also evaluated for unintentional emissions. The results are documented separately in a verification test report. ACS Report: 15-2025.W06.1A Advanced Compliance Solutions Page 3 of 30 Model: S3I-0007 FCC ID: YWZ-S3I-0007 IC: 3356F-S3I0007 2 TEST FACILITIES 2.1 Location The radiated and conducted emissions test sites are located at the following address: Advanced Compliance Solutions, Inc. 3998 FAU Blvd, Suite 310 Boca Raton, Florida 33431 Phone: (561) 961-5585 Fax: (561) 961-5587 www.acstestlab.com FCC Test Firm Registration #: 475089 Industry Canada Lab Code: 4175C 2.2 Laboratory Accreditations/Recognitions/Certifications ACS is accredited to ISO/IEC 17025 by ANSI-ASQ National Accreditation Board under their ANAB program and has been issued certificate number AT-1533 in recognition of this accreditation. Unless otherwise specified, all test methods described within this report are covered under the ISO/IEC 17025 scope of accreditation. ACS Report: 15-2025.W06.1A Advanced Compliance Solutions Page 4 of 30 Model: S3I-0007 FCC ID: YWZ-S3I-0007 IC: 3356F-S3I0007 2.3 Radiated & Co…

Text truncated - open the document above for the full version.

Test Setup Photos

Certification Exhibit FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project: 15-2025 Manufacturer: Alpha High Theft Solutions, A Division of Checkpoint Systems, Inc. Model: S3I-0007 Test Setup Photos 3998 FAU Blvd. Suite 310 Boca Raton, FL 33431 Tel: 561-961-5585 Fax: 561-961-5587 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 1: Radiated Emissions – Front View (Close-up) ACS Project: 15-2025 Advanced Compliance Solutions Page 2 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 2: Radiated Emissions – Front View ACS Project: 15-2025 Advanced Compliance Solutions Page 3 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 3: Radiated Emissions – Rear View (9kHz – 30 MHz) ACS Project: 15-2025 Advanced Compliance Solutions Page 4 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 4: Radiated Emissions – Rear View (30MHz – 200 MHz) ACS Project: 15-2025 Advanced Compliance Solutions Page 5 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 5: Radiated Emissions – Rear View (200 MHz – 1 GHz) ACS Project: 15-2025 Advanced Compliance Solutions Page 6 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 6: Radiated Emissions – Front View (Close –up) (above 1 GHz) ACS Project: 15-2025 Advanced Compliance Solutions Page 7 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 7: Radiated Emissions – Front View (above 1 GHz) ACS Project: 15-2025 Advanced Compliance Solutions Page 8 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 8: Radiated Emissions – Rear View (Close-up) (above 1 GHz) ACS Project: 15-2025 Advanced Compliance Solutions Page 9 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 9: Radiated Emissions – Rear View (above 1 GHz) ACS Project: 15-2025 Advanced Compliance Solutions Page 10 Model: S3I-0007 FCC ID: YWZ-S3I0007 IC: 3356F-S3I0007 Figure 10: RF Conducted Measurements ACS Project: 15-2025 Advanced Compliance Solutions Page 11

Contact Information

Applicant

Peter Bremer(VP R&D Worldwide)

[email protected]856-628-2491Fax: 856-384-2366

Test Firm

TUV SUD America, Inc.Sam Wismer

[email protected]678-341-5924Fax: 678-341-5924

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.40 GHz - 2.48 GHz	3.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance. Device must operate with a source-based, time-averaged duty cycle not to exceed 15.4% controlled via firmware or software.
