YWZ-S3I0005S3i Hard Tag

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0227 Manufacturer: Alpha - High Theft Solutions, A Division of Checkpoint Systems Inc. Model: S3I-0005 Manual INSTRUCTIONS FOR S3I HARD TAG – S3i Hard Tag (S3I-­‐0005) • Dual EAS technology (AM/RF) • Includes Lithium baJery. Note: BaJery is factory replaceable. • The sound of the alarm emiJed is between 90-­‐95 decibels. Key Features: ApplicaSon: 1. Insert the pin through the desired area in the garment; align the pin with the receptacle hole 2. Engage the tag and the pin to lock and arm the tag This device complies with Part 15 of the FCC Rules. OperaSon is subject to the following two condiSons: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operaSon. FCC ID: YWZ-­‐S3I005, IC: 3356F-­‐S3I005 Removal: 1. Line the Key Locators on the Key with the Key Locators on the Hard Tag 2. Disengage the Tag from the pin and remove Alpha High The2 Solu5ons S3I-­‐0005 (S3i Hard Tag) Warning: Changes or modifica5ons to this device not expressly approved by Alpha could void the user’s authority to operate the equipment. FCC Informa5on and Compliance RF Exposure This equipment complies with FCC radiaSon exposure limits set forth for an uncontrolled environment. This equipment may operate in direct contact with the body of the user under normal operaSng condiSons. This transmiJer must not be co-­‐located or operaSng in conjuncSon with any other antenna or transmiJer. For Class A Devices: “NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protecEon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucEon manual, may cause harmful interference to radio communicaEons. OperaEon of this equipment in a residenEal area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.“ Under Industry Canada regulaSons, this radio transmiJer may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmiJer by Industry Canada. To reduce potenSal radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communicaSon. Conformément à la réglementaEon d’Industrie Canada, le présent émeLeur radio peut foncEonner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émeLeur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intenEon des autres uElisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communicaEon saEsfaisante. This device complies with Industry Canada licence-­‐exempt RSS standard(s). OperaSon is subject to the following two condiSons: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operaSon of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitaEon est autorisée aux deux condiEons suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’uElisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est suscepEble d’en compromeLre le foncEonnement.

5015 B. U. Bowman Dr. Buford, GA 30518 June 27, 2014 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: YWZ-S3I0005 To Whom It May Concern: The following application is submitted on behalf of our client, Alpha - High Theft Solutions, A Division of Checkpoint Systems Inc., for evaluation of their model S3I-0005 for certification under FCC Part 15.247. The battery powered, 802.15.4 based 2.4 GHz radio transceiver S3I-0005 HB Hard Tag provides article surveillance for retail environments. The S3I-0005 was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

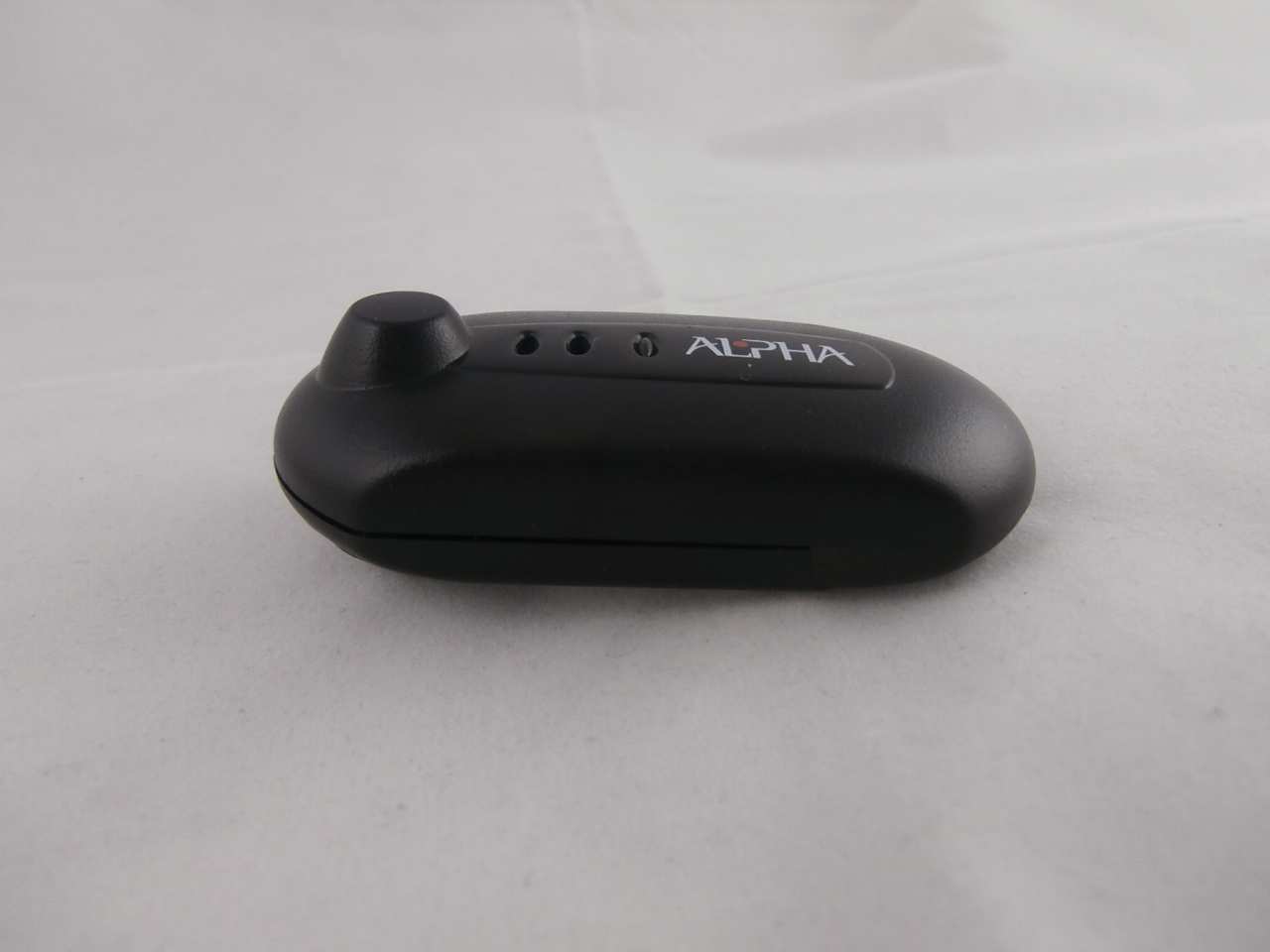

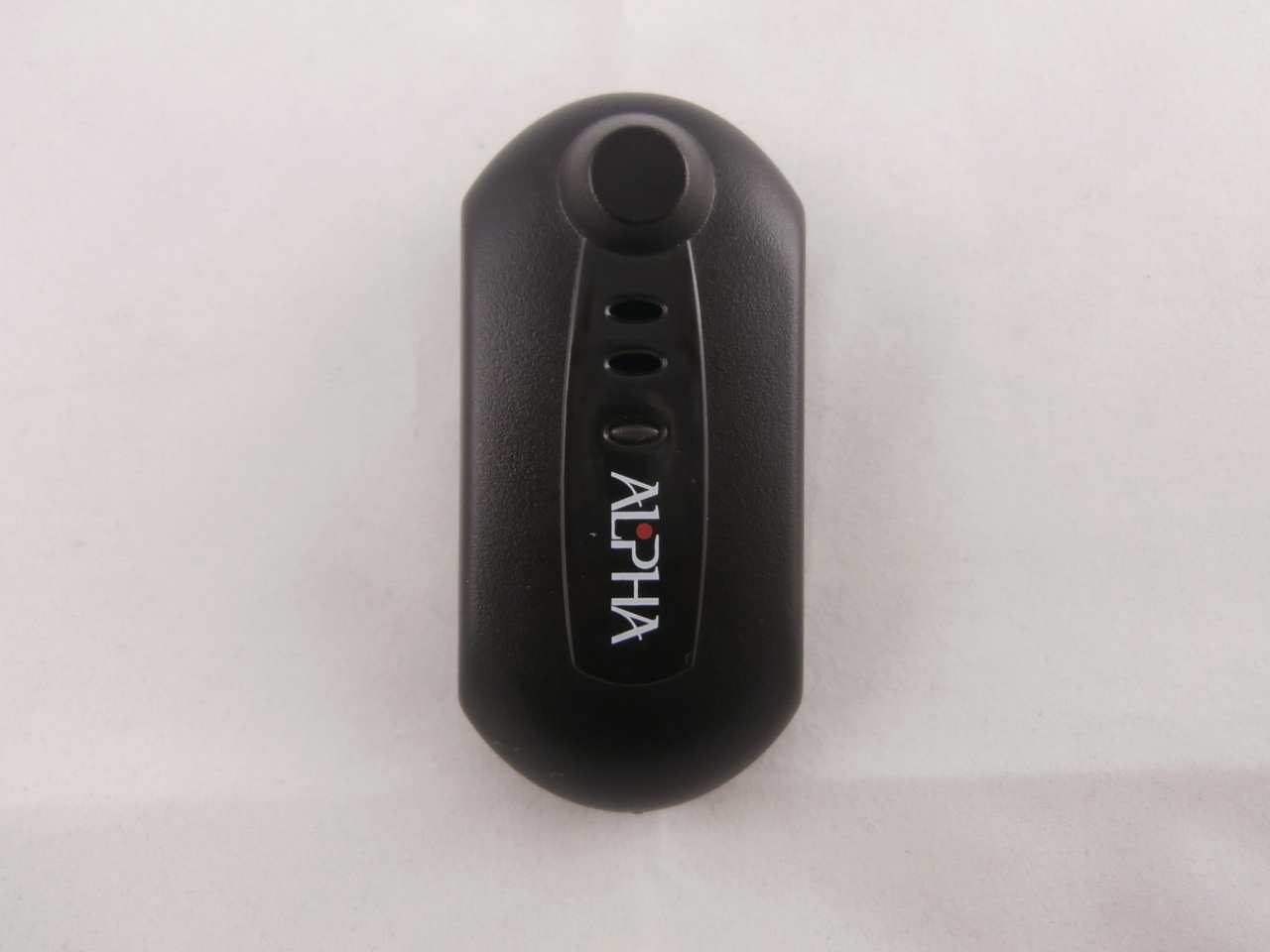

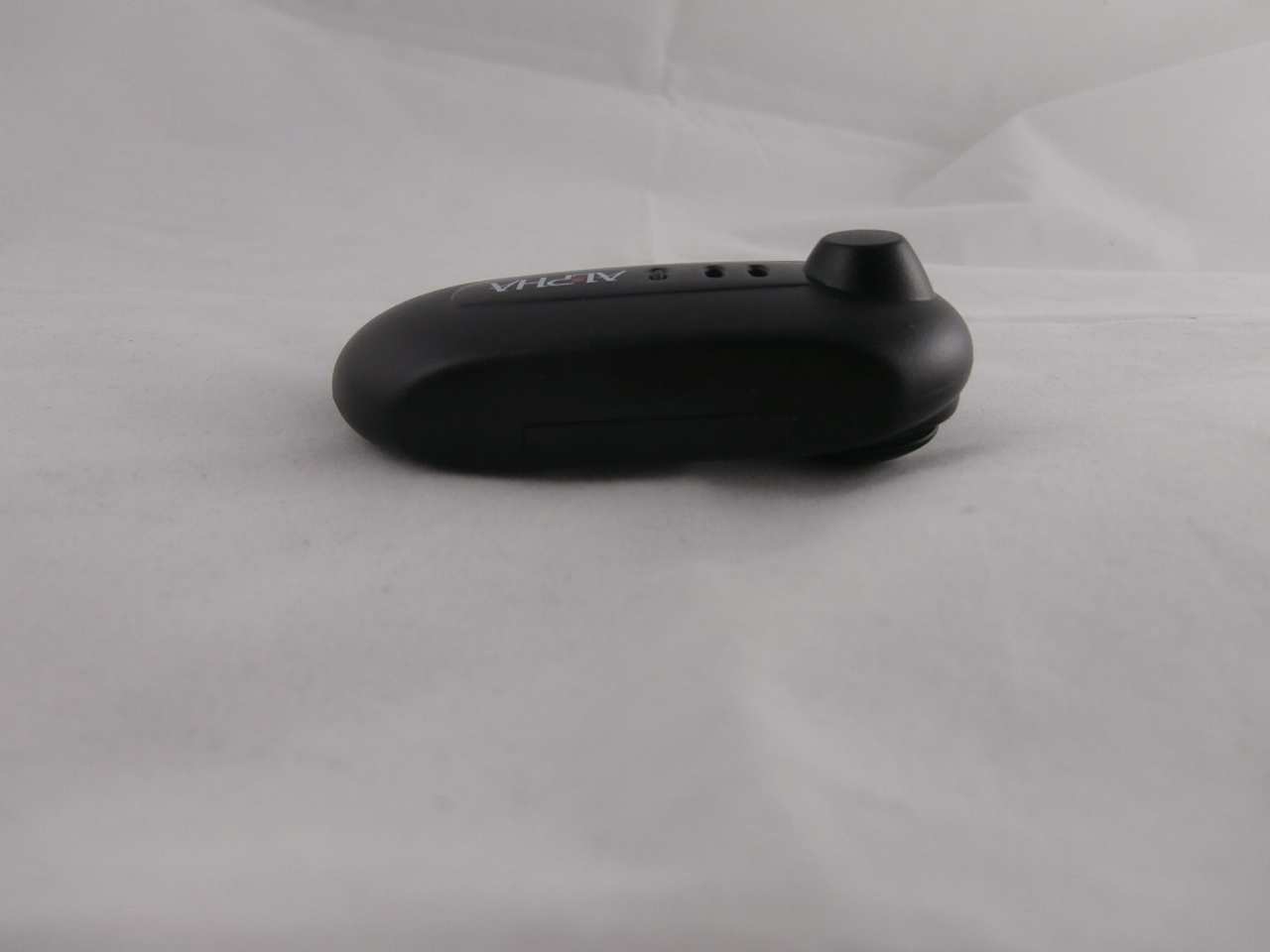

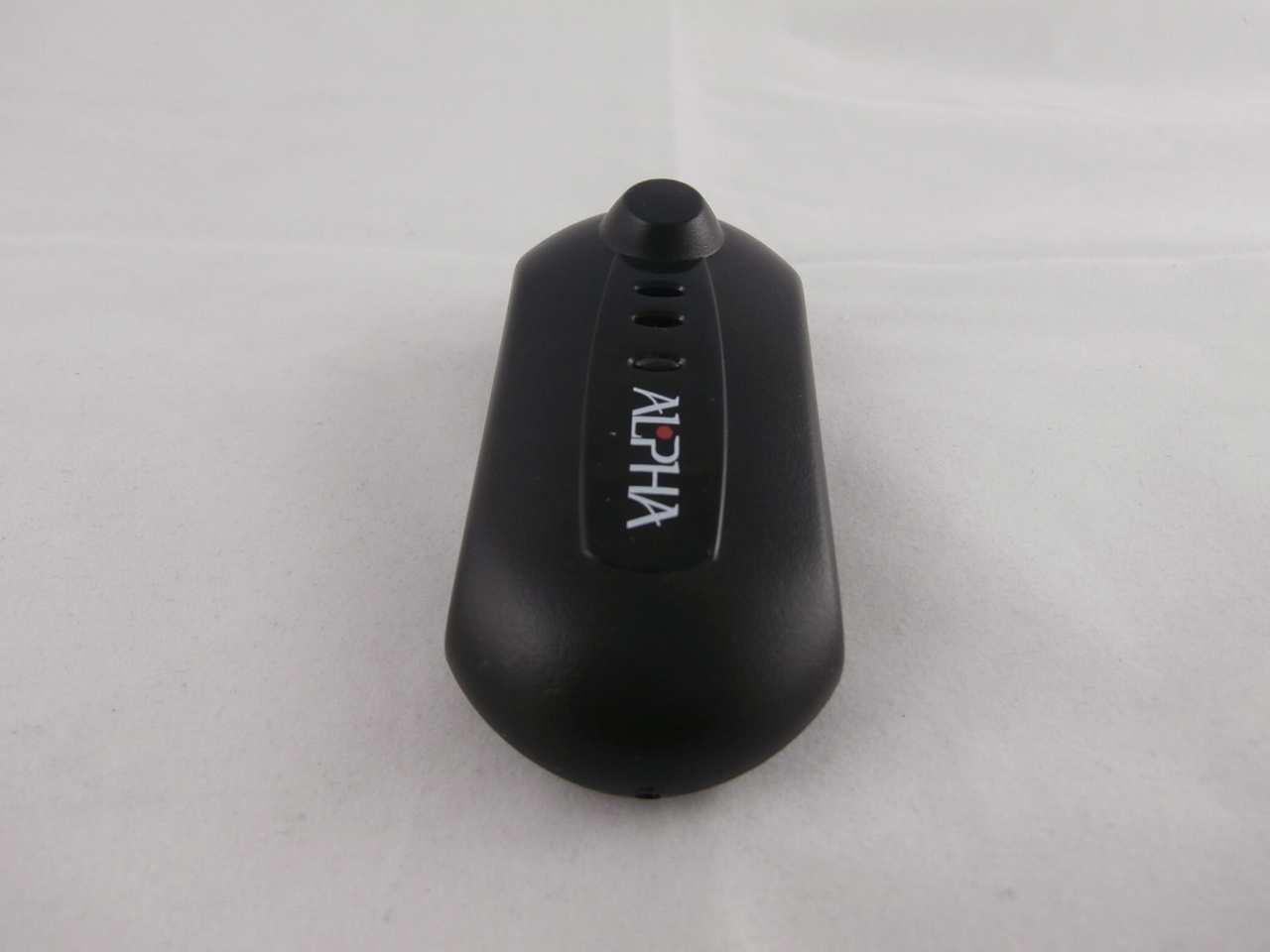

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0227 Manufacturer: Alpha - High Theft Solutions, A Division of Checkpoint Systems Inc. Model: S3I-0005 External Photos Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 2 Figure 1: External Photo Figure 2: External Photo Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 3 Figure 3: External Photo Figure 4: External Photo Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 4 Figure 5: External Photo Figure 6: External Photo

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0227 Manufacturer: Alpha - High Theft Solutions, A Division of Checkpoint Systems Inc. Model: S3I-0005 Label Information REV#DESCRIPTION SCALE SHEET 1 OF 1 DO NOT SCALE DATE ALL DIMENSIONS IN MILLIMETERS UNLESS OTHERWISE SPECIFIED DESIGNED BY TITLE: DRAWING NUMBER: BRIAN CONTI H1178007-ARTWORK S3I HARD TAG COMPLIANCE LABEL REV R1 COLORS: BACKGROUND: BLACK TEXT: WHITE R1 INITIAL 05-06-2014 NOTES: 1) MATERIAL: POLYCARBONATE, 10-mil VELVET FINISH 2) ADHESIVE BACKING: 3M 468MP OR APPROVED EQUIVALENT 3) SHAPE TOLERANCE +/- .15mm SCALE 4:1 18.0 mm 8.0 mm CORNER RADII: 1mm, 4PL MODEL: S3I-0005 FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 MODEL: S3I-0005 FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0227 Manufacturer: Alpha - High Theft Solutions, A Division of Checkpoint Systems Inc. Model: S3I-0005 Internal Photos Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 2 Figure 1: Internal Photo Figure 2: Internal Photo

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0227 Manufacturer: Alpha - High Theft Solutions, A Divison of Checkpoint Solutions Inc. Model: S3I-0005 RF Exposure Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 2 General Information: Applicant: Alpha – High Theft Solutions, A Division of Checkpoint Systems Inc. Device Category: Portable Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: PCB Wiggle Antenna Gain: 2.15dBi Maximum Transmitter Conducted Power: 3.78 dBm, 2.39 mW Maximum Transmitter Calculated EIRP: 5.93 dBm, 3.92 mW* * Meets the thresholds of draft IC RSS-102 Issue 5, section 2.5.1 Table 1. Linear interpolated threshold is 3.94 mW at 2480 MHz. Justification for SAR Test Exclusion: The battery powered, 802.15.4 based 2.4 GHz radio transceiver S3I-0005 HB Hard Tag provides article surveillance for retail environments. This device can be attached to articles in direct contact with the body. Minimum Test Separation Distance: 5 mm Highest Operating Frequency: 2480 MHz Maximum Measured Conducted Power: 3.78 dBm, 2.39 mW Per KDB 447498 D01 General RF Exposure Guidance v05r02, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR = (2.39 / 5)*(√2.48) = 0.48 * 1.57 = 0.8 Based on the results above, the unit meets SAR test exclusion requirements.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 14-0227.W06.1A Manufacturer: Alpha - High Theft Solutions Model: S3I-0005 Test Begin Date: June 20, 2014 Test End Date: June 26, 2014 Report Issue Date: June 27, 2014 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 19 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 PRODUCT DESCRIPTION ................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC 15.203 ....................................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC 15.207, IC: RSS-GEN 7.2.4 .................................... 10 7.3 6DB / 99% BANDWIDTH – FCC 15.247(A)(2), IC: RSS-210 A8.2(A) ............................................ 10 7.3.1 Measurement Procedure ....................................................................................................... 10 7.3.2 Measurement Results ............................................................................................................ 10 7.4 FUNDAMENTAL EMISSION OUTPUT POWER – FCC 15.247(B)(3), IC: RSS-210 A8.4(4) ............... 12 7.4.1 Measurement Procedure ....................................................................................................... 12 7.4.2 Measurement Results ............................................................................................................ 12 7.5 EMISSION LEVELS – FCC 15.247(D), 15.205, 15.209; IC RSS-210 2.2/A8.5, RSS-GEN 7.2.2 ....... 13 7.5.1 Emissions into Non-restricted Frequency Bands .................................................................. 13 7.5.1.1 Measurement Procedure ................................................................................................................... 13 7.5.1.2 Measurement Results ....................................................................................................................... 13 7.5.2 Emissions into Restricted Frequency Bands ......................................................................... 16 7.5.2.1 Measurement Procedure ................................................................................................................... 16 7.5.2.2 Duty Cycle Correction ..................................................................................................................... 16 7.5.2.3 Measurement Results ....................................................................................................................... 16 7.5.2.4 Sample Calculation: ......................................................................................................................... 17 7.6 MAXIMUM POWER SPECTRAL DENSITY IN THE FUNDAMENTAL EMISSION – FCC 15.247(E) IC: RSS-210 A8.2(B) ...................................................................................................................................... 18 7.6.1 Measurement Procedure ....................................................................................................... 18 7.6.2 Measurement Results ............................................................................................................ 18 8 CONCLUSION .............................................................…

Text truncated - open the document above for the full version.

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-S3I0005 IC: 3356F-S3I0005 FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Project Number: 14-0227 Manufacturer: Alpha - High Theft Solutions, A Division of Checkpoint Systems Inc. Model: S3I-0005 Test Setup Photos Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 2 Figure 1: Radiated Emissions – XPOS Figure 2: Radiated Emissions – XPOS Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 3 Figure 3: Radiated Emissions – YPOS Figure 4: Radiated Emissions – YPOS Model: S3I-0005FCC ID: YWZ-S3I0005IC: 3356F-S3I0005 ACS Project: 14-0227Advanced Compliance SolutionsPage 4 Figure 5: Radiated Emissions – ZPOS Figure 6: Radiated Emissions – ZPOS
