YWZ-HBHTHB Hard Tag

Checkpoint Systems, Inc.
HB Hard Tag - FCC ID YWZ-HBHT - Checkpoint Systems, Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Oct 20, 2011
Application Purpose
Original Equipment
Date of Application
Oct 20, 2011
Equipment Note
HB Hard Tag
Frequency Range
2405.00000000 - 2480.00000000
Company
Checkpoint Systems, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HBHT IC: 3356F-HBHT FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0376.W06.11.A Manufacturer: Alpha - High Theft Solutions Model: HB Hard Tag Manual Causes of 3 Alarm Technology • The Hummingbird Hard Tag will alarm if tampered with • The Hummingbird Hard Tag will alarm if in the detection field of the EAS system Facts about the Hummingbird Hummingbird Hard Tag: • Unit houses Hummingbird module and locking mechanism • Long life lithium battery. Battery life depends on the number and duration of alarms • The sound emitted is 95+ decibels • To stop the Hummingbird Hard Tag from alarming, follow instructions for removal Protecting (Arming) Merchandise with the Hummingbird Hard Tag: 1. Insert the Pin through the desired area of the garment. (Figure 2) NOTE: The Hummingbird Hard Tag should be on the outside of the garment and the Pin should be on the inside. Placement should not affect how the garment fits when it is tried on by a customer. 2. To lock and arm the unit, push the Pin into the Hummingbird Hard Tag. Gently tug on the garment to ensure the Pin is locked. (Figure 3) NOTE: Unit will play a confirmation tune and flash red. Unit is now armed and the LED Light will continue to flash approximately once every five seconds. 3. Merchandise is now secure and ready for display. Removing (Disarming) the Hummingbird Hard Tag from Merchandise: 1. Align the Ears of the Manager’s Key with the knob on the Hummingbird Hard Tag. (Figure 4) NOTE: The Manager’s Key Ears can be placed on either side of the Hummingbird Hard Tag. 2. Gently push in on the Pin until you hear a faint click. Rotate the Pin and garment to the left, then pull straight up, removing the Pin from the Hummingbird Hard Tag. (Figure 5) 3. Remove the Manager’s Key. NOTE: Store Hummingbird Hard Tag and Pin in two separate containers for ease of application. Product should be stored 3 feet (1 meter) from Deactivation Units. 4. Garment is now ready for sale. For FCC information and compliance, please refer to page 2. ? Please Contact Customer Service: North America: 800.633.2155 For supplemental information, check out our instructional videos at www.alphaworld.com/videos.asp Instructions for the Hummingbird Hard Tag CAUTION: Do not place credit cards, ATM cards or magnetic media of any kind near the Manger’s Key as this could erase the magnetic strip. Ears Manager’s Key FIG 2 FIG 5 Pin Ears on Key Knob on Hard Tag FIG 3 FIG 4 General Statements (For all devices): Warning: Changes or modifications to this device not expressly approved by Alpha could void the user’s authority to operate the equipment. FCC Information and Compliance RF Exposure This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment may operate in direct contact with the body of the user under normal operating conditions. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. For Class A Devices: “NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.“ Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d’Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d’un type et d’un gain maximal (ou inférieur) approuvé pour l’émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l’intention des autres utilisateurs, il faut choisir le type d’antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l’intensité nécessaire à l’établissement d’une communication satisfaisante. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. For supplemental information, check out our instructional videos at www.alphaworld.com/videos.asp Instructions for the Hummingbird Hard Tag

Cover Letter(s)

5015 B. U. Bowman Dr. Buford, GA 30518 October 17, 2011 ACS TCB 5015 B.U. Bowman Drive Buford, GA 30518 Re: FCC ID: YWZ-HBHT To Whom It May Concern: The following application is submitted on behalf of our client, Alpha - High Theft Solutions, for evaluation of their model HB Hard Tag for certification under FCC Part 15.247. The HB Hard Tag provides article surveillance for retail environments. It attaches to the product by means of a pin with a large head penetrating the soft material of a product or through an existing hole in the product. The HB Hard Tag includes a replaceable 3V CR2477 battery and an 802.15.4 Based 2.4 GHz radio transceiver. The HB Hard Tag was tested in full to the requirements of the aforementioned rules and was found to be in compliance. Sincerely, Sam Wismer Vice President, Technology Advanced Compliance Solutions, Inc.

External Photos

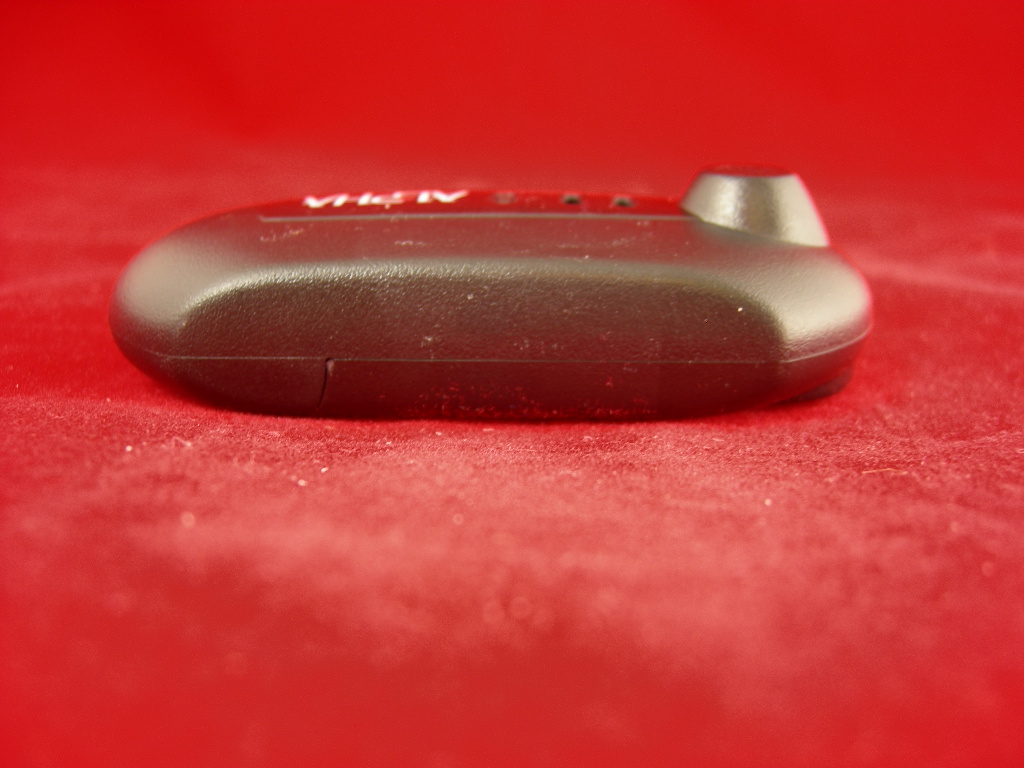

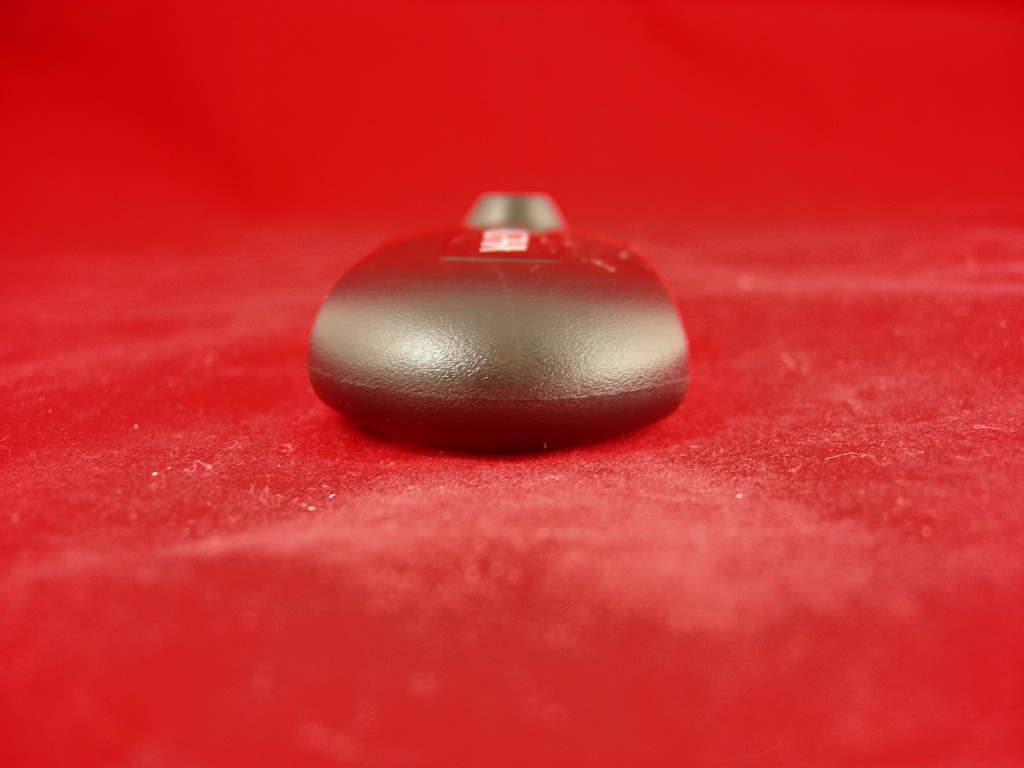

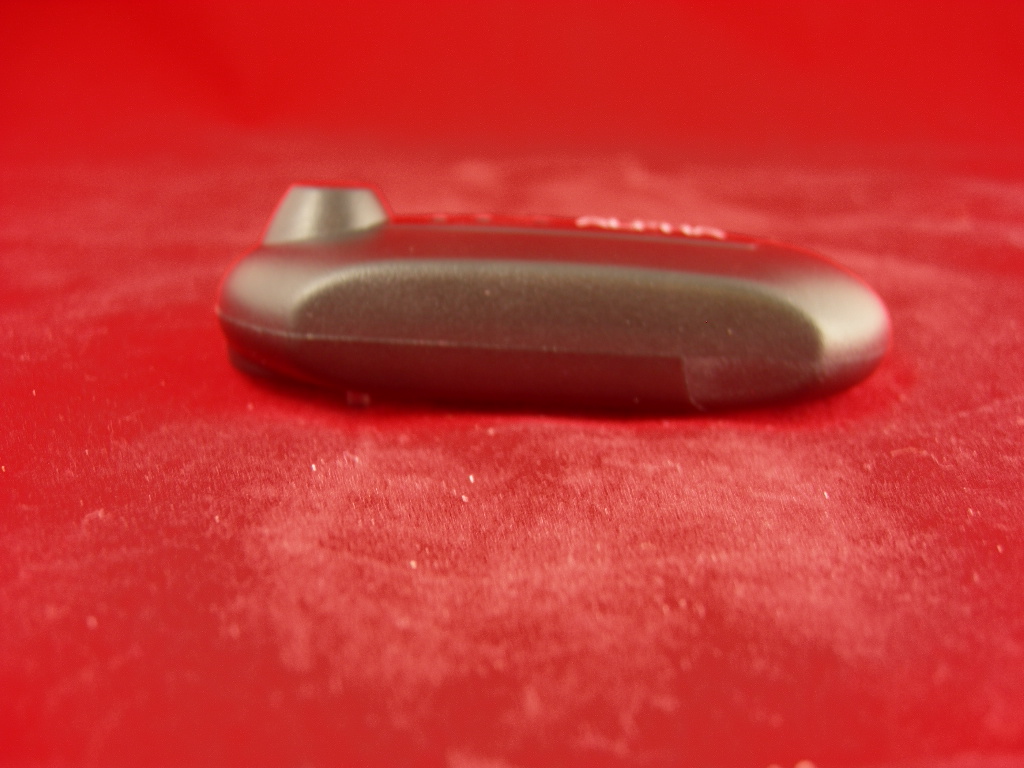

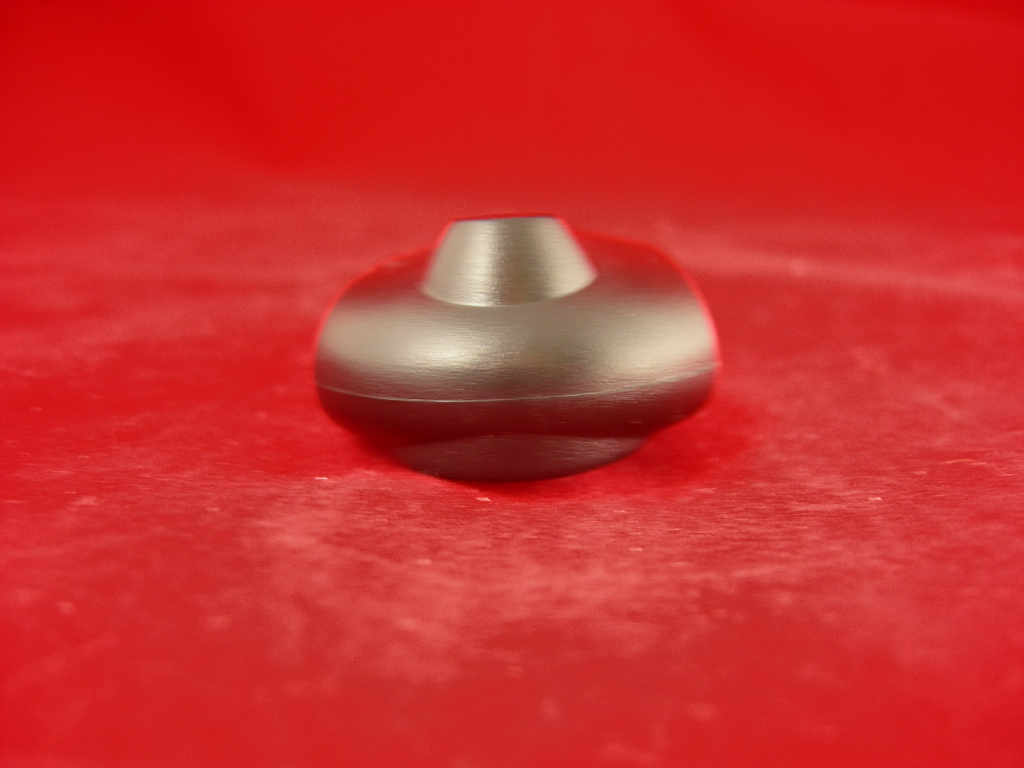

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HBHT IC: 3356F-HBHT FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0376.W06.11.A Manufacturer: Alpha - High Theft Solutions Model: HB Hard Tag External Photos Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 2 Figure 1: External Photo Figure 2: External Photo Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 3 Figure 3: External Photo Figure 4: External Photo Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 4 Figure 5: External Photo Figure 6: External Photo

ID Label/Location Info

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HBHT IC: 3356F-HBHT FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0376.W06.11.A Manufacturer: Alpha - High Theft Solutions Model: HB Hard Tag Label Information

Internal Photos

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HBHT IC: 3356F-HBHT FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0376.W06.11.A Manufacturer: Alpha - High Theft Solutions Model: HB Hard Tag Internal Photos Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 2 Figure 1: Internal Photo – Top Figure 2: Internal Photo – Top Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 3 Figure 3: Internal Photo – Bottom

RF Exposure Info

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HBHT IC: 3356F-HBHT FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0376.W06.11.A Manufacturer: Alpha - High Theft Solutions Model: HB CableLok RF Exposure Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 2 General Information: Applicant: Alpha - High Theft Solutions ACS Project: 11-0376 Device Category: Mobile/Portable Environment: General Population/Uncontrolled Exposure Technical Information: Antenna Type: PCB trace antenna (Wiggle) Antenna Gain: 2.15dBi Maximum Transmitter Conducted Power: 3.94dBm, 2.48mW Maximum System EIRP: 6.09dBm, 4.06mW Exemption from Routine Evaluation Limits Maximum Transmitter Power is 4.06mW. 1. Per KDB 447498 2(a)(i), a device may be used in portable exposure conditions with no restrictions on host platforms when the source-based time-averaged output power is ≤ 60/f(GHz) mW. 60/(2.46711) = 24.32 mW. 2. Per IC Radio Standards Specification RSS-102 Issue 4, March 2010; SAR evaluation is required except when the device operates above 2.2 GHz and up to 3 GHz inclusively, and with output power (i.e. the higher of the conducted or radiated (e.i.r.p.) source-based, time-averaged output power) that is less than or equal to 20 mW for general public use. In addition, an MPE calculation is provided below. MPE Calculation The Power Density (mW/cm 2 ) is calculated as follows: S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) MPE Calculator for Mobile Equipment Limits for General Population/Uncontrolled Exposure* 24403.941.002.482.151.641 200.001 Power De nsity (mW/cm^2) Dista nce (cm) Transmit Frequency (MHz) Radio Power (dBm) Power Density Limit (mW/Cm2) Radio Power (mW) Ante nna Gain (dBi) Antenna Gain (mW eq.)

Test Report

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Test Report FCC ID: YWZ-HBHT IC: 3356F-HBHT FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0376.W06.11.A Manufacturer: Alpha - High Theft Solutions Model: HB Hard Tag Test Begin Date: October 11, 2011 Test End Date: October 11, 2011 Report Issue Date: October 17, 2011 FOR THE SCOPE OF ACCREDITATION UNDER LAB Code 200612-0 This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government. Reviewed by: Kirby Munroe Director, Wireless Certifications ACS, Inc. This test report shall not be reproduced except in full. This report may be reproduced in part with prior written consent of ACS, Inc. The results contained in this report are representative of the sample(s) submitted for evaluation. This report contains 19 pages 5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 TABLE OF CONTENTS 1 GENERAL ............................................................................................................................................ 3 1.1 PURPOSE .......................................................................................................................................... 3 1.2 GENERAL ......................................................................................................................................... 3 1.3 TEST METHODOLOGY AND CONSIDERATIONS ................................................................................. 3 2 TEST FACILITIES .............................................................................................................................. 4 2.1 LOCATION ....................................................................................................................................... 4 2.2 LABORATORY ACCREDITATIONS/RECOGNITIONS/CERTIFICATIONS ................................................ 4 2.3 RADIATED EMISSIONS TEST SITE DESCRIPTION .............................................................................. 5 2.3.1 Semi-Anechoic Chamber Test Site .......................................................................................... 5 2.3.2 Open Area Tests Site (OATS) ................................................................................................. 6 2.4 CONDUCTED EMISSIONS TEST SITE DESCRIPTION ........................................................................... 7 3 APPLICABLE STANDARD REFERENCES .................................................................................... 7 4 LIST OF TEST EQUIPMENT ............................................................................................................ 8 5 SUPPORT EQUIPMENT .................................................................................................................... 9 6 EQUIPMENT UNDER TEST SETUP BLOCK DIAGRAM ........................................................... 9 7 SUMMARY OF TESTS ..................................................................................................................... 10 7.1 ANTENNA REQUIREMENT – FCC: SECTION 15.203 ....................................................................... 10 7.2 POWER LINE CONDUCTED EMISSIONS – FCC: SECTION 15.207 IC: RSS-GEN 7.2.4 ...................... 10 7.2.1 Measurement Procedure ....................................................................................................... 10 7.3 6DB / 99% BANDWIDTH – FCC: SECTION 15.247(A)(2) IC: RSS-210 A8.2(A) ............................. 10 7.3.1 Measurement Procedure ....................................................................................................... 10 7.3.2 Measurement Results ............................................................................................................ 10 7.4 PEAK OUTPUT POWER REQUIREMENT - FCC SECTION 15.247(B)(3) IC: RSS-210 A8.4(4) .......... 12 7.4.1 Measurement Procedure ....................................................................................................... 12 7.4.2 Measurement Results ............................................................................................................ 12 7.5 BAND-EDGE COMPLIANCE AND SPURIOUS EMISSIONS-FCC 15.247(D) IC:RSS-210 2.2, A8.5 ..... 13 7.5.1 Band-Edge Compliance ........................................................................................................ 13 7.5.1.1 Measurement Procedure ................................................................................................................... 13 7.5.1.2 Measurement Results ....................................................................................................................... 13 7.5.2 RF Conducted Spurious Emissions ....................................................................................... 14 7.5.2.1 Measurement Procedure ................................................................................................................... 14 7.5.2.2 Measurement Results ....................................................................................................................... 14 7.5.3 Radiated Spurious Emissions (Restricted Bands) ................................................................. 16 7.5.3.1 Measurement Procedure ................................................................................................................... 16 7.5.3.2 Duty Cycle Correction ..................................................................................................................... 16 7.5.3.3 Measurement Results ....................................................................................................................... 16 7.5.3.4 Sample Calculation: ......................................................................................................................... 17 7.6 PEAK POWER SPECTR…

Text truncated - open the document above for the full version.

Test Setup Photos

5015 B.U. Bowman Drive Buford, GA 30518 USA Voice: 770-831-8048 Fax: 770-831-8598 Certification Exhibit FCC ID: YWZ-HBHT IC: 3356F-HBHT FCC Rule Part: 15.247 IC Radio Standards Specification: RSS-210 ACS Report Number: 11-0376.W06.11.A Manufacturer: Alpha - High Theft Solutions Model: HB Hard Tag Test Setup Photos Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 2 Figure 1: Radiated Emissions Test Setup – X-POS – Front View Figure 2: Radiated Emissions Test Setup – X-POS – Back View Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 3 Figure 3: Radiated Emissions Test Setup – Y-POS – Front View Figure 4: Radiated Emissions Test Setup – Y-POS – Back View Model: HB Hard Tag FCC ID: YWZ-HBHT IC: 3356F-HBHT ACS Report: 11-0376.W06.11.A Advanced Compliance Solutions Page 4 Figure 5: Radiated Emissions Test Setup – Z-POS – Front View Figure 6: Radiated Emissions Test Setup – Z-POS – Back View

Contact Information

Applicant

Peter Bremer(VP R&D Worldwide)
[email protected]856-628-2491Fax: 856-384-2366

Test Firm

Advanced Compliance Solutions, Inc.Randy Abernathy
[email protected]770-831-8048Fax: 770-831-8598

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz2.50 mW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
