Z3AP324BTP324BT Bluetooth Headphones with Microphone

Welcome Guide P324 BT Packaging Contents Headphones x 1, Micro USB Charging Cable x 1, Carrying case x 1, Welcome Guide x 1 www.arctic.ac Dear Customer, Thank you for choosing the ARCTIC P324 BT. YOU are the centre of ARCTIC. We work hard to approach all angles from a user's perspective and are fully dedicated to create innovative, user-friendly and affordable devices. YOUR satisfaction is our ultimate goal. In order to assist you even better, we launched a support platform for Smartphones (support.arctic.ac). I hope you enjoy the P324 BT and we at ARCTIC look forward to further enriching your life with our products. If you would like to share how you use ARCTIC's products please do so at https://www.facebook.com/ARCTIC.en ARCTIC is a fully carbon neutral company and your support helps us to compensate every kilogram of CO we produce. 2 Thank You. Sincerely, Magnus Huber ARCTIC CEO Switch the Headset On or Off Switch on Press the multifunction button for 3 seconds until the blue LED lights up Switch off Press the multifunction button for 3 seconds until the red LED lights up support.arctic.ac/p324bt EN DE FR ES... Like us on facebook www.facebook.com/ARCTIC.en © 2014 ARCTIC Switzerland AG. All Rights Reserved. No part of this manual including the products described in it, may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purpose, without the express written permission of ARCTIC Switzerland AG. In no event shall ARCTIC its directors or employees be liable for any indirect damages, incidental or consequential damages arising from any defect or error in this manual or product. FCC ID Z3AP324BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. © 2013 CSR plc and its group companies. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by ARCTIC (HK) Ltd. is under license. Other trademarks and trade names are those of their respective owners. Music Stutters ButtonsButtons Function Diagram Multifunction button LED indicator Volume + Volume - Micro USB charging port Forward Backward Microphone Do not wash the ear pads with washing machine. The magnetic ear pads are removable from the headphone. It is possible to clean them with water and towel. Removable and washable ear pads Cautions Ÿ Wireless connections are affected by obstructions such as walls, human body and other devices. Ÿ Keep P324 BT dry, moisture may damage electronic components. Ÿ Exposure to high temperature will shorten the life and damage electronic components. Ÿ Opening / altering the P324 BT voids all product warranty. Ÿ Rough handling may damage inside electronic components. Microphone Sensitivity Wearing Style Bluetooth Version Frequency Response Driver Size -42±5dB Supra-aural, neck band V4.0 +EDR Class 2 18Hz - 22kHz, THD 0.1% 30mm Specifications Charging Port Micro-USB Spare Ear Pads are available at p324bt.arctic.ac#spareparts Battery Rechargeable 400mAh Lithium-ion Polymer Playback Time 20 Hours Standby Time Up to 400 hours Weight 78g PKMNL00001A Pair with Your Smartphone / Tablet Press Settings > Bluetooth and switch Bluetooth on > ARCTIC P324 BT > Pair Example: iOS Example: Android 4.0 Press Menu > Settings > Switch on Bluetooth > Bluetooth > Search for devices > ARCTIC P324 BT > Pair Click Settings Select Bluetooth Switch On Bluetooth Bluetooth is On Select ARCTIC P324 BT ARCTIC P324 BT Now Connected ARCTIC P324 BT ON Click Search for Devices ON Bluetooth is On OFF Switch On Bluetooth Click Settings ON Select ARCTIC P324 BT ARCTIC P324 BT ON Now Connected ARCTIC P324 BT 1.Switch on the P324 BT by press the multifunction button for 3 seconds. 2 The P324 BT automatically enters pairing mode shown by the red and blue LED flash alternately. If the headphone is not in pairing mode, please turn off the Bluetooth on the latest paired device. Notes: - Pairing mode will last up to ten minutes or until a device is found, two tones will sound to let you know when pairing has stopped. - If you exceed the effective range of approx. 10M (33ft) the headphone will disconnect and will automatically reconnect if the speaker re-enters the effective range within ten minutes. How to Wear the Headset Phone Operations If the mobile device that is paired (via Bluetooth) with the P324 BT headphone is a cellular phone you can: LED Indicators Status Charging Battery full On and Paired Paring mode Low battery Indication Red LED on Blue LED on Blue LED flashes Red and blue LED will flash alternately Red LED flashes Reconnection 1. Turn on Bluetooth on phone. 2. Switch on the P324 BT by press the multifunction button for 3 seconds. 3. If your device was the latest one to be paired with the P324 BT it will connect automatically otherwise please repeat pairing section. Charging The P324 BT can be charged while switched on or off. 1. Insert the micro USB cable into the P324 BT and the USB side into a power source. 2. When the Blue light on constantly the P324 BT is fully charged. It is recommended to fully charge before initial use for better battery life. Headset Controls Volume - Forward Play, pause, or stop music 3.Turn on Bluetooth on your phone and pair it with the headphone. Answer CallPress the once. End CallPress the once. Reject CallPress and hold forward for 2 seconds. Switch CallPress and hold the for 2 seconds while in a call. Backward Volume + USB Chargers are available at chargers.arctic.ac

DATE : Nov 10, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Z3AP324BT Product Name: P324BT Bluetooth Headphones with Microphone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this Nov 10, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Vincent Andre Signature Printed Title: Consumer Electronics Director On behalf of : ARCTIC (HK) Ltd. Telephone: +852-3759-762

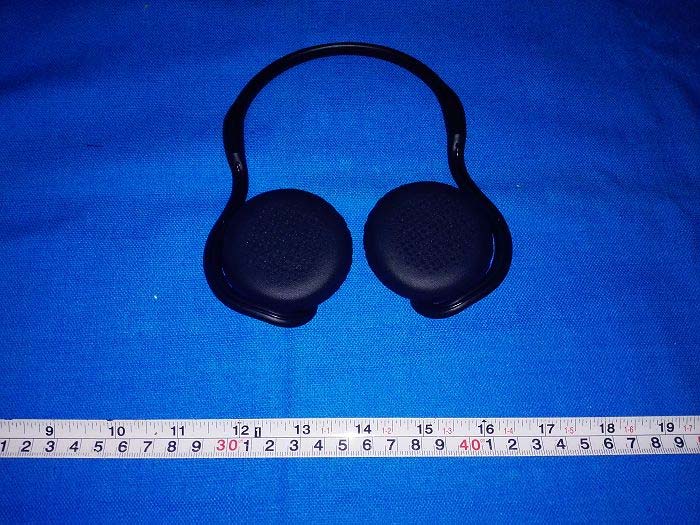

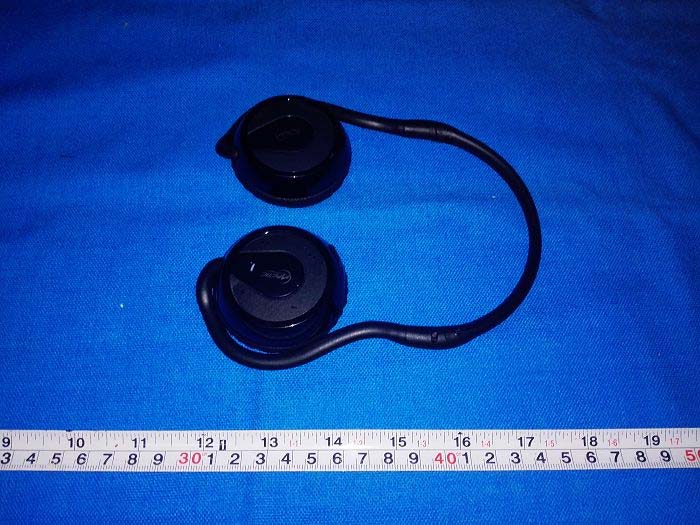

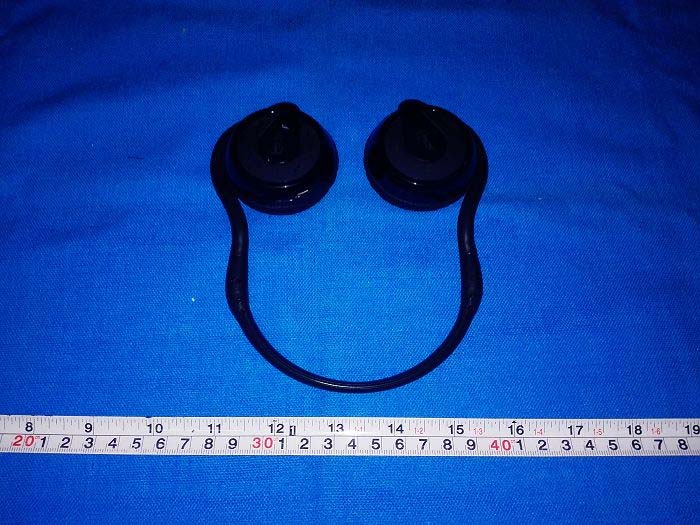

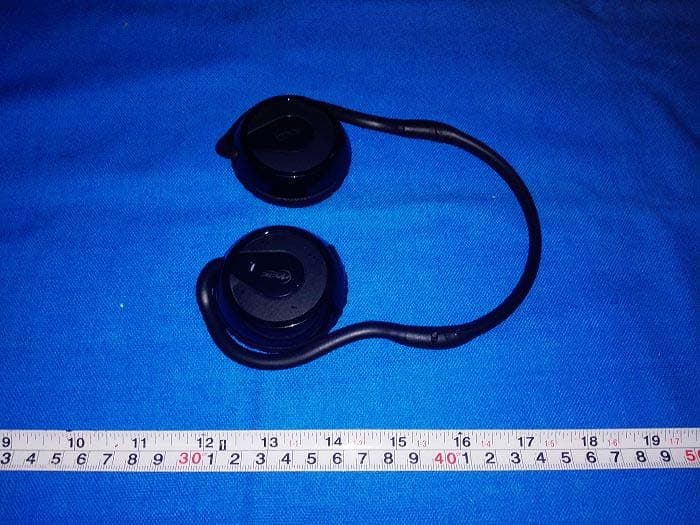

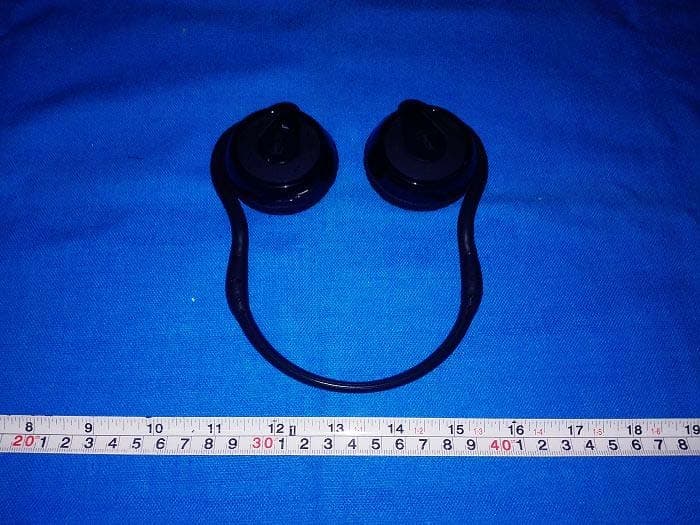

Photo 1 Photo 2 Photo 3 Photo 4

FCC ID: Z3AP324BT

Label Location

Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =3.92/5 * 1.57= 1.23, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1411006-02 Page 1 of 42 FCC TEST REPORT Prepared For : ARCTIC (HK) Ltd Product Name: P324BT Bluetooth Headphones with Microphone Model : P324BT Prepared By : Shenzhen United Testing Technology Co., Ltd. 4F, Block B Unit 2, Jianxing Building, Chaguang Industry Area, Nanshan District, Shenzhen, China Tel: 86-755-86180996 Fax: 86-755-86180156 Test Date: November 01, 2014 to November 16, 2014 Date of Report : November 16, 2014 Report No.: UNI-1411006-02 Note: This report shall not be reproduced except in full, without the written approval of Shenzhen United Testing Technology Co., Ltd. This document may be altered or revised by Shenzhen United Testing Technology Co., Ltd. personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1411006-02 Page 2 of 42 TABLE OF CONTENTS 1.0 TEST CERTIFICATION............................................................................... 3 2.0 Test Equipment......................................................................................... 4 3.0 Technical Details........................................................................................ 5 4.0 Test Lab Details......................................................................................... 5 5.0 Power Line Conducted Emission Test............................................................ 6 5.1 Schematics of the Test................................................................................ 6 5.2 Test Method and Test Procedure................................................................... 6 5.3 Configuration of the EUT............................................................................ 6 5.4 EUT Operating Condition............................................................................ 7 5.5 Conducted Emission Limit........................................................................... 7 5.6 Test Result................................................................................................ 7 6.0 Radiated Emission test............................................................................... 10 6.1 Test Method and Test Procedure.................................................................. 10 6.2 Configuration of the EUT............................................................................ 10 6.3 EUT Operation Condition............................................................................ 10 6.4 Radiated Emission Limit.............................................................................. 11 7.0 6dB Bandwidth Measurement Bandwidth......................................................... 19 8.0 Maximum Peak Output Power....................................................................... 24 9.0 Power Spectral Density Measurement........................................................... 26 10.0 Out of Band Measurement........................................................................... 31 11.0 Antenna Requirement................................................................................. 34 12.0 FCC Label................................................................................................ 35 13.0 Photo of Test Setup and EUT View................................................................ 36 Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1411006-02 Page 3 of 42 1 TEST CERTIFICATION Product: P324BT Bluetooth Headphones with Microphone Model: P324BT Applicant: ARCTIC (HK) Ltd Unit 2304 | Nina Tower 2 | 8 Yeung Uk Road | Hong Kong Factory:Cyber Blue(HK) Ltd 12th Floor, Guanghao International Building, Meilong Road, Longhua District, Shenzhen, China Trade Mark: Arctic Tested: November 01, 2014 to November 16, 2014 Test Voltage: DC3.7V Powered Li-Po Battery Operational Frequency Range: Bluetooth: 2402-2480MHz Modulation Type: Bluetooth LE: GFSK Number of Channel 40 Channels for Bluetooth Bluetooth Version: 4.0 Antenna: PCB antenna with Gain 2.0 dBi FCC ID: Z3AP324BT Applicable Standards:FCC Part 15.247 The test report was prepared by Shenzhen United Testing Technology Co., Ltd.and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Prepared by : Michael Su /Assistant Engineer Reviewer : Mike Yong/Supervisor Approved & Authorized Signer : Hoffer Lau/ Manager Shenzhen United Testing Technology Co., Ltd. Report No.: UNI-1411006-02 Page 4 of 42 2.0 Test Eqipment Item Test Equipment Manufacturer Model No. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) 1 3m Semi- Anechoic Chamber ZhongYu Electron 9.2(L)*6.2(W)* 6.4(H)June. 30 2014 June. 29 2015 2 Control Room ZhongYu Electron 6.2(L)*2.5(W)* 2.4(H)N/A N/A 3 EMI Test Receiver Rohde & Schwarz ESU26 Jul. 03 2014 Jul. 02 2015 4 BiConiLog Antenna SCHWARZBECK MESS-ELEKTRONIK VULB9163 Feb. 25 2014 Feb. 24 2015 5 Double -ridged waveguide horn SCHWARZBECK MESS-ELEKTRONIK 9120D-829 June 29 2014 June 28 2015 6 Horn Antenna ETS-LINDGREN 3160 June. 30 2014 June. 29 2015 7 EMI Test Software AUDIX E3 N/A N/A 8 Amplifier(100kHz-3GHz)HP 8347A Jul. 03 2014 Jul. 02 2015 9 Amplifier(2GHz-20GHz) HP 8349B Jul. 03 2014 Jul. 02 2015 10 Amplifier (18-26GHz) Rohde & Schwarz AFS33-18002 650-30-8P-44 June. 30 2014 June. 29 2015 11 Band filter Amindeon 82346 June. 30 2014 June. 29 2015 12 Constant temperature and humidity box Oregon Scientific BA-888 May 11 2014 May 10 2015 13 D.C. Power Supply Instek PS-3030 May 11 2014 May 10 2015 14 Universal radio communication tester Rohde & Schwarz CMU200 May 11 2014 May 10 2015 15 Splitter Agilent 11636B May 11 2014 May 10 2015 16 EMI Test Receiver Rohde & Schwarz ESCS30 Jul. 03 2014 …
