Z3AS111BTS111BT Bluetooth Speaker with embedded battery

www.arctic.ac Packaging Content Speaker Set x 1 Carrying Case x 1 Micro USB Cable x 1 Manual x 1 Manual S111 BT © 2014 ARCTIC Switzerland AG. All Rights Reserved. No part of this manual including the products described in it, may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purpose, without the express written permission of ARCTIC Switzerland AG. In no event shall ARCTIC its directors or employees be liable for any indirect damages, incidental or consequential damages arising from any defect or error in this manual or product. ü Wireless connections are affected by obstructions such as walls and other devices. ü Keep S111 BT dry, moisture may damage electronic components. ü Exposure to high temperature will shorten the life and damage electronic components. ü Opening / altering the S111 BT voids all product warranty. ü Rough handling may damage inside electronic components. Cautions Like us on facebook www.facebook.com/ARCTIC.en Dear, Thank you for choosing the ARCTIC S111 BT. This compact system is the perfect companion to your smartphone or tablet for on-the-go music enjoyment. An extra large driver-magnet allows us to get the maximum out of these small boxes. I hope you enjoy the S111 BT and we at ARCTIC look forward to further enriching your life with our products. If you would like to share how you use ARCTIC's products please do so at https://www.facebook.com/ARCTIC.en ARCTIC is a fully carbon neutral company and your support helps us to compensate every kilogram of CO 2 we produce. Thank You. Sincerely, Magnus Huber ARCTIC CEO 3.5mm Stereo Jack audio Cable x 1 To reset your speaker to factory settings; 1. Turn on S111 BT by short press the power button . 2. Then press the VOL - and VOL + buttons simultaneously for 8 seconds 3. Let go after 8 seconds, the speaker will turn off automatically. Restore to Factory Settings ARCTIC LINE IN VV OO LL VV OO LL Function Diagram Power / Play / Pause button Volume Down / Previous Track Volume Up / Next track L S111 Left SpeakerRight Speaker 4 4 5 6 LED indicator Micro-USB 3.5 mm Audio Input 5 6 Manual S111 BT support.arctic.ac/S111BT EN PL FR DE... The S111 BT can be charged while switched on or off. 1. Insert the micro USB cable into the S111 BT and the USB side into a power source. 2. When the Blue light on constantly the S111 BT is fully charged. Charging ARCTIC LINE IN V O L V O L M b icro USB Ca le r r Cha ger P o 4 Rev .2 It is recommended to fully charge before initial use. ® The Bluetoothword mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by ARCTIC (HK) Ltd. is under license. Other trademarks and trade names are those of their respective owners. FCC ID Z3AS111BT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help 1. Turn on S111 BT by short press the power button 2. The S111 BT automatically enters pairing mode shown by the red and blue LED flash alternately. 3. Turn on Bluetooth on your phone and pair it with the speaker. . Getting Connected The S111 BT allows you to pair with your mobile device in two different ways: Notes: ? Pairing mode will last up to five minutes or until a device is found, the speaker will automatically turn off without successful pairing within this period. ? If you exceed the effective range of approx. 10M (33ft) the speaker will disconnect and will automatically reconnect if the speaker re-enters the effective range within five minutes. A. Bluetooth Pairing Click Settings ON Click Search for Devices ON Bluetooth is On OFF Switch On Bluetooth Example: iOS Press Settings > Bluetooth and switch Bluetooth on > S111BT > Pair Click Settings Select Bluetooth Switch On Bluetooth Bluetooth is On Now Connected Select S111 BT Example: Android 4.0 Press Menu > Settings > Switch on Bluetooth > Bluetooth > Search for devices > S111BT > Pair ON Select S111 BT ON Now Connected Blue ? Blue light flashing means the speaker device is on. ? Blue light on constantly means speaker is paired to a device / fully charged. Red ? Red light on constantly means the battery is at around 50% / charging. Red & Blue ? When both the red and the blue lights are flashing, it means the speaker is in pairing mode. ? When both the red and the blue lights are flashing every one second, means the battery is at around 25% LED Light Signals Reconnection Via Bluetooth 1. Turn on Bluetooth on phone. 2. Turn on S111 BT by short press the power bu…

Text truncated - open the document above for the full version.

DATE : May 06, 2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: Z3AS111BT Product Name: S111BT Bluetooth Speaker with embedded battery Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operational Description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this May 06, 2014 Agency agreement expiration date: Usually Give 8 - 12 Months By: Vincent Andre Signature Printed Title: Consumer Electronics Director On behalf of : ARCTIC (HK) Ltd. Telephone: +852-3759-762

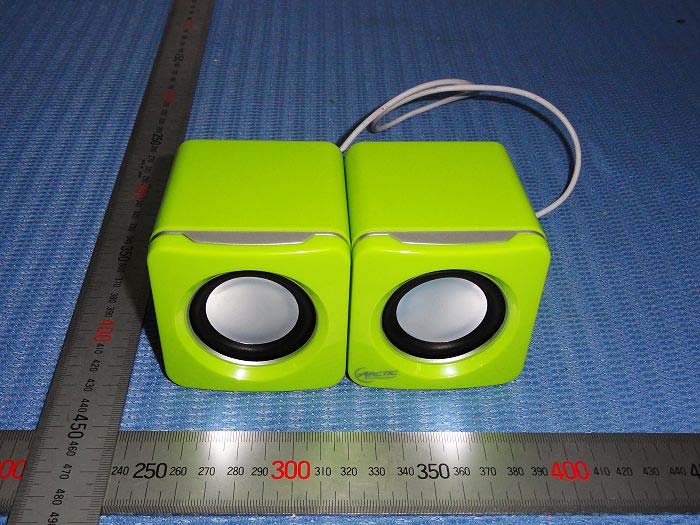

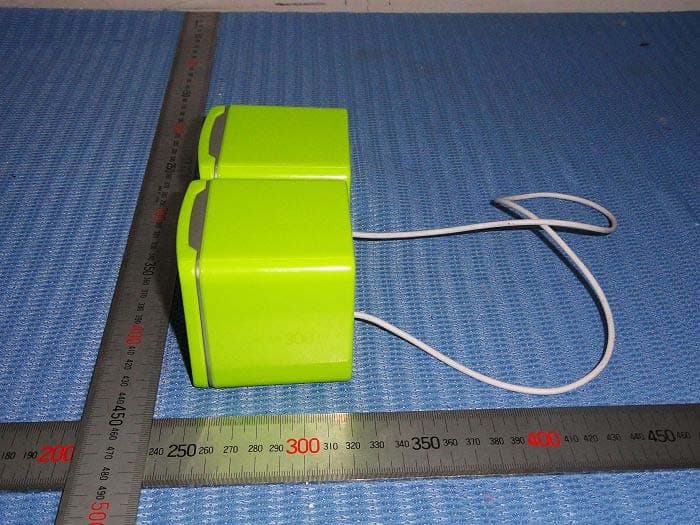

Photo for the EUT Photo for the EUT

ARCTIC (HK) Ltd. FCC ID: Z3AS111BT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Mark Location: FCC ID Label Location

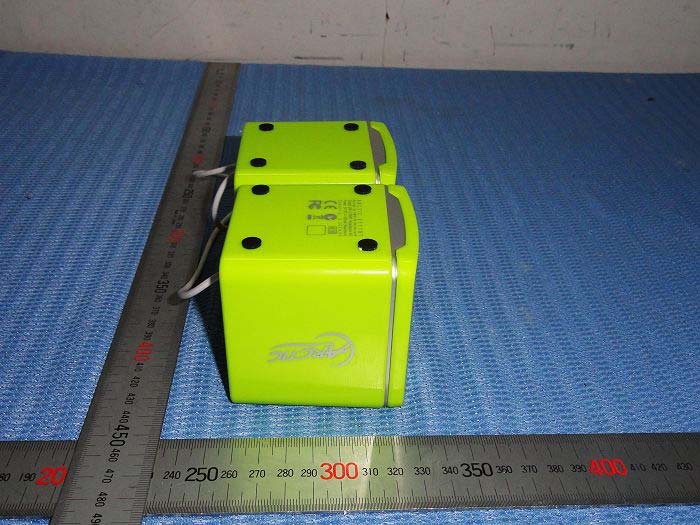

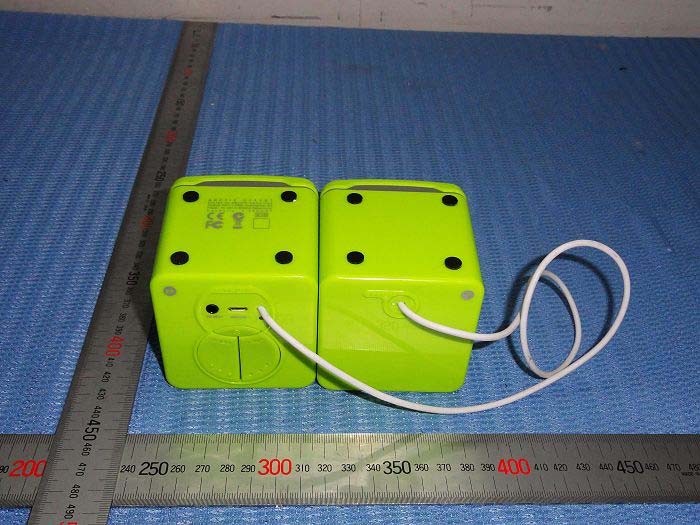

Photo for the EUT Photo for the EUT Photo for the EUT Photo for the EUT

RF Exposure Applicable Standard According to §1.1307(b)(5), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device. The Section 4.3.1 and Appendix A of KDB447498 D01 V05 was used as the guidance. Calculation Result (Worse Case): [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] =1.09/5 * 1.57= 0.34, this value is less than 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. The SAR measurement is not necessary.

ISO/IEC17025Accredited Lab. Report No: FCC 1404082 File reference No: 2014-04-15 Applicant: ARCTIC (HK) Ltd Product: S111BT Bluetooth Speaker with embedded battery Model No: S111BT Trademark: Arctic Test Standards: FCC Part 15 Subpart C, Paragraph 15.247 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.247 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: April 15, 2014 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No:FCC1404082 Page 2 of 80 Date: 2014-04-15 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement˖ The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC-Registration No.: IC5205A-02 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205A-02. Report No:FCC1404082 Page 3 of 80 Date: 2014-04-15 The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 4 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 6 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition................................................…

Text truncated - open the document above for the full version.

Conducted Emission Test Setup: Radiated Emission Test Setup:
