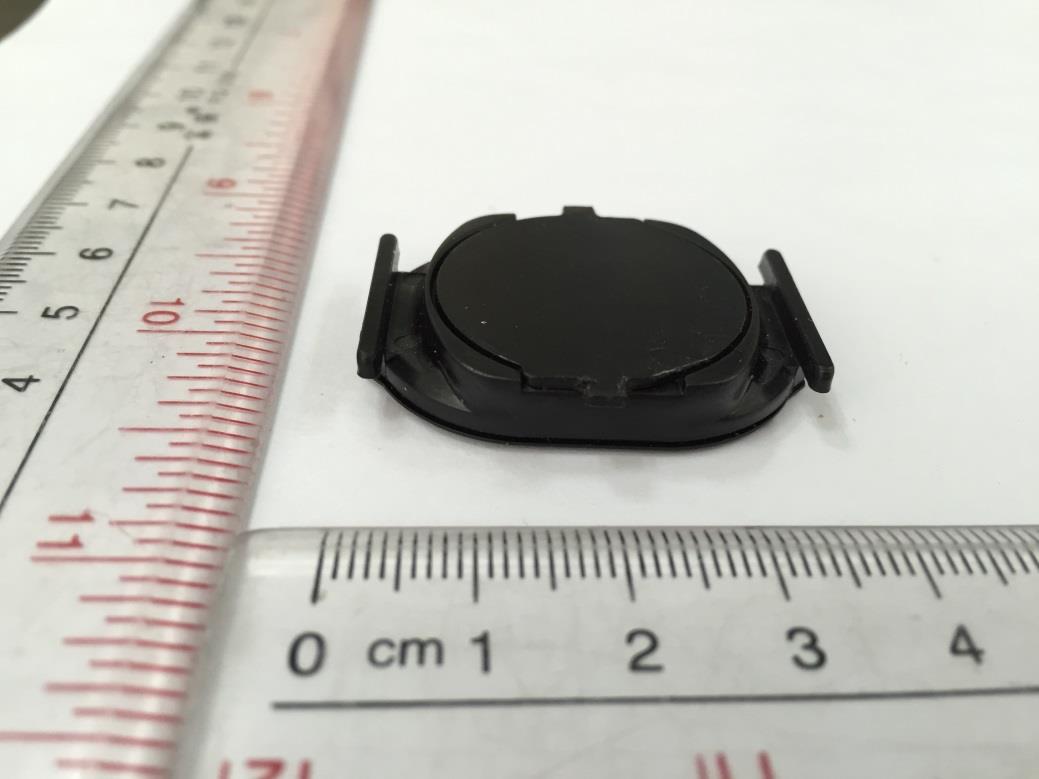

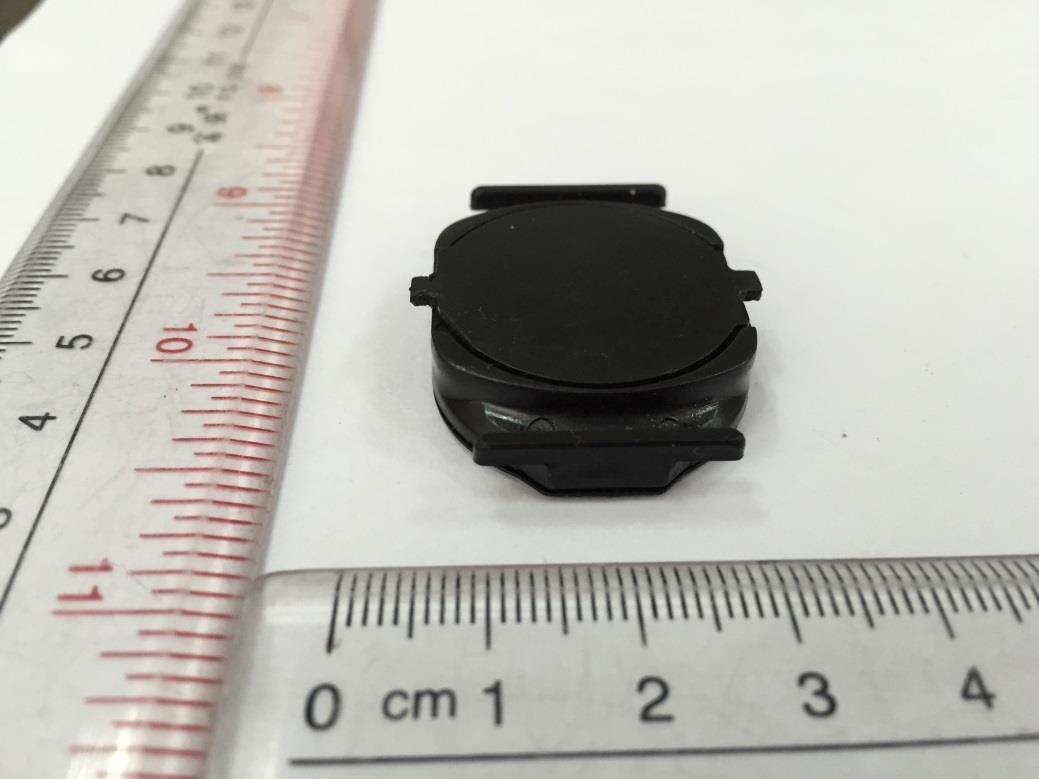

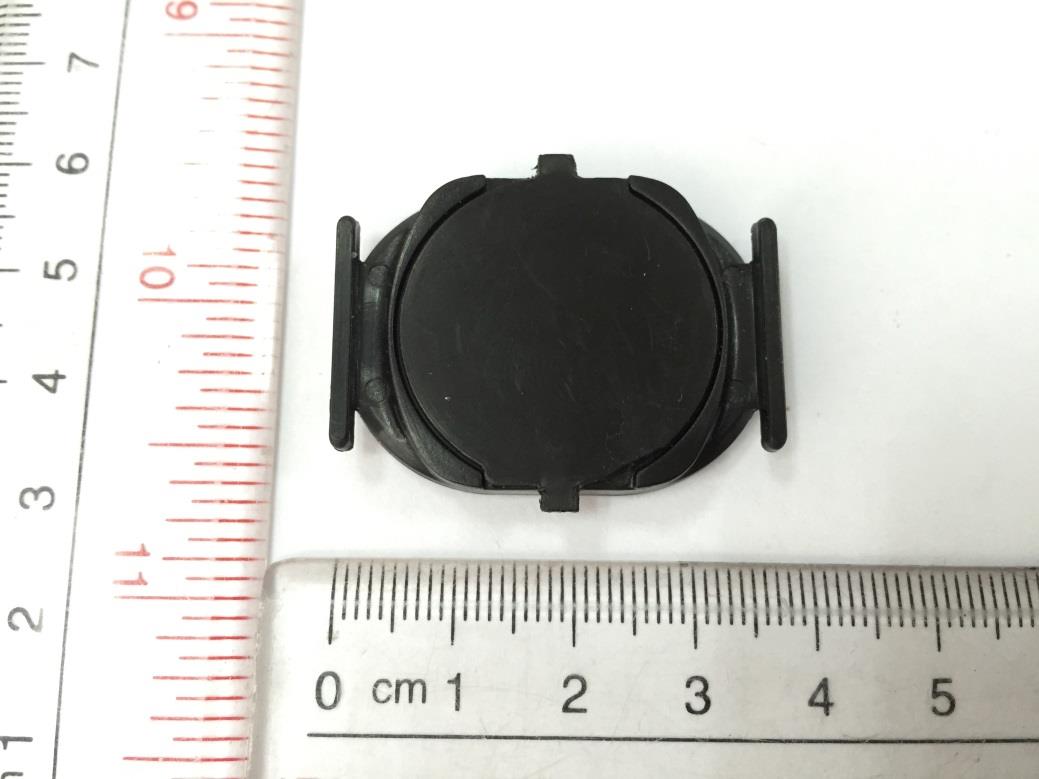

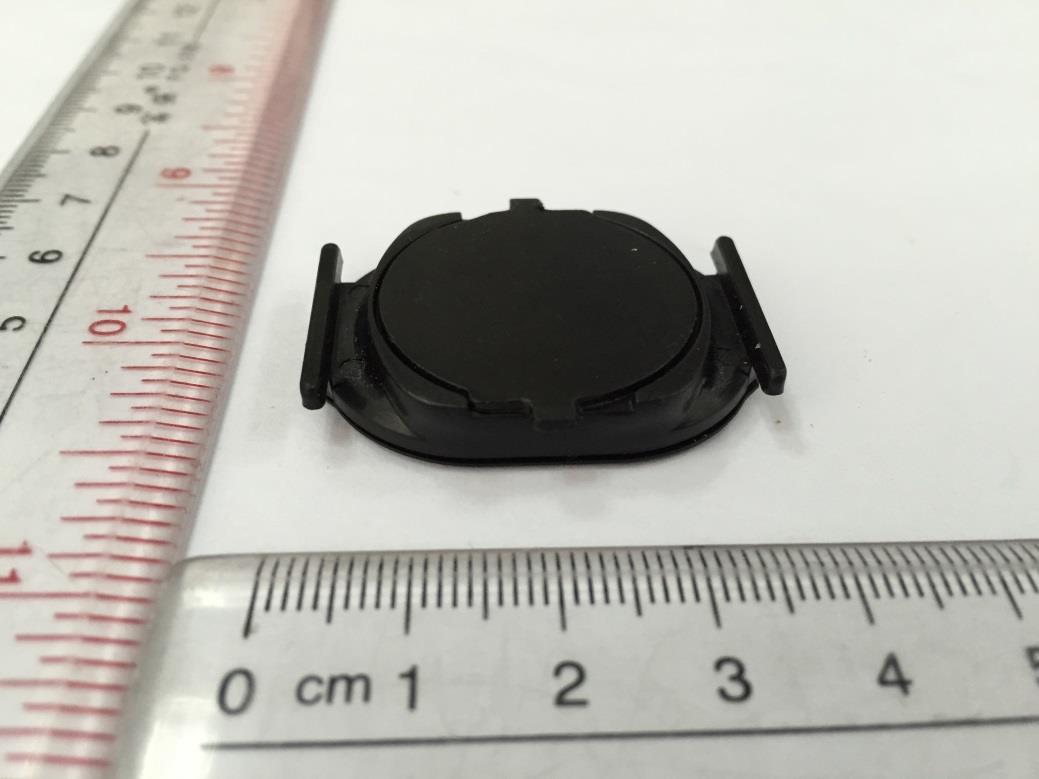

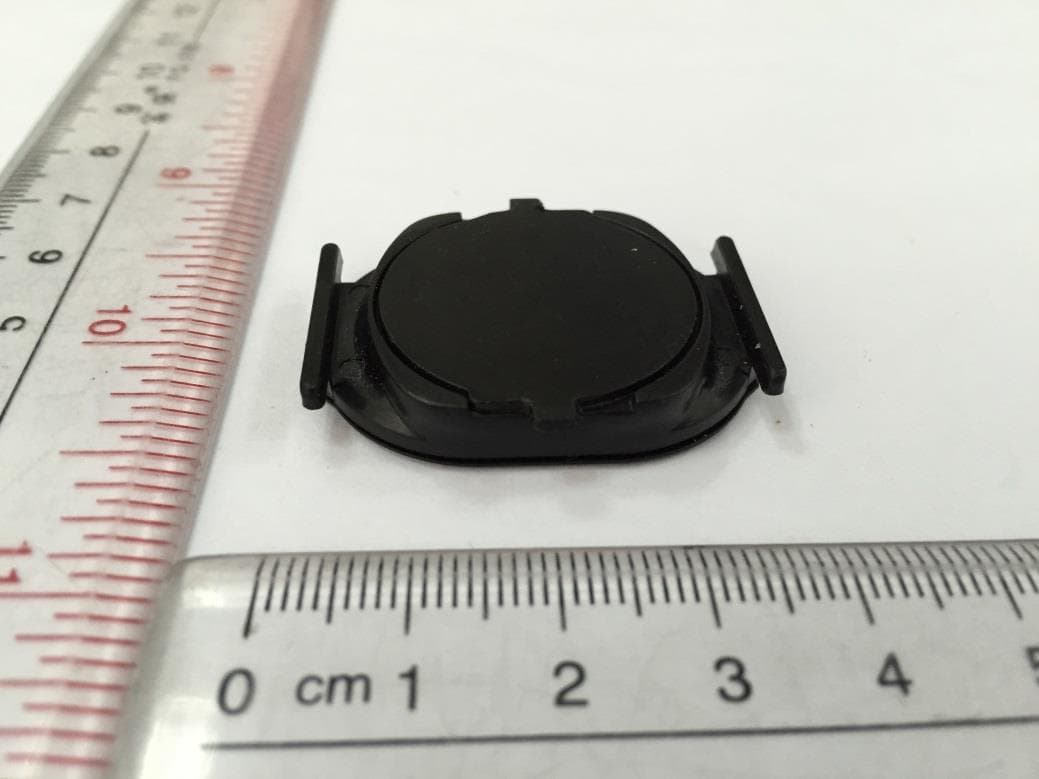

ZZNPM100Precision

® Quick Start Guide WARNING! DO NOT INSTALL THIS PRECISION POWER METER ON A CARBON FIBER CRANK ARM. DOING SO WILL VOID THE WARRANTY. Important Product Information FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This product does not contain any user-serviceable parts. Repairs, changes or modifications of this product, not expressly approved by the manufacturer will void the user’s authority to operate the equipment under FCC regulations. IC Compliance This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le present appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Declaration of Conformity 4iiii Innovations Inc. declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. To view the full Declaration of Conformity, go to www.4iiii.com/compliance. Limited Warranty This product does not contain any user-serviceable parts. For more information, go to www.4iiii. com/legal-policies. Head Office 228 River Avenue Cochrane, AB Canada T4C 2C1 +1 403.800.3095 www.4iiii.com Technical support available from 4iiii by email from 9am-5pm Mountain Time. Email: [email protected] © Copyright by 4iiii Innovations Inc. All rights reserved. Text, text excerpts, images and diagrams are all subject to copyright. No part may be reproduced or copied without written permission from the publisher. 2 3 What’s in the Box? Your Precision TM power meter comes with the following items: • 1 Precision TM power meter pod with installed battery • 1 Precision TM installation tool • 1 Precision TM installation band • 1 Epoxy adhesive pack • 1 Epoxy adhesive applicator • 1 Square of sand paper (1.5” x 1.5”) • 2 Cleaning wipes • 1 Cable tie • 1 Extra CR2032 coin cell battery Installation Tools In addition to the contents included with your power meter, you will also need the following: • Crank removal tool • Pencil or permanent marker • Clean piece of printer paper Warnings 1. Do not remove the protective tape on the metal plate of the pod until you are ready to apply the epoxy adhesive – removing the tape prematurely will result in contamination of the pod and may interfere with the accuracy and reliability of the power meter 2. Once the protective tape on the metal plate of the pod has been removed, do not touch the metal plate or place the metal plate on any surfaces – will result in contamination of the pod and may interfere with the accuracy and reliability of the power meter 3. Once the protective tape of the pod has been removed, do not place the protective tape or any other material back on the metal plate – only the provided epoxy adhesive should be placed on the metal plate 4. Do not put any other tape on the metal plate on the pod or the crank arm, doing so will contaminate the surfaces and impact the accuracy of the power meter 1. Compatibility Check 1.1 Crank arm compatibility Ensure that the crank arm has a flat surface for installing the Precision TM power meter pod. 45 5. Do not open the adhesive pack until you are ready to apply the adhesive for installation – do not use the ad- hesive if it has been opened for more than 5 minutes 6. Only use supplied cleaning wipes for your installation – do not sand or use any other cleaning agents on the pod 7. Only apply epoxy adhesive directly to the metal base of the pod – do not put adhesive on your crank arm 8. Do not attempt to clean off the excess epoxy with any solvents – doing so may damage your power meter 9. Only perform the pod installation in temperatures above 20°C or 68°F – doing so will not allow the adhe- sive to cure properly and will impact the accuracy of the power meter 10. Do not expose the pod to temperatures above 50°C or 122°F 11. Do not install the pod on uneven or curved surfaces on the crank arm 12. Do not install this power meter pod on carbon fiber crank arms 1.2 Clearance Check Make sure there is enough room between the crank arm and the bicycle frame to install the Precision TM power meter pod. A minimum of 2 mm or 3/32 inch of space is present between the Precision TM pod and the bike frame Do not remove the protective tape on the metal plate at the bottom of the pod – doing so may interfere with the accuracy and reliability of the power meter. To avoid contamination of the metal plate, clean your crank arm with soap and water prior to performing the clearance check. Once the crank arm has been thoroughly cleaned, dry the area with a lint-free cloth or shop rag. >2 mm Visit www.4iiii.com/precision to see the crank arm compatibility list and make sure your crank arm is listed as being compatible with the Precision TM . The compatibility list is frequently updated. >3/32 in ! ! ! Figure 1.1 Figure 1.2 1.2.1 Pod Placement Locate a flat area on the inner face of the crank arm for installing the Precision TM power meter pod. There should be a minimum of 40 mm or 1 5/8 inches between the pod location and the pedal spindle. 1.2.3 Clearance Check With the Precision TM pod fixed onto the crank arm as shown in section 1.2.2, slowly and carefully rotate the crank arm 1 full revolution to ensure there is no interference between the pod and any part of the bicycle frame. Do not place the pod ov…
