ZZNV100ZZNV100 ATHLETIC HEART RATE MONITOR ANT AND BTLE

4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  800.218.3095  Fax 403.800.3097  www.4iiii.com Viiiiva User Manual Instructions for Use What’s in the Box: How to Use  Wet the electrodes (the smooth rubber-like surfaces located at either end of the elastic strap).  Undo one snap and wrap the strap around your chest.  Wear the monitor centered at your breastbone with the logo right side up.  Adjust the strap for a snug, comfortable fit.  Viiiiva will automatically turn on when worn (and automatically turn off a few minutes after removal). Pairing with ANT+ Displays (such as Garmin/Timex/Adidas watch/computer) Your Viiiiva heart rate monitor has a unique device ID that allows it to be paired to a ANT+ display device. Please refer to the display device’s instructions for pairing, as these operations are unique to each device. Pairing with Bluetooth Smart Display (such as iPhone/iPod) Your Viiiiva heart rate monitor has a unique device ID that allows it to be paired to a Bluetooth Smart display device. Please refer to the display device’s instructions for pairing, as these operations are unique to each device. Pairing with ANT+ Sensors (such as foot pod, bike speed/cadence, power meters) The Liiiink Communication Module in Viiiiva acts as a bridge so that your ANT+ sensor data can be transmitted to Bluetooth Smart devices. After Viiiiva is paired with a Bluetooth Smart device, refer to your app instructions for pairing to Bluetooth sensors. Maintenance and Care  Replacing the Battery: Use a coin to remove the cover on the back of the heart rate monitor to reveal the battery (CR2032). Be careful not to damage rubber seal when reassembling.  Cleaning: For best results, rinse strap with water after each use, and hand wash strap in cold water with a mild detergent after every 6 uses. Do not put monitor or strap in the washer or dryer. V100 Heart Rate Monitor with soft elastic strap 4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  800.218.3095  Fax 403.800.3097  www.4iiii.com Viiiiva User Manual Regulatory Compliance FCC Compliance Statement FCC ID: ZZNV100 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Any changes or modifications of this product, not approved by manufacturer will void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Industry Canada Compliance Statement IC: 9896A-V100 This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.” Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  Fax 403.800.3097  Fax 403.800.3097  www.4iii.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: ZZNSP200 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics ZZNV100 Schem.pdf Parts List ZZNV100 PartsLst.pdf Block diagrams ZZNV100 BlockDia.Pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ________________________________________ Kip Fyfe, CEO, 4iiii Innovations Inc.

4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  Fax 403.800.3097  Fax 403.800.3097  www.4iii.com 4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  Fax 403.800.3097  Fax 403.800.3097  www.4iii.com 4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  Fax 403.800.3097  Fax 403.800.3097  www.4iii.com 4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  Fax 403.800.3097  Fax 403.800.3097  www.4iii.com 4iiii Innovations Inc  228 River Ave. Cochrane, Alberta Canada T4C 2C1  Fax 403.800.3097  Fax 403.800.3097  www.4iii.com

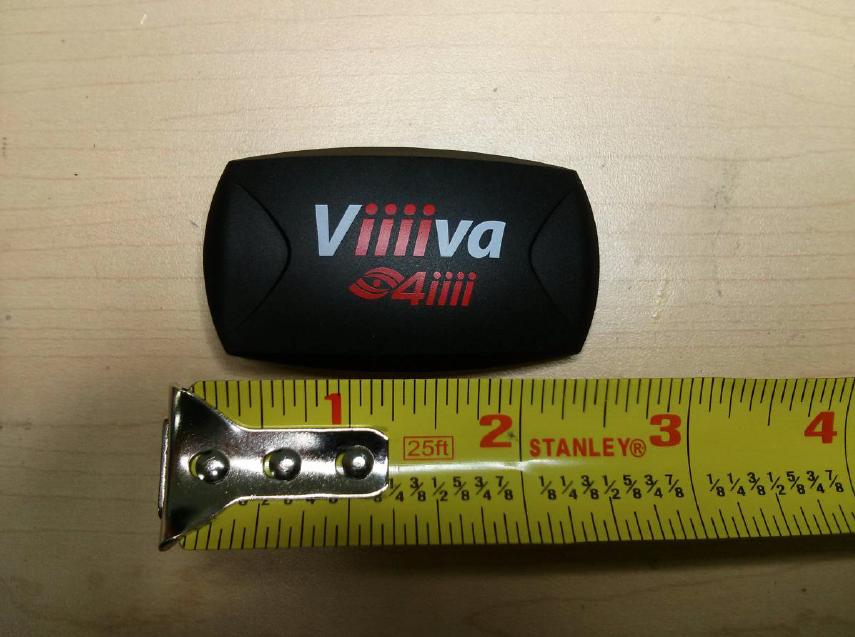

ZZNV100 Operation Description FCC ID: ZZNV100 IC ID: 9896A-V100 Model #: V100 Model Name: Viiiiva Background The Viiiiva is a Heart Rate Monitor that connects your full suite of ANT+® sensors to your iOS® device such as an iPhone®. Viiiiva implements Liiiink connectivity between devices to turn your iPhone into a cycling computer or running monitor; delivering all your ANT+ data seamlessly and in real time using the free 4iiii App or many of the popular fitness Apps. Liiiink is an exclusive 4iiii Innovations feature and only available with Viiiiva. The user has multiple methods of providing input to the device. These methods include tapping the device to wake up your iPhone or changing the settings within the Viiiiva using a phone app. The system supports ANT+ sensors such as foot-pods, bike speed/cadence, and bike power meters. The system will be used on the body in indoor and outdoor environments. It will also be subjected to sweat. Environmental Operating temperature: -10C to + 50C Storage temperature: -20C to + 70C Electrical Operating battery life: 200h minimum. 300h-365h desired. Standby battery life: 1 year minimum. 1.5 – 2 years desired at full battery. Battery type: CR2032 coin cell lithium battery RF communi cation The V100 implements two radios on a PCB with one antenna. The two radios implement ANT wireless and Multi- protocol Bluetooth low energy (BTLE) wireless. Both radios use 4dBm transmit drive (2.5mW). Frequency deviation is defined as the channel bandwidth about the carrier frequency: ±170kHz. The modulation used is Gaussian Frequency Shift Keying (GFSK). The unit can support up to 8 independent ANT communication channels open at a time. Each channel can be configured to a different purpose including ANT+ transmitter (Tx), or ANT+ receiver (Rx), and ANT-FS. Channels are shared with the time division multiple access (TDMA) scheme. The Tx and Rx frequency used by ANT+ is 2457MHz. ANT-FS uses the frequency 2450MHz for reception at 32bps. For data transfer, the frequency switches to anywhere on the 2.4GHz ISM Band (2403MHz-2481MHz) at rates up to 20kbps. The BTLE uses a variant of the frequency hopping spread spectrum (FHSS) scheme. Therefore the radio maintains one RF link with a single device at multiple frequencies. During advertising mode the frequencies used are 2402 MHz, 2426MHz, and 2480MHz. The maximum data rate during advertising is 8kbps. During data transfer the frequencies used are the even multiples of 2MHz from 2402MHz to 2480MHz. The maximum data rate during data transfer is 21.280kbps. Dynamic frequency selection is employed if the current channel used is crowded. It will switch to any of the other data transfer frequencies. Accelerometer functi on The accelerometer shall be able to detect single taps, double taps and triple taps from the left or right faces of the module. The accelerometer may not require calibration, but requires verification after ultrasonic welding. Flash memory The flash memory will mostly be used to hold workout session files (.fit). The memory will consist of 2x256kB of memory. Colours The product colours shall be non-metallic, RoHS compliant process black and Red PMS485C for logo and other markings. For small text, process white may be used. Highlight text shall be in Red PMS485C. Text may be laser etched. Main module constru ction The Viiiiva plastics consist of two half modules to encase the PCB. The battery door will be removable with a coin another coin cell battery. All dimensions minimized as much as possible. The two module halves shall be ultrasonically welded together. HRM soft strap The Viiiiva is worn by the user by snapping the main module into a soft fabric strap that is worn around the chest. The soft strap shall be comfortable and made out of an elastic fabric to minimize chance of chaffing. Packaging The contents stored within the packaging shall include: main unit, HRM soft strap, and manual.

Global EMC Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal:6.13(dBm) Maximum peak output power at antenna input terminal:4.10204103(mW) Antenna gain(typical):-5.2(dBi) Maximum antenna gain:0.30199517(numeric) Time Averaging:12.3(%) Prediction distance:0.2(cm) Prediction frequency:2450(MHz) MPE limit for uncontrolled exposure at prediction frequency:1(mW/cm^2) Power density at prediction frequency:0.303134(mW/cm^2) Margin of compliance:-5.2(dB) This equates to3.03134423W/m^2PASS For informationThis equates to33.8055731V/m Note: This device does not exceed the limit as per FCC KDB 447498 ver. 5, Appendix A so it is allowable to be used in portable exposure conditions with no restrictions on host platforms 2 4R PG S  

LAB REGISTRATION #6844A-2 FCC REGISTRATION #612361 Testing Laboratory Certificate #2555.01 Page 1 of 61 Report issue date: 2/6/2013 GEMC File #:GEMC-FCC-21198R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2011 Unlicensed Intentional Radiators on the 4iiii Innovations V100 – Viiiiva 100 Raymond Lee Au Project Engineer Global EMC Inc. 180 Brodie Drive, Unit 2 Richmond Hill, ON, L4B 3K8 Canada Ph: (905) 883-8189 Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details. Client 4iiii Innovations Inc. Product V100 – Viiiiva 100 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2011 Page 2 of 61 Report issue date: 2/6/2013 GEMC File #: GEMC-FCC-21198R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Radiated Emissions .......................................................................................................... 13 Appendix A – EUT Summary .............................................................................................. 55 Appendix B – EUT and Test Setup Photographs................................................................. 56 Client 4iiii Innovations Inc. Product V100 – Viiiiva 100 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2011 Page 3 of 61 Report issue date: 2/6/2013 GEMC File #: GEMC-FCC-21198R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the 4iiii Innovations V100 – Viiiiva 100, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2011 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client 4iiii Innovations Inc. Product V100 – Viiiiva 100 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2011 Page 4 of 61 Report issue date: 2/6/2013 GEMC File #: GEMC-FCC-21198R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: ZZNV100 EUT Industry Canada Certification #, IC: 9896A-V100 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Raymond Lee Au Client 4iiii Innovations Inc. Product V100 – Viiiiva 100 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2011 Page 5 of 61 Report issue date: 2/6/2013 GEMC File #: GEMC-FCC-21198R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.207 RSS 210 Power Line Conducted Emissions QuasiPeak Average N/A See Justifications FCC 15.209 RSS-210 (Table 2) Spurious Radiated emissions QuasiPeak Average Pass FCC 15.249(a) RSS-210 A2.9(a) Fundamental/Harmonic limits Peak Average Pass Overall Result PASS Client 4iiii Innovations Inc. Product V100 – Viiiiva 100 Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2011 Page 6 of 61 Report issue date: 2/6/2013 GEMC File #: GEMC-FCC-21198R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. All tests were performed by Raymond Lee Au. If the product as …

Text truncated - open the document above for the full version.

Radiated Emissions Photo 1 Radiated Emissions Photo 2 Radiated Emissions Photo 3
