Quick Start Guide LIO-L09 LIO-L29 Know Your Device Before using the device, familiarize yourself with its basic operations. •To power on your device, press and hold the power button until the screen turns on. •To power off your device, press and hold the power button, and then touch . •To restart your device, press and hold the power button, and then touch . •Press and hold the power button for 10 or more seconds to forcibly restart your device. NFCNFCNFC Power button Type-C port / Headset jack Card slotIn-screen fingerprint •Please keep the NFC area close to other devices or objects while using the NFC function. •Your device uses an in-screen volume slider. For details about how to adjust the volume, check out the pre-installed Tips app, which introduces you to all the great features on your device. 1 Getting Started •Ensure that the card is correctly aligned and its notch is first inserted into the card tray. •Be careful not to scratch your device or hurt yourself when using the eject pin. •Store the eject pin out of the reach of children to prevent accidental swallowing or injury. •Do not use cut or modified SIM or NM cards (nano memory cards) with your device as these may not be recognized and could damage the card tray (slot). •If your SIM card does not match your device, please contact your carrier. Follow the instructions in the following figures to set up your device. Please use the eject pin included. Single-SIM: 3 2 1 Dual-SIM: 3 2 1 2 Dual SIM Card Management (dual-SIM devices only) Your device supports dual SIM dual standby. Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app. •4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service. •4G service may be unavailable in certain areas due to network interference. •If this guide is inconsistent with the description on the official website, the latter prevails. 3 For More Information If you encounter any problems while using your device, you can obtain help from the following resources: •Visit http://consumer.huawei.com/en to view device information, frequently asked questions and other information. •Visit http://consumer.huawei.com/en/support for the most up-to-date contact information for your country or region. Go to Settings and enter keywords in the search box to view the corresponding information: •Legal: to view legal information for your product. •Safety information: to view safety information for your product. •Authentication info: to view regulatory information for your product. •Certification logos: to view more information on certification logos for your product. All pictures and illustrations in this guide, including but not limited to the device color, size, and display content, are for your reference only. The actual device may vary. Nothing in this guide constitutes a warranty of any kind, express or implied. 4 Safety Information Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly. Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. •Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards. •Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C. •Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. •Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators. •Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. •While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. •To prevent damage to your device's parts or internal circuits, do not use it in dusty, smoky, damp, or dirty environments or near magnetic fields. •When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible. •Unplug the charger from electrical outlets and the device when not in use. 5 •Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. •Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards. •This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact a Huawei authorized service center for a replacement. •Your device has been tested in a controlled environment and certified to be splash, water, and dust resistant in specific situations (meets requirements of classification IP68 as described by the international standard IEC 60529). Splash, water, and dust resistance are not permanent conditions and resistance might decrease as a result of normal wear. Do not charge your device in wet conditions. Visit http://consumer.huawei.com/en/ support for detailed description of this functi…

Text truncated - open the document above for the full version.

18_Confidentiality Letter V1.0 Huawei Technologies Co.,Ltd. Federal Communications Commission Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: QISLIO-LX9 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2020-02-29 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. 严禁扩散 仅供莱茵使用 华为信息资产 18_Confidentiality Letter V1.0 Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226 严禁扩散 仅供莱茵使用 华为信息资产

23_Electronic Label Letter V1.0 Huawei Technologies Co.,Ltd. Federal Communications Commission 2020-01-20 Oakland Mills Road Columbia MD 21046 Subject: Electronic Label Letter FCC ID: QISLIO-LX9 To Whom It May Concern: Pursuant to the provisions of KDB 784748 D02 e labeling v01, we hereby provide the following statement: This device have a integrated display screen can present the required label information electronically (e-label) in lieu of a physical label or nameplate. The end user can access the electronic label with three steps. The information of electronic label is programmed by Huawei, any can’t be modified by any third party. If have any questions concerning the above, please contact the undersigned. Best Regards Zhang Xinghai EMC Laboratory Manager Huawei Technologies Co., Ltd. E-mail: [email protected] Tel: 0086-0755-28970299 Fax: 0086-0755-89650226 严禁扩散 仅供莱茵使用 华为信息资产

SECRE T Page1,Total2 The mobile phone LIO-L29 and LIO-L09 are LTE/UMTS/GSM mobile phone with Bluetooth. The differences between LIO-L29 and LIO-L09 are showed in the following table. LIO-L09 delete one SIM by software. Other parts of the mobile phone are the same, including the appearance, the antenna, Chipset, Bluetooth mode, Wifi mode, Adapter, Battery, and so on. LIO-L29 LIO-L09 GSM four bands the same the same WCDMA bands the same the same LTE bands the same the same SIM card Two One NFC the same the same External camera the same the same internal camera the same the same FLASH the same the same Mainboard the same the same PCB layout the same the same Appearanc e the same the same Bluetooth mode the same the same WLAN mode the same the same BT/ WLAN antenna the same the same 严禁扩散 仅供莱茵使用 华为信息资产 SECRE T Page2,Total2 GSM/ WCDMA /LTE antenna the same The same Adapter the same the same Battery the same the same Chipset the same the same Memory the same the same RF Parameter the same the same Dimension the same the same Main Frequency NV the same the same 严禁扩散 仅供莱茵使用 华为信息资产

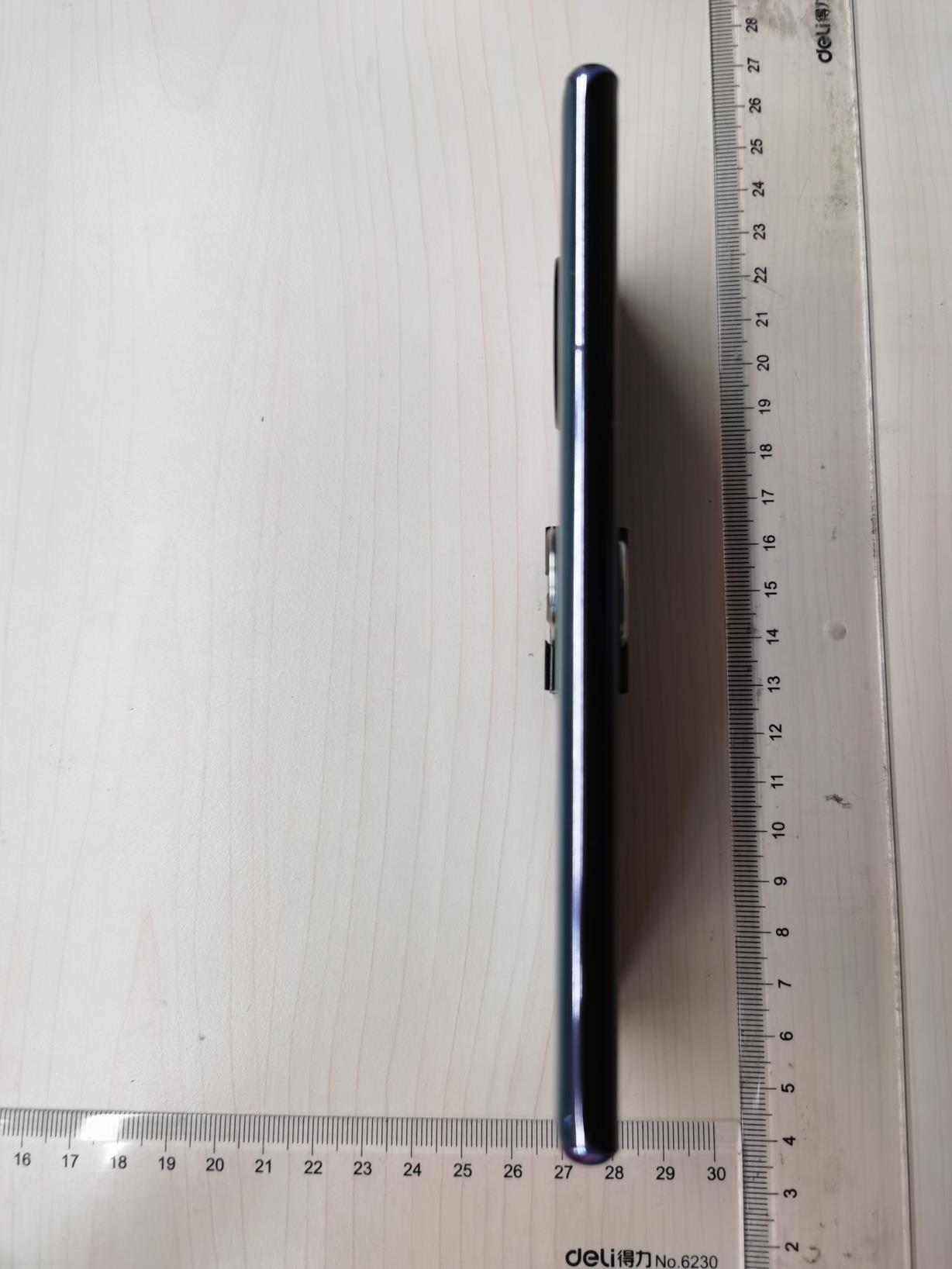

01_External Photos V1.0 External Photos of LIO-L29/LIO-L09 Front: 严禁扩散 仅供莱茵使用 华为信息资产 01_External Photos V1.0 Back: 严禁扩散 仅供莱茵使用 华为信息资产 01_External Photos V1.0 Left Side: 严禁扩散 仅供莱茵使用 华为信息资产 01_External Photos V1.0 Right Side: 严禁扩散 仅供莱茵使用 华为信息资产 01_External Photos V1.0 Top: 严禁扩散 仅供莱茵使用 华为信息资产 01_External Photos V1.0 Bottom: 严禁扩散 仅供莱茵使用 华为信息资产

02_Label and Label Location V1.0 Label and Label Location of LIO-L29/LIO-L09 LIO-L29 LIO-L09: 严禁扩散 仅供莱茵使用 华为信息资产 02_Label and Label Location V1.0 Detail of label Go to Settings and touch System > Certification logos to view more information on certification logos for your product. 严禁扩散 仅供莱茵使用 华为信息资产 02_Label and Label Location V1.0 严禁扩散 仅供莱茵使用 华为信息资产

02_Internal Photos V1.0 Internal Photos of LIO-L29/LIO-L09 严禁扩散 仅供莱茵使用 华为信息资产 02_Internal Photos V1.0 严禁扩散 仅供莱茵使用 华为信息资产 02_Internal Photos V1.0 严禁扩散 仅供莱茵使用 华为信息资产 02_Internal Photos V1.0 严禁扩散 仅供莱茵使用 华为信息资产

SAR TEST REPORT Applicant Huawei Technologies Co., Ltd. FCC ID QISLIO-LX9 Product Smart Phone Model LIO-L29, LIO-L09 Report No. R1910H0225-S1V2 Issue Date January 21, 2020 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528- 2013, ANSI C95.1: 1992/IEEE C95.1: 1991. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Performed by: Yu Wang Approved by: Guangchang Fan TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 FCC SAR Test Report Report No.: R1910H0225-S1V2 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 2 of 434 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 4 1.1 Notes of the Test Report ......................................................................................................... 4 1.2 Testing Location ...................................................................................................................... 4 1.3 Laboratory Environment .......................................................................................................... 4 2 Statement of Compliance ............................................................................................................... 5 3 Description of Equipment under Test .............................................................................................. 7 4 Test Specification, Methods and Procedures ............................................................................... 10 5 Operational Conditions during Test ............................................................................................... 11 5.1 Test Positions ......................................................................................................................... 11 5.1.1 Against Phantom Head ................................................................................................... 11 5.1.2 Body Worn Configuration ................................................................................................ 11 5.1.3 Phablet SAR test considerations ................................................................................... 12 5.2 Measurement Variability ........................................................................................................ 13 5.3 Test Configuration ................................................................................................................. 14 5.3.1 GSM Test Configuration .................................................................................................. 14 5.3.2 UMTS Test Configuration ................................................................................................ 14 5.3.3 LTE Test Configuration .................................................................................................... 18 5.3.4 Additional requirements for TDD LTE specification .................................................... 19 5.3.5 Wi-Fi Test Configuration .................................................................................................. 22 5.3.6 Bluetooth Test Configuration .......................................................................................... 25 5.3.7 LTE CA and downlink 4 x 4 MIMO specification .......................................................... 26 5.3.8 Power Reduction Configuration ..................................................................................... 53 5.3.9 Proximity sensor Configuration ...................................................................................... 58 6 SAR Measurements System Configuration .................................................................................. 70 6.1 SAR Measurement Set-up .................................................................................................... 70 6.2 DASY5 E-field Probe System ................................................................................................ 71 6.3 SAR Measurement Procedure .............................................................................................. 72 7 Main Test Equipment .................................................................................................................... 74 8 Tissue Dielectric Parameter Measurements & System Verification .............................................. 75 8.1 Tissue Verification ................................................................................................................. 75 8.2 System Performance Check .................................................................................................. 77 8.3 SAR System Validation ......................................................................................................... 81 9 Normal and Maximum Output Power ........................................................................................... 82 9.1 GSM Mode ............................................................................................................................ 82 9.2 WCDMA Mode .................................................................................................................... .. 87 9.3 LTE Mode .............................................................................................................................. 95 9.3.1 LTE Single Carrier ........................................................................................................... 95 9.3.2 Conducted power measurements of Downlink LTE CA ........................................... 303 9.3.3 Conducted power measurements of LTE Downlink 4x4 MIMO ..........…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 1 of 2 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX A: Test Layout FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 2 of 2 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Tissue Simulating Liquids For the measurement of the field distribution inside the flat phantom with DASY, the phantom must be filled with around 25 liters of homogeneous body tissue simulating liquid. For Head and Body SAR testing, the liquid height from the center of the flat phantom to the liquid top surface is larger than 15 cm, which is shown in Picture 3 and Picture 4. Picture 3: liquid depth in the head Phantom Picture 4: Liquid depth in the flat Phantom

FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 1 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX B: System Check Results Plot1 System Performance Check at 750 MHz Head TSL DUT: Dipole 750 MHz; Type: D750V3; Serial: D750V3 Date: 7/20/2019 Communication System:CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.88 S/m; ε r = 42.3; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.54, 9.54, 9.54); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) d=15mm,Pin=250mW/Area Scan (41x121x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.29 W/kg d=15mm,Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.653 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.16 W/kg SAR(1 g) = 2.13 W/kg; SAR(10 g) = 1.41 W/kg Maximum value of SAR (measured) = 2.29 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 2 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot2 System Performance Check at 750 MHz Head TSL DUT: Dipole 750 MHz; Type: D750V3; Serial: D750V3 Date: 8/4/2019 Communication System:CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.87 S/m; ε r = 42.0; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.54, 9.54, 9.54); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) d=15mm,Pin=250mW/Area Scan (41x121x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.31 W/kg d=15mm,Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 50.557 V/m; Power Drift = 0.11 dB Peak SAR (extrapolated) = 3.14 W/kg SAR(1 g) = 2.10 W/kg; SAR(10 g) = 1.37 W/kg Maximum value of SAR (measured) = 2.264 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 3 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 3 System Performance Check at 750 MHz Body TSL DUT: Dipole 750 MHz; Type: D750V3; Serial: D750V3 Date: 7/20/2019 Communication System:CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.95 S/m; ε r = 56.9; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.75, 9.75, 9.75); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) d=15mm, Pin=250mW/Area Scan (41x121x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.36 W/kg d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.998 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 3.24 W/kg SAR(1 g) = 2.22 W/kg; SAR(10 g) = 1.49 W/kg Maximum value of SAR (measured) = 2.39 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 4 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 4 System Performance Check at 750 MHz Body TSL DUT: Dipole 750 MHz; Type: D750V3; Serial: D750V3 Date: 8/1/2019 Communication System:CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium parameters used: f = 750 MHz; σ = 0.96 S/m; ε r = 54.5; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.75, 9.75, 9.75); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) d=15mm, Pin=250mW/Area Scan (41x121x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 2.34 W/kg d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 48.971 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 3.24 W/kg SAR(1 g) = 2.17 W/kg; SAR(10 g) = 1.46 W/kg Maximum value of SAR (measured) = 2.365 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 5 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot5 System Performance Check at 835 MHz Head TSL DUT: Dipole 835 MHz; Type: D835V2; Serial: D835V2 Date: 7/19/2019 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.88 S/m; ε r = 41.4; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(9.20, 9.20, 9.20); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) d=15mm, Pin=250mW/Area Scan (41x121x1):…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 101 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 101 UMTS Band II Top Edge Middle (Distance 10mm) Date: 7/28/2019 Communication System: UID 0, WCDMA II (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.42 S/m; ε r = 38.948; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.79, 7.79, 7.79); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Top Edge Middle/Area Scan (51x91x1): Interpolated grid: dx=10 mm, dy=10 mm Maximum value of SAR (interpolated) = 0.550 W/kg op Edge Middle/Zoom Scan(7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.14 V/m; Power Drift = -0.020 dB Peak SAR (extrapolated) = 0.784 W/kg SAR(1 g) = 0.473 W/kg; SAR(10 g) = 0.269 W/kg Maximum value of SAR (measured) = 0.518 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 102 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 102 UMTS Band IV Right Tilt Middle Date: 8/6/2019 Communication System: UID 0, WCDMA IV (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1733 MHz; σ = 1.312 S/m; ε r = 39.365; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(8.21, 8.21, 8.21); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Right Tilt Middle/Area Scan (71x121x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.489 W/kg Right Tilt Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.534 V/m; Power Drift = 0.020 dB Peak SAR (extrapolated) = 1.19 W/kg SAR(1 g) = 0.498 W/kg; SAR(10 g) = 0.255 W/kg Maximum value of SAR (measured) = 0.590 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 103 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 103 UMTS Band IV Right Tilt High (best acoustic position) Date: 8/6/2019 Communication System: UID 0, WCDMA II (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.42 S/m; ε r = 38.948; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Right Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(8.21, 8.21, 8.21); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Right Tilt High/Area Scan (71x131x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.612 W/kg Right Tilt High/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.505 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 1.27 W/kg SAR(1 g) = 0.524 W/kg; SAR(10 g) = 0.278 W/kg Maximum value of SAR (measured) = 0.613 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 104 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 104 UMTS Band IV Back Side Middle (Distance 15mm) Date: 7/30/2019 Communication System: UID 0, WCDMA IV (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1733 MHz; σ = 1.312 S/m; ε r = 39.365; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.86, 7.86, 7.86); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Back Side Middle/Area Scan (71x141x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.404 W/kg Back Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.071 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 0.566 W/kg SAR(1 g) = 0.368 W/kg; SAR(10 g) = 0.229 W/kg Maximum value of SAR (measured) = 0.397 W/kg FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 105 of 172 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 105 UMTS Band IV Back Side Middle (Distance 10mm) Date: 7/30/2019 Communication System: UID 0, WCDMA IV (0); Frequency: 1732.6 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1733 MHz; σ = 1.312 S/m; ε r = 39.365; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.86, 7.86, 7.86); Calibrated: 6/19/2019; Electronics: DAE4 SN1291; Calibrated: 12/4/2018 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.11 (7439) Back Side Middle/Area Scan (71x141x1): Interpolated grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.347 W/kg Back Side Middle/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=…

Text truncated - open the document above for the full version.

FCC SAR Test Report Report No.: R1910H0225 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 1 of 78 This report shall not be reproduced except in full, without the written a…
