OJF1LPRBuilding Wireless System (BWS) v1.0, Low Power Radio (LPR)

Building Wireless System (BWS) v1.0 Low Power Radio (LPR) User Manual Corning Optical Communications www.corning.com User Manual Corning Restricted and Confidential Proprietary Building Wireless System (BWS) v1.0 Low Power Radio (LPR) User Manual Proprietary Information The information contained in this document is the sole property of Corning. The Disclosure of this information does not constitute the release of any proprietary rights therein. Permission to reproduce this information or parts disclosed herein must be obtained in writing from Corning. User Manual v1.0 Corning Restricted and Confidential Proprietary - Controlled content BWS Draft2 LPR UM - 29-DEC-2019| September 2019 |Page 3 of 29 Preface Material Warranties Hardware Warranty Corning Optical Communications Wireless, Inc. (“Corning”)warrants to the original purchaser (“Customer”) that for the duration of the warranty period, one (1) year, commencing on the date of shipment of the Hardware, unless otherwise agreed in writing by Corning (the “Hardware Warranty Period”), the Hardware furnished by Corning shall be free in all material respects from defects in material and workmanship, and shall conform to the applicable portions of the Specifications, as defined below (the “Hardware Warranty”). If notified by Customer of any such defects in material or workmanship or nonconformity with applicable portions of the Specifications within the Hardware Warranty Period, Corning shall promptly, at its own election and expense, repair or replace any such Hardware proven to be defective under the terms of this Hardware Warranty. Such repair or replacement shall be Customer’s sole remedy and Corning’s sole obligation in the event this Hardware Warranty is invoked. If any components comprising a part of the Hardware are replaced or repaired during the Hardware Warranty Period, the Hardware Warranty Period for such repaired or replaced components shall extend to the longer of (i) the balance of the Hardware Warranty Period or (ii) three (3) months from the date of repair or replacement. For purposes of this Warranty, “Specifications” shall mean the specifications and performance standards of the Products as set forth in documents published by Corning and delivered to Customer which contain technical specifications or performance standards for the Products. If Customer invokes this Hardware Warranty, it shall notify Corning promptly of the claimed defect. Customer will allow Corning to inspect the Hardware at Customer’s location, or to return the Hardware to Corning’s closest repair facility. For Hardware returned to Corning’s repair facility, Customer shall be responsible for payment of all transportation and freight costs (including insurance) to Corning’s repair facility, and Corning shall be responsible for all transportation and freight costs (including insurance) incurred in connection with the shipment of such Hardware to other repair facilities of Corning and/or its return to Customer. Notwithstanding the foregoing, in no event will Corning be liable for damage to Products resulting from improper handling during or after shipment, misuse, neglect, improper installation, operation or repair (other than by authorized Corning personnel), alteration, accident, or for any other cause not attributable to defects in materials or workmanship on the part of Corning. Corning shall not reimburse or make any allowance to Customer for any labor charges incurred by Customer for replacement or repair of any goods unless such charges are authorized in advance in writing by Corning. Software Warranty Corning warrants to the original purchaser (“Customer”) that for the duration of the warranty period, one (1) year, commencing on the date of shipment of the Software, unless otherwise agreed in writing by Corning (the “Software Warranty Period”), the Software shall conform with, and perform the functions set forth in the Specifications, and shall be free from defects in material or workmanship (the “Software Warranty”). In the event the Software is proven to be defective under the terms of this Software Warranty, Corning shall correct such defects or failure and ensure that the Software conforms with, and performs the functions set forth in, the Specifications. Customer will allow Corning to inspect the Software at Customer’s location or to return it to Corning’s closest repair facility. Notwithstanding the foregoing, Corning shall have no obligation under the Software Warranty if the Software is modified or used with hardware or software not supplied or approved by Corning or if the Software is subject to abuse, improper installation or application, accident, electrical or environmental over-stress, negligence in use, storage, transportation or handling. Third-party software distributed with the Software may carry certain warranties which, to the maximum extent allowed by law, Corning hereby assigns, transfers and otherwise conveys to Customer, provided, however, that Corning itself provides no warranty of any kind, express, implied, statutory or otherwise, for any third-party software provided hereunder. Corning does not warrant any hardware, software or services not provided by Corning. THIS WARRANTY IS THE ONLY WARRANTY MADE BY CORNING AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. CORNING SHALL NOT BE LIABLE FOR ANY OTHER DAMAGE INCLUDING, BUT NOT LIMITED TO, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH FURNISHING OF GOODS, PARTS AND SERVICE HEREUNDER, OR THE PERFORMANCE, USE OF, OR INABILITY TO USE THE GOODS, PARTS AND SERVICE. CORNING SALES AGENTS OR REPRESENTATIVES ARE NOT AUTHORIZED TO MAKE COMMITMENTS ON WARRANTY RETURNS. Returns above warranty, the following procedure shall be followed: 1. Return authorization is to be received from Corning prior to returning any unit. Advise Corning of…

Text truncated - open the document above for the full version.

© 2020 Corning Incorporated. All Rights Reserved. February 19, 2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OJF1LPR Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Long Term Confidentiality CONF APPENDIX LPR Schem.pdf CONF APPENDIX LPR PartLst.pdf CONF APPENDIX LPR BlkDia.pdf CONF APPENDIX LPR OpDes.pdf CONF APPENDIX LPR TunPro.pdf Short Term Confidentiality CONF APPENDIX LPR UserMan.pdf – 180 days from issuance of Grant The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Thank you Company: Corning Optical Communications Wireless Authorized Signature: Printed Name: Isaac Nissan Date: February 19, 2020

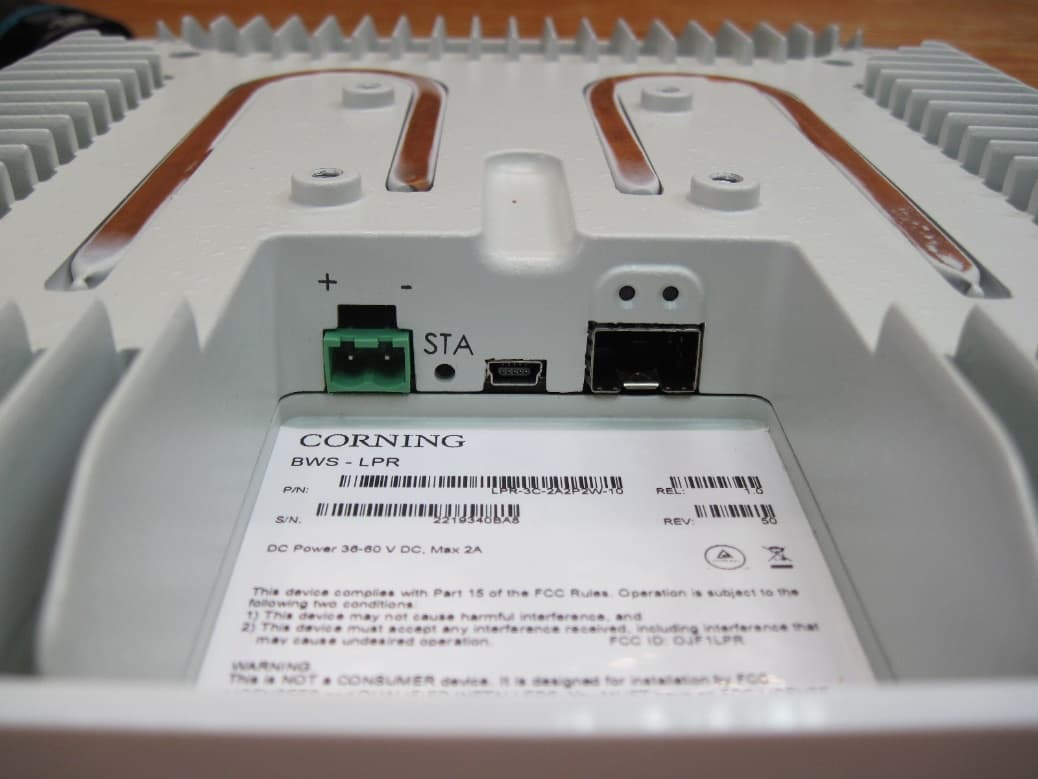

Label Location

2 1 cm mW 2 1 cm mW 2 1 cm mW R.F Exposure/Safety Calculation for LPR The E.U.T. is ceiling mounted. The typical distance between the E.U.T. and the general population is >50cm. Calculation of Maximum Permissible Exposure (MPE) Based on Section 1.1310 Requirements a) 1. (WCS) FCC limit at 2357.5 MHz is: 2. (PCS) FCC limit at 1940.0 MHz is: 3. (AWS) FCC limit at 2155.0 MHz is: Using table 1 of Section 1.1310 limit for general population/uncontrolled exposures, the above level is an average over 30 minutes. (b)The power density produced by the E.U.T. is P t - Transmitted Peak Power (worst case) (antenna gain already included) R- Distance from Transmitter 50 cm (c ) Peak power density at worst case continuous transmission: Band Modulation P t (dBm) P t (mW) R (cm) S AV (mW/cm 2 ) Limit (mW/cm 2 ) WCS QPSK 22.01 159 50 0.005061 1 16QAM 22.01 159 50 0.005061 1 64QAM 22.27 169 50 0.005379 1 PCS QPSK 25.51 356 50 0.011332 1 16QAM 25.56 360 50 0.011459 1 64QAM 25.56 360 50 0.011459 1 AWS QPSK 25.66 368 50 0.011714 1 16QAM 25.71 372 50 0.011841 1 64QAM 25.66 368 50 0.011714 1 (d) This is below the FCC limit. 2 4R GP S tt π =

Test Report E201741.01 Corning Optical Communication Wireless Page 1 of 85 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 30 January 2020 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Corning Optical Communication Wireless Equipment under test: Building Wireless System (BWS) v1.0 Low Power Radio (LPR) (PCS Section) Tested by: _____________________________ I. Kaganovich Approved by: _____________________________ D. Shidlowsky This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E201741.01 Corning Optical Communication Wireless Page 2 of 85 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning Optical Communication Wireless Building Wireless System (BWS) v1.0 Low Power Radio (LPR) FCC ID: OJF1LPR This report concerns: Original Grant: X Class II change: Class I change: Equipment type: Part 20 Industrial Booster (CMRS) Limits used: 47CFR Parts 2; 24 Measurement procedure used is KDB 935210 D05 v01r03 April 2019 and ANSI IEEE C63.26-2015 Substitution Method used as in ANSI TIA-603-E-2016 Application for Certification Applicant for this device: prepared by: (different from "prepared by") R. Pinchuck Isaac Nissan ITL (Product Testing) Ltd. Corning Optical Communication Wireless 1 Bat Sheva St. 8253 1 st Street Lod 7120101 Vienna, VA 22812 Israel U.S.A. e-mail [email protected] Tel: +1-703 855-1773 e-mail: [email protected] Test Report E201741.01 Corning Optical Communication Wireless Page 3 of 85 FCC ACC M Ver 1.1 05May 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION --------------------------------------------------------------------------------- 5 1.1 Administrative Information ............................................................................... 5 1.2 List of Accreditations ....................................................................................... 6 1.3 Product Description ......................................................................................... 7 1.4 Test Methodology ............................................................................................ 7 1.5 Test Facility ..................................................................................................... 7 1.6 Measurement Uncertainty ................................................................................ 7 2. SYSTEM TEST CONFIGURATION ---------------------------------------------------------------------- 8 2.1 Justification ...................................................................................................... 8 2.2 EUT Exercise Software ................................................................................... 8 2.3 Special Accessories ........................................................................................ 8 2.4 Equipment Modifications ................................................................................. 8 2.5 Configuration of Tested System .................................................................... 10 3. TEST SET-UP PHOTOS ---------------------------------------------------------------------------------- 12 4. RF POWER OUTPUT PCS ------------------------------------------------------------------------------- 15 4.1 Test Specification .......................................................................................... 15 4.2 Test Procedure .............................................................................................. 15 4.3 Test Limit ....................................................................................................... 15 4.4 Test Results .................................................................................................. 15 4.5 Test Equipment Used; RF Power Output PCS .............................................. 35 5. OCCUPIED BANDWIDTH PCS ------------------------------------------------------------------------- 36 5.1 Test Specification .......................................................................................... 36 5.2 Test Procedure .............................................................................................. 36 5.3 Test Limit ....................................................................................................... 36 5.4 Test Results .................................................................................................. 36 5.5 Test Equipment Used; Occupied Bandwidth.................................................. 47 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS PCS ------------------------------------ 48 6.1 Test Specification .......................................................................................... 48 6.2 Test Procedure .............................................................................................. 48 6.3 Test Limit ....................................................................................................... 48 6.4 Test Results .................................................................................................. 48 6.5 Test Equipment Used; Spurious Emissions at Antenna Terminals PCS ........ 61 7. BAND EDGE SPECTRUM PCS ------------------------------------------------------------------------ 62 7.1 Test Specification .......................................................................................... 62 7.2 Test Procedure .............................................................................................. 62 7.3 Test Limit ....................................................................................................... 62 7.4 Test Results .................................................................................................. 63 7.5 Test Equipment Used; Band Edge Spectrum PCS ........................................ 71 8. SPURIOUS RADIATED EMISSION PCS ------------------------------------------------------------ 72 8.1 Test Specification ......................................…

Text truncated - open the document above for the full version.

Test Report E201741.01 Corning Optical Communication Wireless Page 48 of 85 FCC ACC M Ver 1.1 05May 2000 6. Spurious Emissions at Antenna Terminals PCS 6.1 Test Specification FCC, Part 24, Subpart E Section 238, FCC Part 2.1051 6.2 Test Procedure (Temperature (22°C)/ Humidity (38%RH)) The E.U.T. antenna terminal was connected to the spectrum analyzer through an external attenuator and an appropriate coaxial cable (max loss =10.8 dB). The spectrum analyzer was set to 300Hz RBW for the frequency range 9.0-150.0 kHz, 10kHz for the frequency range 150.0kHz–30.0MHz, 100kHz for the frequency range 30.0–1000.0MHz, and 1MHz for the frequency range 1.0- 22.0 GHz. 6.3 Test Limit The power of any emission outside of the authorized operating frequency ranges (1930-1995MHz) must be attenuated below the transmitting power (P) by a factor of at least 43 + 10*log (P) dB, yielding –13dBm. 6.4 Test Results JUDGEMENT: Passed See additional information in Figure 126 to Figure 161. Test Report E201741.01 Corning Optical Communication Wireless Page 49 of 85 FCC ACC M Ver 1.1 05May 2000 Figure 126 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 5 MHz (Low) Figure 127 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 5 MHz (Mid) Figure 128 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 5 MHz (High) I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1932.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G20.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNING Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1962.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNING Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1992.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNING Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM Test Report E201741.01 Corning Optical Communication Wireless Page 50 of 85 FCC ACC M Ver 1.1 05May 2000 Figure 129 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 10 MHz (Low) Figure 130 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 10 MHz (Mid) Figure 131 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 10 MHz (High) I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1935MHz 9.0K100.0K1.0M10.0M100.0M1.0G20.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: I.Kaganovich Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1962.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: I.Kaganovich Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1990MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: I.Kaganovich Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM Test Report E201741.01 Corning Optical Communication Wireless Page 51 of 85 FCC ACC M Ver 1.1 05May 2000 Figure 132 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 15 MHz (Low) Figure 133 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 15 MHz (Mid) Figure 134 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 15 MHz (High) I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1937.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G20.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: I.Kaganovich Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1962.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: I.Kaganovich Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1987.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: I.Kaganovich Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM Test Report E201741.01 Corning Optical Communication Wireless Page 52 of 85 FCC ACC M Ver 1.1 05May 2000 Figure 135 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 20 MHz (Low) Figure 136 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 20 MHz (Mid) Figure 137 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 20 MHz (High) I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1940MHz 9.0K100.0K1.0M10.0M100.0M1.0G20.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company Name: CORNINGOperator: I.Kaganovich Company Name - CORNING Product Name - LPR P/N - 704R055003 Modulation - 16QAM I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 1962.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency …

Text truncated - open the document above for the full version.

Test Report E201740.00 Corning Optical Communication Wireless Page 1 of 85 FCC ACC M Ver 1.1 05Mayl 2000 DATE: 27 January 2020 I.T.L. (PRODUCT TESTING) LTD. FCC Radio Test Report for Corning Optical Communication Wireless Equipment under test: Building Wireless System (BWS) v1.0 Low Power Radio (LPR) (AWS-3 Section) Tested by: _____________________________ I. Kaganovich Approved by: _____________________________ D. Shidlowsky This report must not be reproduced, except in full, without the written permission of I.T.L. (Product Testing) Ltd. This report relates only to items tested. Test Report E201740.00 Corning Optical Communication Wireless Page 2 of 85 FCC ACC M Ver 1.1 05Mayl 2000 Measurement/Technical Report for Corning Optical Communication Wireless Building Wireless System (BWS) v1.0 Low Power Radio (LPR) FCC ID: OJF1LPR This report concerns: Original Grant: X Class II change: Class I change: Equipment type: Part 20 Industrial Booster (CMRS) Limits used: 47CFR Parts 2; 27 Measurement procedure used is KDB 935210 D05 v01r03 April 2019 and ANSI IEEE C63.26-2015 Substitution Method used as in ANSI TIA-603-E-2016 Application for Certification Applicant for this device: prepared by: (different from "prepared by") R. Pinchuck Isaac Nissan ITL (Product Testing) Ltd. Corning Optical Communication Wireless 1 Bat Sheva St. 8253 1 st Street Lod 7120101 Vienna, VA 22812 Israel U.S.A. e-mail [email protected] Tel: +1-703 855-1773 E-mail: [email protected] Test Report E201740.00 Corning Optical Communication Wireless Page 3 of 85 FCC ACC M Ver 1.1 05May 2000 TABLE OF CONTENTS 1. GENERAL INFORMATION ----------------------------------------------------------------------------- 5 1.1 Administrative Information .......................................................................... 5 1.2 List of Accreditations .................................................................................. 6 1.3 Product Description .................................................................................... 7 1.4 Test Methodology ....................................................................................... 7 1.5 Test Facility ................................................................................................ 7 1.6 Measurement Uncertainty ........................................................................... 7 2. SYSTEM TEST CONFIGURATION ------------------------------------------------------------------ 8 2.1 Justification ................................................................................................. 8 2.2 EUT Exercise Software .............................................................................. 8 2.3 Special Accessories ................................................................................... 8 2.4 Equipment Modifications ............................................................................ 8 2.5 Configuration of Tested System ............................................................... 10 3. TEST SET-UP PHOTOS ------------------------------------------------------------------------------ 12 4. RF POWER OUTPUT AWS -------------------------------------------------------------------------- 15 4.1 Test Specification ..................................................................................... 15 4.2 Test Procedure ......................................................................................... 15 4.3 Test Limit .................................................................................................. 15 4.4 Test Results ............................................................................................. 16 4.5 Test Equipment Used; RF Power Output AWS ......................................... 36 5. OCCUPIED BANDWIDTH AWS -------------------------------------------------------------------- 37 5.1 Test Specification ..................................................................................... 37 5.2 Test Procedure ......................................................................................... 37 5.3 Test Limit .................................................................................................. 37 5.4 Test Results ............................................................................................. 37 5.5 Test Equipment Used; Occupied Bandwidth............................................. 48 6. SPURIOUS EMISSIONS AT ANTENNA TERMINALS AWS ------------------------------- 49 6.1 Test Specification ..................................................................................... 49 6.2 Test Procedure ......................................................................................... 49 6.3 Test Limit .................................................................................................. 49 6.4 Test Results ............................................................................................. 49 6.5 Test Equipment Used; Spurious Emissions at Antenna Terminals AWS .. 62 7. BAND EDGE SPECTRUM AWS -------------------------------------------------------------------- 63 7.1 Test Specification ..................................................................................... 63 7.2 Test Procedure ......................................................................................... 63 7.3 Test Limit .................................................................................................. 63 7.4 Test Results ............................................................................................. 64 7.5 Test Equipment Used; Band Edge Spectrum AWS .................................. 71 8. SPURIOUS RADIATED EMISSION AWS -------------------------------------------------------- 72 8.1 Test Specification ..................................................................................... 72 8.2 Test Procedure ......................................................................................... 72 8.3 Test Limit ............…

Text truncated - open the document above for the full version.

Test Report E201740.00 Corning Optical Communication Wireless Page 49 of 85 FCC ACC M Ver 1.1 05May 2000 6. Spurious Emissions at Antenna Terminals AWS 6.1 Test Specification FCC Part 27, Subpart C, Section: 27.53(h) 6.2 Test Procedure (Temperature (22°C)/ Humidity (38%RH)) The E.U.T. antenna terminal was connected to the spectrum analyzer through an external attenuator and an appropriate coaxial cable (max loss =10.8 dB). The spectrum analyzer was set to 300Hz RBW for the frequency range 9.0-150.0 kHz, 10kHz for the frequency range 150.0kHz–30.0MHz, 100kHz for the frequency range 30.0–1000.0MHz, and 1MHz for the frequency range 1.0- 22.0 GHz. 6.3 Test Limit The power of any emission outside of the authorized operating frequency ranges (2110-2200MHz) must be attenuated below the transmitting power (P) by a factor of at least 43 + 10*log (P) dB, yielding –13dBm. 6.4 Test Results JUDGEMENT: Passed See additional information in Figure 126 to Figure 161. Test Report E201740.00 Corning Optical Communication Wireless Page 50 of 85 FCC ACC M Ver 1.1 05May 2000 Figure 126 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 5 MHz (Low) Figure 127 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 5 MHz (Mid) Figure 128 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 5 MHz (High) I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 2112.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G20.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company: CORNING Company - CORNING Model name - LPR P/N - 704A055003 FCC ID Number - 101925005C ANT. Port - MIMO Modulation - 16QAM Operating BW - 5MHz Additional Equipment - I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 2155MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company: CORNING Company - CORNING Model name - LPR P/N - 704A055003 FCC ID Number - 101925005C ANT. Port - MIMO Modulation - 16QAM Operating BW - 5MHz Additional Equipment - I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 2197.5MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company: CORNING Company - CORNING Model name - LPR P/N - 704A055003 FCC ID Number - 101925005C ANT. Port - MIMO Modulation - 16QAM Operating BW - 5MHz Additional Equipment - Test Report E201740.00 Corning Optical Communication Wireless Page 51 of 85 FCC ACC M Ver 1.1 05May 2000 Figure 129 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 10 MHz (Low) Figure 130 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 10 MHz (Mid) Figure 131 Spurious Emissions at Antenna Terminals 16QAM, MIMO, 10 MHz (High) I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 2115MHz 9.0K100.0K1.0M10.0M100.0M1.0G20.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company: CORNING Company - CORNING Model name - LPR P/N - 704A055003 FCC ID Number - 101925005C ANT. Port - MIMO Modulation - 16QAM Operating BW - 10MHz Additional Equipment - I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 2155MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequency (Hz) -100.0 -90.0 -80.0 -70.0 -60.0 -50.0 -40.0 -30.0 -20.0 -10.0 0 10.0 20.0 30.0 40.0 50.0 Amplitude (dBm) Company: CORNING Company - CORNING Model name - LPR P/N - 704A055003 FCC ID Number - 101925005C ANT. Port - MIMO Modulation - 16QAM Operating BW - 10MHz Additional Equipment - I.T.L.-Israel Testing Laboratries FCC Part 24 and Part 2 Spurious emissions 2195MHz 9.0K100.0K1.0M10.0M100.0M1.0G10.0G Frequen…
