Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: Aug. 21, 2020 FCC ID: A3LSMG781U To whom it may concern: We, the undersigned, hereby authorize HCT Co., LTD to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by HCT Co., LTD on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Date: Aug 14, 2020 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 Attn: Office of Engineering and Technology HAC Attestation - FCC ID: A3LSMG781U To whom it may concern: Samsung Electronics Co. Ltd., hereby declares that the MIF values detailed below are based on worst case operating modes for all air interfaces for which the HAC rating is provided based on the current methodology for determining MIF values. Reference Test report Number(s): SPEAG test files UID Communication System Name MIF (dB) 10295-AAB CDMA2000, RC1, SO3, 1/8 th Rate 25 fr. 3.26 10021-DAC GSM-FDD (TDMA, GMSK) 3.63 10460-AAA UMTS-FDD (WCDMA,AMR) -25.43 10170-CAE LTE-FDD (SC-FDMA, 1 RB, 20 MHz, 16QAM) -9.76 10182-CAE LTE-FDD (SC-FDMA, 1 RB, 15 MHz, 16QAM) -9.76 10176-CAG LTE-FDD (SC-FDMA, 1 RB, 10 MHz, 16QAM) -9.76 10173-CAG LTE-TDD (SC-FDMA, 1 RB, 10 MHz, 16QAM) -1.44 10061-CAB IEEE 802.11b WiFi 2.4 GHz (DSSS, 11 Mbps) -2.02 10077-CAB IEEE 802.11g WiFi 2.4 GHz (DSSS/OFDM, 54 Mbps) 0.12 10591-AAB IEEE 802.11n (HT Mixed, 20MHz, MCS0, 90pc duty cycle) -5.59 10069-CAC IEEE 802.11a/n WiFi 5 GHz (OFDM, 54 Mbps) -3.15 10616-AAB IEEE 802.11ac WiFi (40MHz, MCS0, 90pc duty cycle) -5.57 10671-AAA IEEE 802.11ax (20MHz, MCS0, 90pc duty cycle) -5.58 10030-CAA IEEE 802.15.1 Bluetooth (GFSK, DH1) 1.02 10933-AAA 5G NR (DFT-s-OFDM, 1RB, 30 MHz, QPSK, 15 kHz) -15.06 10769-AAC 5G NR (CP-OFDM, 1RB, 20 MHz, QPSK, 15 kHz) -12.08 Sincerely, ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

DATE : Aug. 21, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: FCC ID: Request for Confidentiality A3LSMG781U To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeontong-gu, Suwon-si, Gyeonggi-do, 16677, Korea MPR Attestation letter for LTE - FCC ID : A3LSMG781U - IC : 649E-SMG781W To Whom it May Concern We attest the following regarding FCC ID A3LSMG781U, IC: 649E-SMG781W. 1.MPR is permanently implemented for all channel BWs, modulations, frequency bands and RB sizes. 2.A-MPR was disabled for all SAR test samples for SAR testing purposes only. 3.We confirm the specific MPR targets and tolerances shown in the SAR Report. All deviations in the power measurements from the specific MPR targets shown in the SAR Report are expected and within factory tolerances. 4.LTE Release 14 implementation is limited. The uplink does not support enhanced SC-FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. SVLTE is not supported as described in the operational description. 5.This device complies with FCC Part 27.75(a)(1) requirements: Mobile and portable stations that operate on any portion of frequencies in the paired 1755-1780 MHz and 2155-2180 MHz band must be capable of operating on all frequencies in the paired 1710-1780 MHz and 2110-2180 MHz band, using the same air interfaces that the equipment utilizes on any frequencies in the paired 1710-1780 MHz and 2110-2180 MHz band. 6.This device complies with FCC Part 27.77 requirements: Mobile and portable stations in the 1695-1710 MHz and 1755-1780 MHz bands may operate only when under the control of a base station. Base stations that enable mobile or portable equipment to operate in the 1695-1710 MHz and 1755-1780 MHz band are subject to prior coordination requirements. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Confidentail 7. LTE Band B40 of A3LSMG781U, All RB Configuration of 3GPP MPR is set to 0 ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Samsung Electronics Co., LTD. 12 9, Sa msu ng -ro , Yeongton g-gu Suwon-City, Gyeong gi-d o, 16677, Ko rea Date: June.18, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Subject: Label Statement FCC ID: A3LSMG781U To Whom it Ma y Concern We hereby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electr onic display to find the FCC ID per CFR 2. 935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug- ins. Per CFR 2.935(e), We, Samsung have programmed the e- label and it is not able to be modified by any third party. Per CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for in spection at the time of import. Shou ld you have any questions or comments concern ing the abov e, please contact the unde r signed. Sincerely, ---------------------------------------------------- Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

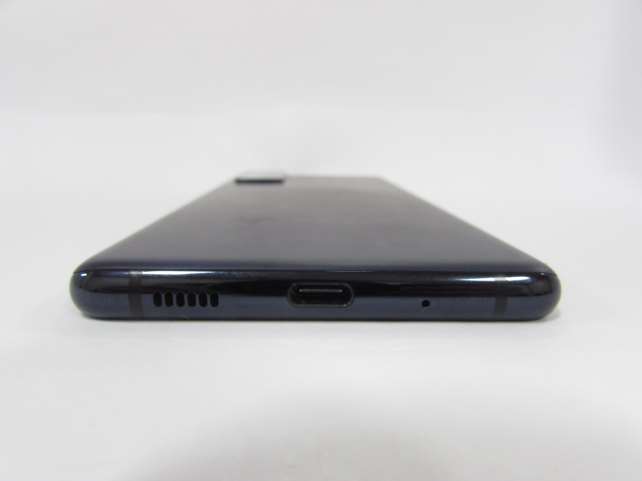

FCC ID: A3LSMG781U F-TP22-03 (Rev.00) 1 / 7 HCT CO.,LTD. EXTERNAL PHOTOGRAPHS FCC ID: A3LSMG781U F-TP22-03 (Rev.00) 2 / 7 HCT CO.,LTD. 1. External Photo (Front view) FCC ID: A3LSMG781U F-TP22-03 (Rev.00) 3 / 7 HCT CO.,LTD. 2. External Photo (Rear view) FCC ID: A3LSMG781U F-TP22-03 (Rev.00) 4 / 7 HCT CO.,LTD. 3. External Photo (Left side view) FCC ID: A3LSMG781U F-TP22-03 (Rev.00) 5 / 7 HCT CO.,LTD. 4. External Photo (Right side view) FCC ID: A3LSMG781U F-TP22-03 (Rev.00) 6 / 7 HCT CO.,LTD. 5. External Photo (Top view) FCC ID: A3LSMG781U F-TP22-03 (Rev.00) 7 / 7 HCT CO.,LTD. 6. External Photo (Bottom view)

FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 106 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 107 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 108 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 109 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 110 / 175 HCT CO.,LTD. Appendix G. – Dipole Calibration Data FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 111 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 112 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 113 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 114 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 115 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 116 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 117 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 118 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 119 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 120 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 121 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 122 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 123 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 124 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 125 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 126 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 127 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 128 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 129 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 130 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 131 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 132 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 133 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 134 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 135 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 136 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 137 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 138 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 139 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 140 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 141 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 142 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 143 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 144 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 145 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 146 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 147 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 148 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 149 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 150 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 151 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 152 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 153 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 154 / 175 HCT CO.,LTD. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 155 / 175 HCT CO.,LTD.

FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 1 / 15 HCT CO.,LTD. Appendix H. – Power reduction verification Per the May 2017 TCBC Workshop notes, demonstration of proper functioning of the power reduction mechanism is required to support the corresponding SAR Configurations. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 2 / 15 HCT CO.,LTD. 1. Power Reduction Verification for Main Ant This device utilizes a power reduction mechanism for some wireless modes and bands for SAR compliance under hotspot conditions and under some conditions when the device is being used in close proximity to the user’s hand for Main Ant1 The proximity sensor applied to this product has a higher priority than the Hotspot power reduction, so these two conditions do not work simultaneously. and In both cases, powers were reduced to the same Power level. All Hotspot SAR evaluations for this device were performed at the maximum allowed output Power when Hotspot is activated. FCC KDB Publication 616217D04v01r02 section 6 was used as a guideline for selection SAR test distances for this device when being used in phablet use conditions. For detailed measurement conducted power results, please refer to the Section .11 The verification process was divided into two parts: 1). Evaluation of output power levels for individual triggering mechanism 2) Evaluation of the triggering distances for proximity-based sensors. 1.1. Power Verification Procedure for Main Ant The Power verification was performed according to the following procedure: 1. A base station simulator was used to establish a conducted RF connection and output power was monitored. The Power measurements were conformed to be within expected tolerances for all states before and after a power reduction mechanism was triggered. 2. Step 1 was repeated for all relevant modes and frequency bands for the mechanism being investigated. 3. Step 1 and 2 were repeated for all individual power reduction mechanism and combinations thereof. For the combination cases, one mechanism was switched to a “triggered” state at a time; powers were conformed to be within tolerance after each additional mechanism was activated. FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 3 / 15 HCT CO.,LTD. Power Reduction Verification for MAIN ANT1 Mechanism(s) Mode/Band Conducted Power (dBm) Un-triggered (Max Power) Triggered (Reduced Power) Triggered (Reduced Power) Grip GSM850 /Voice 31.85 29.60 Grip GSM850 /GPRS 1Tx 31.88 29.59 Grip GSM850 /GPRS 2Tx 31.45 28.35 Grip GSM850 /GPRS 3Tx 29.23 26.48 Grip GSM850 /GPRS 4Tx 27.34 24.44 Grip GSM1900 /Voice 29.43 26.49 Grip GSM1900 /GPRS 1Tx 29.42 26.44 Grip GSM1900 /GPRS 2Tx 28.40 25.22 Grip GSM1900 /GPRS 3Tx 26.87 23.67 Grip GSM1900 /GPRS 4Tx 24.63 21.80 Grip PCS RC3/3 23.70 18.86 Grip PCS EVDO Rev.0 23.82 18.72 Grip PCS EVDO Rev.A 23.79 18.74 Grip WCDMA B2 23.51 18.66 Grip WCDMA B4 23.27 18.37 Grip LTE Band 2 24.30 17.99 Grip LTE Band 4 24.55 18.15 Grip LTE Band 7 22.81 19.62 Grip LTE Band 25 23.99 18.08 Grip LTE Band 30 23.58 19.63 Grip LTE Band 38 23.08 22.34 Grip LTE Band 41(Class 3) 23.74 22.42 Grip LTE Band 41(Class 2) 26.40 22.43 Grip LTE Band 66 24.65 18.42 Grip Sub 6 Band n2 25.23 19.02 Grip Sub 6 Band n25 25.12 19.24 Grip Sub 6 Band n41 24.09 21.44 Grip Sub 6 Band n66 24.87 19.34 Hotspot On GSM1900 /Voice 29.43 26.46 Hotspot On GSM1900 /GPRS 1Tx 29.42 26.45 Hotspot On GSM1900 /GPRS 2Tx 28.40 25.16 Hotspot On GSM1900 /GPRS 3Tx 26.87 23.66 Hotspot On GSM1900 /GPRS 4Tx 24.63 21.75 Hotspot On PCS RC3/3 23.70 18.81 Hotspot On PCS EVDO Rev.0 23.82 18.71 Hotspot On PCS EVDO Rev.A 23.79 18.72 Hotspot On WCDMA B2 23.51 18.57 Hotspot On WCDMA B4 23.27 18.35 Hotspot On LTE Band 2 24.30 18.00 Hotspot On LTE Band 4 24.55 18.20 Hotspot On LTE Band 7 22.81 19.65 Hotspot On LTE Band 25 23.99 18.11 Hotspot On LTE Band 30 23.58 19.64 Hotspot On LTE Band 38 23.08 22.37 Hotspot On LTE Band 41(Class 3) 23.74 22.38 Hotspot On LTE Band 41(Class 2) 26.40 22.39 Hotspot On LTE Band 66 24.65 18.47 FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) 4 / 15 HCT CO.,LTD. * LTE Band 40 supports MCC back off as a top priority Hotspot On Sub 6 Band n2 25.23 18.98 Hotspot On Sub 6 Band n25 25.12 19.22 Hotspot On Sub 6 Band n41 24.09 21.48 Hotspot On Sub 6 Band n66 24.87 19.34 Hotspot On, Then Grip GSM1900 /Voice 29.43 26.46 26.49 Hotspot On, Then Grip GSM1900 /GPRS 1Tx 29.42 26.45 26.44 Hotspot On, Then Grip GSM1900 /GPRS 2Tx 28.40 25.16 25.22 Hotspot On, Then Grip GSM1900 /GPRS 3Tx 26.87 23.66 23.67 Hotspot On, Then Grip GSM1900 /GPRS 4Tx 24.63 21.75 21.80 Hotspot On, Then Grip PCS RC3/3 23.70 18.81 18.86 Hotspot On, Then Grip PCS EVDO Rev.0 23.82 18.71 18.72 Hotspot On, Then Grip PCS EVDO Rev.A 23.79 18.72 18.74 Hotspot On, Then Grip WCDMA B2 23.51 18.57 18.66 Hotspot On, Then Grip WCDMA B4 23.27 18.35 18.37 Hotspot On, Then Grip LTE Band 2 24.30 18.00 17.99 Hotspot On, Then Grip LTE Band 4 24.55 18.20 18.15 Hotspot On, Then Grip LTE Band 7 22.81 19.65 19.62 Hotspot On, Then Grip LTE Band 25 23.99 18.11 18.08 Hotspot On, Then Grip LTE Band 30 23.58 19.64 19.63 Hotspot On, Then Grip LTE Band 38 23.08 22.37 22.34 Hotspot On, Then Grip LTE Band 41(Class 3) 23.74 22.38 22.42 Hotspot On, Then Grip LTE Band 41(Class 2) 26.40 22.39 22.43 Hotspot On, Then Grip LTE Band 66 24.65 18.47 18.42 Hotspot On, Then Grip Sub 6 Band n2 25.23 18.98 19.02 Hotspot On, Then Grip Sub 6 Band n25 25.12 19.22 19.24 Hotspot On, Then Grip Sub 6 Band n41 24.09 21.48 21.44 Hotspot On, Then Grip Sub 6 Band n66 24.87 19.34 19.34 Grip, then Hotspot On GSM1900 /Voice 29.43 26.49 26.49 Grip, then Hotspot On GSM1900 /GPRS 1Tx 29.42 26.44 26.44 Grip, then Hotspot On GSM1900 /GPRS 2Tx 28.40 25.22 25.22 Grip, then Hotspot On GSM1900 /GPRS 3Tx 26.87 23.67 23.67 Grip, then Hotspot On GSM1900 /GPRS 4Tx 24.63 21.80 21.80 Grip, then Hotspot On PCS RC3/3 23.70 18.86 18.86 Grip, then Hotspot On PCS EVDO Rev.0 23.82 18.72 18.72 Grip, then Hotspot O…

Text truncated - open the document above for the full version.

FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) Page 263 of 407 Appendix FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) Page 264 of 407 Appendix B. – SAR Test Plots FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) Page 265 of 407 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.6°C Ambient Temperature: 20.8°C Test Date: 08/13/2020 Plot No.: 1 DUT: SM-G781U; Type: Bar Communication System: UID 0, CDMA BC10 (FCC) (0); Frequency: 820 MHz;Duty Cycle: 1:1 Medium parameters used: f = 820 MHz; σ = 0.919 S/m; ε r = 42.868; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration:  Probe: ET3DV6 - SN1630; ConvF(6.96, 6.96, 6.96) @ 820 MHz; Calibrated: 2020-02-26  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2019-09-19  Phantom: SAM_Right_20170913  Measurement SW: DASY52, Version 52.10 (4); CDMA BC10 Head Right Touch SO55 RC3 560ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.294 W/kg CDMA BC10 Head Right Touch SO55 RC3 560ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.073 V/m; Power Drift = 0.15 dB Peak SAR (extrapolated) = 0.369 W/kg SAR(1 g) = 0.285 W/kg; SAR(10 g) = 0.221 W/kg Maximum value of SAR (measured) = 0.295 W/kg 0 dB = 0.295 W/kg = -5.30 dBW/kg FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) Page 266 of 407 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 21.0°C Ambient Temperature: 21.2°C Test Date: 08/04/2020 Plot No.: 2 DUT: SM-G781U; Type: Bar Communication System: UID 0, CDMA (0); Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.912 S/m; ε r = 42.466; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration:  Probe: EX3DV4 - SN3797; ConvF(9.03, 9.03, 9.03) @ 836.52 MHz; Calibrated: 2019-11-28  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn652; Calibrated: 2020-02-03  Phantom: Twin-SAM V5.0 (20deg probe tilt)  Measurement SW: DASY52, Version 52.10 (4); CDMA BC0 Head Right Touch EVDO Rev. A 384ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.228 W/kg CDMA BC0 Head Right Touch EVDO Rev. A 384ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.244 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.257 W/kg SAR(1 g) = 0.202 W/kg; SAR(10 g) = 0.156 W/kg Maximum value of SAR (measured) = 0.239 W/kg 0 dB = 0.228 W/kg = -6.42 dBW/kg FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) Page 267 of 407 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 20.7°C Ambient Temperature: 20.8°C Test Date: 08/12/2020 Plot No.: 3 DUT: SM-G781U; Type: Bar Communication System: UID 0, CDMA BC1(1900MHz) (0); Frequency: 1880 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1880 MHz; σ = 1.369 S/m; ε r = 40.062; ρ = 1000 kg/m 3 Phantom section: Left Section DASY Configuration:  Probe: ET3DV6 - SN1630; ConvF(5.63, 5.63, 5.63) @ 1880 MHz; Calibrated: 2020-02-26  Sensor-Surface: 4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn869; Calibrated: 2019-09-19  Phantom: SAM_Left_20170913  Measurement SW: DASY52, Version 52.10 (4); CDMA BC1 Head Left Touch EvDO Rev.A 600ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.118 W/kg CDMA BC1 Head Left Touch EvDO Rev.A 600ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.559 V/m; Power Drift = 0.17 dB Peak SAR (extrapolated) = 0.175 W/kg SAR(1 g) = 0.122 W/kg; SAR(10 g) = 0.078 W/kg Maximum value of SAR (measured) = 0.132 W/kg 0 dB = 0.132 W/kg = -8.79 dBW/kg FCC ID: A3LSMG781U Report No: HCT-SR-2008-FC014 F-TP22-03 (Rev.00) Page 268 of 407 Test Laboratory: HCT CO., LTD EUT Type: Mobile Phone Liquid Temperature: 21.1°C Ambient Temperature: 21.3°C Test Date: 08/03/2020 Plot No.: 4 DUT: SM-G781U; Type: Bar Communication System: UID 0, GSM 850 2Tx (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.14954 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.921 S/m; ε r = 42.679; ρ = 1000 kg/m 3 Phantom section: Right Section DASY Configuration:  Probe: EX3DV4 - SN3797; ConvF(9.03, 9.03, 9.03) @ 836.6 MHz; Calibrated: 2019-11-28  Sensor-Surface: 1.4mm (Mechanical Surface Detection)  Electronics: DAE4 Sn652; Calibrated: 2020-02-03  Phantom: Twin-SAM V5.0 (20deg probe tilt)  Measurement SW: DASY52, Version 52.10 (4); GSM 850 Head Right Touch 2Tx 190ch/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.227 W/kg GSM 850 Head Right Touch 2Tx 190ch/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.350 V/m; Power Drift = -0.16 dB Peak SAR (extrapolated) =…
