A3LWEA403EWLAN Access Point

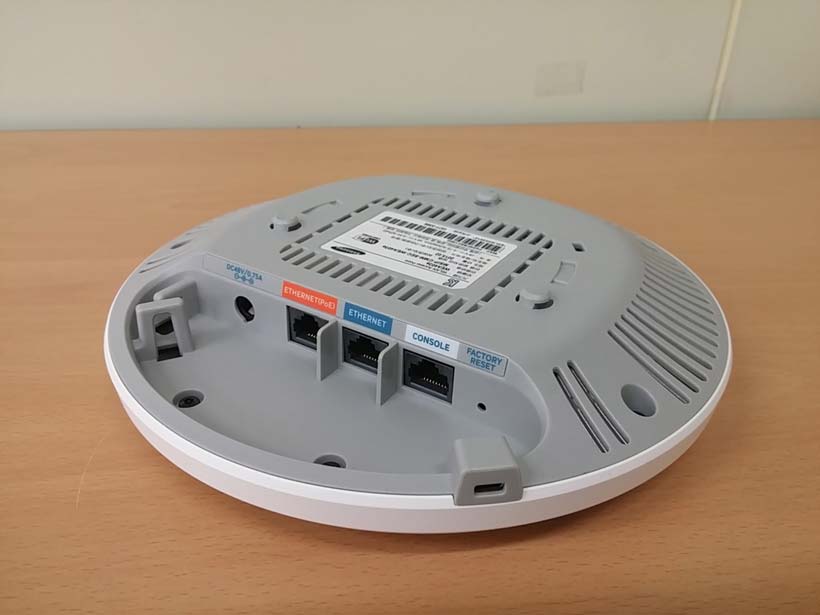

Names and Functions Front View Rear View Ethernet Port DC Input Ethernet Port (PoE) Factory Reset Switch Console Port Dust covers are installed on power ports (DC 48 V/0.75 A), Ethernet ports and console ports (CONSOLE). Remove the covers before use. Interface Port NameDescription Status LED Displays the status information of the WEA400 Series via LED. DC InputUsed when a power adapter is used for power supply. Ethernet Port (PoE)Supports 1000 BASE-T Gigabit Ethernet and PoE IEEE 802.3af/802.3at. Ethernet PortSupports 1000 BASE-T Gigabit Ethernet. Console Port Used for checking the operational status of the WEA400 series and for CLI input. Factory Reset Switch Used for initialization when commencing factory shipment of the WEA400 series. Status LED Introduction What is the WEA400 series? The WEA400 series is an AP for the Samsung WE wireless LAN, which connects a UE such as a smart phone, a tablet PC or a laptop that supports the wireless LAN to a wired network. The WEA400 series supports the following features: - IEEE 802.11a/b/g/n/ac standard - PoE (Power over Ethernet) IEEE 802.3af/802.3at - WEA412i: 2 × 2 MIMO (Multiple Input Multiple Output) - WEA403i/403e/413i: 3 × 3 MIMO (Multiple Input Multiple Output) - Wireless LAN through both 2.4 GHz and 5 GHz bandwidth simultaneously Components After unpacking the WEA400 series, check whether all of the following components are included. WEA403i/412i/413iWEA403e Common merchandise Mounting Bracket 5 M3 × L6 screws (Including 1 spare) Installation Manual Security Torx (T10) ScrewPlastic 4 anchors M4 × L28 4 screws - It is recommended to keep all packaging materials and the box. - The power adapter and the external antenna for WEA403e are sold separately. When necessary, please contact the place of purchase. This manual describes the configuration of the Wireless Enterprise WEA400 series and its installation procedures. The installation procedures are described based on the WEA403i/412i/413i configurations. The same installation procedures apply to the WEA403e model, except for the antenna installation. Installation The WEA400 series can be installed on ceilings or walls. Please check whether all the components are included before installation. Before Installation Safety Requirements Risks may be caused when the following safety warnings are not properly observed. For safe use, make sure to be well-informed. - There is an electrical risk with the product. Make sure that the power is off during installation and do not proceed with the installation when there is current leakage. Use of products with current leakage may cause serious electrical shock to the user. - Wear anti-static gloves or take appropriate actions to prevent ESD when handling the product. - Do not connect a phone line connector to the Etherner port. It may damage the product. - This product must be connected to ta power supply in compliance with IEEE 802.3af/at or to a limited power supply in compliance with IEC/EN/UL 60950-1. - This product must be installed or removed only by appropriately-trained service personnel. - This product operates with SELV (Safety Extra Low Voltage) according to IEC/EN/UL 60950-1. - All interconnecting equipment including this product must be installed within the same building. For details, refer to Environment A of IEEE 802.3af/at standard. - This product must be installed with at least 3 m or more distance from the WiMAX/3G/4G repeater or antenna. Installation Instructions The instructions below must be observed when installing. - It must be installed in a place that can be easily accessed for product installation, cable connection and maintenance. - The PoE LAN cable must be always installed away from any electrical interference source such as power lines, fluorescent lights or transmitters. - The PoE LAN cable must be CAT 5E or higher. - When PoE is unavailable, a power adapter (sold separately) can be used. The 3-pin (including ground) power socket that supplies 100~240 V AC, 50~60 Hz must be located within 2 m from each equipment and the power must be supplied through an independent circuit breaker. It is recommended to use the equipment that uses a filter or a surge. Installation on Ceilings (When the ceiling type is T-bar) - When incorrectly installed on the ceiling, the WEA400 series may drop onto a person or equipment. Therefore, make sure to fix it firmly. - If the ceiling type is not T-Bar, please refer to the ‘Installation Manual’ provided separately. For this installation manual, please contact the dealer. 1. Remove the holding tape that was attached to fix the ceiling clip. Holding tape 2. Open the ceiling clip so that it is wider than the width of the T-bar. 3. Move the ceiling clip so that it is appropriate for the T-bar width. Status LED LEDStatus Description System start status White On Initial LED status Blue On Device reset and test in progress Red On Booting failure (Device reset failure) Provisioning Status Red, green and off repeated APC connection in progress (Network link normal) Green blinking CAPWAP connection in progress (APC server connection normal) Normal operation status Green On When there is no connected wireless UE Blue On When there is a connected wireless UE Upgrade Green blinking Software upgrade in progress Error status Red blinking Physical connection error of network Yellow blinking IP address conflict Purple blinking Dynamic IP address allocation failure Bluish-green blinking Logical connection error of network Red, green and off repeated Wireless interface error WEA400 Series Quick Installation Manual 4. Use a hammer to insert 4 plastic anchors into the drilled holes on the wall. Align the inserted plastic anchors and the screw holes of the bracket. Fix the bracket to the wall by fastening four M4 × L28 screws. 5. Insert a LAN cable into the Ethernet port (PoE) on the back side of the WEA400 series. If PoE is not supported, connect the power adapter to the DC input on the back of the WEA400 series. The wal…

Text truncated - open the document above for the full version.

129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Tel No : +82-31-279-5687 Fax No : +82-31-279-2296 FCC UNII Device DFS Operation Declaration Date: June 18, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: WLAN Access Point / WEA403e Regarding restrictions for operation in the 5470 - 57250 MHz band; We declare that the device meets all requirements for operation in the 5470 - 5725 MHz band as specified in FCC KDB notice 443999 D01 Approval of DFS UNII Devices v01 "Interim Plans to Approve UNII Devices Operating in the 5470 - 5725 MHz Band with Radar Detection and DFS Capabilities". List of attachments and supporting documentation: FCC UNII Device DFS Operation Declaration [this document] FCC DFS 5600 - 5650 MHz Band Non-Transmission Declaration FCC DFS Uniform Spreading Declaration FCC Software Configuration Control Declaration Outdoor transmission in the 5470 - 5725 MHz band also requires: Professional Installation Training and Expertise Exhibit FCC TDWR 30 MHz Frequency Separation Exhibit Installation Manual User's Manual Name: CHANG SU CHONG Date: June 18, 2015 Title: Principal Engineer Signature of applicant

129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Tel No : +82-31-279-5687 Fax No : +82-31-279-2296 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Ref: FCC ID: A3LWEA403E Applicant; Samsung Electronics Co., Ltd. This letter serves as a request to the FCC Authorization and Evaluation Division to waive DFS radar testing required by KDB 388624 D01 Permit But Ask Procedure v10 on the WEA403e. Reasoning for Waiver: The WEA403e uses the same radio, chipset and solution as the WEA453e (FCC ID: A3LWEA453E) which was DFS Radar tested to the New Rules. Software which supports the DFS radar detection functionality is identical as well and has been adjusted for the different antennas used with the WEA403e per DFS test report #HCT-R-1501-F046-2 dated 06th Feb 2015 (New Rules). Sincerely, NAME: CHANHO, YOUN TITLE: Head of QA Lab (General Manager) Applicant: Samsung Electronics America, Inc Address: 19 Chapin Rd, Building D. Pine Brook, NJ 07058

129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Tel No : +82-31-279-5687 Fax No : +82-31-279-2296 MiCOM Labs Draft DofC 1.1 June 18, 2015 Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd Columbia, MD 21046 Subject: FCC ID: A3LWEA403E To Whom It May Concern: We hereby attest to the fact that we have applied the Declaration of Conformity procedure for a Class B Computer Peripheral to the digital portion of this composite filing. The procedures identified in 47CFR 2.948(d) and 2.948(e), along with the requirements listed in KDB 349827 have been followed. The report has been issued by [CTK Co., Ltd. / (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea] and can be identified by report number [CTK-2015- 00694]. Sincerely Yours, Name: CHANG SU CHONG Date: June 18, 2015 Title: Principal Engineer Signature of applicant

FCC Software Configuration Declaration Letter Rev1.0.docx SAMSUNG ELECTRONICS FCC Software Configuration Control Declaration Date: June 17, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: WLAN Access Point / WEA403e Regarding FCC Country Code Selection guidelines identified in KDB 594 280 "Country Code Selection". “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: CHANG SU CHONG Date: June 15, 2015 Title: Principal Engineer Signature of applicant

129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Tel No : +82-31-279-5687 Fax No : +82-31-279-2296 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2015-05-29 Subject; Request for Confidentiality FCC ID: A3LWEA403E To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. • Schematic Diagram • Block Diagram • Part List • Operational Description • Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission' s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705. • External Photos • Internal Photos • Test Setup Photos • User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: CHANG SU CHONG Title: Principal Engineer

129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Tel No : +82-31-279-5687 Fax No : +82-31-279-2296 Letter of Authorization Company: Samsung Electronics Co., Ltd. Address: 129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Product Name: WLAN Access Point Model Number: WEA403e FCC Identifier: A3LWEA403E We authorize MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM Labs Inc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name: CHANG SU CHONG Date: 2015-05-29 Title: Principal Engineer Signature of applicant:

129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Tel No : +82-31-279-5687 Fax No : +82-31-279-2296 Special Power of Attorney Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: WLAN Access Point / WEA403e I, CHANHO, YOUN of SAMSUNG Electronics Co., Ltd. hereby appoint CHANG SU CHONG of SAMSUNG Electronics Co., Ltd. to represent me to act on my behalf to do any and all of the following : Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The right, powers and authority in fact to exercise any and all of the rights and powers herein granted shell commence and be in full force from 06/23/2015 and continue to e effective unless specifically terminated by either party. This authorization is limited to the product of as following: FCC ID: A3LWEA403E Dated 06/23/2015, CHANHO, YOUN Sincerely,. NAME: CHANHO, YOUN TITLE: Head of QA Lab (General Manager) Applicant: Samsung Electronics America, Inc Address: 19 Chapin Rd, Building D. Pine Brook, NJ 07058

129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Tel No : +82-31-279-5687 Fax No : +82-31-279-2296 TPC Function Declaration Date: June 18, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: WLAN Access Point / WEA403e Regarding TPC (Transmit Power Control (TPC), U-NII devices operating in the 5.25-5.35 GHz band and the 5.47- 5.725 GHz band shall employ a TPC mechanism. The U-NII device is required to have the capability to operate at least 6 dB below the mean EIRP value of 30 dBm, We declare that the device will support TPC function in the 5.25- 5.35 GHz band and the 5.47-5.725 GHz band. Name: CHANG SU CHONG Date: June 18, 2015 Title: Principal Engineer Signature of applicant

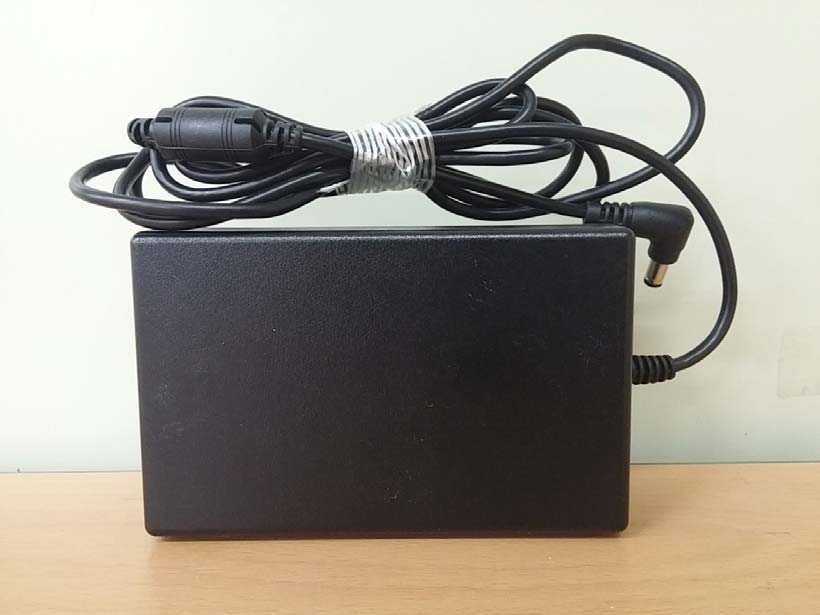

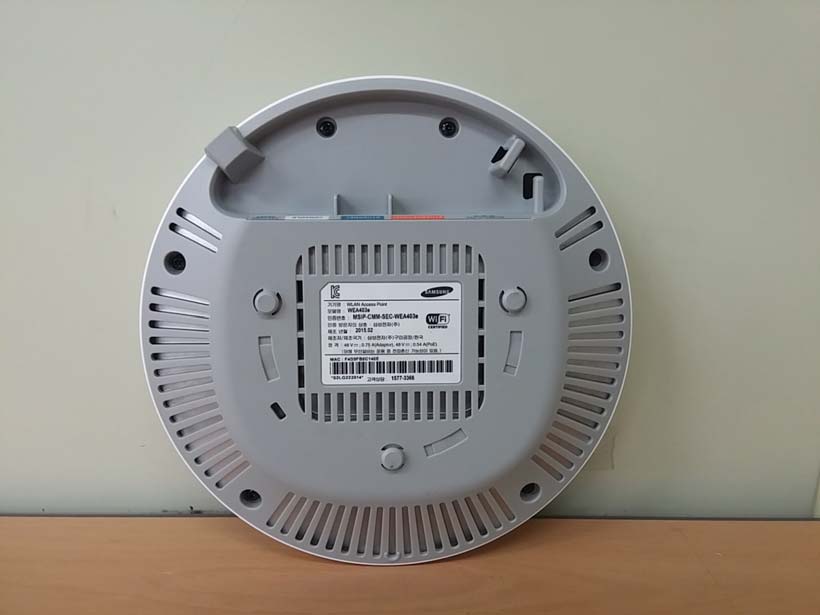

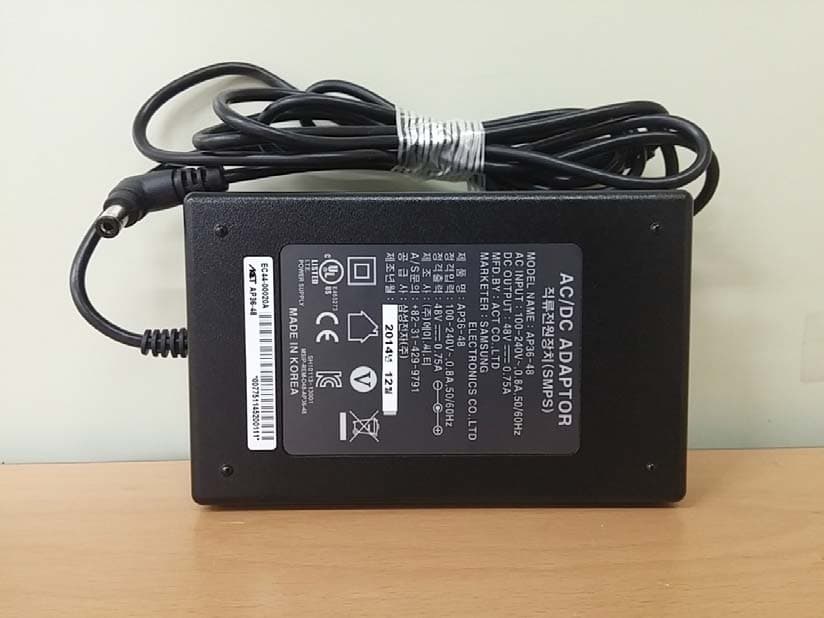

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Dipole Antenna (6 ea) Patch Antenna (2 ea) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Label Photographs

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com

CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 1 of 6 RF EXPOSURE EVALUATION Applicant : Samsung Electronics Co., Ltd. Applicant Address : 129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Kind of Product : WLAN Access Point Equipment model name : WEA403e Antenna type : Patch antenna (Worst Case) Antenna Gain : 6.5 dBi @2.4GHz, 7 dBi @5GHz (Patch) CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 2 of 6 ** MPE Calculations ** The EUT will only be used with a separation of 20 centimeters or greater between the antenna and the body of the user. The MPE calculation for this exposure is shown below. The peak radiated output power (EIRP) is calculated as follows: EIRP = P + G Where, P = Power input to the antenna (mW) G = Power gain of the antenna (dBi) The numeric gain(G) of the antenna with a gain specified in dB is determined by: G = Log -1 (dB antenna gain / 10) Power density at the specific separation: S = PG/(4R 2 π) Where, S = Maximum power density (mW/cm 2 ) P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) The Maximum permissible exposure (MPE) for the general population is 1 mW/cm 2 . The power density at 20cm does not exceed the 1 mW/cm 2 limit. Estimated safe separation: R = √(PG / 4π) Where, P = Power input to the antenna (mW) G = Numeric power gain of the antenna R = Distance to the center of the radiation of the antenna (20cm = limit for MPE) CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 3 of 6 ANT : A1 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11b 15.38 34.51 0.0307 3.50 802.11g 12.14 16.37 0.0145 2.41 802.11n HT20 12.20 16.60 6.5 0.0147 2.43 ANT : A2 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11g 11.21 13.21 0.0117 2.17 802.11n HT20 11.18 13.12 6.5 0.0117 2.16 ANT : A3 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11g 11.70 14.79 0.0131 2.29 802.11n HT20 11.61 14.49 6.5 0.0129 2.27 ANT : A1+A2+A3 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11g 16.47 44.36 0.1182 6.88 802.11n HT20 16.45 44.16 11.27 0.1177 6.86 ANT : M1 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11g 11.68 14.72 6.5 0.0131 2.29 ANT : M2 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11g 11.56 14.32 6.5 0.0127 2.26 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 4 of 6 ANT : M3 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11g 12.22 16.67 6.5 0.0148 2.43 ANT : M1+M2+M3 (2.4 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11g 16.56 45.29 11.27 0.1207 6.95 ANT : A1 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 8.87 7.71 0.0077 1.75 802.11n_HT20 8.84 7.66 0.0076 1.75 802.11n HT40 8.79 7.57 0.0075 1.74 802.11ac_VHT20 8.79 7.57 0.0075 1.74 802.11ac VHT40 8.91 7.78 0.0078 1.76 802.11ac VHT80 8.92 7.80 7.0 0.0078 1.76 ANT : A2 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 8.31 6.78 0.0068 1.64 802.11n_HT20 8.26 6.70 0.0067 1.63 802.11n HT40 8.36 6.85 0.0068 1.65 802.11ac_VHT20 8.21 6.62 0.0066 1.63 802.11ac VHT40 8.33 6.81 0.0068 1.65 802.11ac VHT80 8.20 6.61 7.0 0.0066 1.62 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 5 of 6 ANT : A3 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 8.24 6.67 0.0066 1.63 802.11n_HT20 8.14 6.52 0.0065 1.61 802.11n HT40 8.14 6.52 0.0065 1.61 802.11ac_VHT20 8.31 6.78 0.0068 1.64 802.11ac VHT40 8.03 6.35 0.0063 1.59 802.11ac VHT80 8.26 6.70 7.0 0.0067 1.63 ANT : A1+A2+A3 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 13.24 21.09 0.0631 5.02 802.11n_HT20 13.20 20.89 0.0625 5.00 802.11n HT40 13.12 20.51 0.0613 4.95 802.11ac_VHT20 13.22 20.99 0.0628 5.01 802.11ac VHT40 13.08 20.32 0.0608 4.93 802.11ac VHT80 13.15 20.65 11.77 0.0618 4.97 ANT : M1 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 8.99 7.93 7.0 0.0079 1.78 ANT : M2 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 9.05 8.04 7.0 0.0080 1.79 ANT : M3 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 9.58 9.08 7.0 0.0091 1.90 CTK Co., Ltd. 386-1, Ho-dong, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-339-9855 www.e-ctk.com Page 6 of 6 ANT : M1+M2+M3 (5 GHz) Mode P (dBm) P (mW) G (dBi) S (mW/cm 2 ) R (cm) 802.11a 13.99 25.06 11.77 0.0749 5.48 Multiple chain transmitters (2.4 GHz + 5 GHz) Mode P (dBm) P (mW) G (dBi) EIRP (mW) S (mW/cm 2 ) R (cm) A1+A2+A3(5 GHz) 13.22 20.99 11.77 315.50 A1+A2+A3 (2.4 GHz) 16.47 44.36 11.27 594.29 Combined 909.790 0.1810 8.51

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 1 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TEST REPORT For FCC FCC Standards : FCC 47CFR part 15 subpart E Industry Canada Standards :RSS-210 Issue 8 & RSS-GEN Issue 4 Test Report No. : CTK-2015-00676 Date of Issue : 2015-06-08 FCC ID : A3LWEA403E Certification Number IC : 649E-WEA403E Model/Type No. : WEA403e Kind of Product : WLAN Access Point Applicant : Samsung Electronics Co., Ltd. Applicant Address : 129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Manufacturer : Samsung Electronics Co., Ltd. Manufacturer Address : 129, Samsung-ro Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea, 443-742 Contact Person : CHANG SU CHONG / Principal Engineer Telephone : +82–31-279-5687 Received Date : 2015-03-10 Test period : Start : 2015-05-20 End : 2015-06-08 The test results presented in this report relate only to the object tested. Tested by Reviewed by Won-Jae, Hwang Test Engineer Young-Joon, Park Technical Manager Date: 2015-06-08 Date: 2015-06-08 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 2 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) REPORT REVISION HISTORY Date Revision Page No 2015-06-08 Issued (CTK-2015-00676) All This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 3 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) TABLE OF CONTENTS REPORT REVISION HISTORY..........................................................................................2 1.0 General Product Description ...............................................................................4 1.1 Tested Frequency .............................................................................................5 1.2 Device Modifications .........................................................................................6 1.3 Peripheral Devices ............................................................................................6 1.4 Calibration Details of Equipment Used for Measurement .........................................6 1.5 Test Facility.....................................................................................................6 1.6 Laboratory Accreditations and Listings .................................................................7 2 Summary of tests...................................................................................................8 2.1 Technical Characteristic Test ....................................................................................9 2.1.1 ON Time, Duty Cycle ......................................................................................9 2.1.2 6 dB Bandwidth ........................................................................................... 11 2.1.3 26 dB Bandwidth and 99% Bandwidth ........................................................ 27 2.1.4 OUTPUT POWER ....................................................................................... 70 2.1.5 Power Spectral Density............................................................................ 119 2.1.6 Frequency Stability ................................................................................. 167 2.1.7 Conducted Spurious Emissions ...................................................................... 168 2.1.8 Unwanted Emissions ............................................................................... 526 Test Data ........................................................................................................... 530 Test Data ........................................................................................................... 531 Test Data ........................................................................................................... 532 Test Data ........................................................................................................... 533 Test Data ........................................................................................................... 534 Test Data ........................................................................................................... 535 2.1.9 AC Conducted Emissions.......................................................................... 607 APPENDIX A – Test Equipment Used For Tests.............................................................. 610 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 4 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) 1.0 General Product Description Equipment model name WEA403e Serial number Prototype EUT condition Pre-production, not damaged Frequency Range UNII 1 : 5180 MHz – 5240 MHz (20 MHz_BW) 5190 MHz – 5230 MHz (40 MHz_BW) 5210 MHz (80 MHz_BW) UNII 2A : 5260 MHz – 5320 MHz (20 MHz_BW) 5270 MHz…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 60 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) Ant : A3_802.11n_HT40 (1) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 61 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) Ant : A3 _802.11n_HT40 (2) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 62 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) Ant : A3_802.11ac_VHT40 (1) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 63 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) Ant : A3 _802.11ac_VHT40 (2) Ant : A3_802.11ac_VHT80 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 64 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) Ant : M1_802.11a (1) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 65 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) Ant : M1 _802.11a (2) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Test Report No.: CTK-2015-00676 Date: 2015-06-08 Page 66 of 610 This Report shall not be reproduced except in full without the written approval of CTK Form No.: CTK-RF-EF-Part15 Subpart C(Rev.2) Ant : M2_802.11a (1) CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu…

Text truncated - open the document above for the full version.
